Product Description
Built for precision and daily productivity, this 2016 XCMG XE80 delivers dependable performance across construction and excavation sites. Operating at 8 tons with a 7,425 kg working weight, this machine combines Cummins B3.3 power (60 kW at 2,200 rpm) with Toshiba variable hydraulic systems for responsive control. Operators benefit from excellent visibility and stable platform design, essential for accurate digging and loading cycles in confined spaces.
- Bucket digging force: 53.6 kN; rod digging force: 39.2 kN
- Maximum digging reach: 6,375 mm; digging depth: 4,140 mm
- Water-cooled turbocharged 6-cylinder engine for consistent power delivery
- Plunger hydraulic motors for travel and rotation ensure smooth operation
- Low ground specific pressure (34.2 kPa) minimizes ground disturbance
- Compact transport dimensions: 6,155 mm (L) × 2,220 mm (W) × 2,610 mm (H)
- 35° climbing ability and 12 rpm rotation speed for versatile positioning
Currently located in Shanghai, this China-manufactured excavator offers reliable handling characteristics and straightforward maintenance access for operators focused on uptime and control.
| Specifications | Value |
|---|---|
| No. | 1015174 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

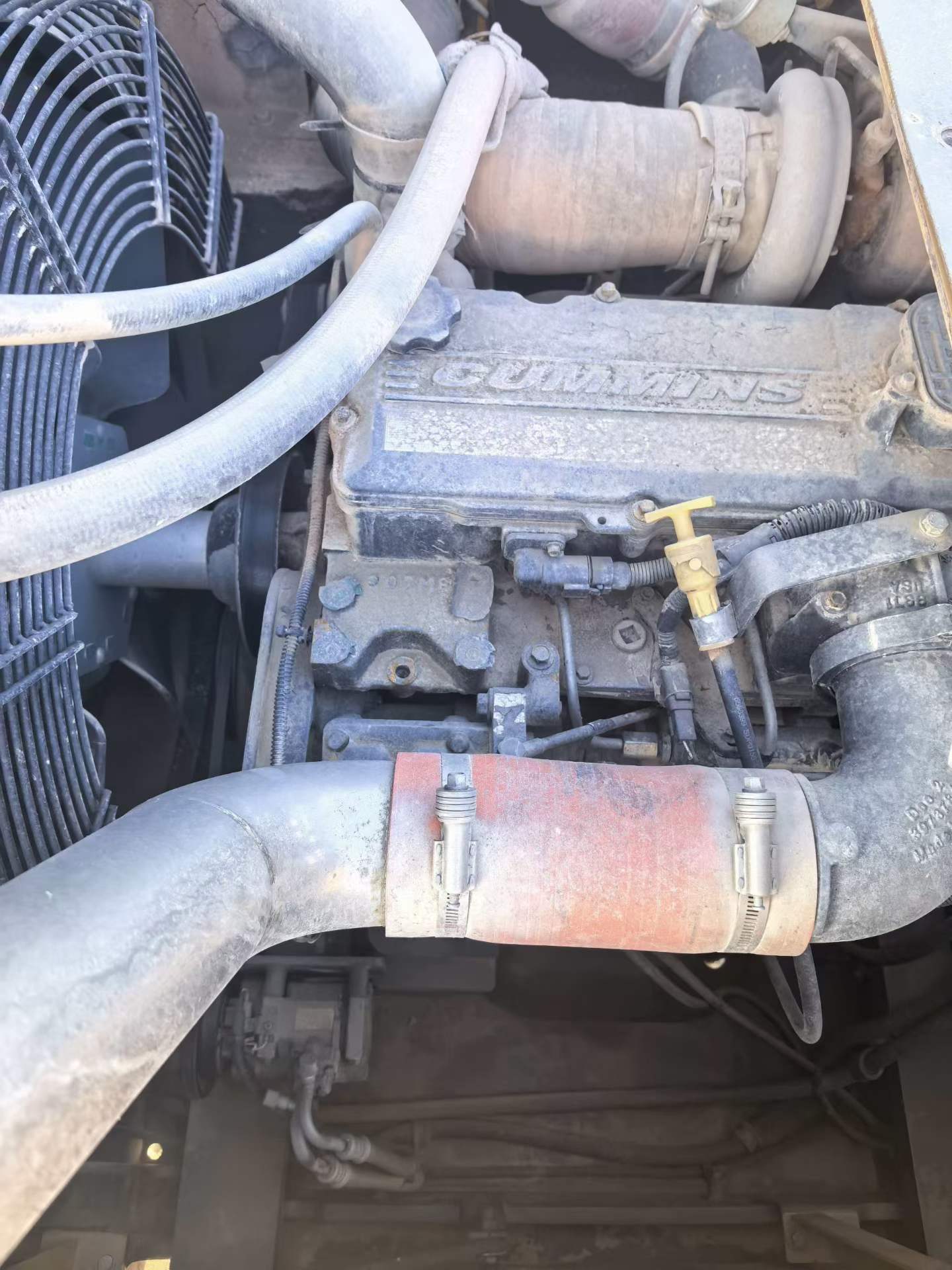

| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
