Product Description

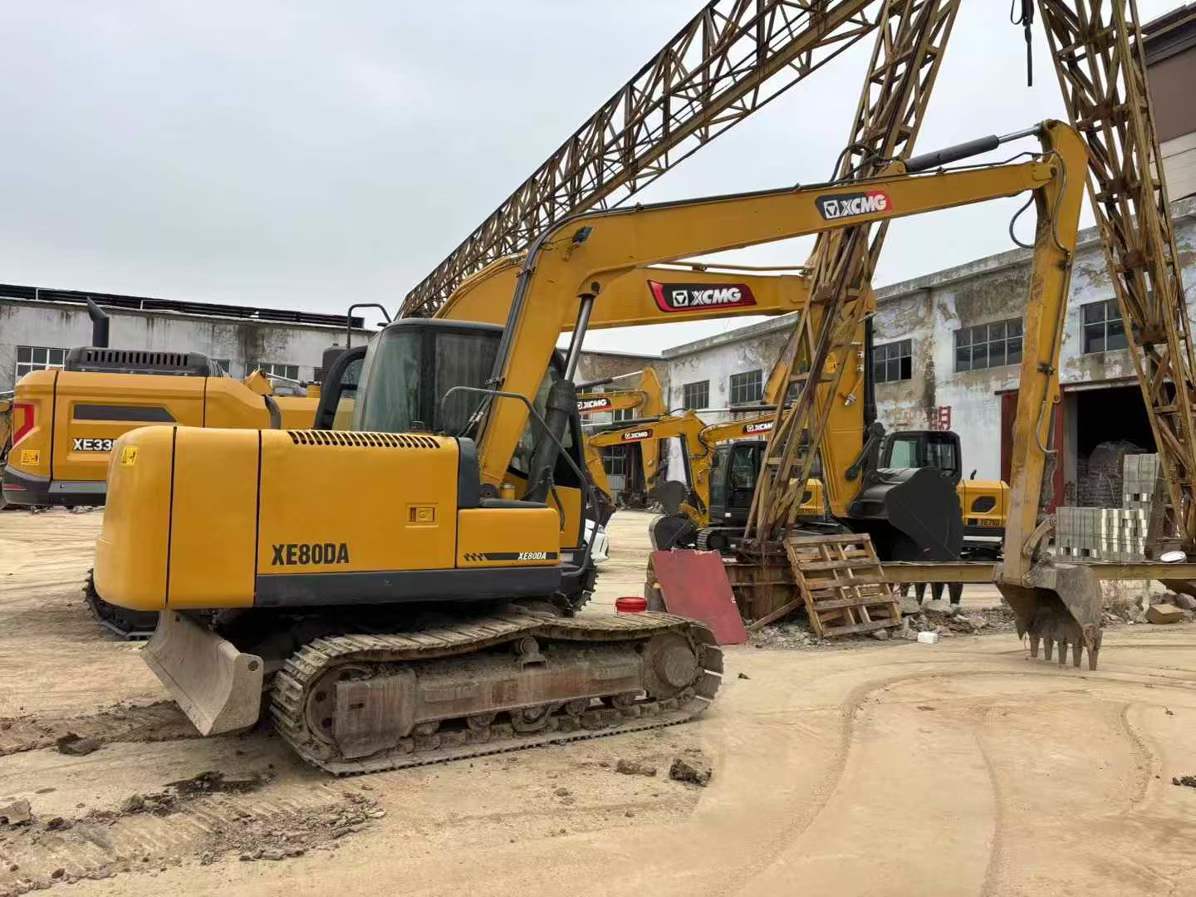

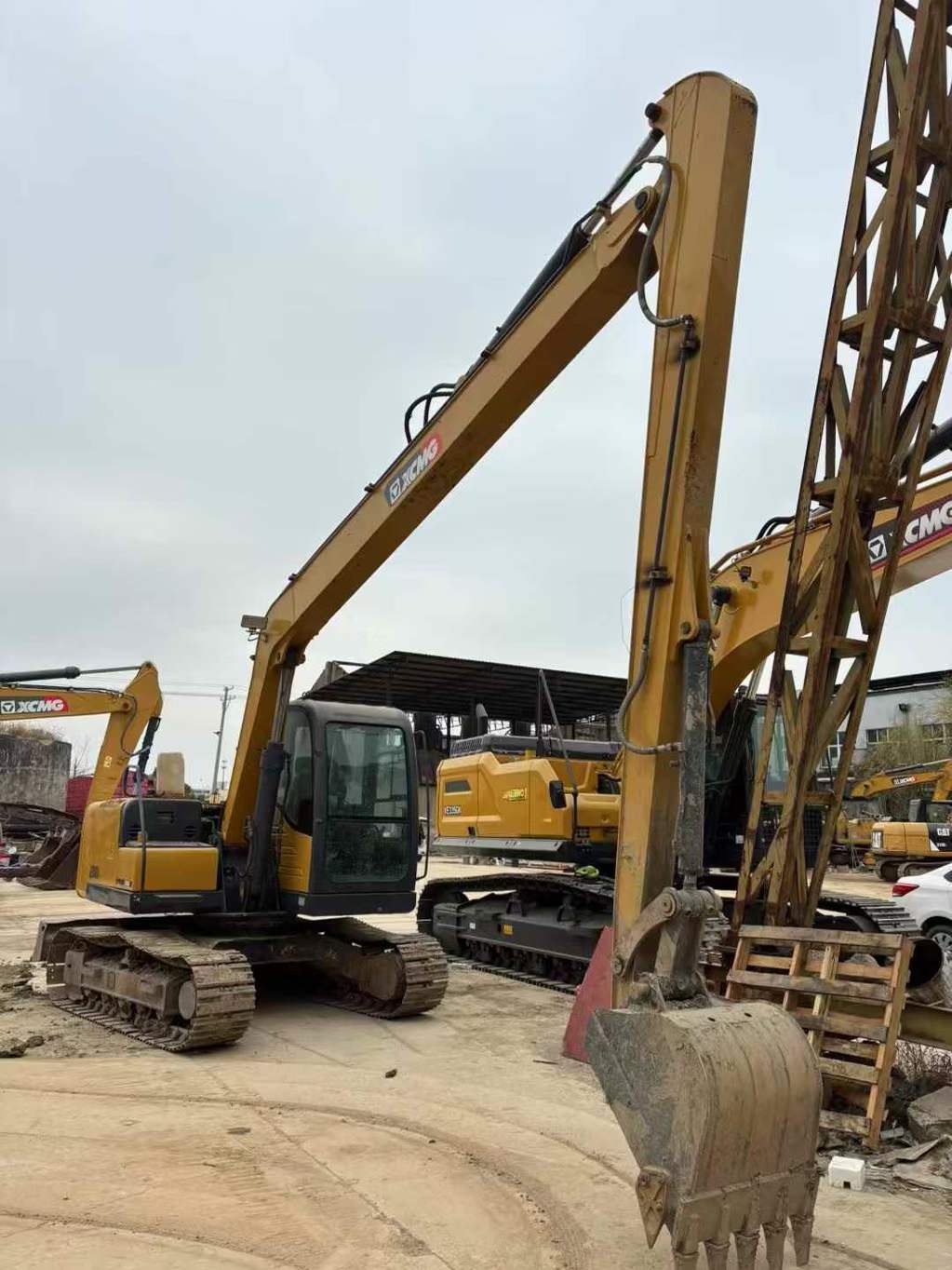

Built for precision and control, this 2016 XCMG XE80 delivers reliable performance across demanding jobsites. Operating at 8 tons with a 7,425 kg working weight, this excavator combines Cummins B3.3 power (60 kW at 2,200 rpm) with Toshiba variable pump hydraulics for responsive handling. Operators benefit from exceptional visibility and intuitive controls, while the water-cooled turbocharged engine ensures consistent power delivery during extended shifts.
- Superior Maneuverability: 1,815 mm minimum front turning radius and 12 rpm rotation speed enable efficient positioning in confined spaces

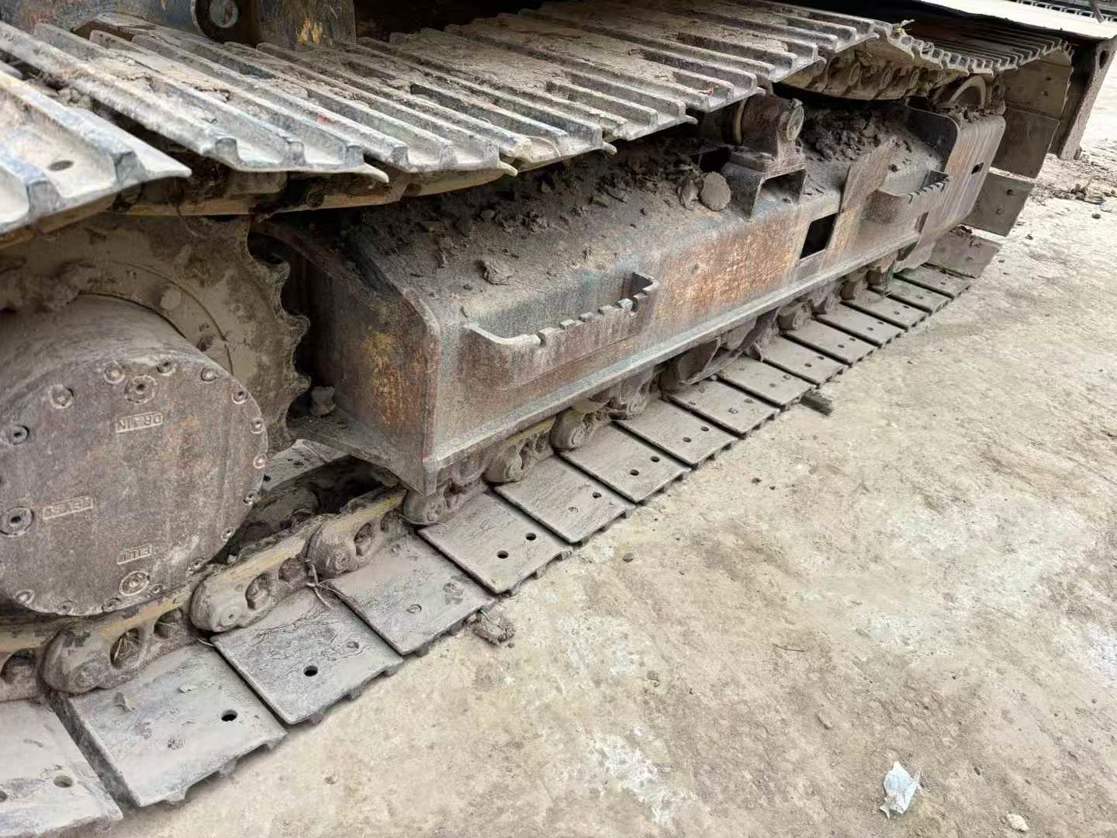

- Stable Platform: 1,700 mm track gauge and 2,119 mm ground contact length provide solid footing on uneven terrain, with 35° climbing capability

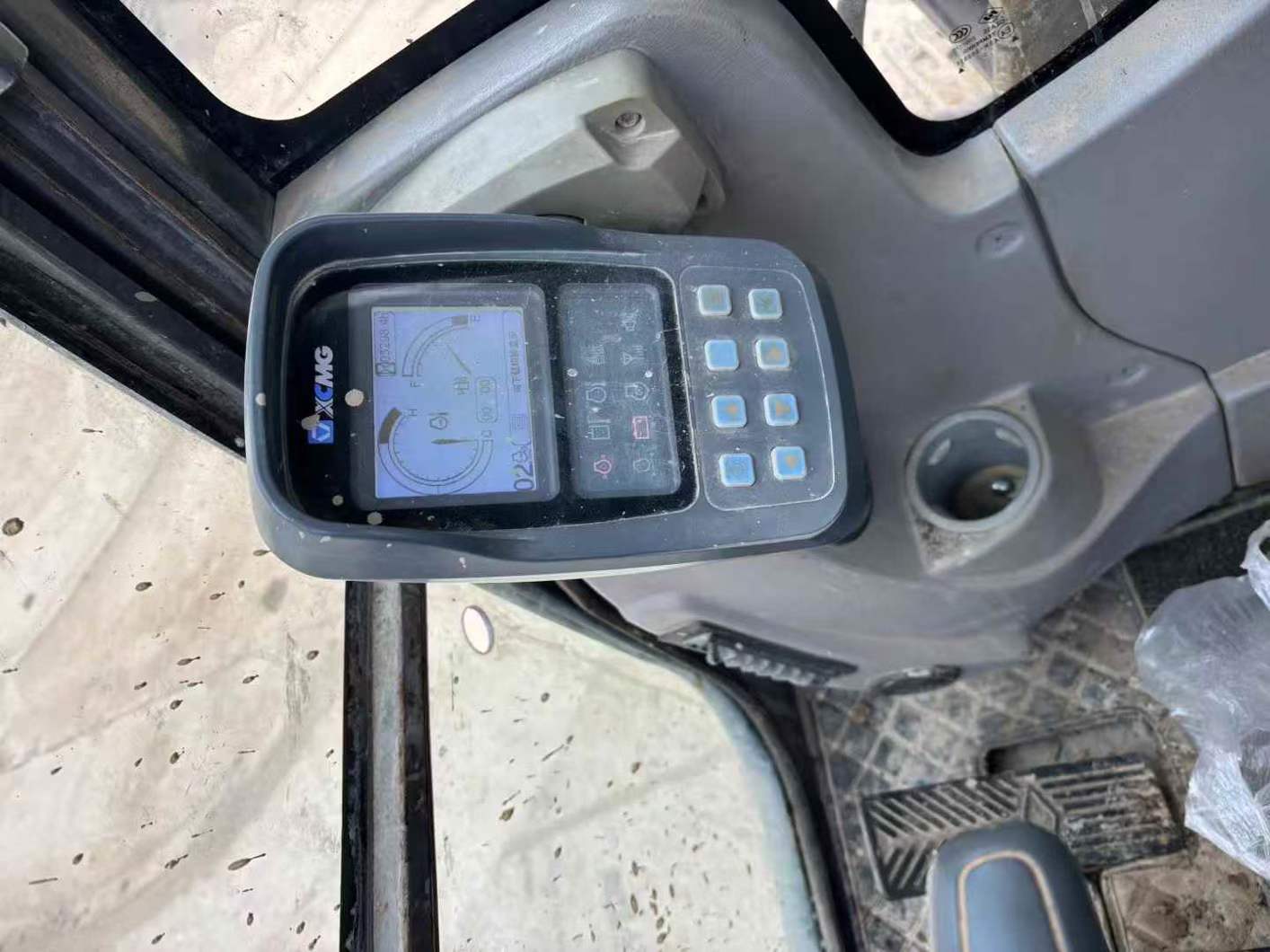

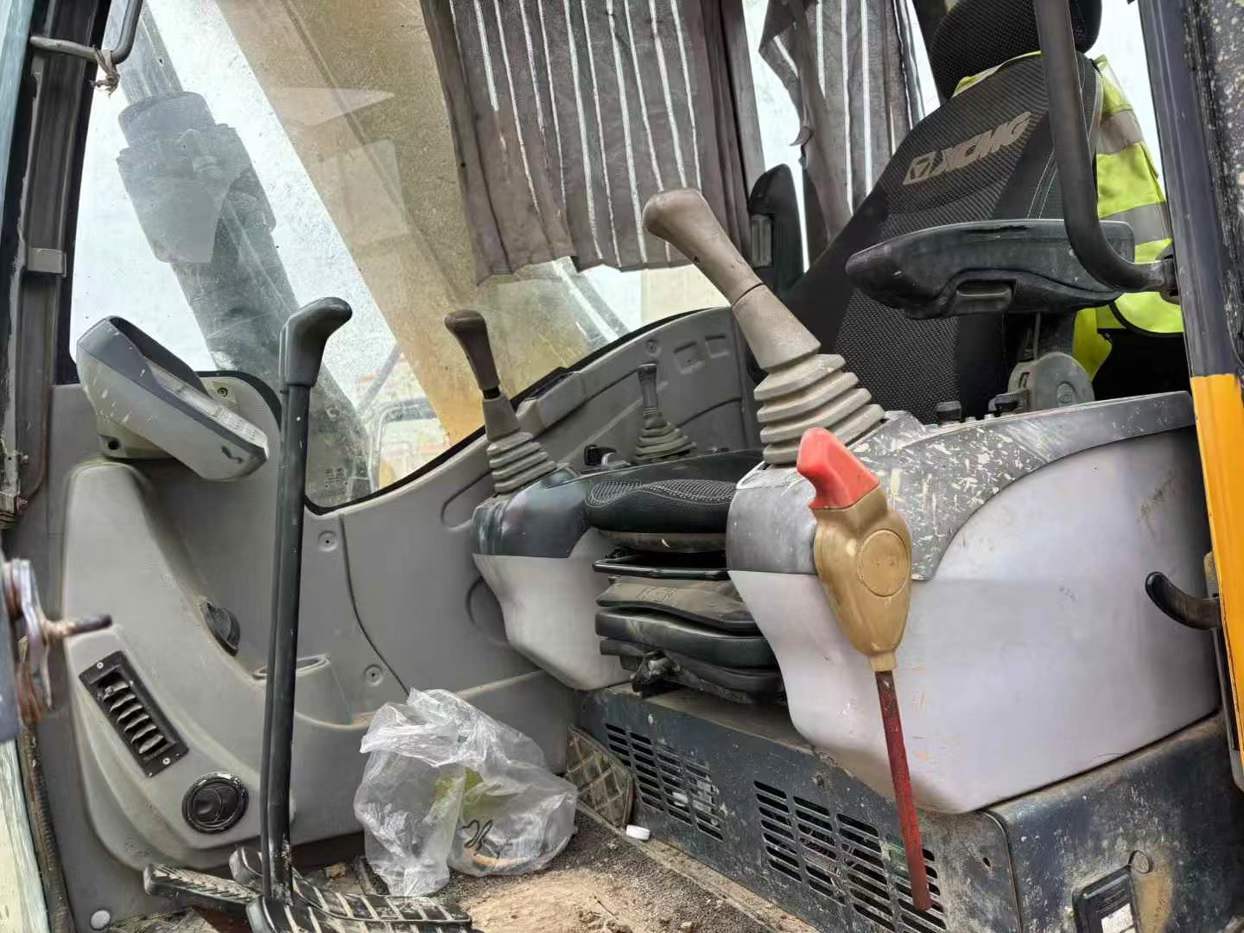

- Operator Comfort: Ergonomic cabin design with clear sightlines to the 3,710 mm boom and 1,650 mm arm maximizes productivity
- Digging Power: 53.6 kN bucket force and 4,140 mm maximum depth handle tough excavation tasks
- Hydraulic Efficiency: 27.4 MPa system pressure with 198 l/min flow delivers smooth, controlled movements
Located in Xuzhou, Jiangsu, this machin
| Specifications | Value |
|---|---|
| No. | 1024295 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

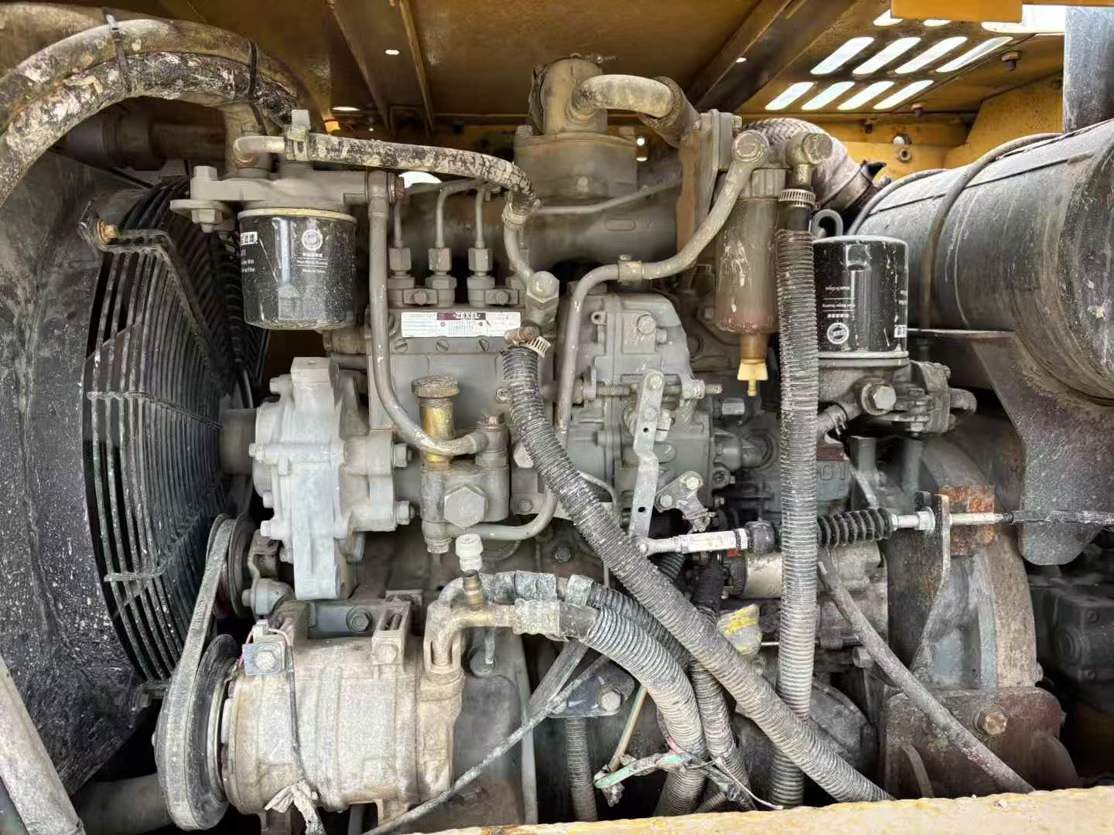

| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |

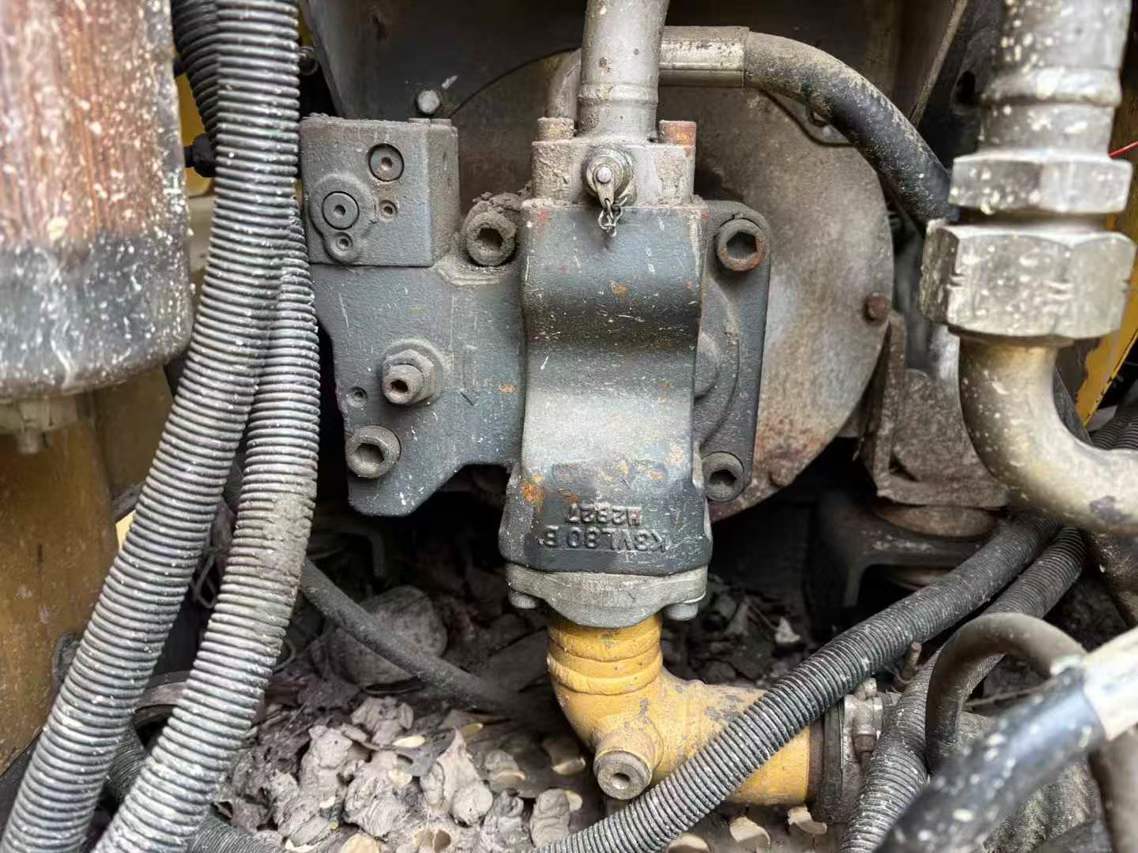

| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
