Product Description

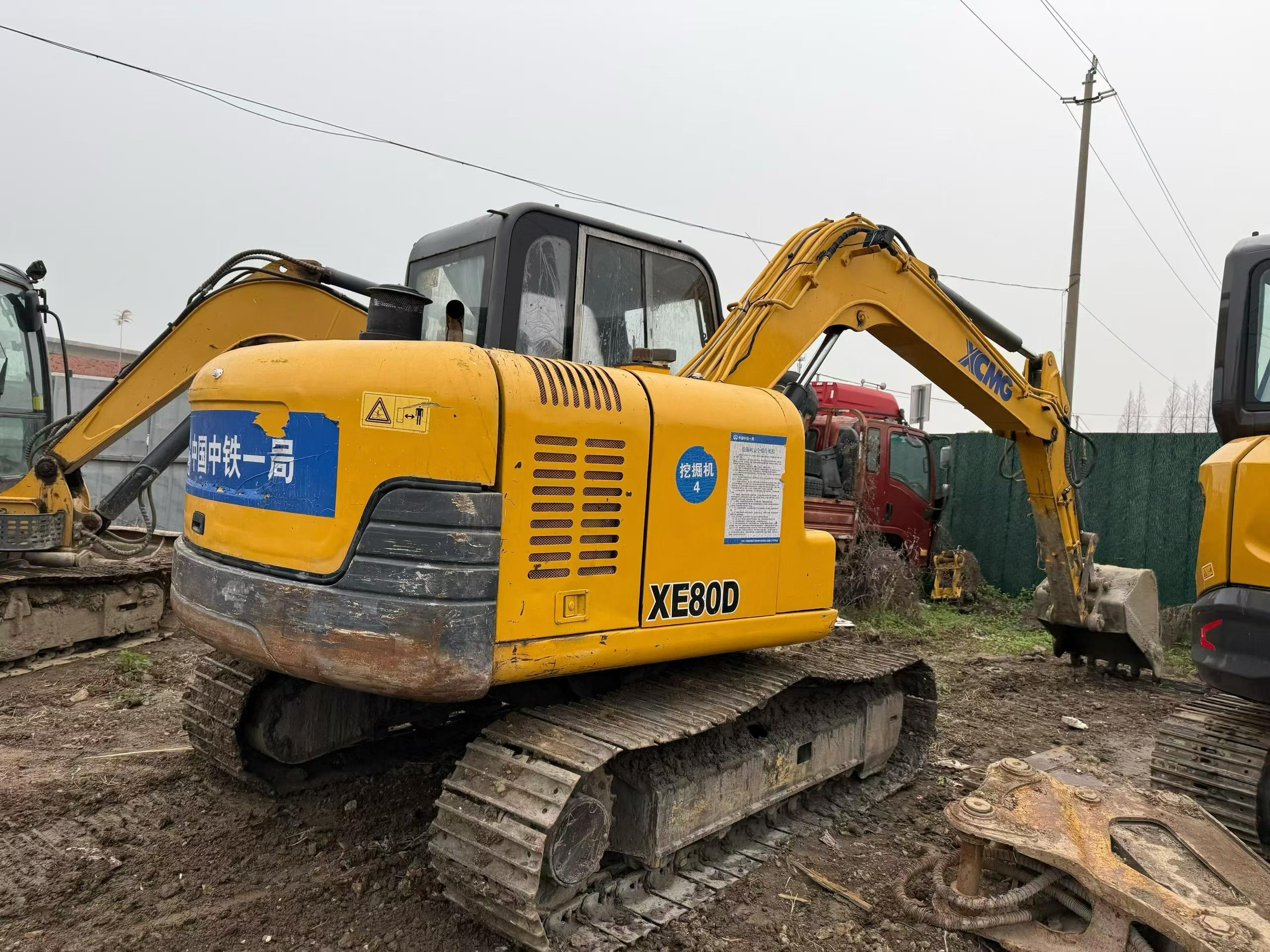

Built for precision and all-day productivity, this 2016 XCMG XE80 delivers reliable 8-ton performance with operator-first engineering. Powered by a Cummins B3.3 turbocharged engine producing 60kW at 2200 rpm, this mid-size excavator combines responsive hydraulics with exceptional sightlines for efficient excavation work.

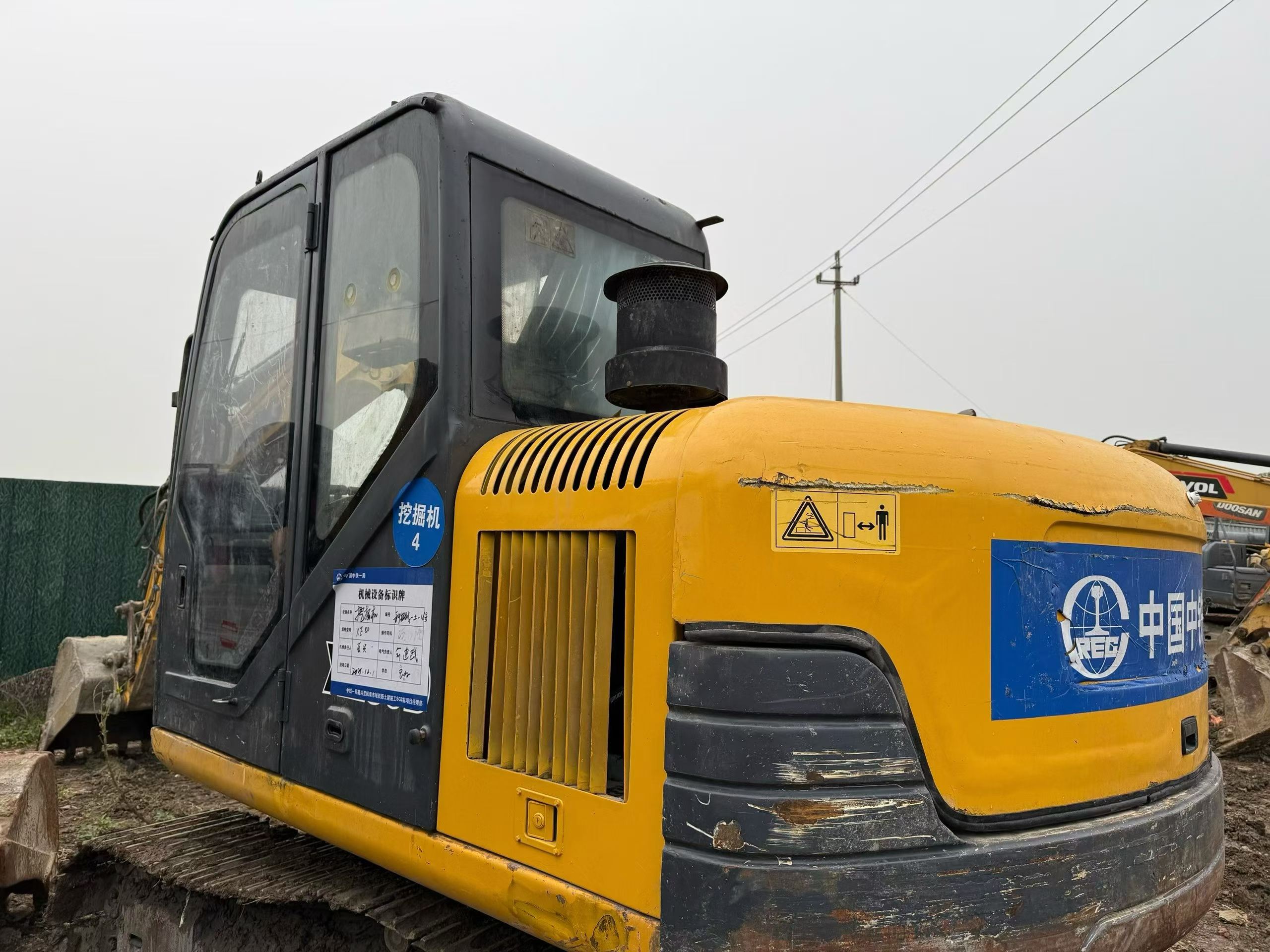

Operators benefit from a spacious cabin with commanding views over the compact 2220mm width body. The Toshiba variable pump system ensures smooth, precise control across all functions—from the 6375mm maximum digging reach to the 4140mm digging depth. A 12 rpm rotation speed and plunger hydraulic motors deliver stable, predictable handling on varied terrain, while 35-degree climbing ability tackles challenging jobsites with confidence.
- Working weight: 7,425 kg with low 34.2 kPa ground pressure
- Bucket digging force: 53.6 kN; rod force: 39.2 kN
- Fuel capacity: 127L for extended shifts
- Compact transport dimensions: 6155 × 2220 × 2610 mm
- Currently located in Hangzhou, Zhejiang
| Specifications | Value |
|---|---|
| No. | 1044413 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

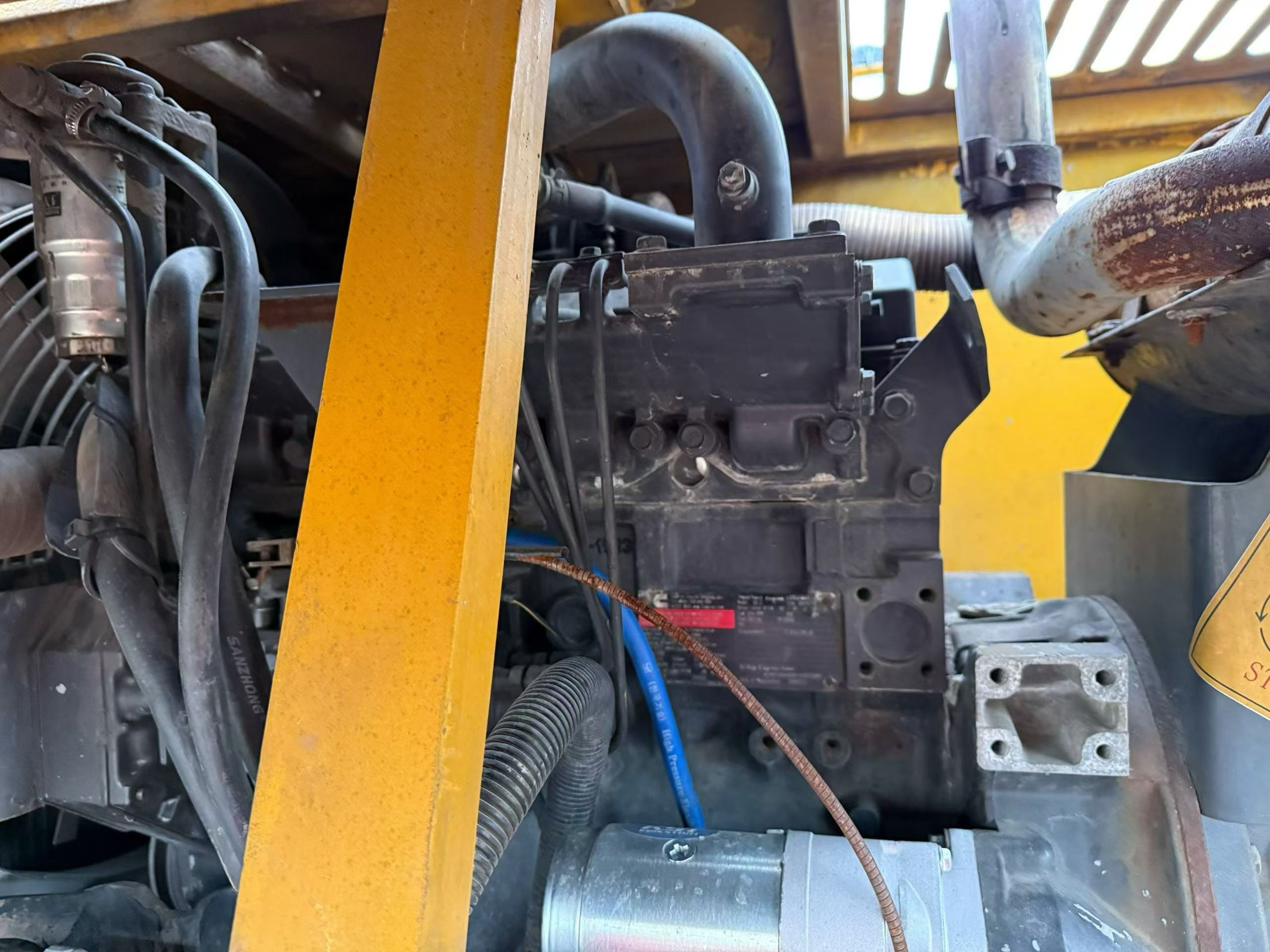

| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |

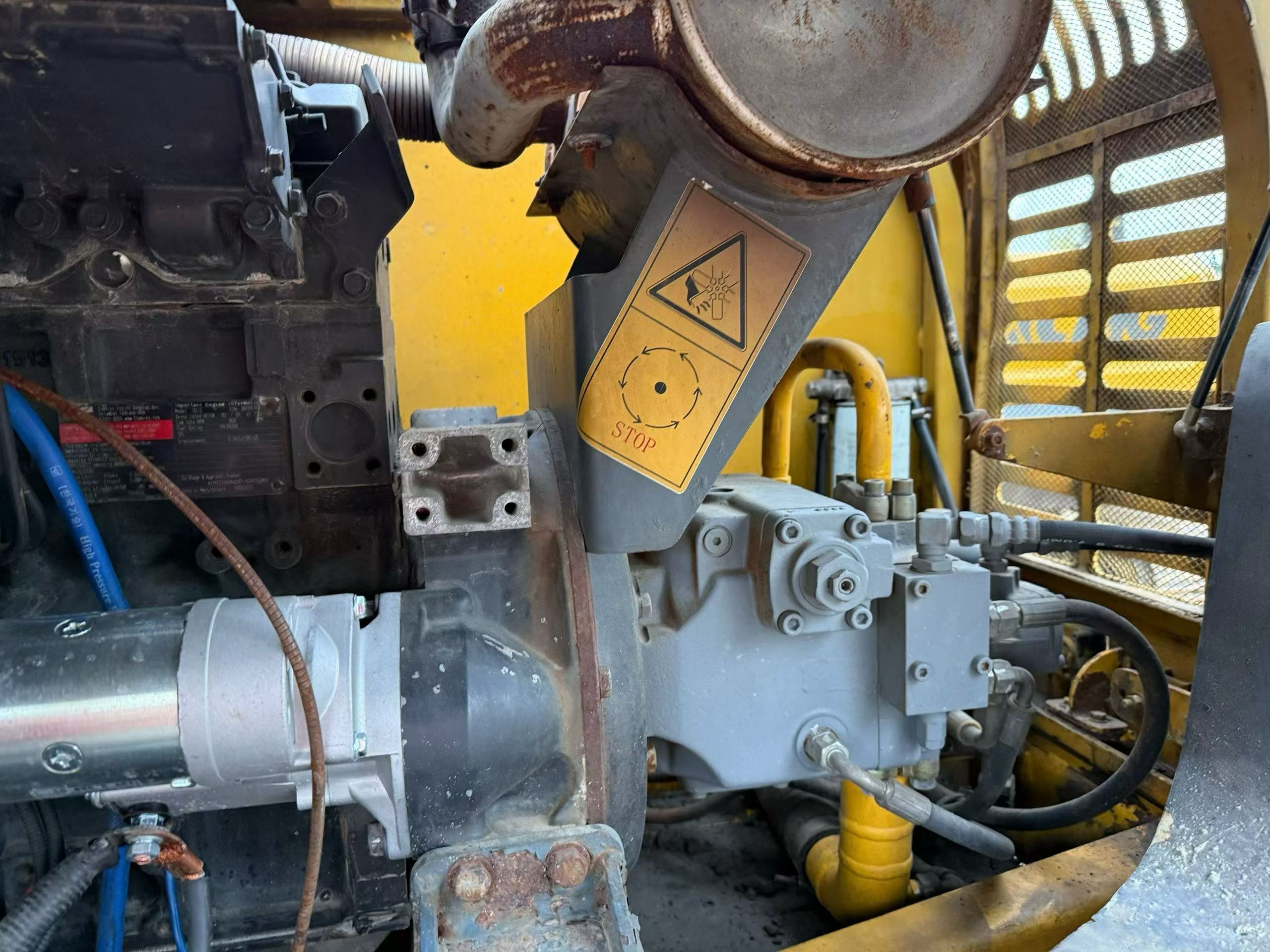

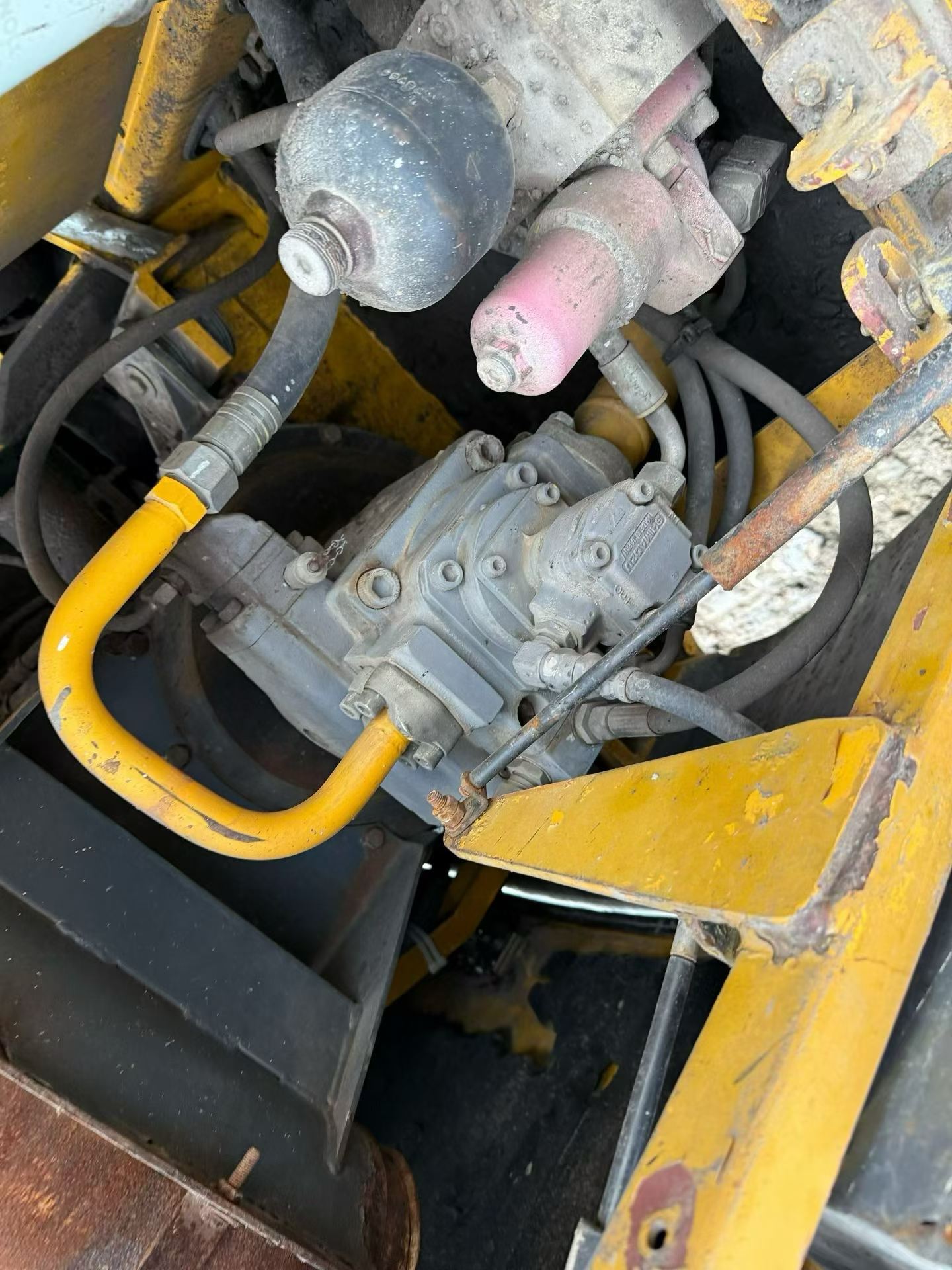

| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
