Product Description

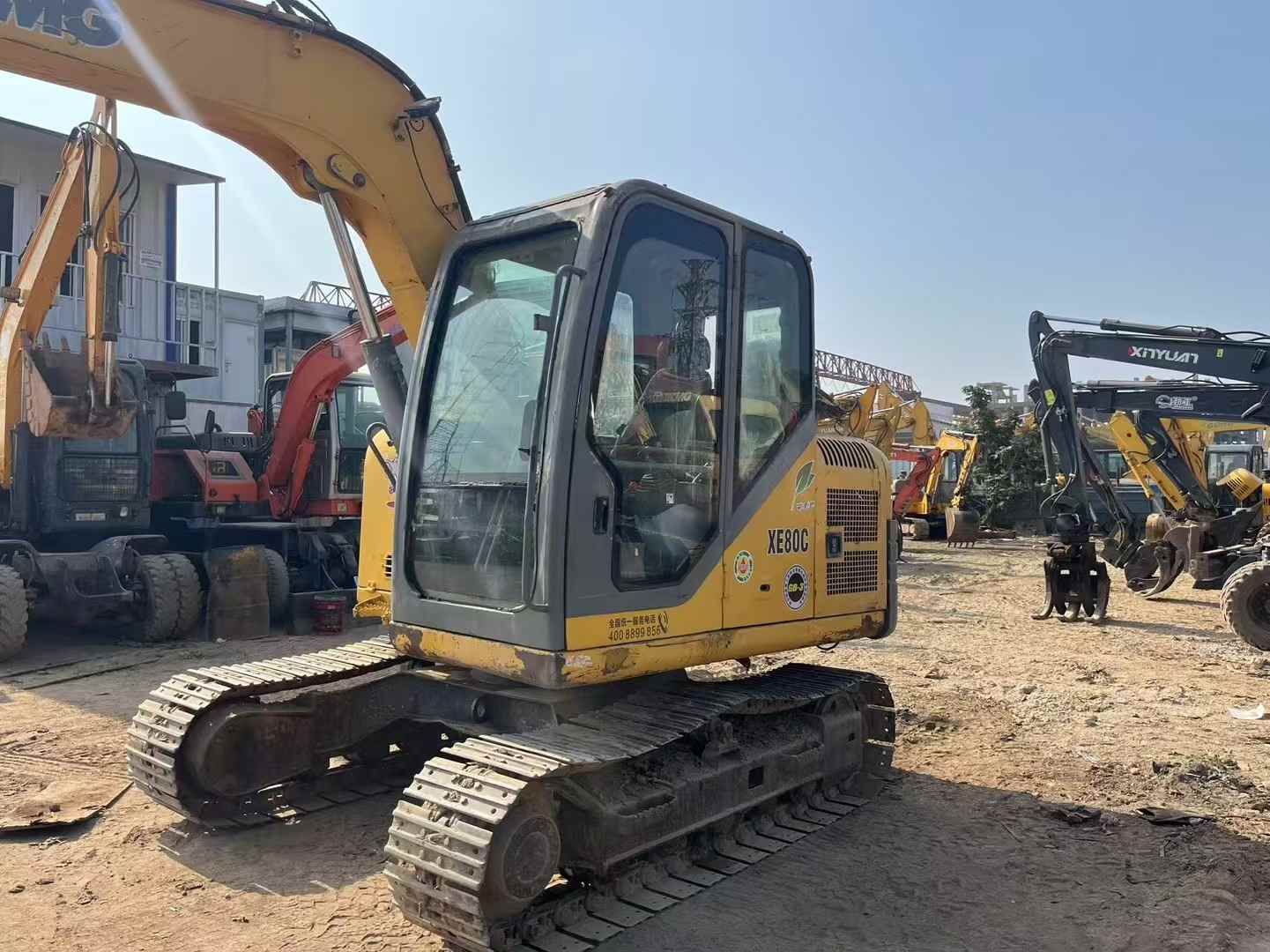

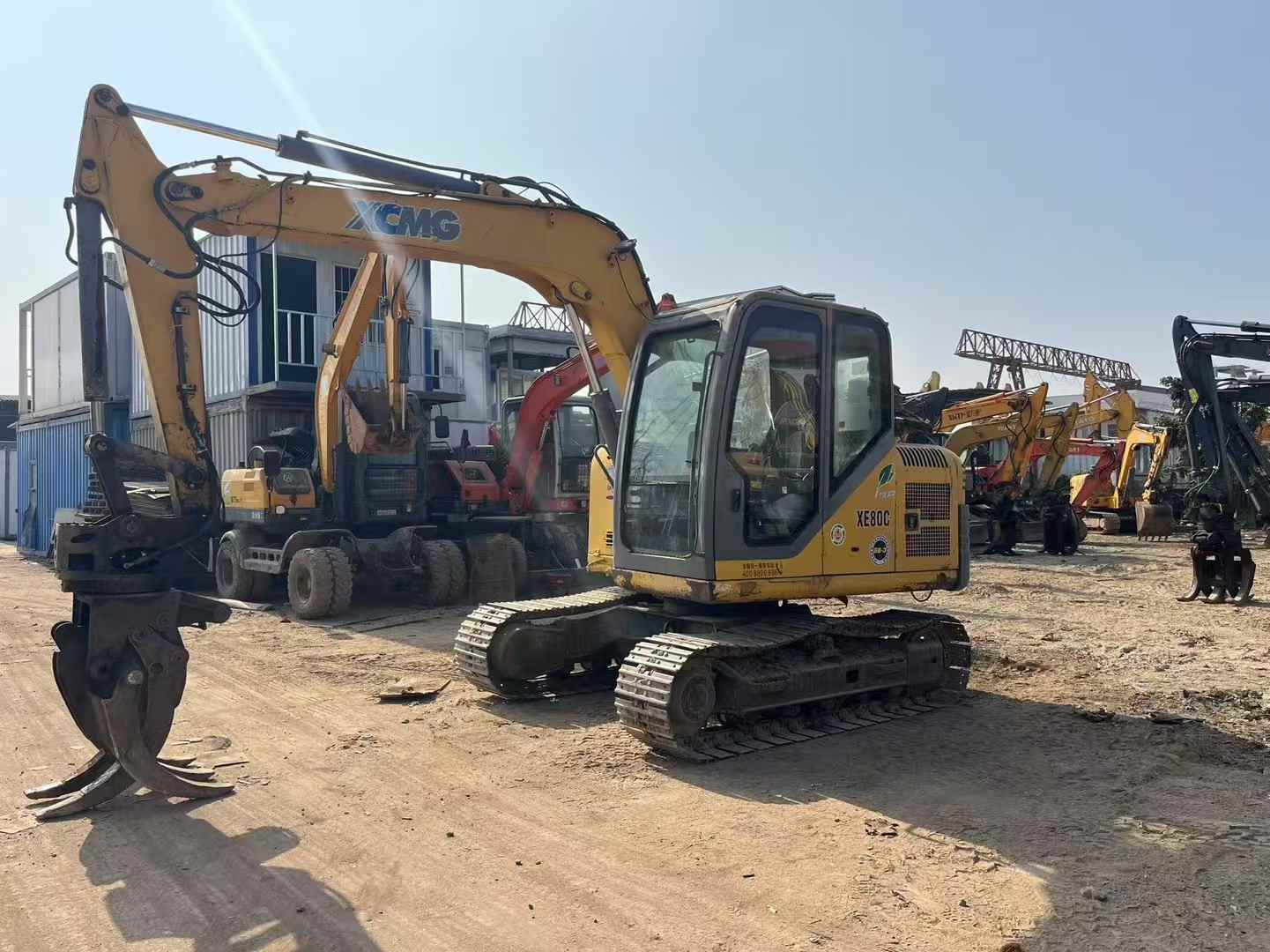

Maximize your equipment budget with this 2016 XCMG XE80 excavator—a proven 8-ton workhorse delivering professional-grade performance at a fraction of new equipment costs. Powered by a reliable Cummins B3.3 engine producing 60kW, this machine combines robust digging force with efficient fuel consumption. Currently located in Guangdong, this unit offers immediate deployment capability for contractors seeking dependable mid-size excavation power.
Performance specifications include:
- Maximum digging reach of 6,375mm with 4,140mm depth capability
- Impressive bucket digging force of 53.6kN and rod force of 39.2kN

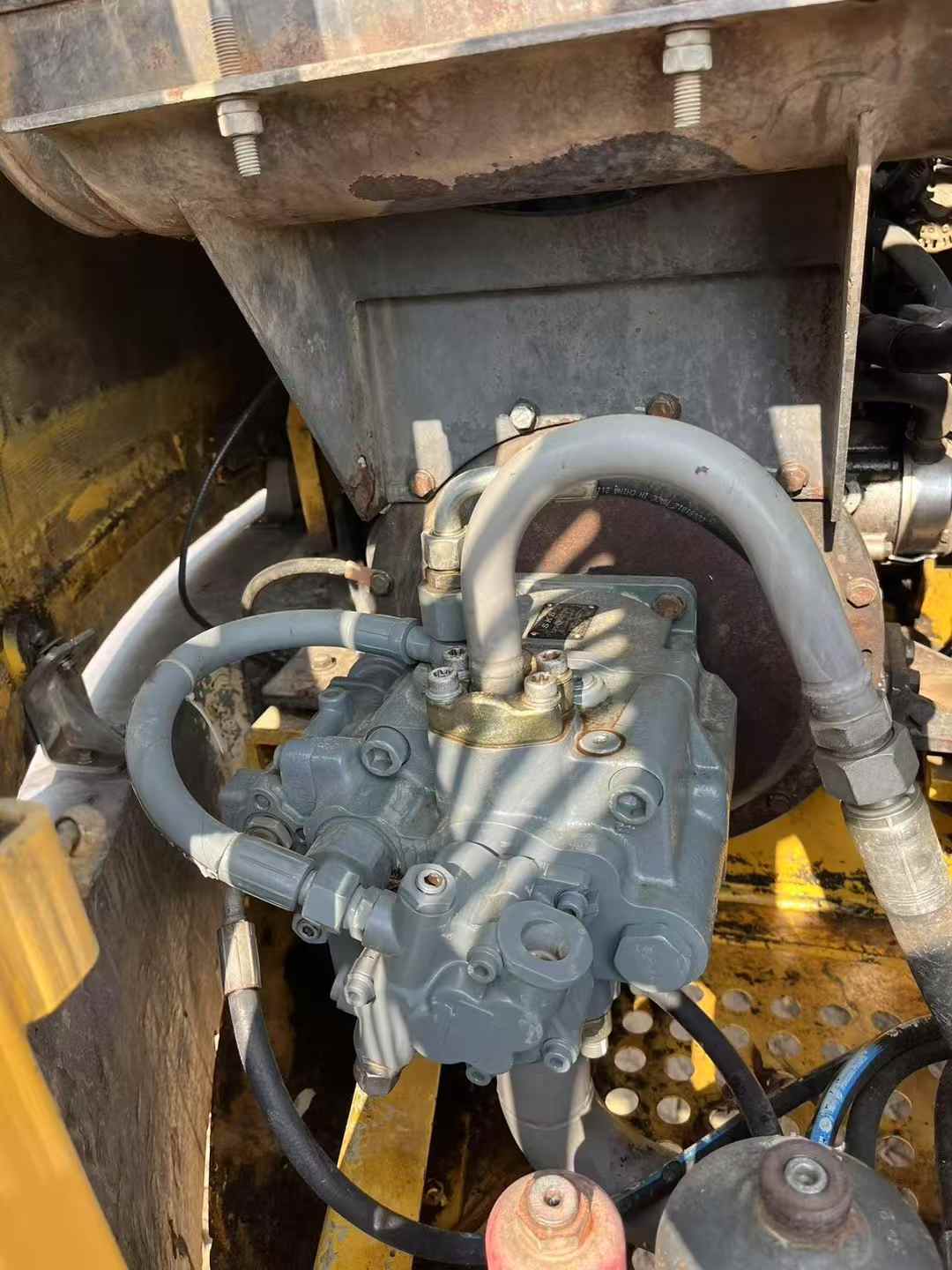

- Toshiba variable pump hydraulic system ensuring smooth, responsive operation
- 35° climbing ability and 12 rpm rotation speed for versatile job site maneuverability

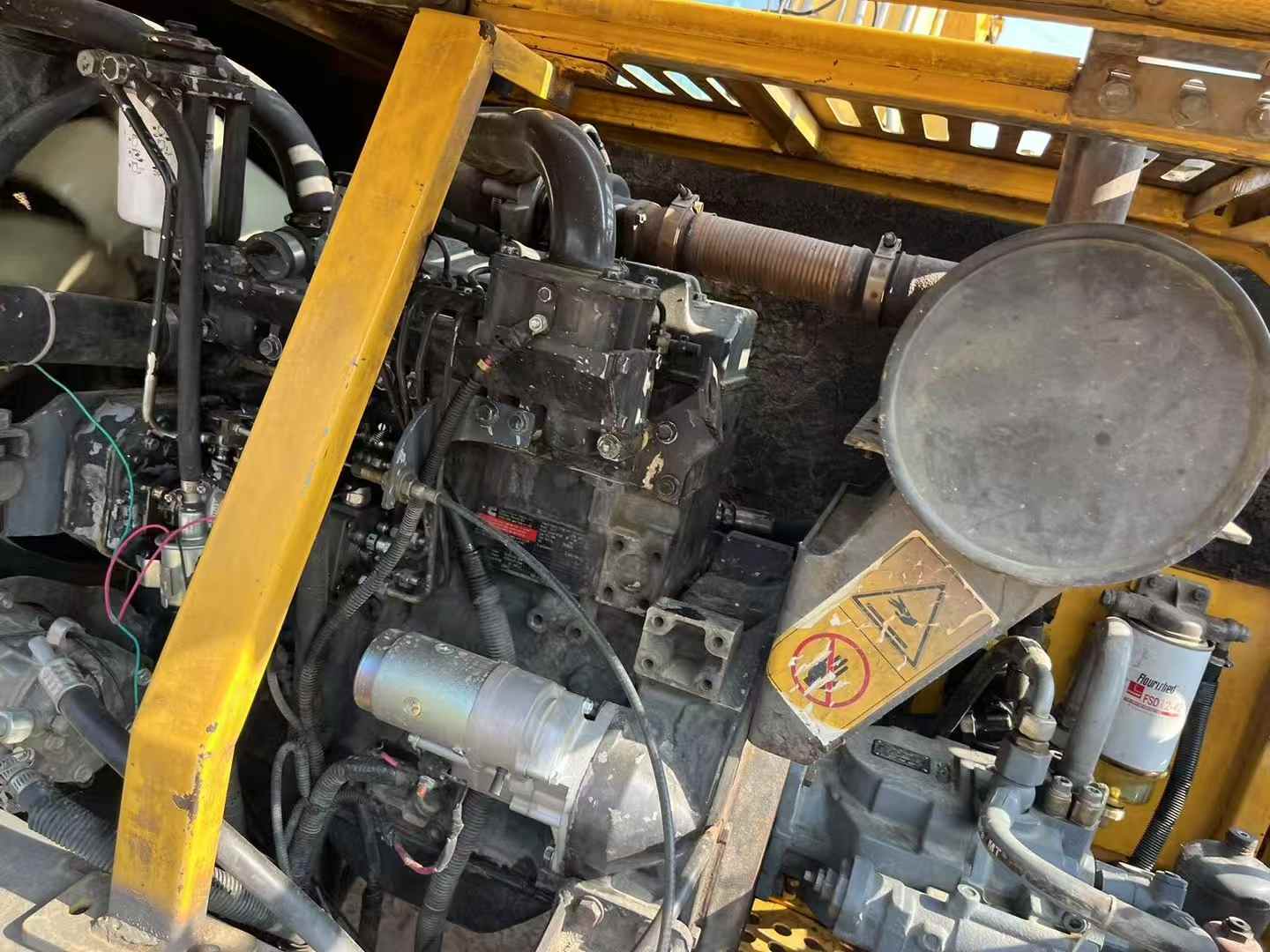

- Water-cooled, turbocharged 6-cylinder engine with proven durability
Operating weight of 7,425kg provides excellent stability without sacrificing transportability. With bucket capacity ranging from 0.14 to 0.34m³, this excavator adapts to various applications from trenching to general earthmoving. Smart buyers recognize that well-maintained used equipment from established manufacturers like XCMG delive
| Specifications | Value |
|---|---|
| No. | 997254 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
