Product Description

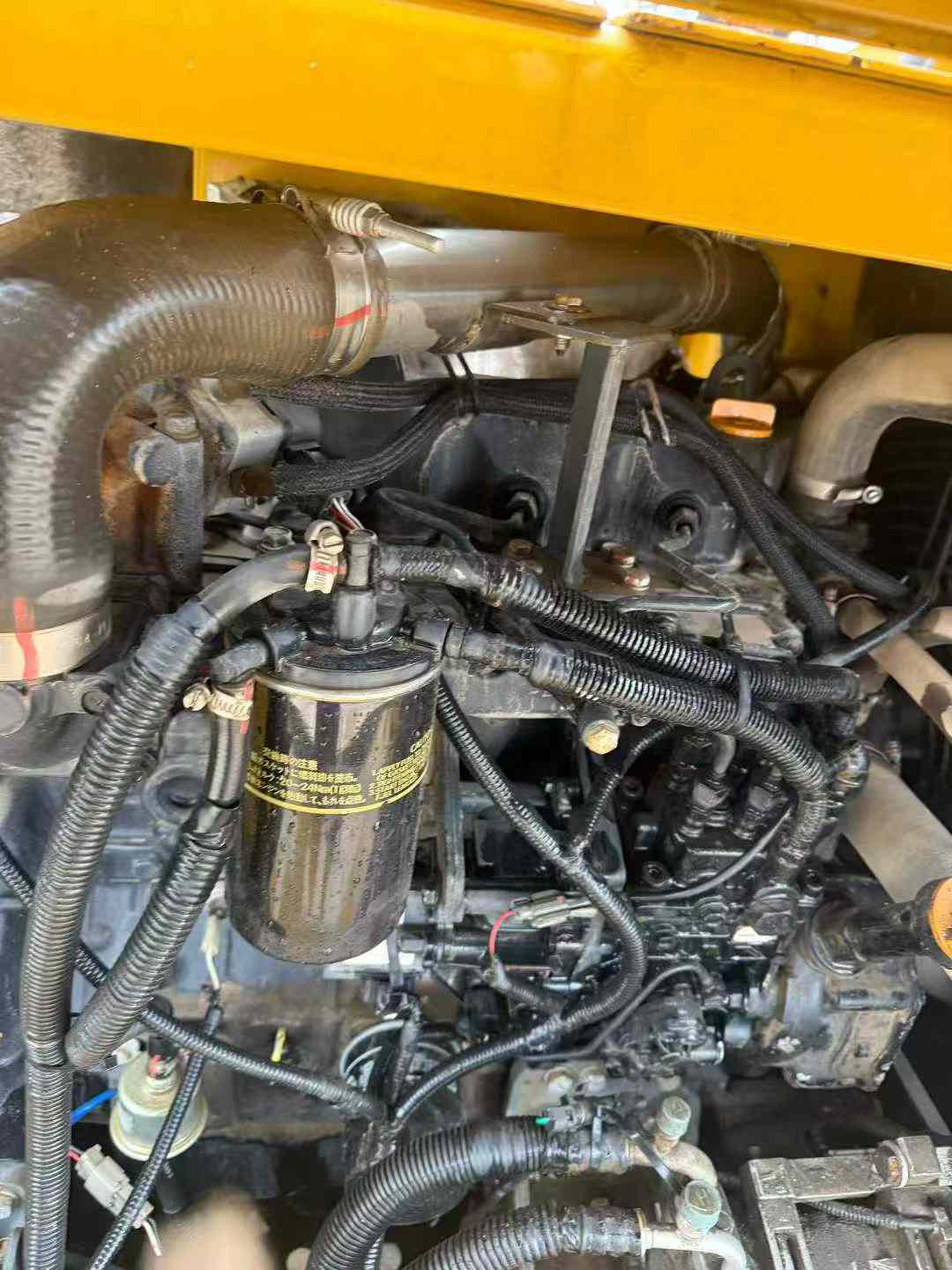

Available now from our Jiangsu facility, this 2017 XCMG XE80 excavator delivers 8-ton performance without factory wait times. Powered by a Cummins B3.3 engine generating 60kW at 2200rpm, this machine combines proven reliability with immediate deployment capability. Skip the months-long manufacturing queue and move this water-cooled, turbocharged unit directly to your construction site.
- Working weight: 7,425 kg with 0.14-0.34 m³ bucket capacity
- Maximum digging reach: 6,375 mm; digging depth: 4,140 mm

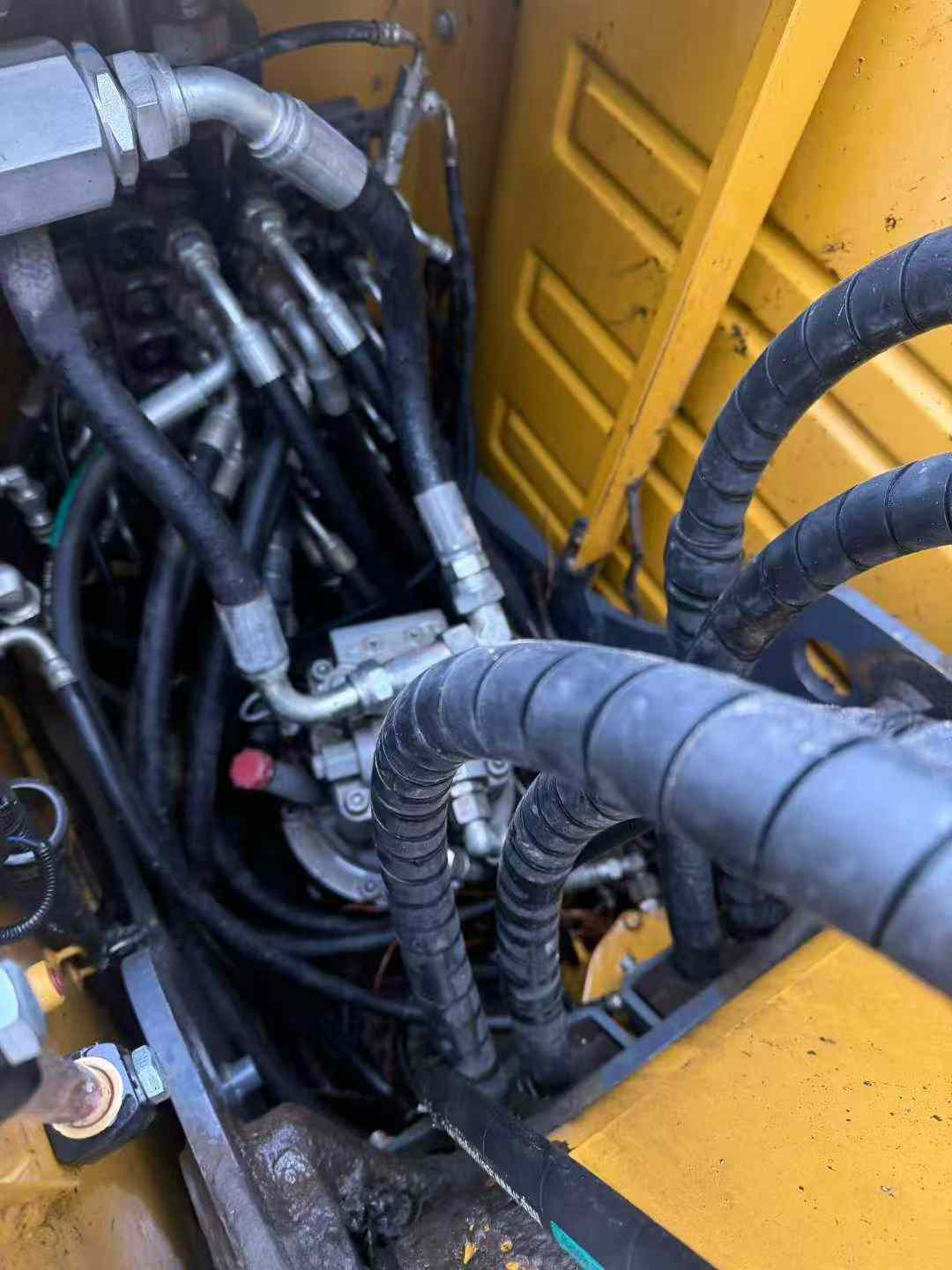

- Toshiba variable pump paired with plunger hydraulic motors for responsive control
- Bucket digging force: 53.6 kN; rod digging force: 39.2 kN
- 35° climbing ability and 12 rpm rotation speed for versatile jobsite mobility
- Compact transport dimensions: 6,155 mm × 2,220 mm × 2,610 mm
Positioned in Jiangsu for rapid logistics throughout China and international shipping routes, this XE80 represents immediate productivity. Fast deployment means faster project starts and quicker ROI on your equipment investment.
| Specifications | Value |
|---|---|
| No. | 1024078 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
