Product Description
Built for the long haul, this 2019 XCMG XE80 excavator proves its reliability through four years of consistent field performance. Operating at 8 tons with a robust 7,425 kg working weight, this machine combines Cummins B3.3 engine power (60 kW at 2200 rpm) with Toshiba variable pump technology to deliver dependable hydraulic performance across demanding jobsites. Currently located in Shaoxing, Zhejiang, this proven workhorse features water-cooled turbocharged operation and maintains a 35° climbing ability that tackles challenging terrain without compromise.
- Maximum digging reach: 6,375 mm with 4,140 mm depth capability
- Bucket digging force: 53.6 kN for tough excavation tasks
- Compact transport dimensions: 6,155 mm length × 2,220 mm width
- Dual-speed travel: 4.2/2.7 km/h for efficient site mobility
- Plunger hydraulic motors for rotation and travel ensure lasting durability
- 127L fuel tank and 124L hydraulic reservoir support extended operation
Manufactured in Xuzhou, China, this XE80 represents XCMG's commitment to engineering machines that withstand real-world demands while maintaining operational efficiency year after year.
| Specifications | Value |
|---|---|
| No. | 1011436 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |

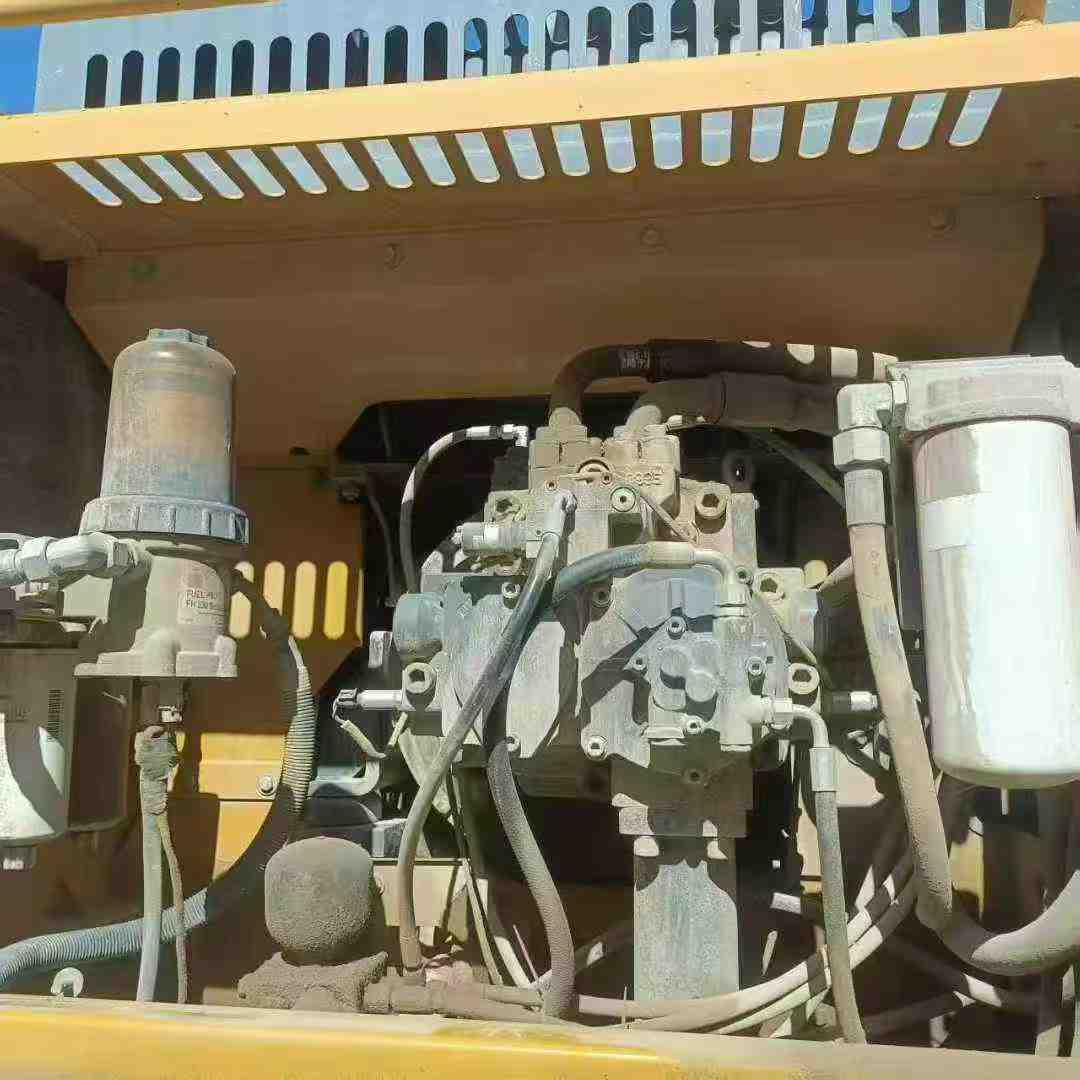

| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
