Product Description

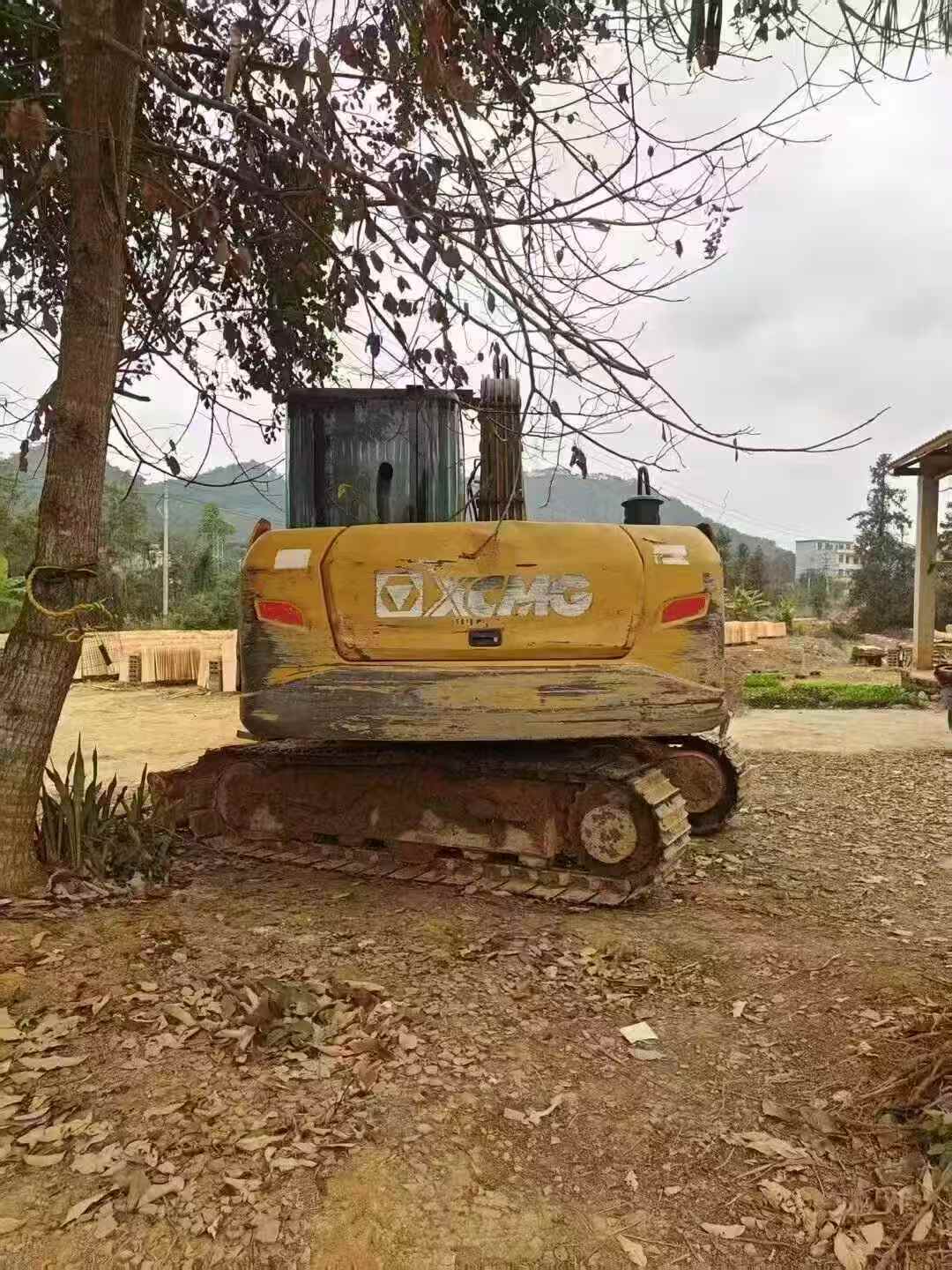

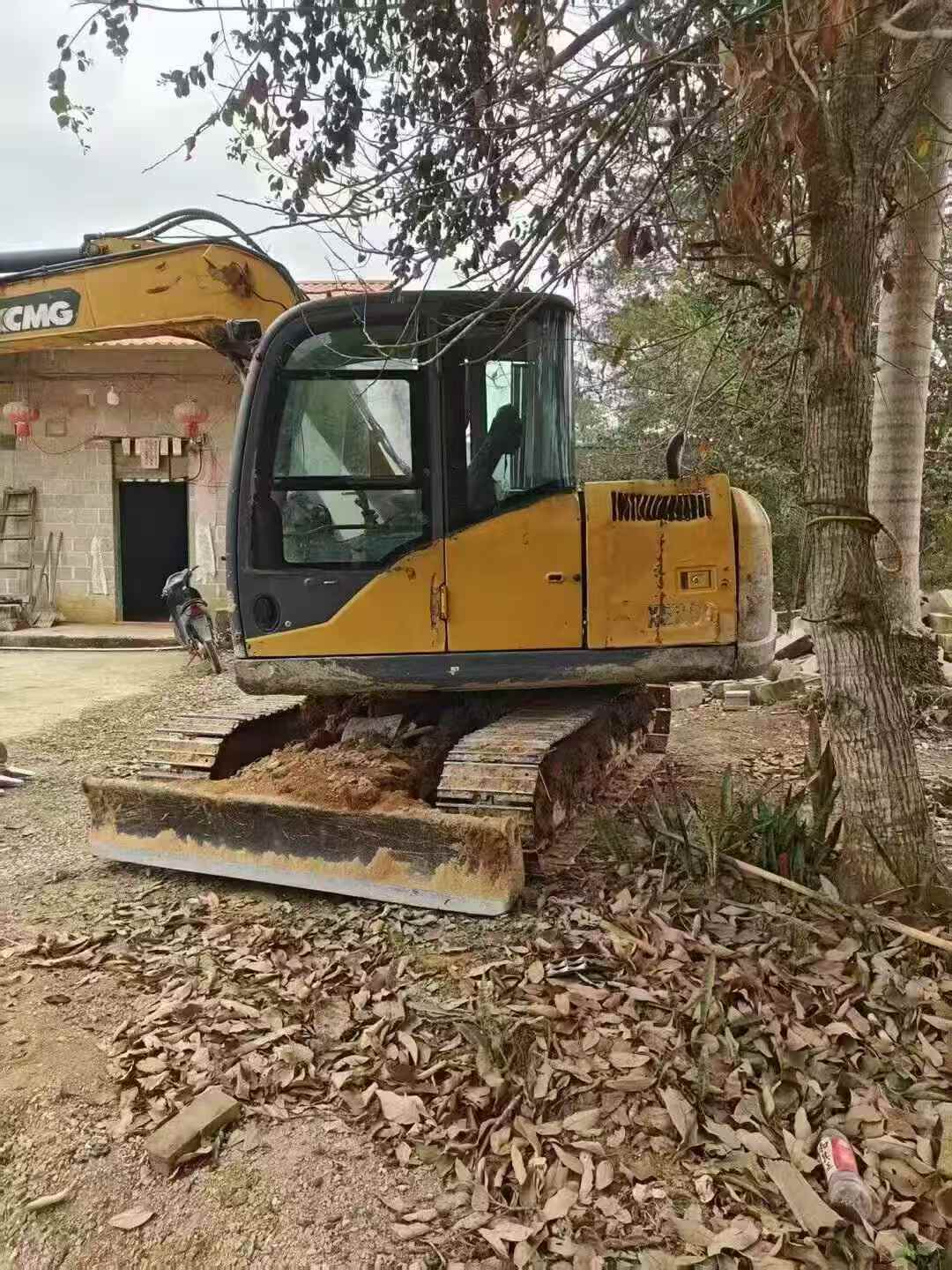

Built to endure the toughest conditions, this 2020 XCMG XE80 excavator represents proven engineering excellence from one of China's most trusted manufacturers. Operating at 8 tons with a robust 7,425 kg working weight, this machine combines a powerful Cummins B3.3 engine delivering 60 kW at 2200 rpm with Toshiba variable pump hydraulics for reliable, consistent performance. Currently located in Guizhou, this proven workhorse demonstrates the durability that has made XCMG equipment a staple on construction sites worldwide.
Key performance specifications include:
- Impressive digging capabilities: 6,375 mm maximum reach with 53.6 kN bucket digging force
- Maximum digging depth of 4,140 mm and excavation height reaching 7,167 mm
- Water-cooled, turbocharged 6-cylinder engine with 3.3L displacement
- Bucket capacity range of 0.14-0.34 m³ for versatile applications
- Superior climbing ability of 35° for challenging terrain
- Plunger hydraulic motors for both rotation and travel functions
With three years of operational history, this XE80 stands as testament to XCMG's commitment to manufacturing equipment that delivers long-term value and dependable productivity.
| Specifications | Value |
|---|---|
| No. | 1007430 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

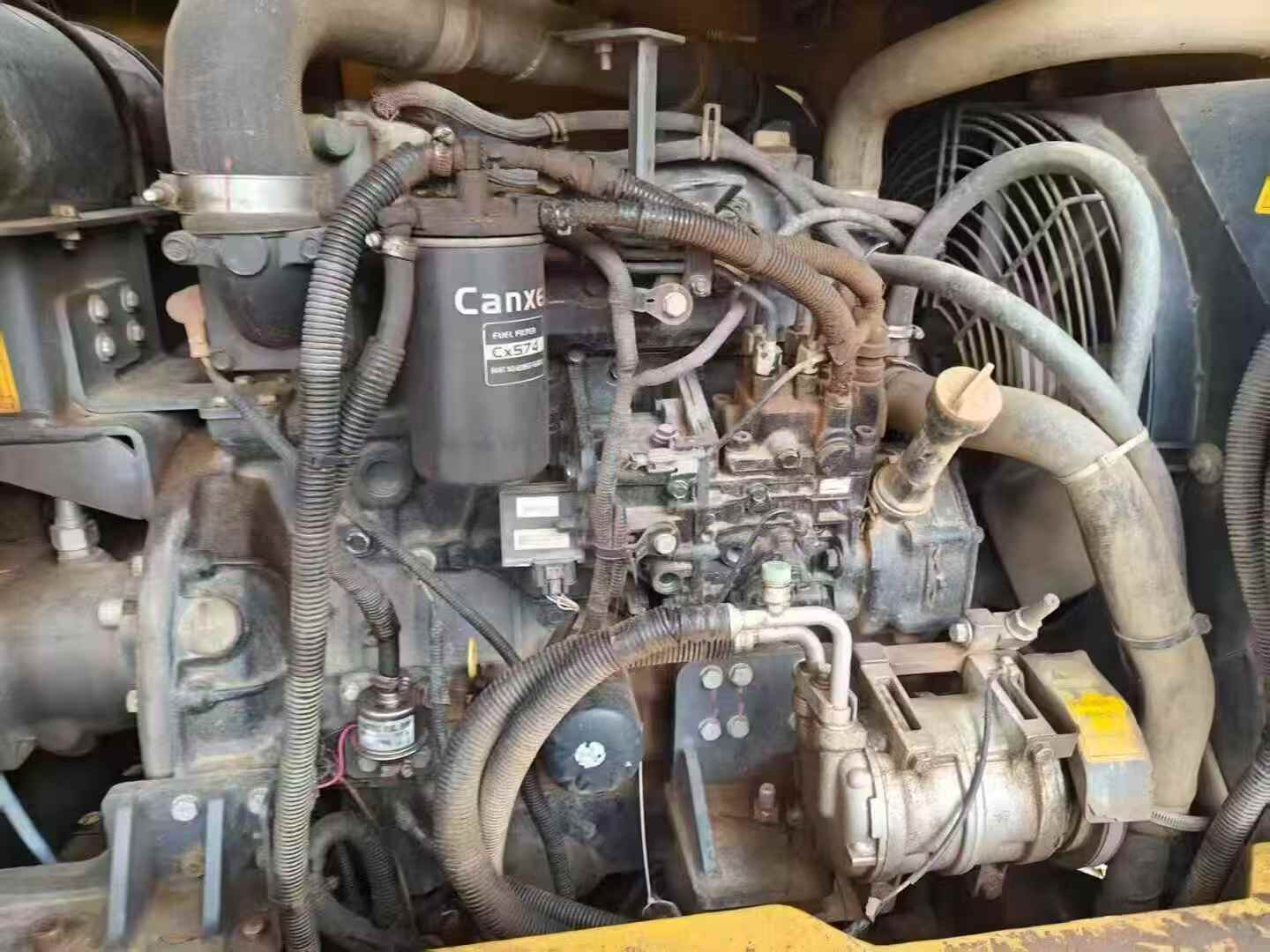

| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |

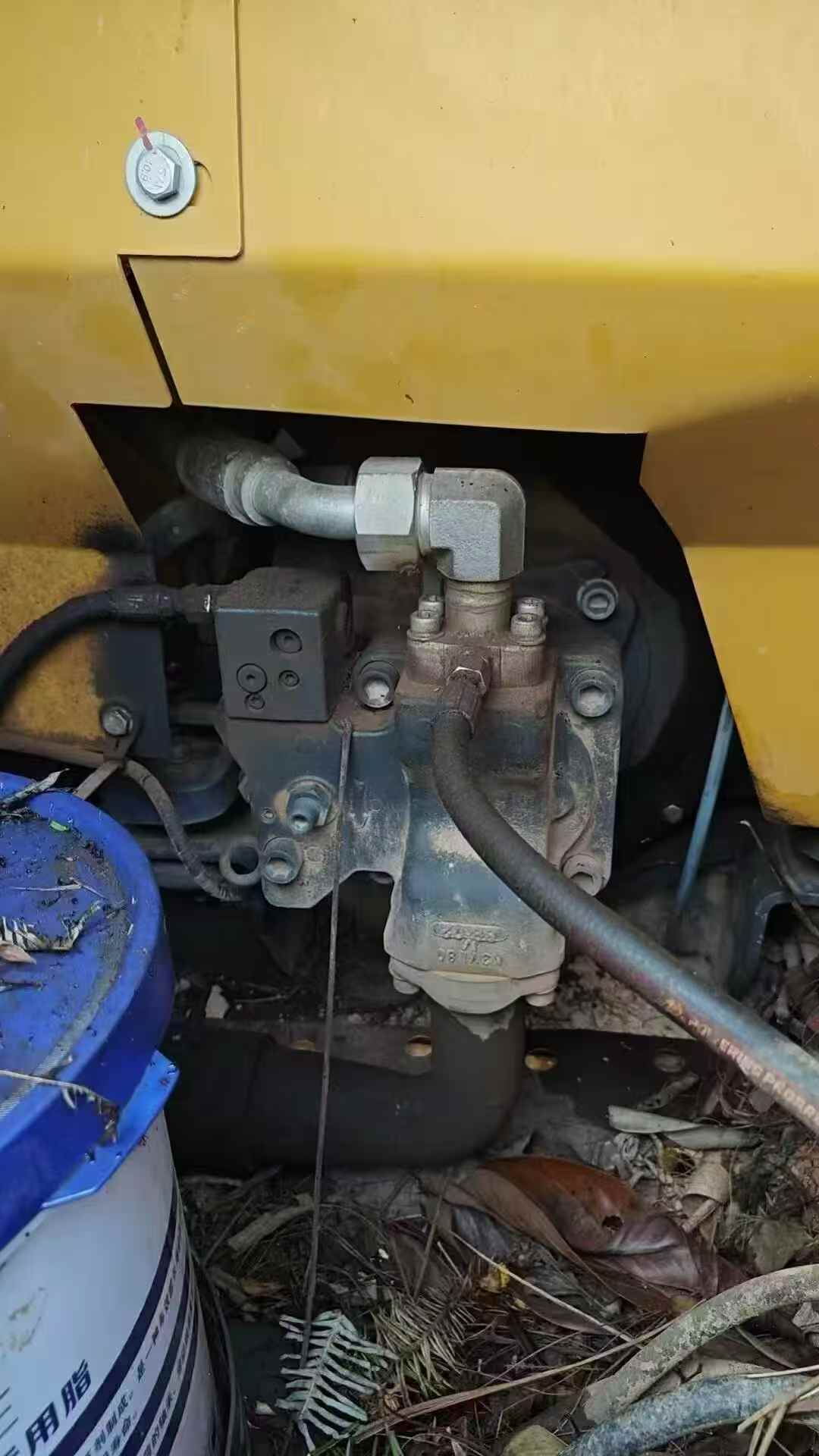

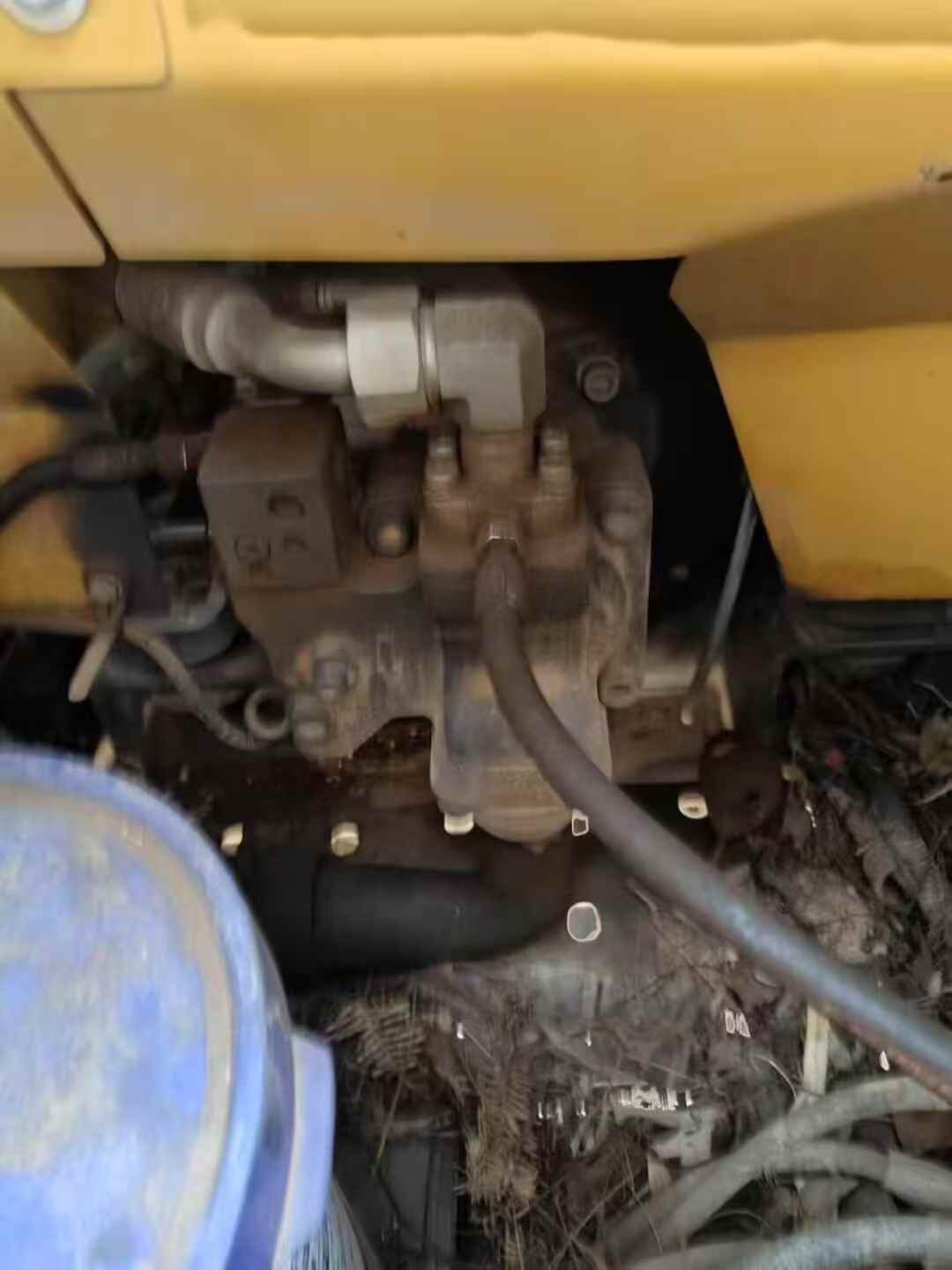

| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
