Product Description
Engineered with precision in Xuzhou, this 8-ton excavator delivers professional-grade performance through proven hydraulic architecture. Powered by a Cummins B3.3 turbocharged engine generating 60kW at 2200 rpm, the unit combines a Toshiba variable pump with advanced plunger hydraulic motors for rotation and travel functions. Main pump flow reaches 198 L/min, while system pressures peak at 27.4 MPa for excavation circuits and 20.6 MPa for rotary operations.
Core Technical Specifications:
- Operating weight: 7,425 kg with 34.2 kPa ground pressure
- Bucket digging force: 53.6 kN | Arm force: 39.2 kN
- Working envelope: 6,375 mm reach, 4,140 mm dig depth
- Hydraulic capacity: 124 L tank, 127 L fuel reservoir
- Compact transport dimensions: 6,155 × 2,220 × 2,610 mm
Water-cooled 6-cylinder configuration ensures consistent thermal management during extended operation cycles. Currently located in Shaoxing, Zhejiang, this 2020 machine represents XCMG's mid-range excavator engineering with field-proven reliability for construction and earthmoving applications worldwide.
| Specifications | Value |
|---|---|
| No. | 1016690 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

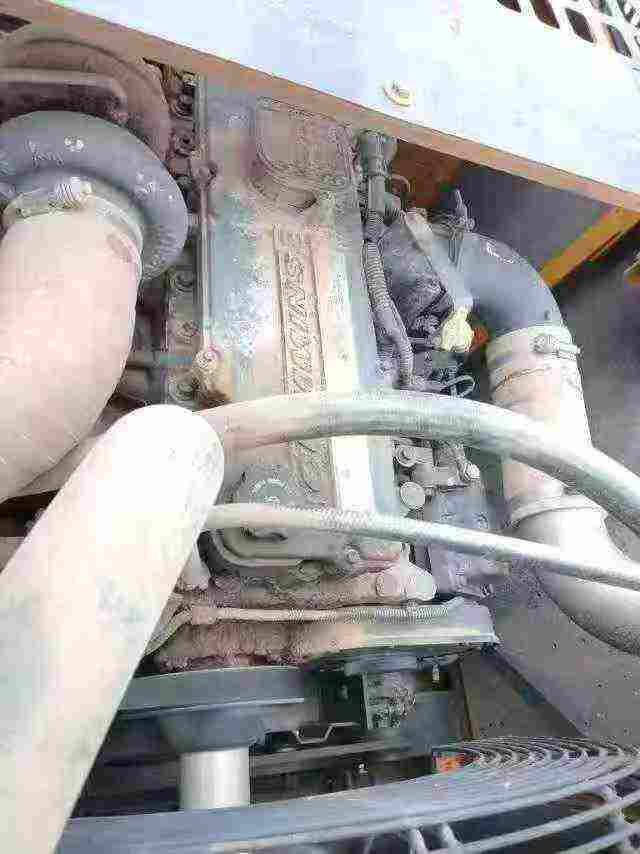

| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |

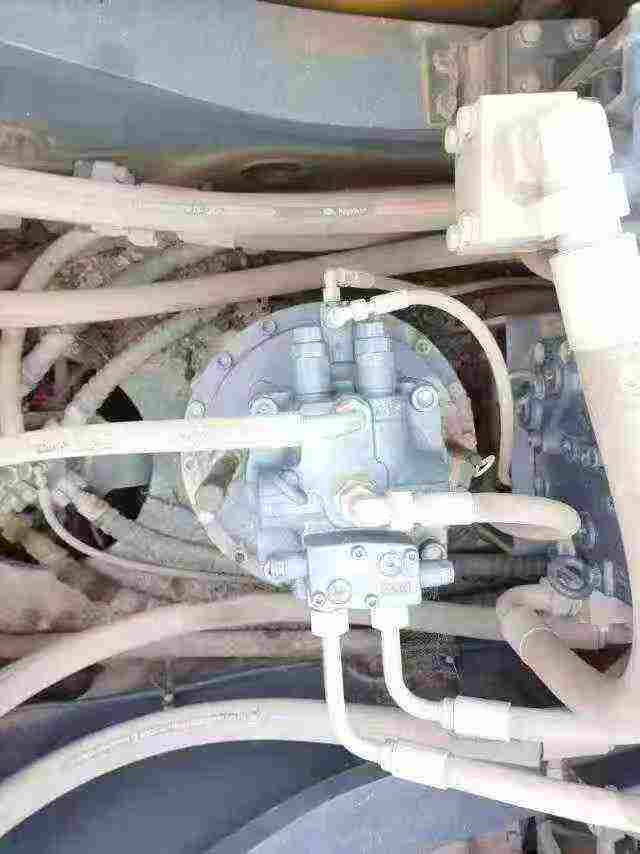

| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |

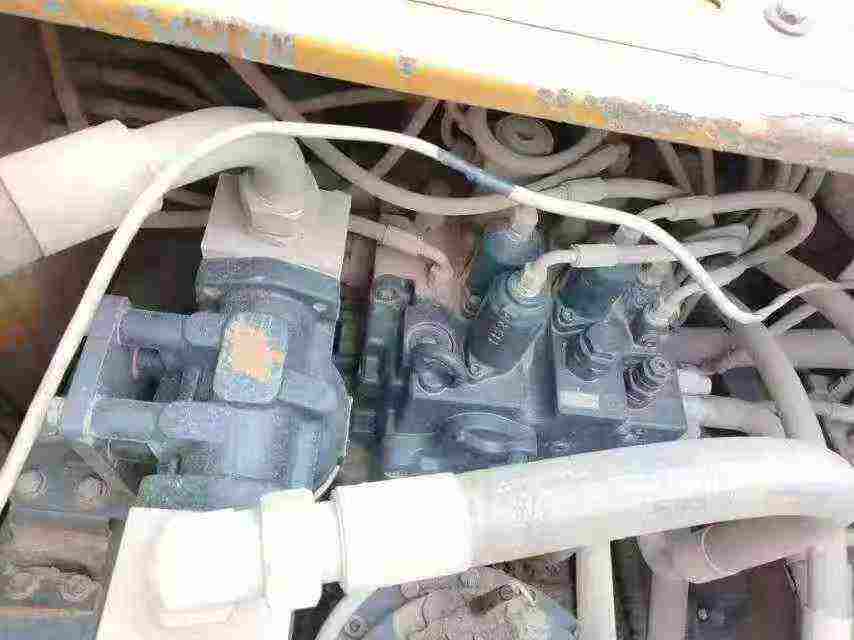

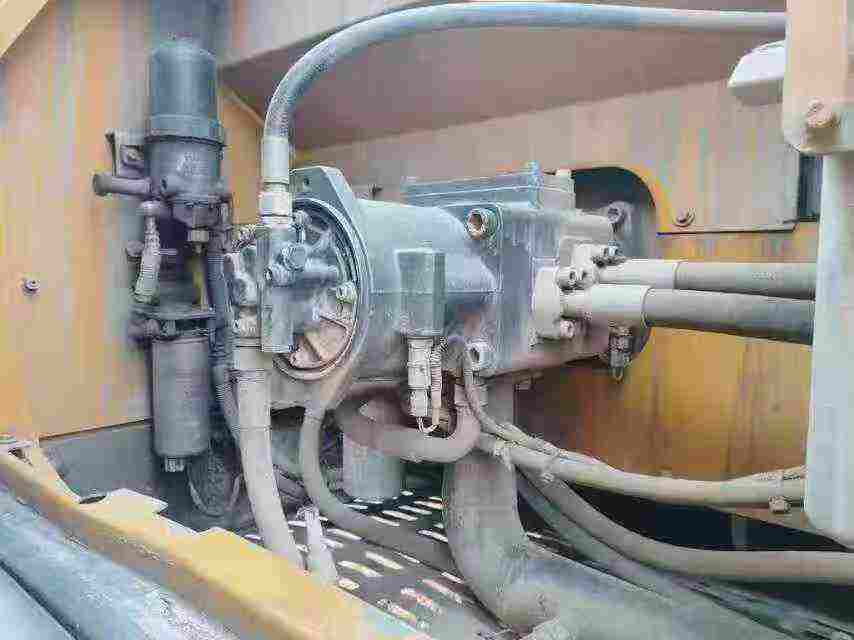

| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
