Product Description

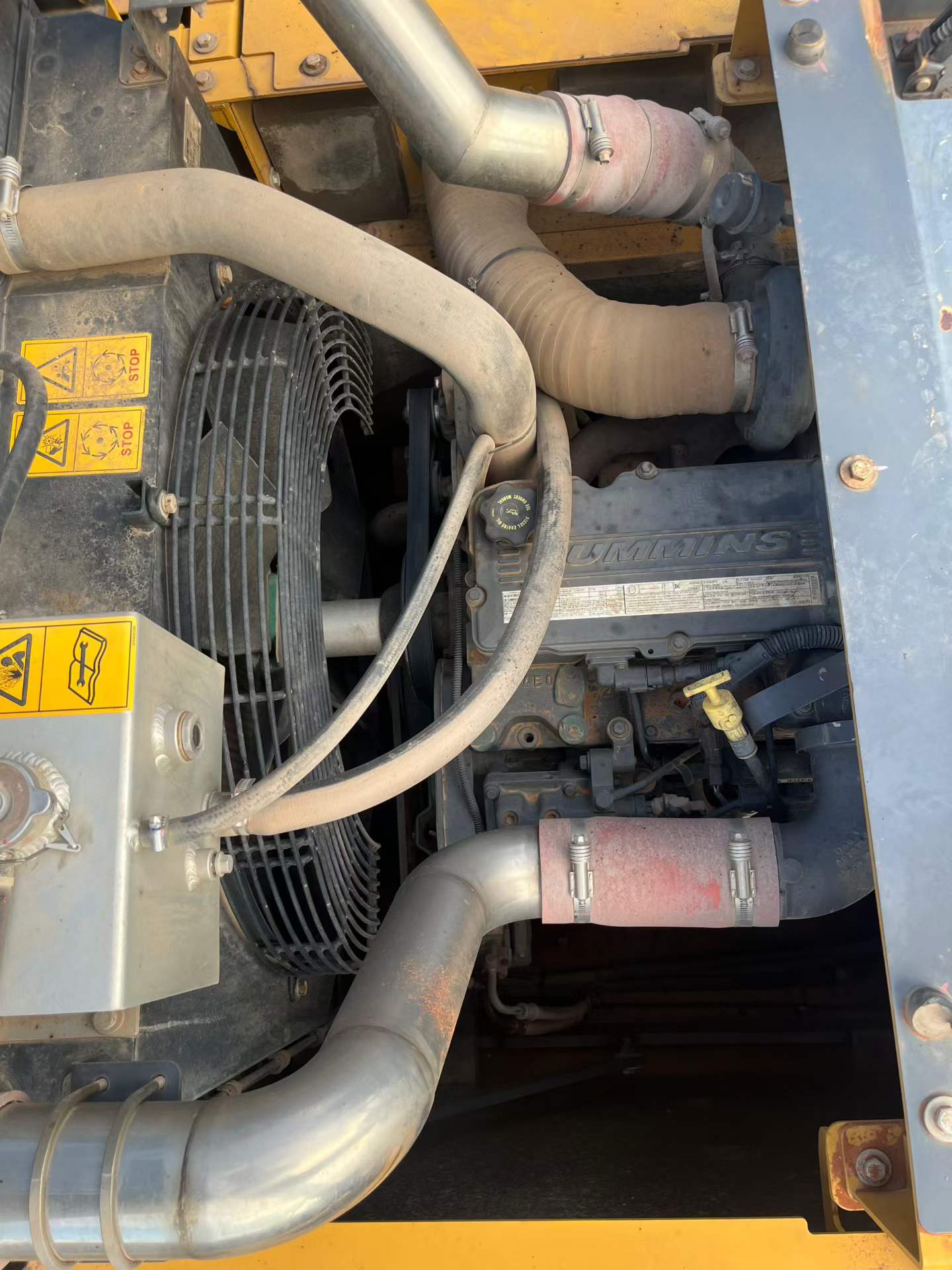

Built for the long haul, this 2021 XCMG XE80 excavator demonstrates exceptional durability in an 8-ton package. Powered by a robust Cummins B3.3 engine delivering 60kW at 2200rpm with water-cooled turbocharged performance, this proven workhorse combines reliability with impressive digging capabilities. Operating weight of 7,425kg provides stability while maintaining a ground-specific pressure of just 34.2kPa, minimizing surface damage across varied terrain.

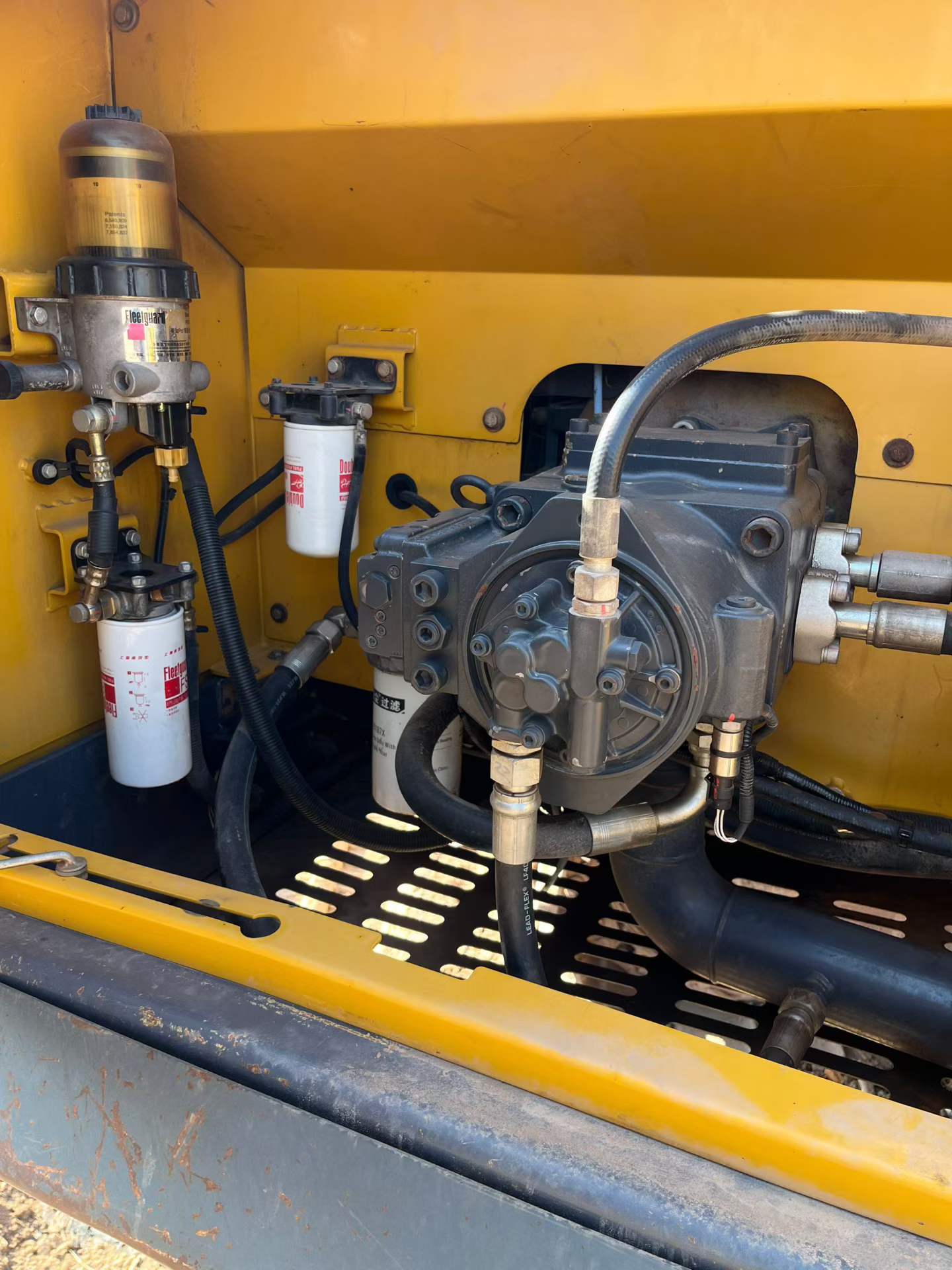

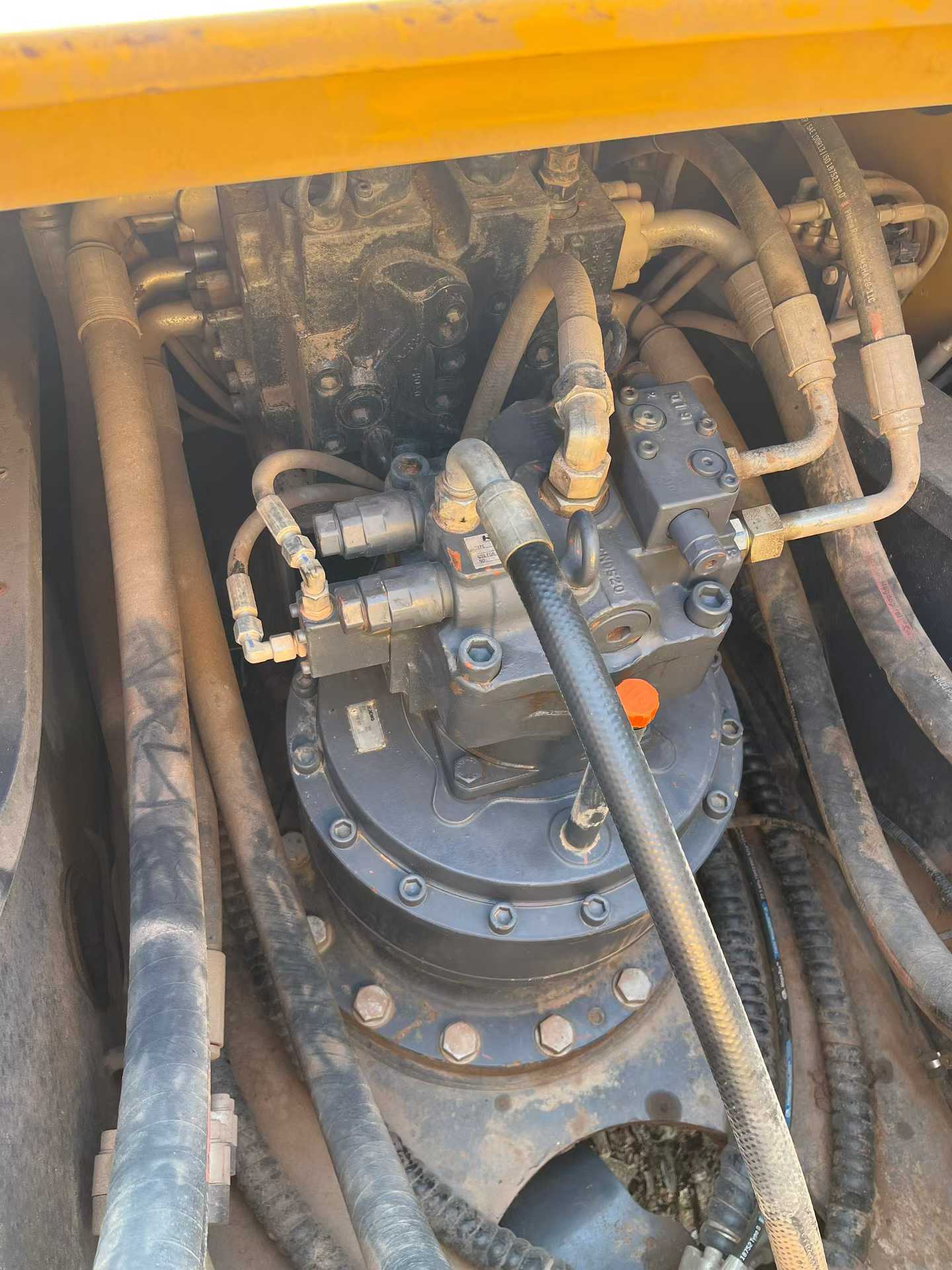

Performance credentials include a maximum digging depth of 4,140mm and digging radius of 6,375mm, backed by substantial bucket digging force of 53.6kN. Equipped with a Toshiba variable pump system and plunger hydraulic motors for both rotation and travel functions, this machine delivers consistent power throughout demanding workdays. Currently located in Yichun, Jiangxi, this XE80 represents XCMG's commitment to manufacturing dependable equipment that stands the test of time.
- Cummins B3.3 6-cylinder turbocharged engine
- Maximum digging depth: 4,140mm
- Bucket capacity: 0.14-0.34m³
- 35° climbing ability for challenging sites
- Dual hydraulic circuit system with 27.4MPa main overflow pressure
| Specifications | Value |
|---|---|
| No. | 1013884 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
