Product Description

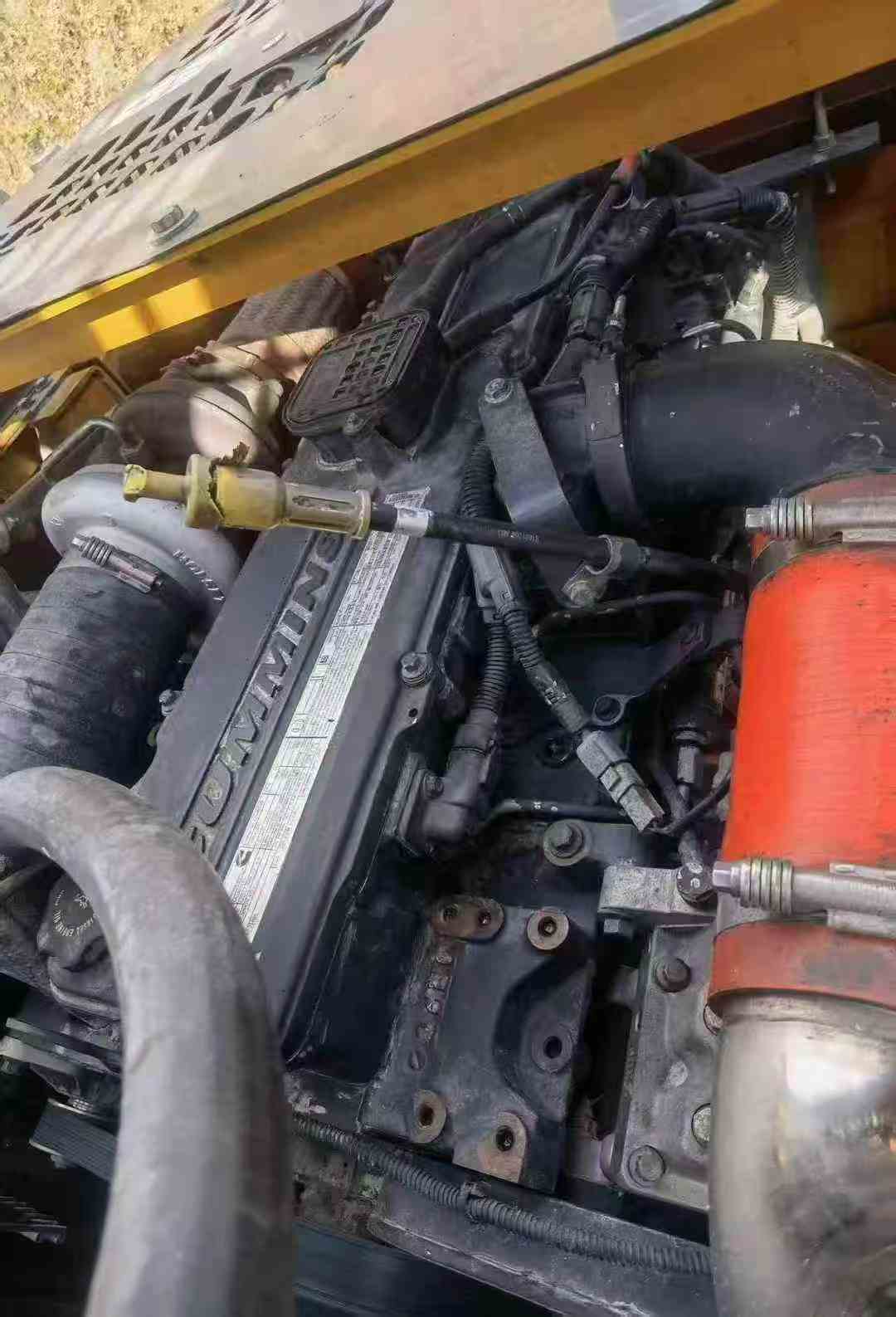

Maximize productivity while minimizing capital expenditure with this 2021 XCMG XE80 excavator, currently located in Huizhou, Guangdong. Engineered for versatility in the 8-ton class, this machine delivers exceptional performance at a fraction of new equipment costs. Powered by a reliable Cummins B3.3 engine generating 60kW at 2200rpm, it combines proven durability with efficient fuel consumption from its 127L tank.

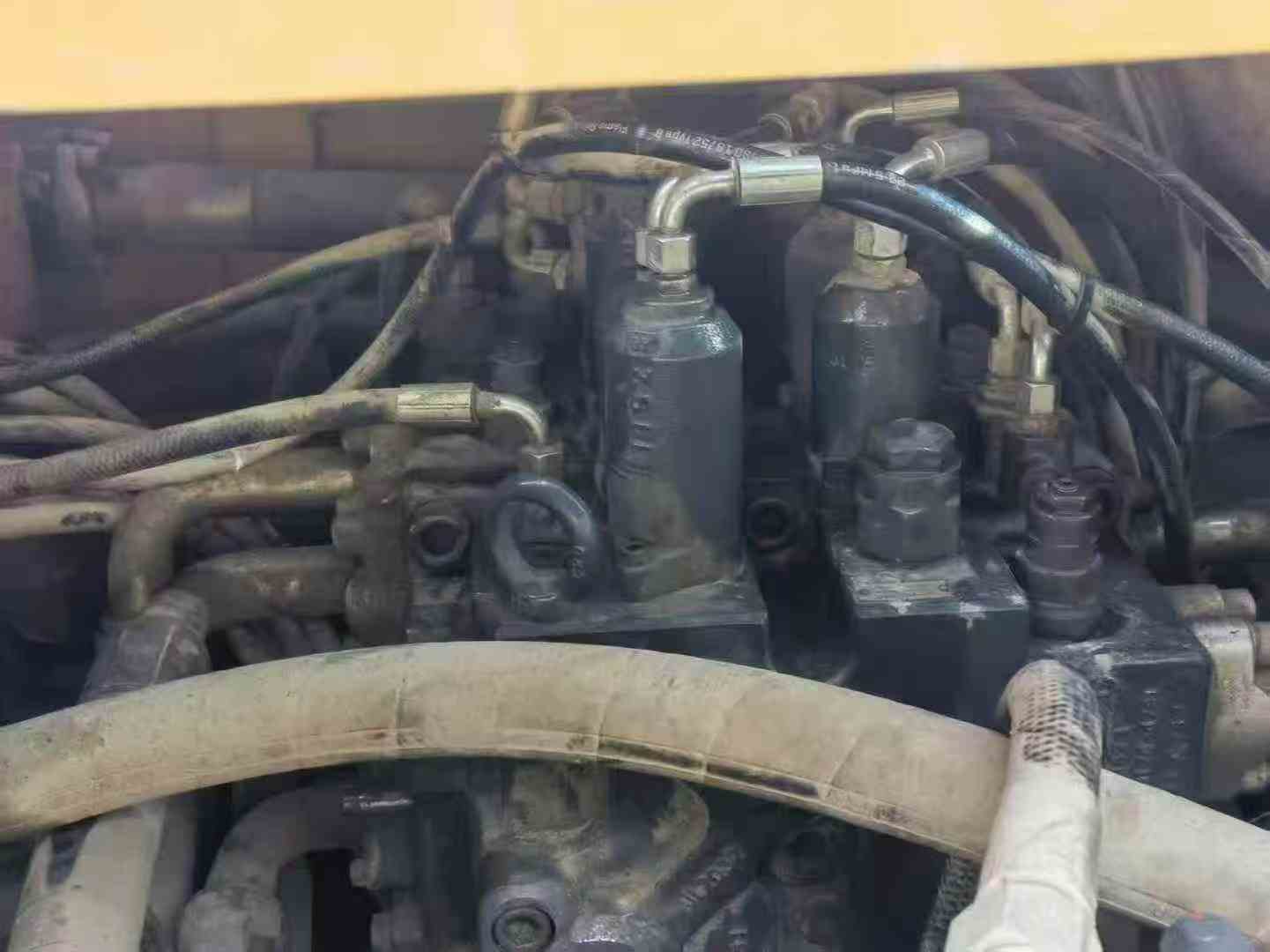

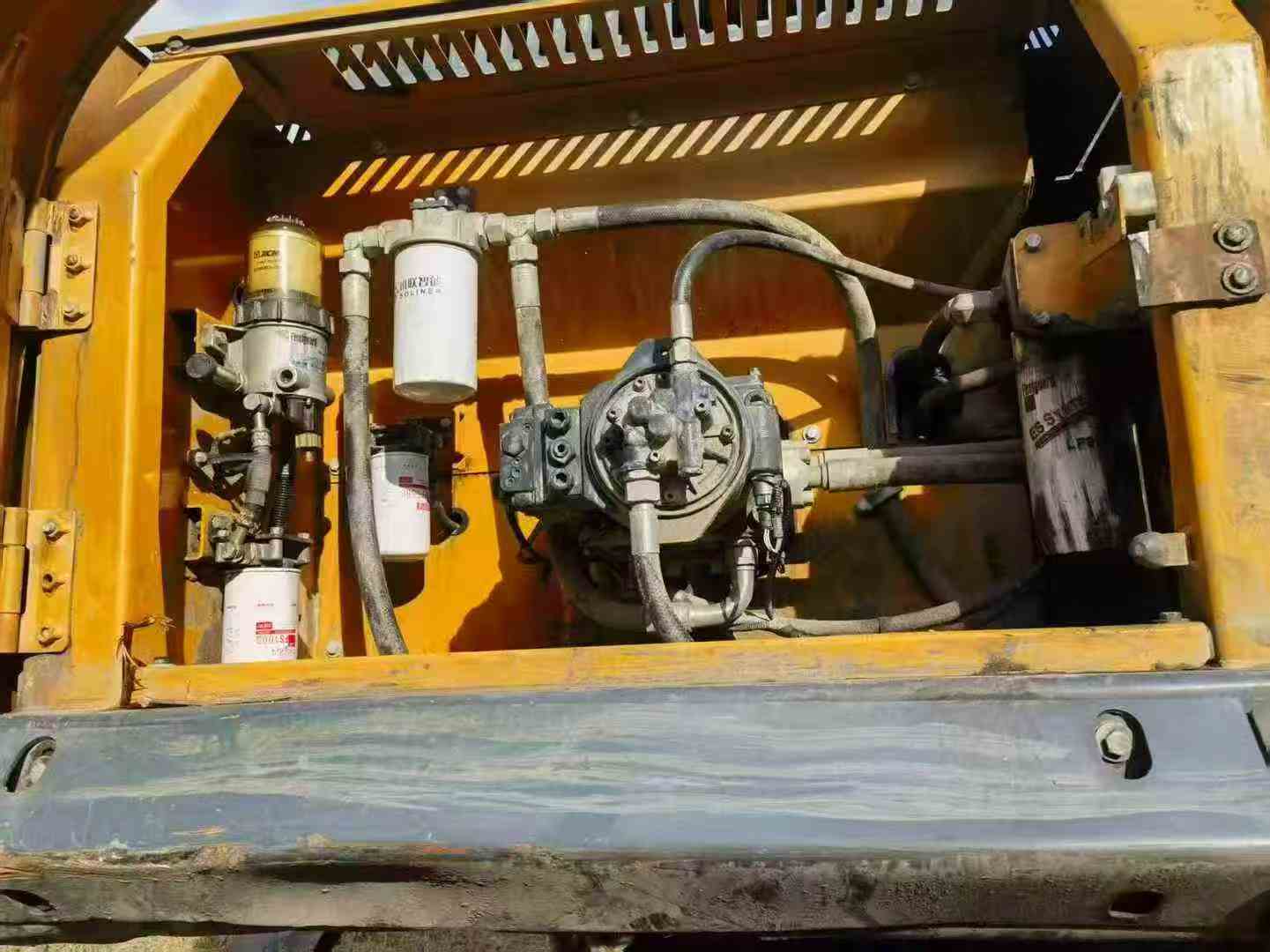

Operational capabilities include a maximum digging depth of 4,140mm and a reach extending to 6,375mm, supported by robust digging forces of 53.6kN (bucket) and 39.2kN (arm). Equipped with a Toshiba variable pump and plunger hydraulic motors for both rotation and travel functions, this excavator ensures smooth, responsive control across demanding applications.
- Working weight: 7,425kg with 0.14-0.34m³ bucket capacity
- Advanced hydraulics: 27.4MPa main overflow, 198L/min pump flow
- Superior mobility: 35° climbing ability, 12rpm rotation speed
- Compact footprint: 6,155mm transport length, 2,220mm width
- Water-cooled turbocharged engine for reliable performance
Invest strategically in proven XCMG engineering without the premium pricing of new machinery.
| Specifications | Value |
|---|---|
| No. | 1018625 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
