Product Description

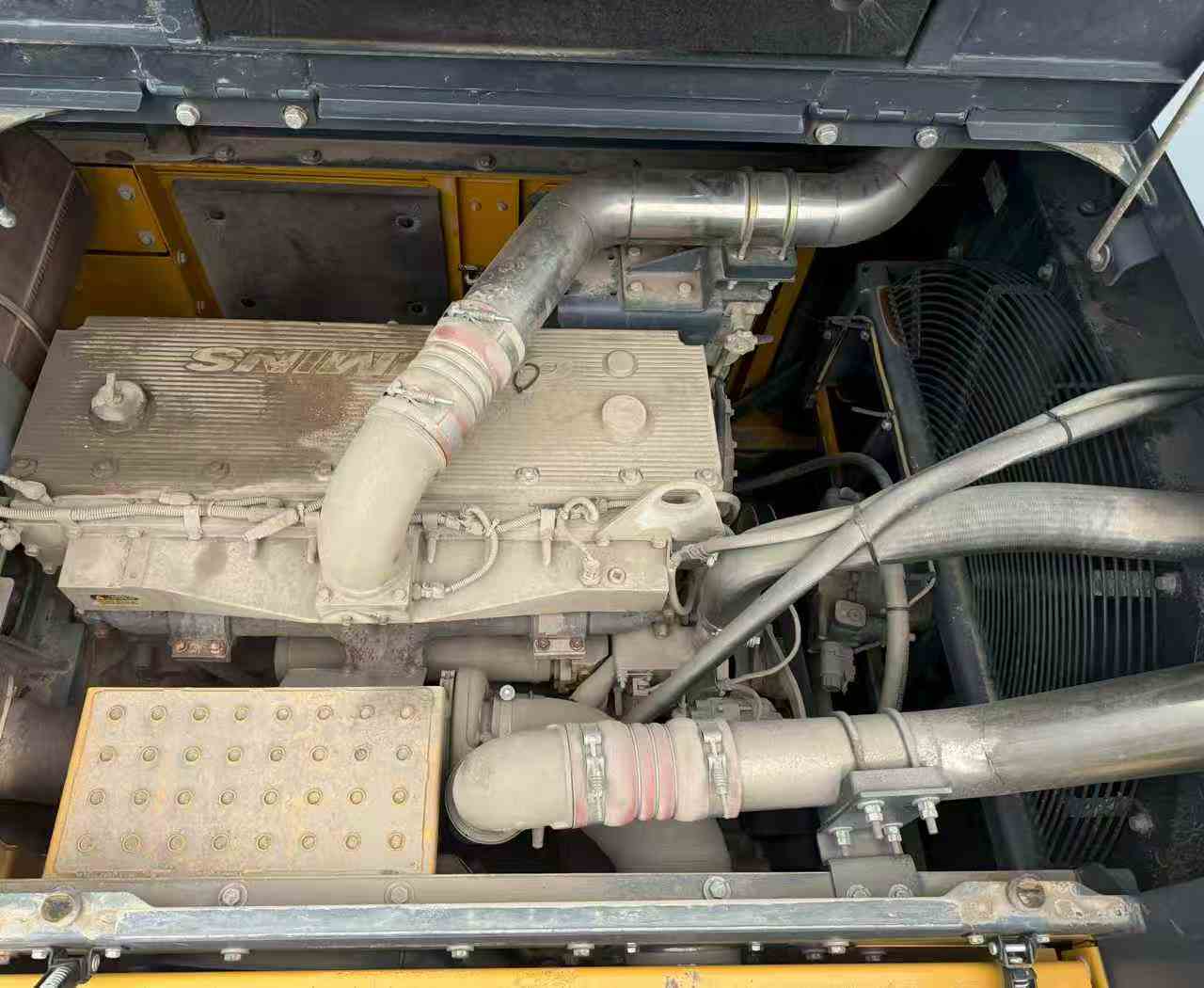

Available now in Wenzhou, Zhejiang—this 2022 XCMG XE80 excavator delivers 8-ton performance without factory wait times. Powered by a reliable Cummins B3.3 engine producing 60kW at 2200rpm, this machine combines proven hydraulics with immediate deployment capability. Skip the lead times and put this compact powerhouse to work on your site within days.

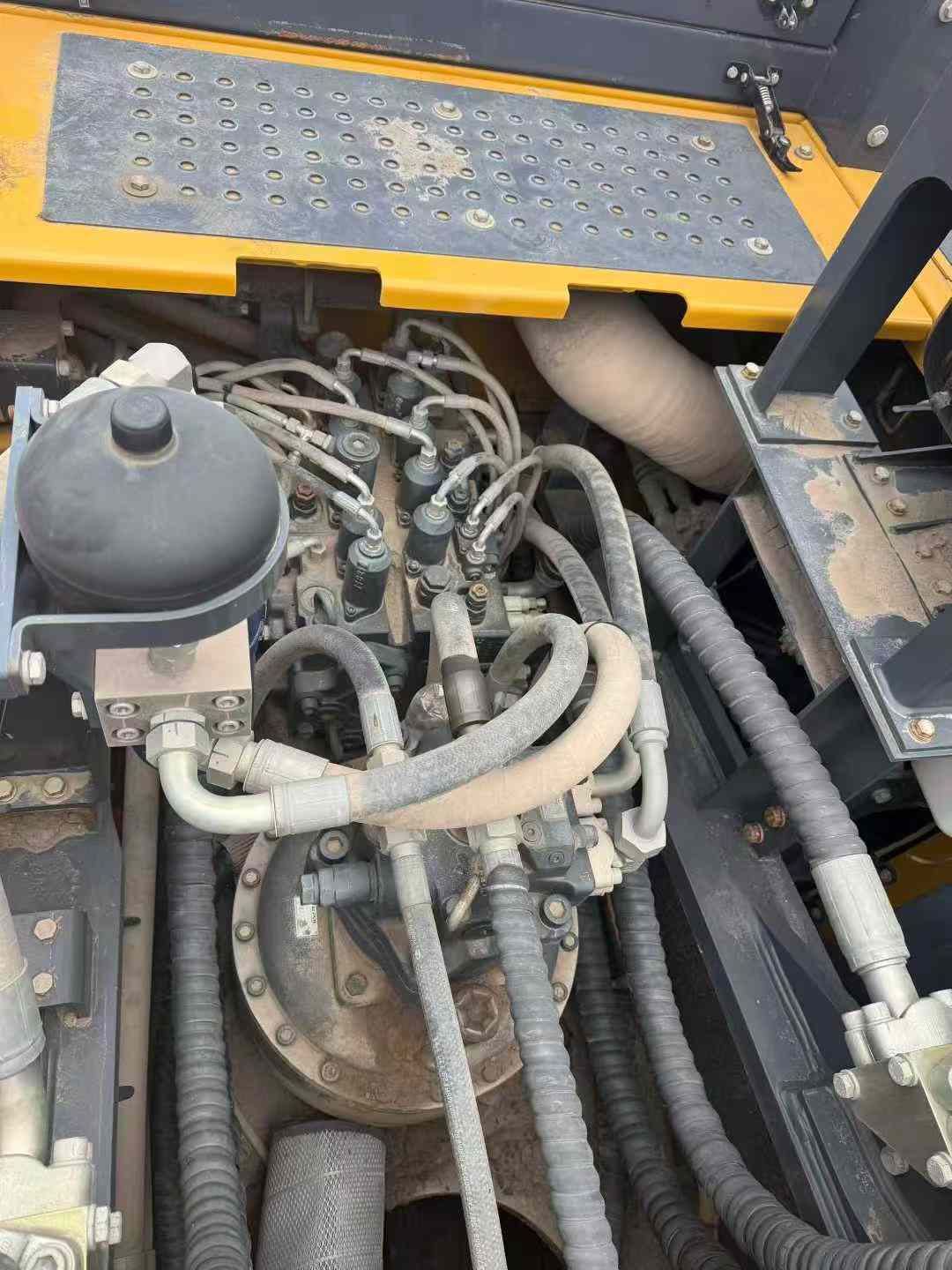

Engineered for versatility, the XE80 features a maximum digging depth of 4140mm and a reach extending to 6375mm, making it ideal for urban construction, utility work, and medium-duty excavation projects. The Toshiba variable pump system ensures responsive control, while the 0.14-0.34m³ bucket capacity adapts to diverse material handling requirements.
- Working weight: 7425kg with 3710mm boom and 1650mm arm
- Bucket digging force: 53.6kN; Rod digging force: 39.2kN
- Travel speed: 4.2/2.7 km/h with 35° climbing ability
- Compact transport dimensions: 6155mm × 2220mm × 2610mm
- Water-cooled 6-cylinder turbocharged engine for demanding conditions
Fast deployment from Wenzhou means reduced downtime and immediate ROI. Inspect locally and mobilize quickly—no overseas shipping delays or extended procurement cycles.
| Specifications | Value |
|---|---|
| No. | 1009619 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
