Product Description

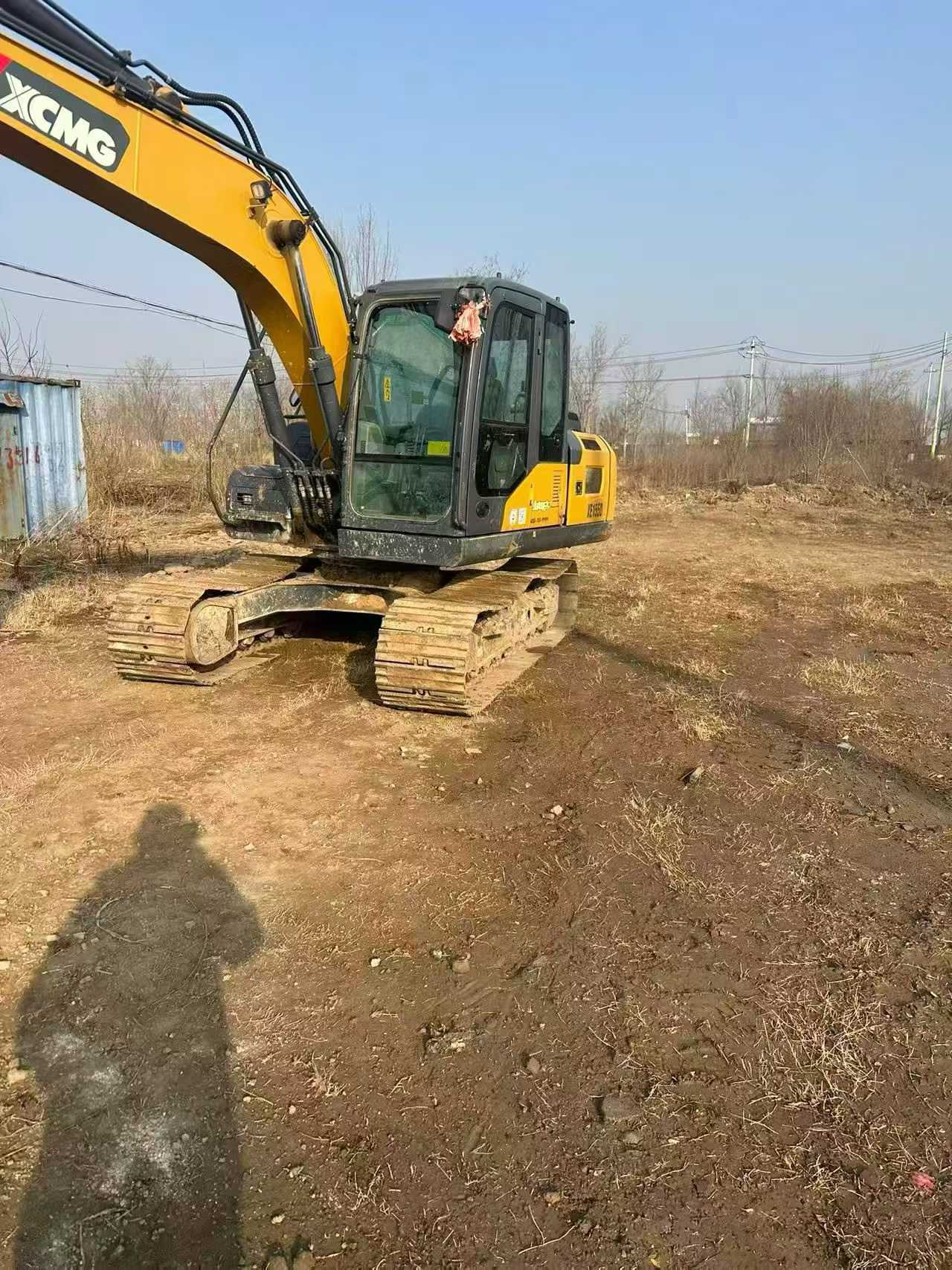

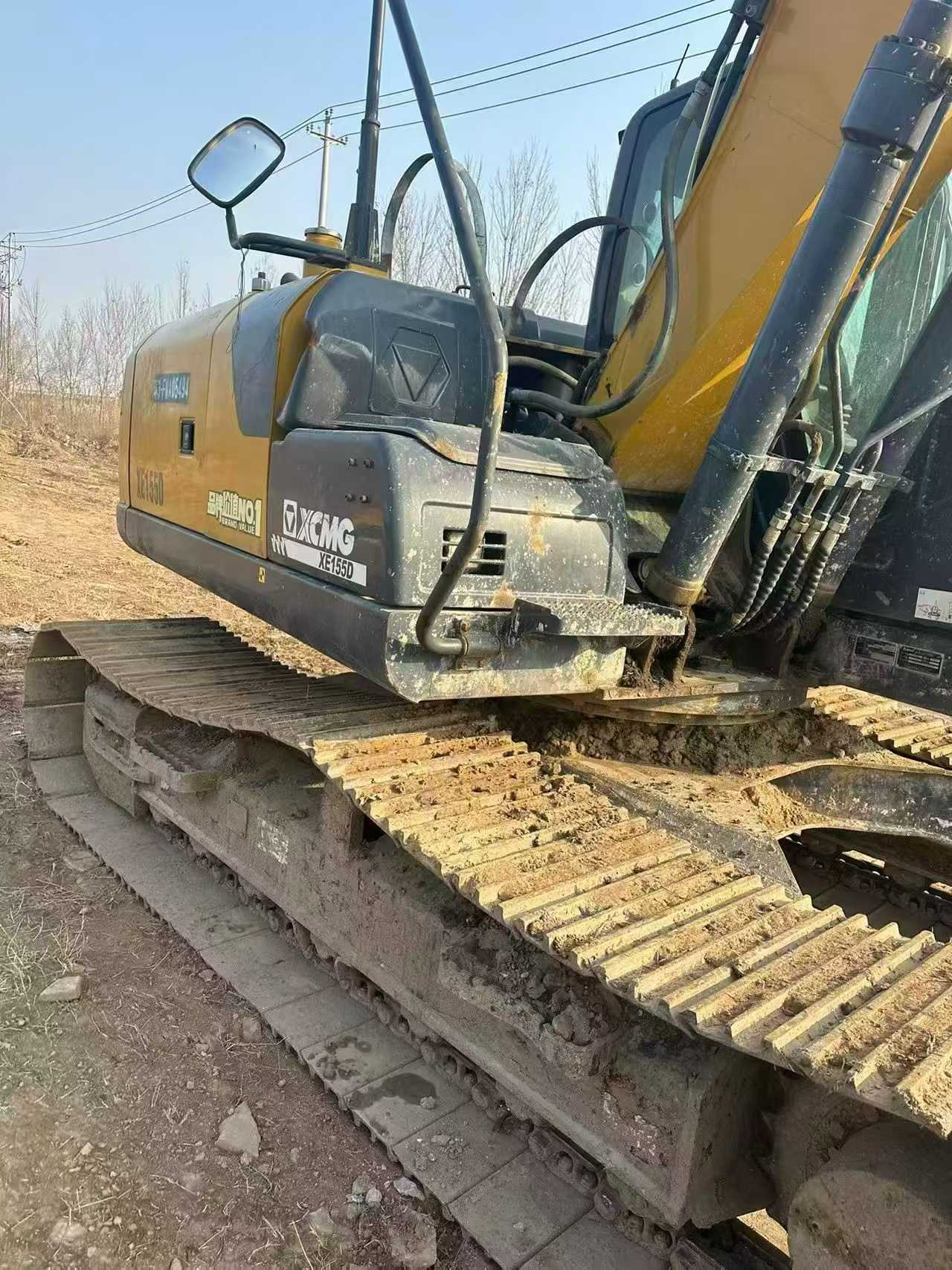

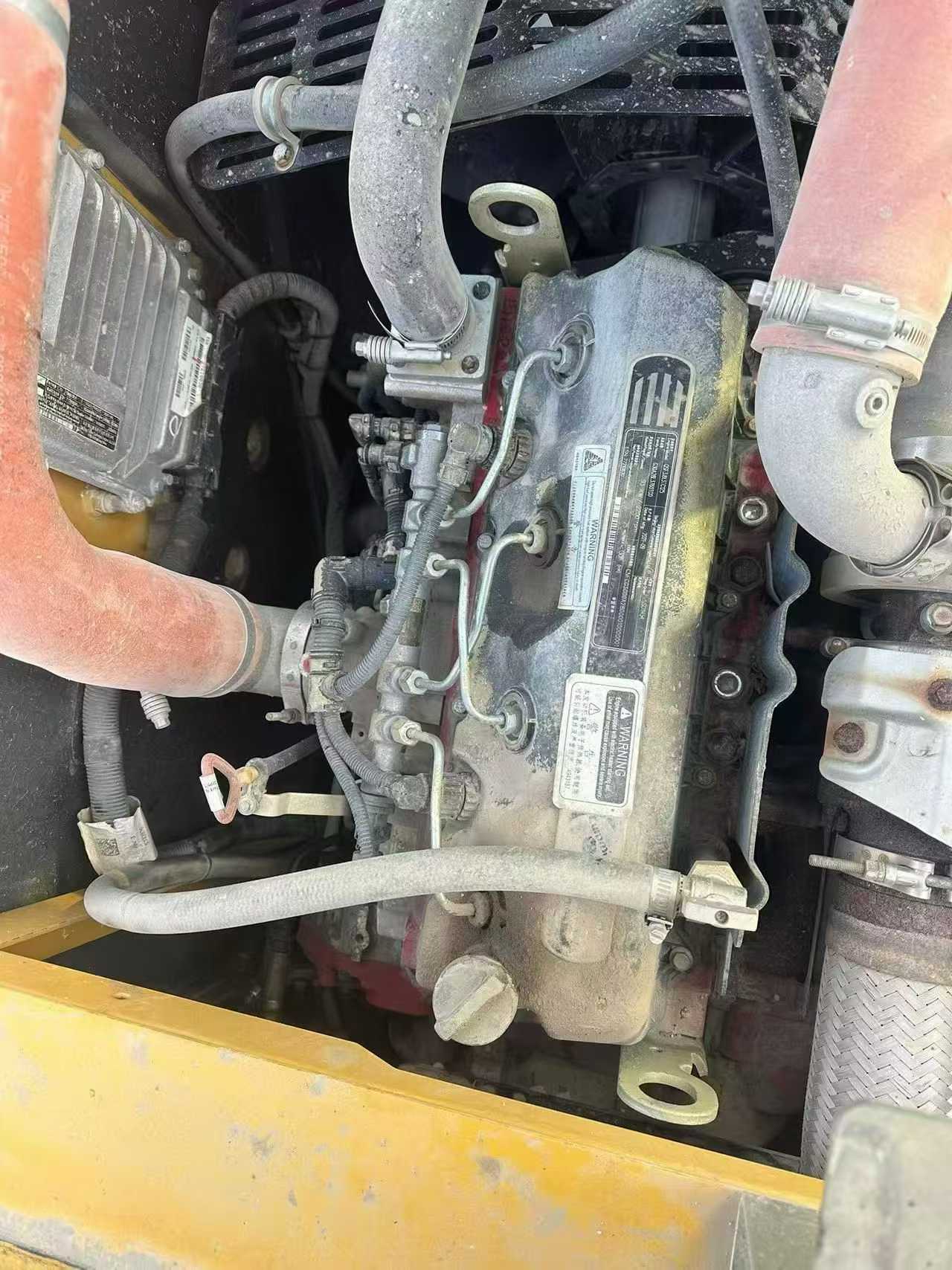

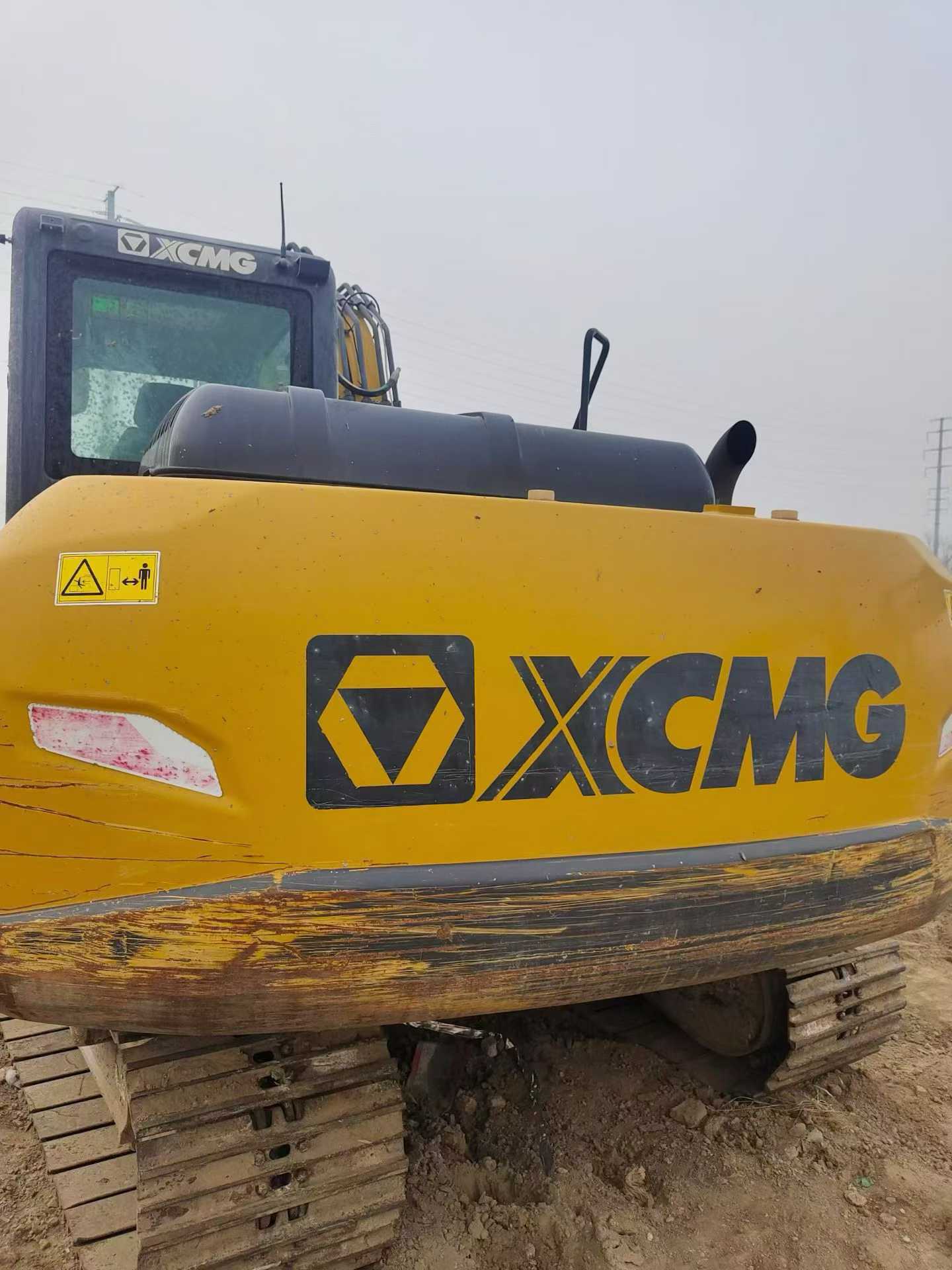

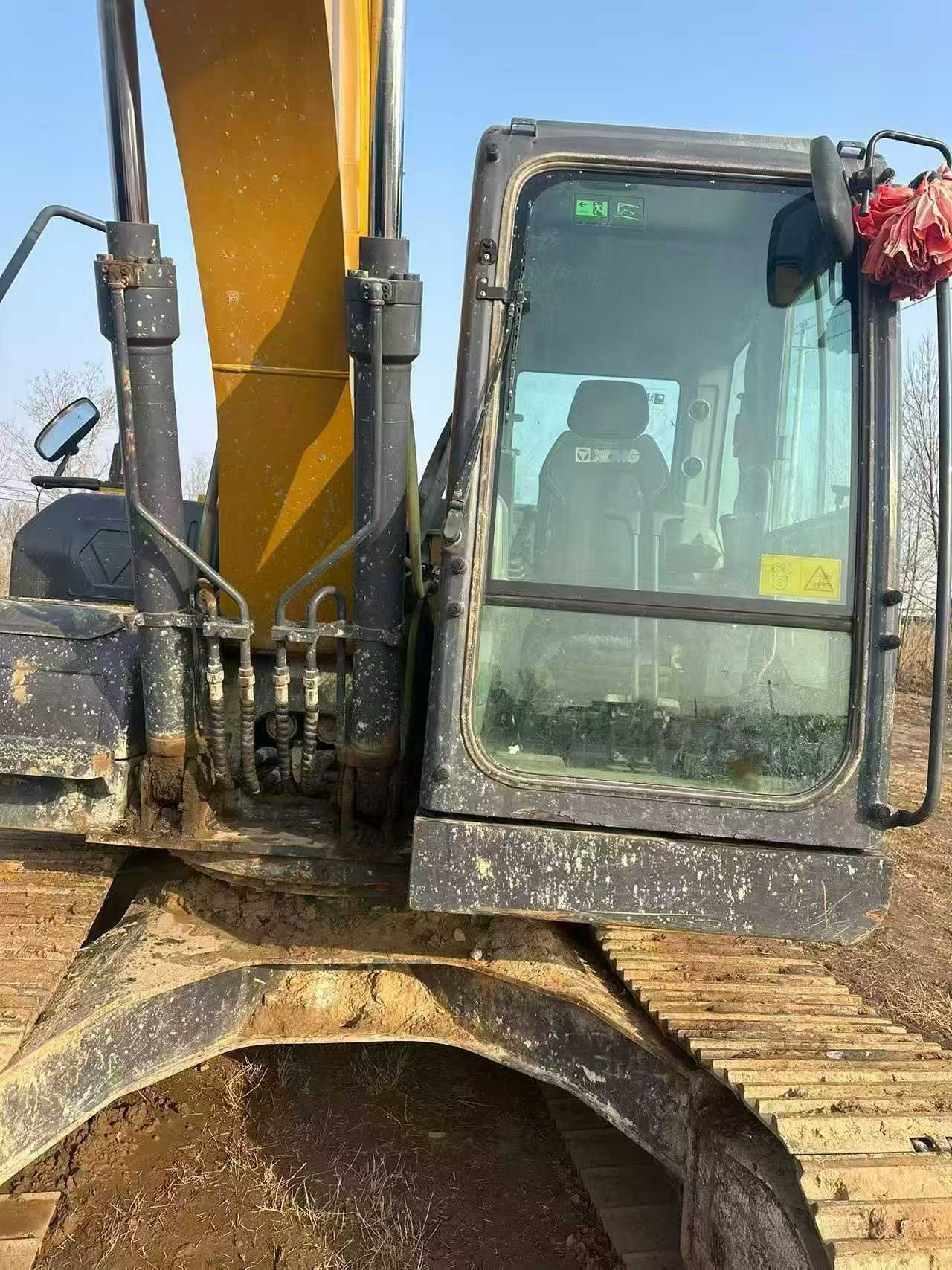

Acquire proven 8-ton excavation power without the new-equipment price tag. This 2022 XCMG XE80 delivers professional-grade performance with only minimal operational hours, offering contractors and fleet managers exceptional value on a machine that's barely broken in. Powered by a reliable Cummins B3.3 engine generating 60kW at 2200rpm, this compact excavator tackles demanding jobsites with 53.6kN bucket digging force and 39.2kN arm digging force.

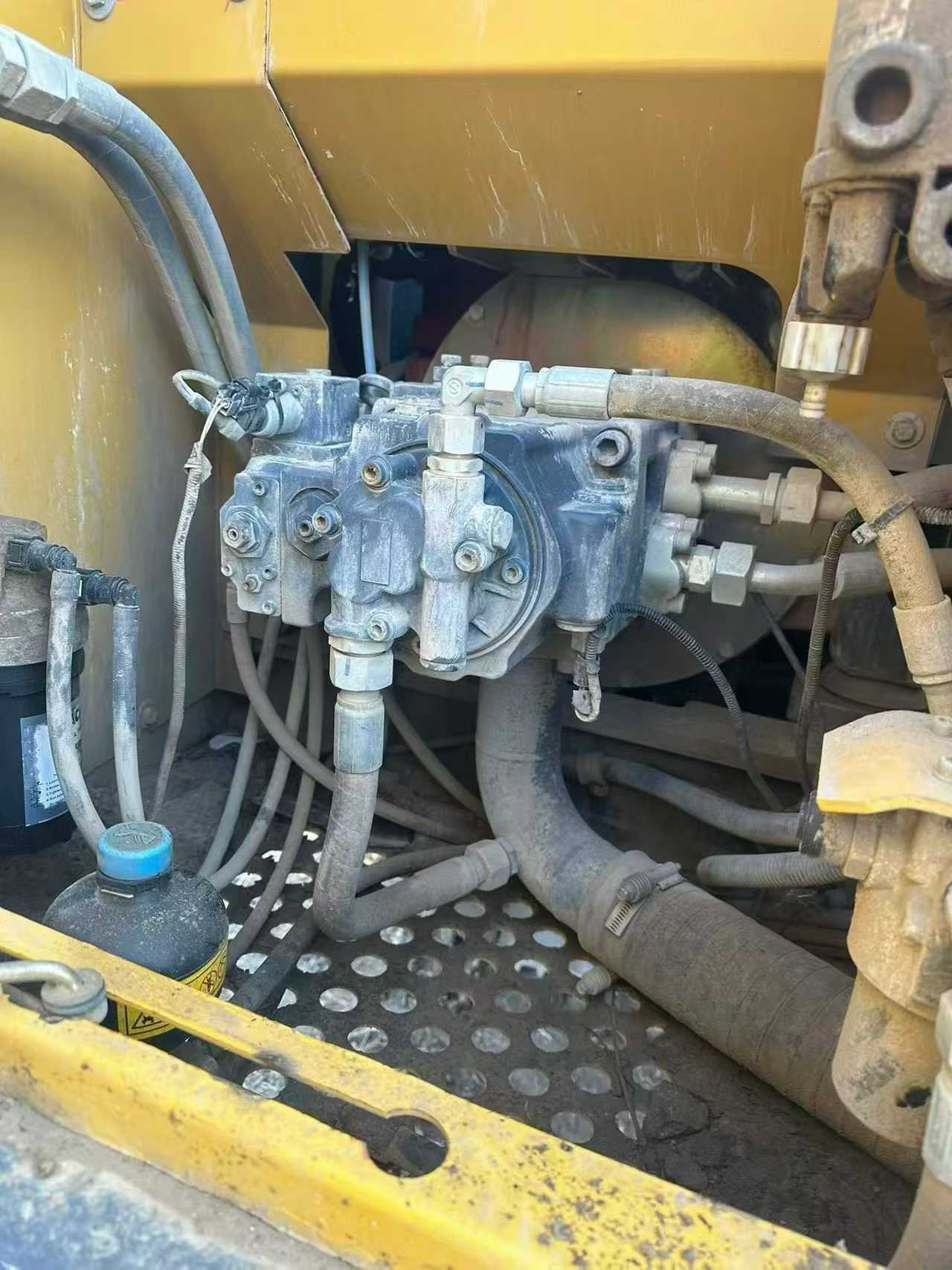

Engineered with Toshiba variable pump hydraulics and plunger motor systems, the XE80 provides precise control across all functions. The 6,375mm maximum digging reach and 4,140mm digging depth handle foundation work, trenching, and utility installation efficiently. At 7,425kg working weight with a compact 2,220mm transport width, this machine balances stability with site mobility.
Key specifications:
- 0.14-0.34m³ bucket capacity range for versatile applications
- Water-cooled turbocharged 6-cylinder engine (3.3L displacement)
- 27.4MPa main system pressure for consistent hydraulic performance
- 35° climbing ability with 34.2kPa ground pressure
- Currently located in Shandong, ready for immediate deployment
| Specifications | Value |
|---|---|
| No. | 1018586 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
