Product Description
Built to withstand the rigors of demanding construction environments, this 2022 XCMG XE80 excavator represents proven engineering excellence from one of China's leading manufacturers. Operating at 8 tons with a working weight of 7,425 kg, this machine delivers consistent performance through its robust Cummins B3.3 engine, generating 60 kW of reliable power at 2,200 rpm. Currently located in Maoming, Guangdong, this proven workhorse features a water-cooled, turbocharged 6-cylinder configuration with 3.3L displacement, ensuring optimal thermal management during extended operations.
Engineered for versatility and durability, the XE80 offers impressive operational capabilities:
- Maximum digging depth of 4,140 mm with a reach extending to 6,375 mm
- Bucket digging force of 53.6 kN, powered by Toshiba variable pump hydraulic system
- Bucket capacity range from 0.14 to 0.34 m³ for varied applications
- 35° climbing ability with 34.2 kPa ground pressure for challenging terrain
- Dual plunger hydraulic motors for rotation and travel functions
- Compact transport dimensions: 6,155 mm length × 2,220 mm width
Backed by XCMG's manufacturing reputation, this excavator combines
| Specifications | Value |
|---|---|
| No. | 996574 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

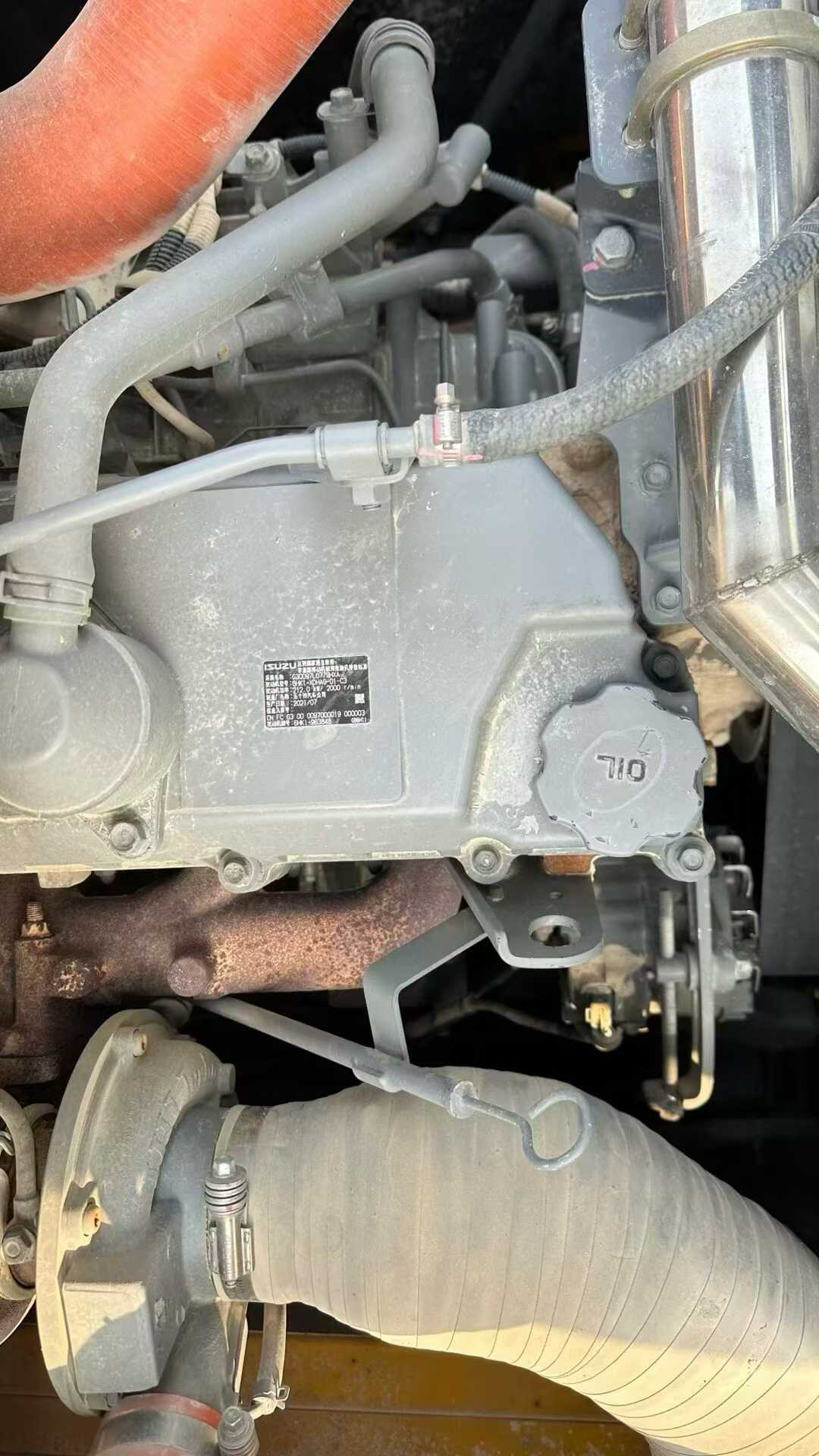

| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |

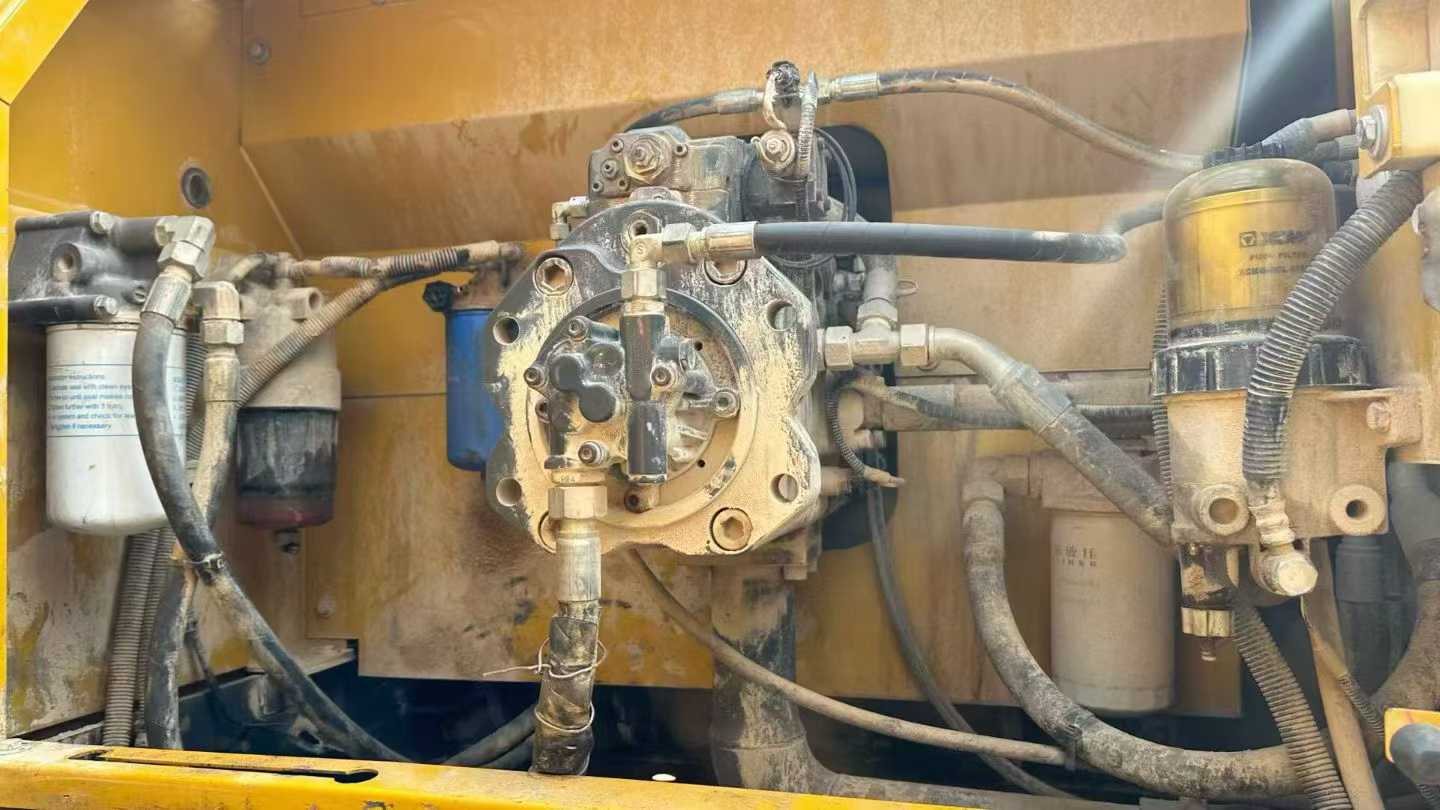

| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
