Product Description
Maximize your excavation budget with this 2024 XCMG XE80, delivering 8-ton performance at a fraction of new equipment costs. Powered by a reliable Cummins B3.3 engine producing 60kW at 2200 rpm, this compact excavator combines proven engineering with exceptional value. Currently located in Gansu, China, this machine offers immediate deployment capability with minimal depreciation.
Built for versatility and productivity, the XE80 features a maximum digging depth of 4140mm and a reach of 6375mm, handling diverse applications from trenching to site preparation. The Toshiba variable pump hydraulic system delivers 198 L/min flow capacity, ensuring responsive control and efficient fuel consumption. With 53.6kN bucket digging force and a 0.14-0.34m³ bucket capacity range, this excavator tackles demanding jobs while maintaining a compact 2220mm transport width.
Key Investment Advantages:
- 2024 model year with full manufacturer specifications and minimal operating hours
- Water-cooled 6-cylinder Cummins engine with proven durability in demanding conditions
- Advanced plunger hydraulic motors for rotation and travel systems
- 35° climbing ability and 4.2 km/h travel speed for s
| Specifications | Value |
|---|---|
| No. | 1010745 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

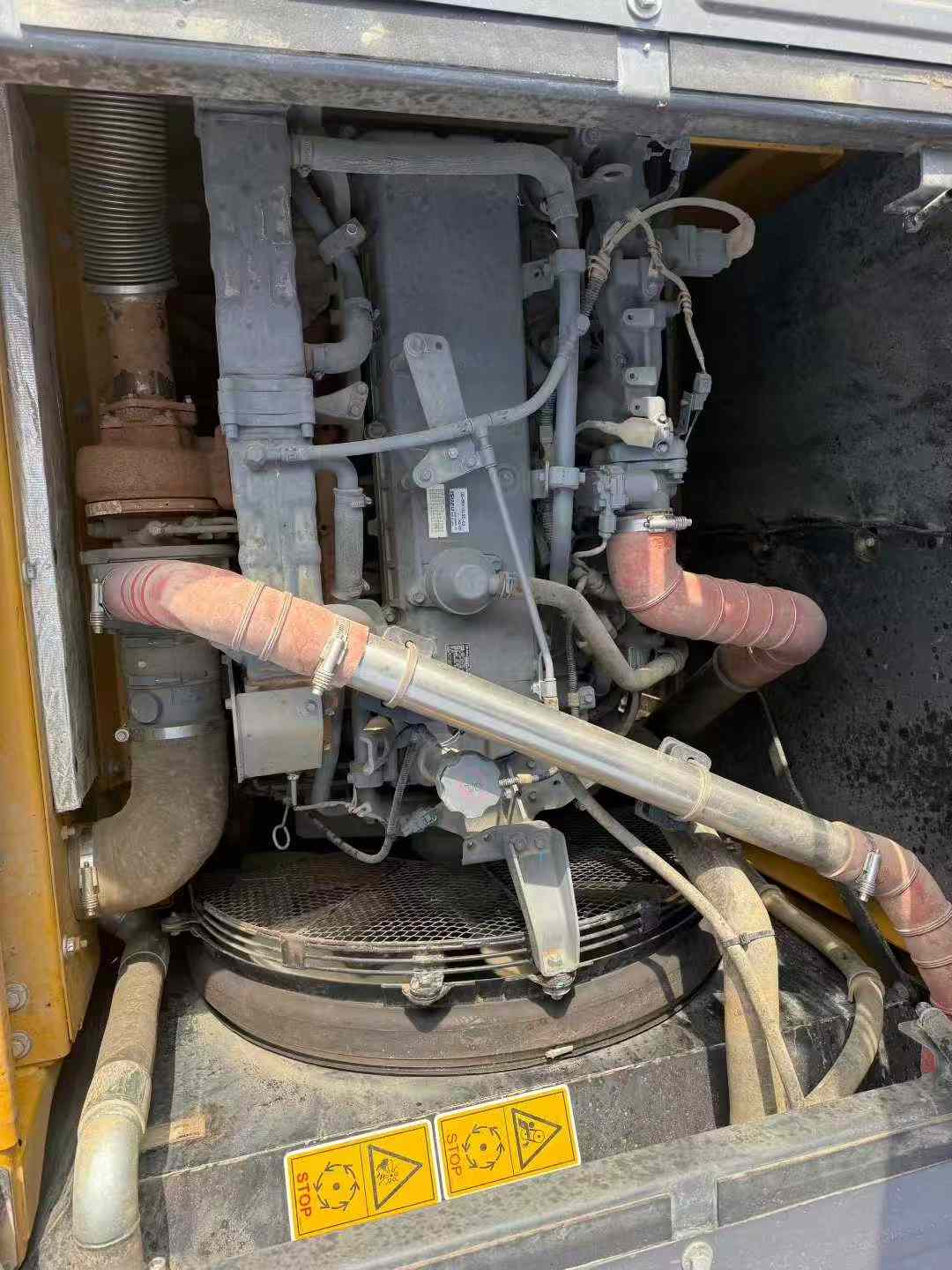

| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |

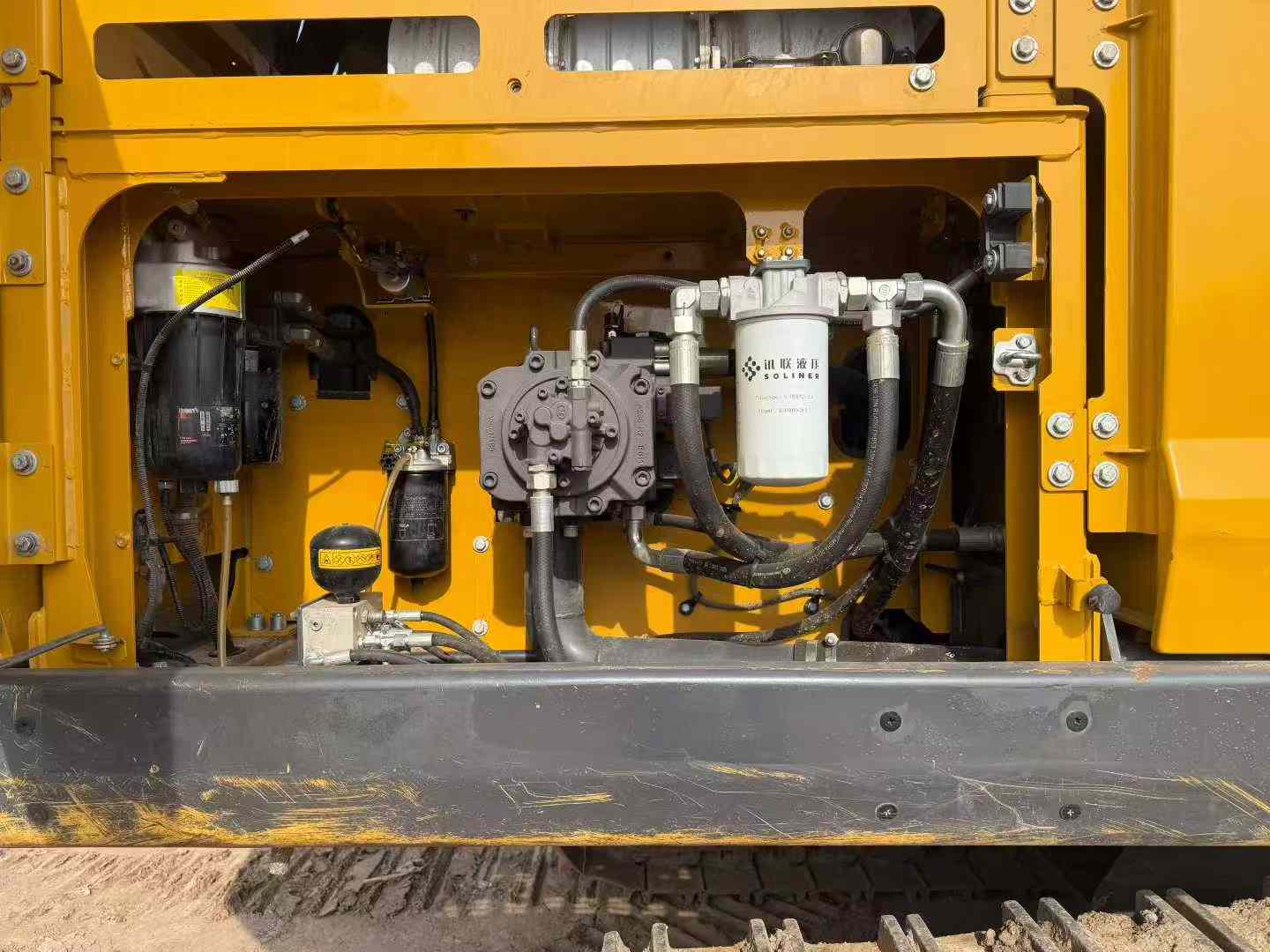

| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |

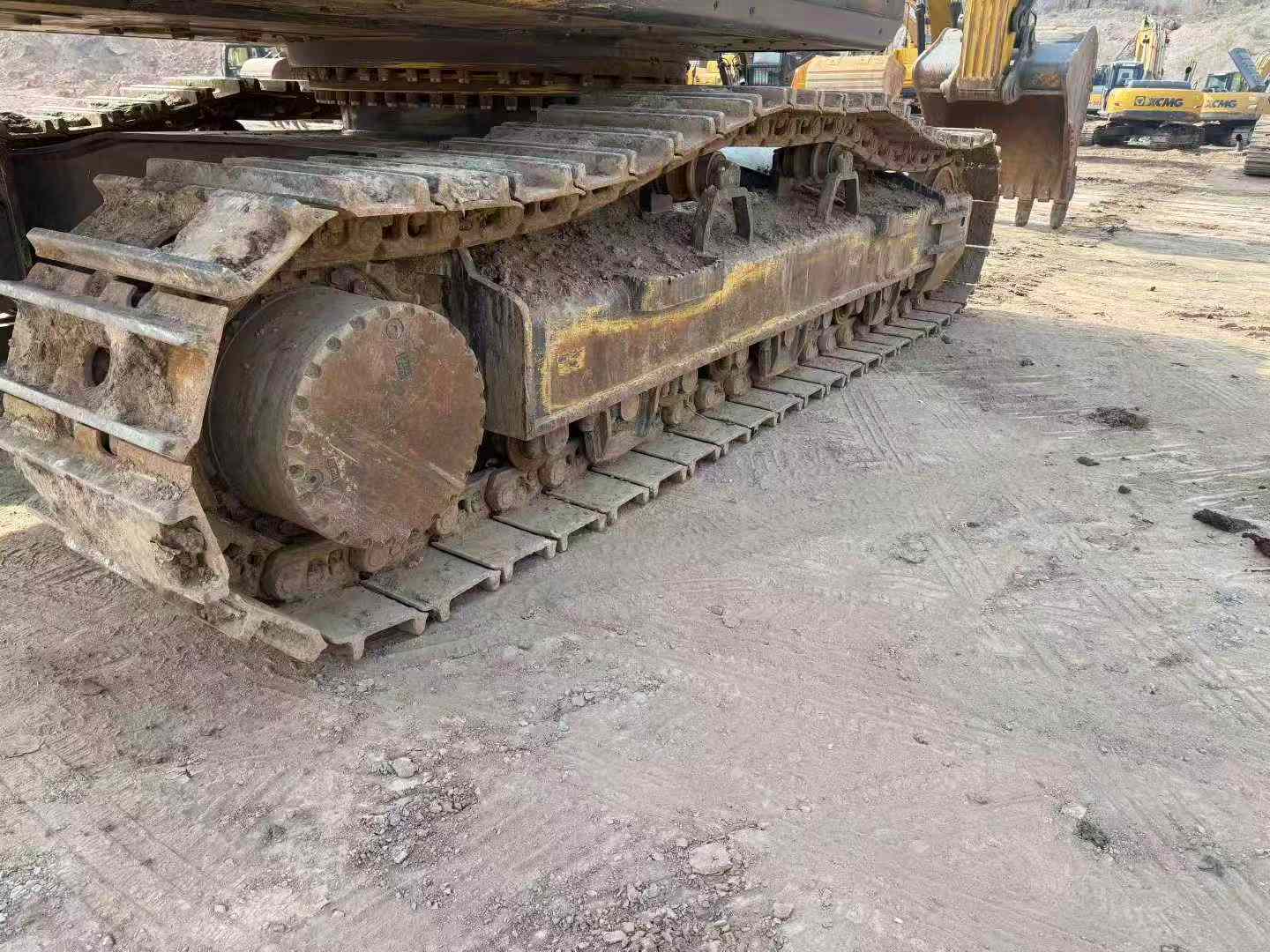

| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
