Product Description

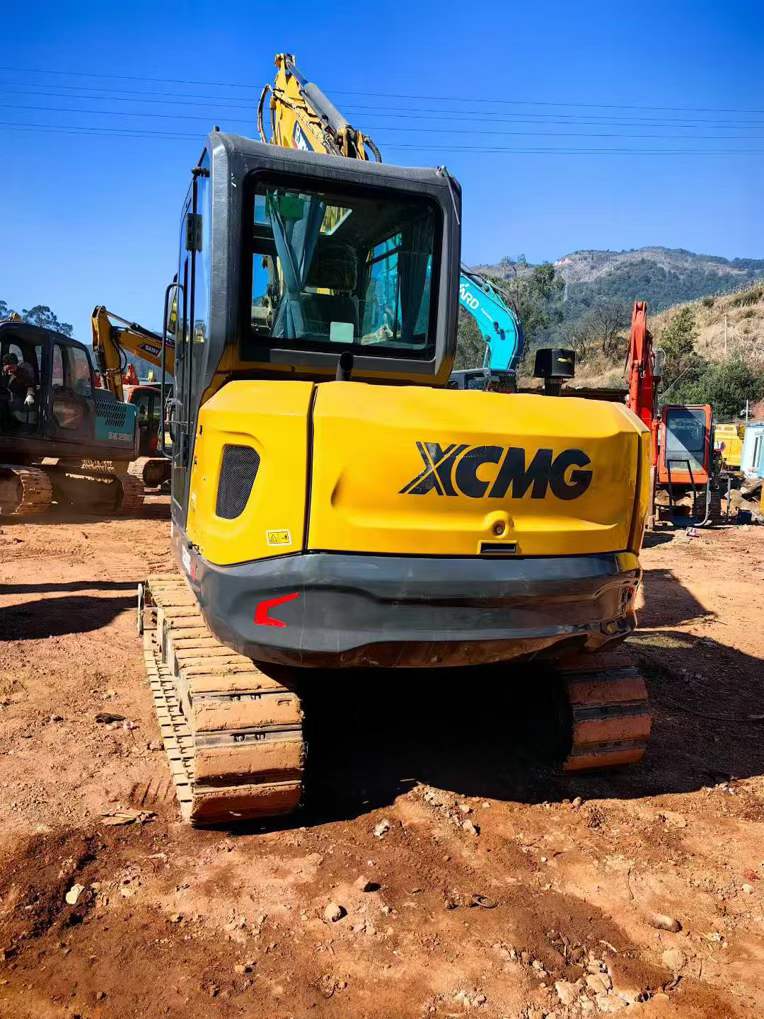

Built for demanding jobsites, this 8-ton excavator demonstrates XCMG's commitment to engineering excellence. Operating from Yunnan with a proven Cummins B3.3 engine delivering 60kW at 2200rpm, this XE80 combines robust construction with reliable performance. The water-cooled, turbocharged 6-cylinder powerplant drives a sophisticated hydraulic system featuring a Toshiba variable pump, ensuring consistent power delivery across all functions.
Engineered as a proven workhorse, the machine offers impressive digging capabilities with 53.6kN bucket force and 39.2kN arm force. Its 6375mm maximum reach and 4140mm digging depth handle diverse excavation tasks efficiently. The compact 6155mm transport length and 2220mm width provide excellent maneuverability while maintaining a stable 7425kg working weight.
- Durable plunger hydraulic motors for rotation and travel systems
- Generous 127L fuel capacity for extended operation
- 35° climbing ability tackles challenging terrain
- Standard backhoe bucket configuration (0.14-0.34m³)
- Proven Xuzhou manufacturing heritage
With 124L hydraulic tank capacity and 27.4MPa main overflow pressure, this machine delivers the durability contractor
| Specifications | Value |
|---|---|
| No. | 994157 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |

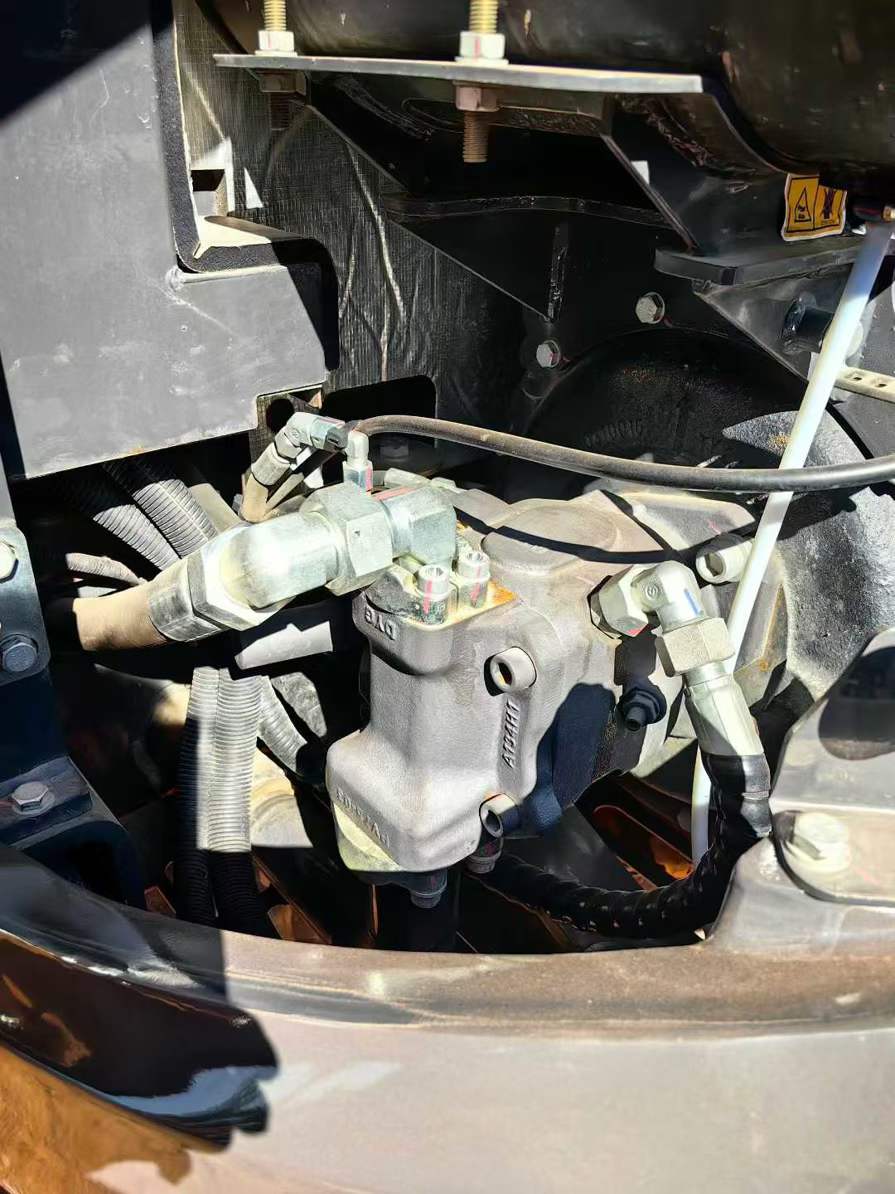

| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
