Product Description

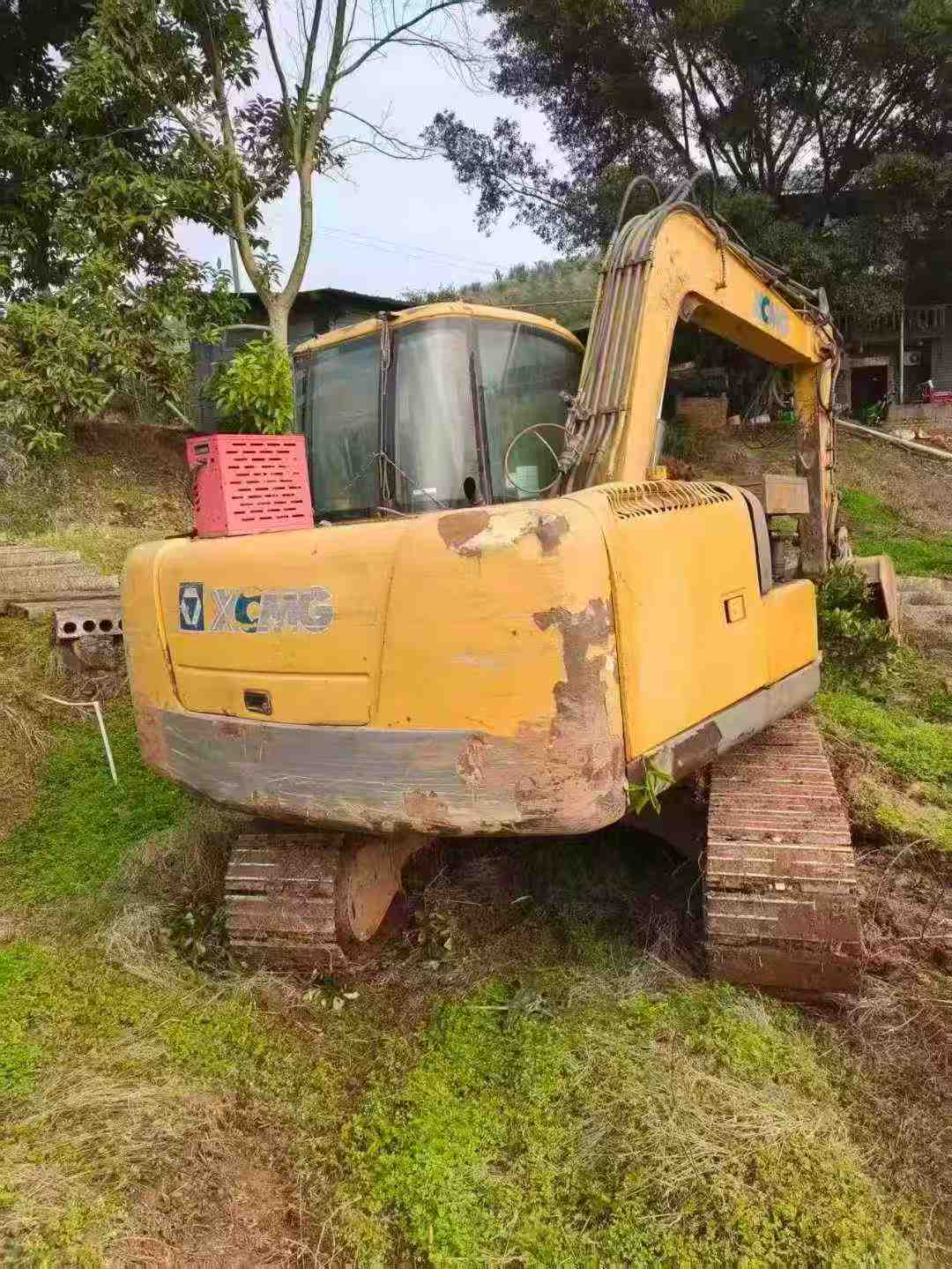

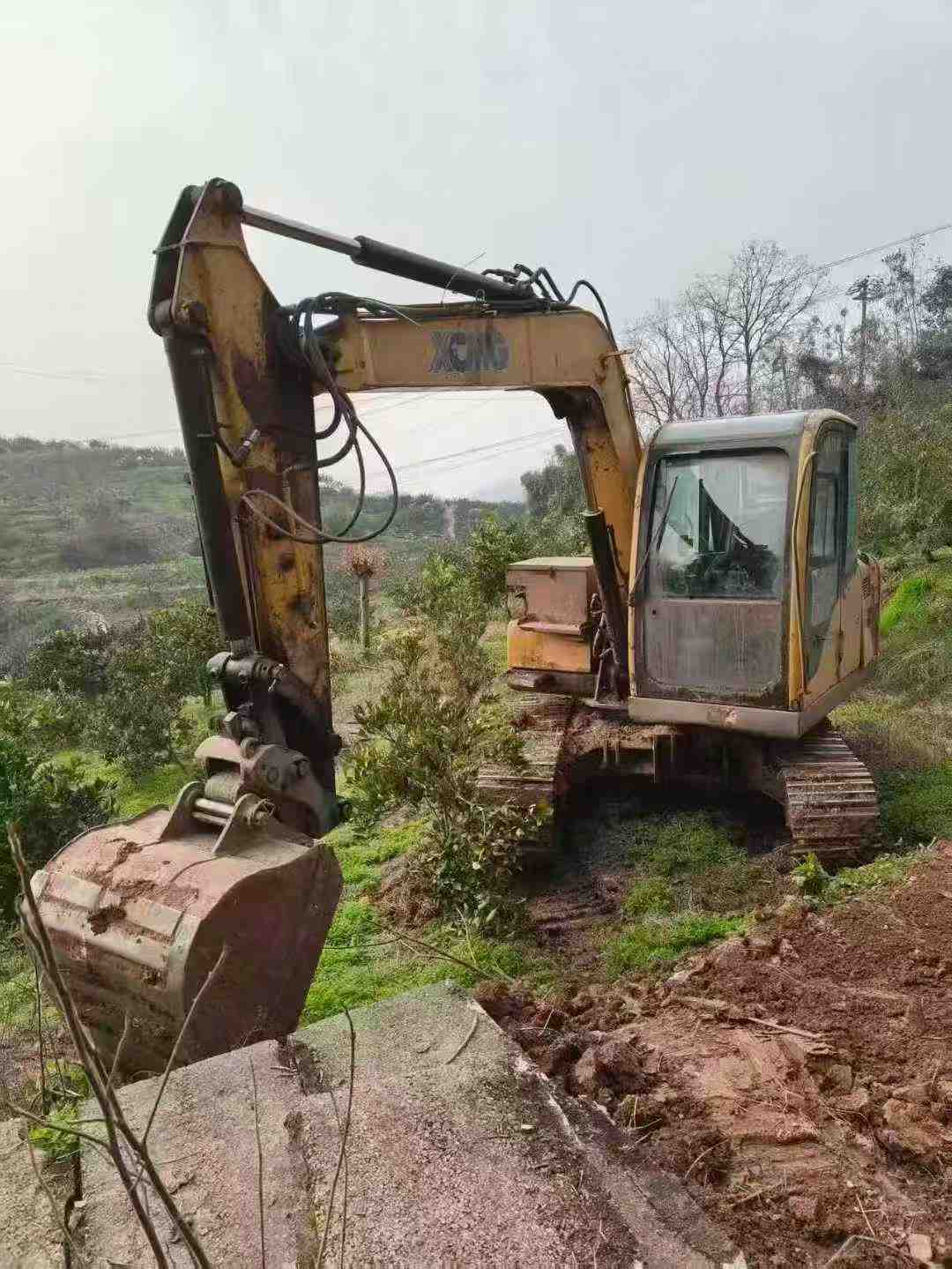

With a working weight of 7460 kg and an 8-ton capacity, the 2016 XCMG XE80C excavator, located in Sichuan Luzhou, offers high performance at a fraction of the cost of new equipment. Powered by a 4JG1TPC engine with a rated power of 53.8 kW, this machine delivers robust digging forces of up to 51.2 kN, making it ideal for tough construction tasks. Equipped with a 0.3 m³ bucket and a boom length of 3720 mm, it provides versatility and efficiency on the job site. The XE80C also features a travel speed of 4.4/2.4 km/h and a maximum tractive force of 68.5 kN, ensuring reliable operation in various terrains. Invest smartly in this used excavator, which combines durability and productivity, making it a cost-effective solution for your heavy machinery needs.
| Specifications | Value |
|---|---|
| No. | 1004572 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

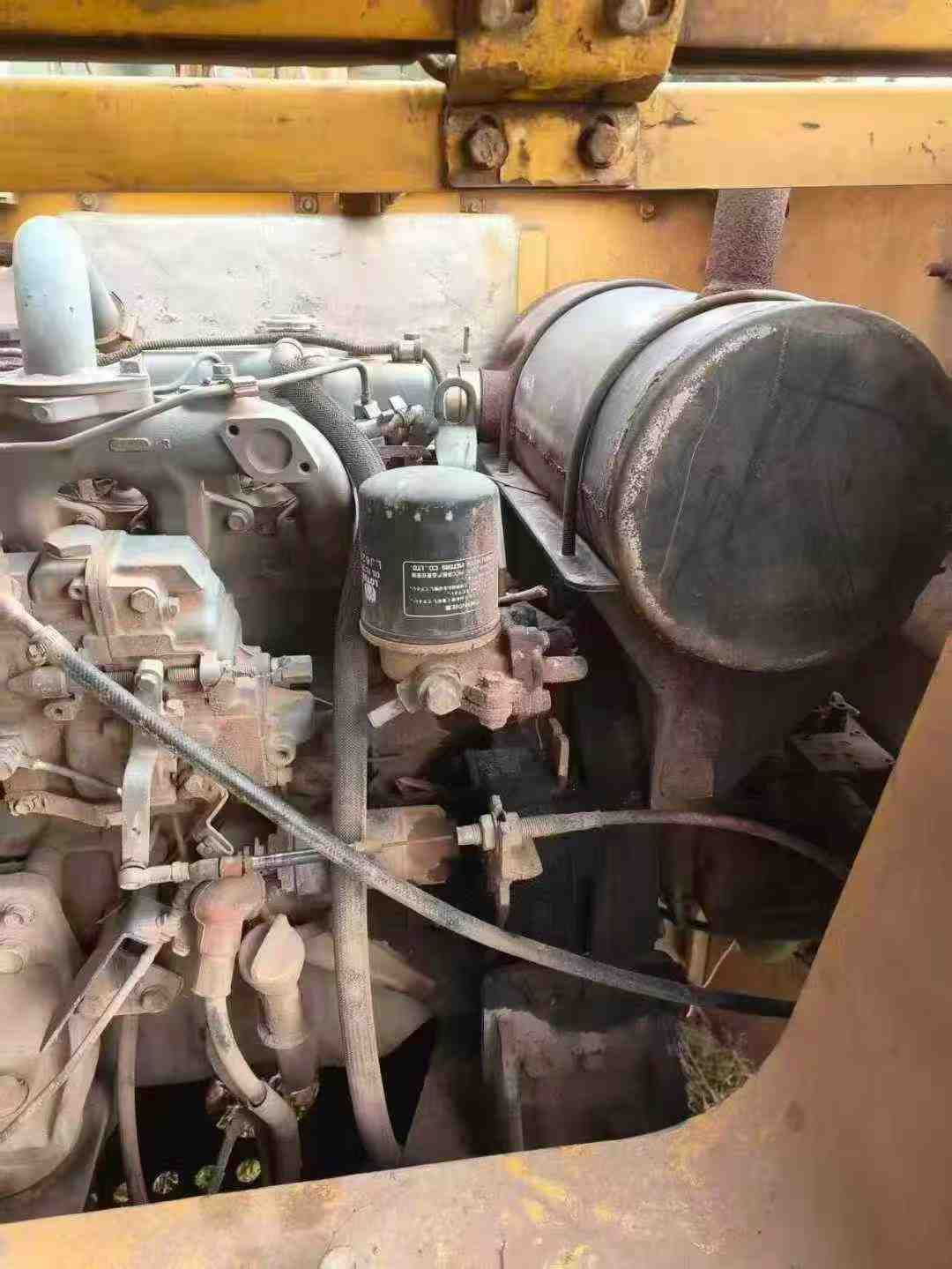

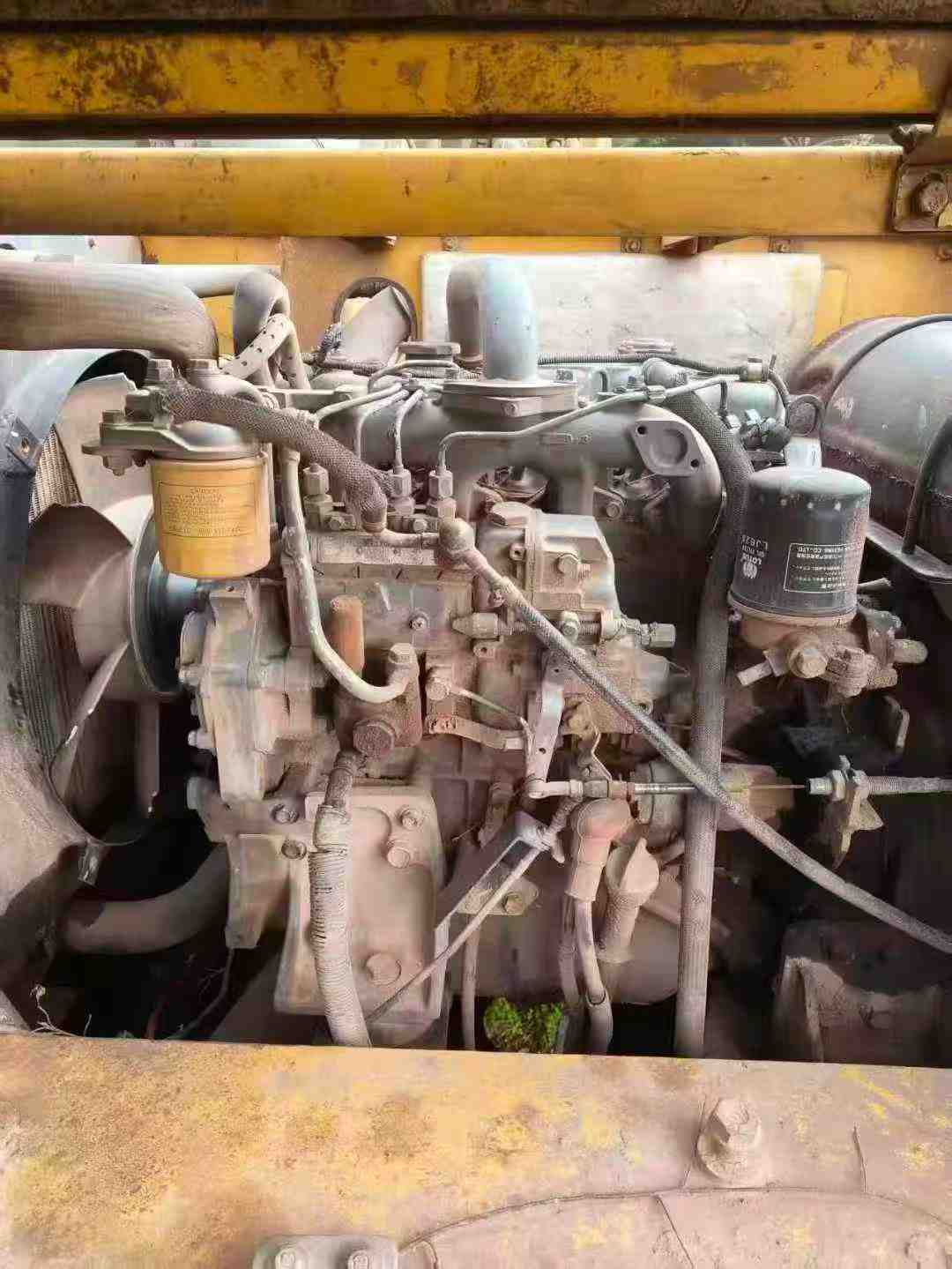

| Engine type | 4JG1TPC |
| Rated power (kw/rpm) | 53.8/2150 |
| Maximum torque (N.m/rpm) | 255/1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 51.2 |
| Rod digging force (kN) | 34.2 |
| Maximum tractive force (kN) | 68.5 |
| Travel speed (km/h) | 4.4/2.4 |
| Maximum flow of main pump (l/min) | 172 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Pilot Oil Circuit (MPa) | 3.5 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 9.7 |
| Total transport length (mm) | 6144 |
| Total transport width (mm) | 2272 |
| Total transport height (mm) | 2682 |
| Counterweight ground clearance (mm) | 797 |
| Minimum ground clearance (mm) | 393 |
| Back end turning radius (mm) | 1805 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Maximum digging radius (mm) | 6295 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7135 |
| Maximum unloading height (mm) | 5030 |
| Maximum vertical digging depth (mm) | 3485 |
| Bulldozer lift or depth (mm) | 363/346 |
| Dodging plate width × height (mm) | 2200 x 396 |
