Product Description

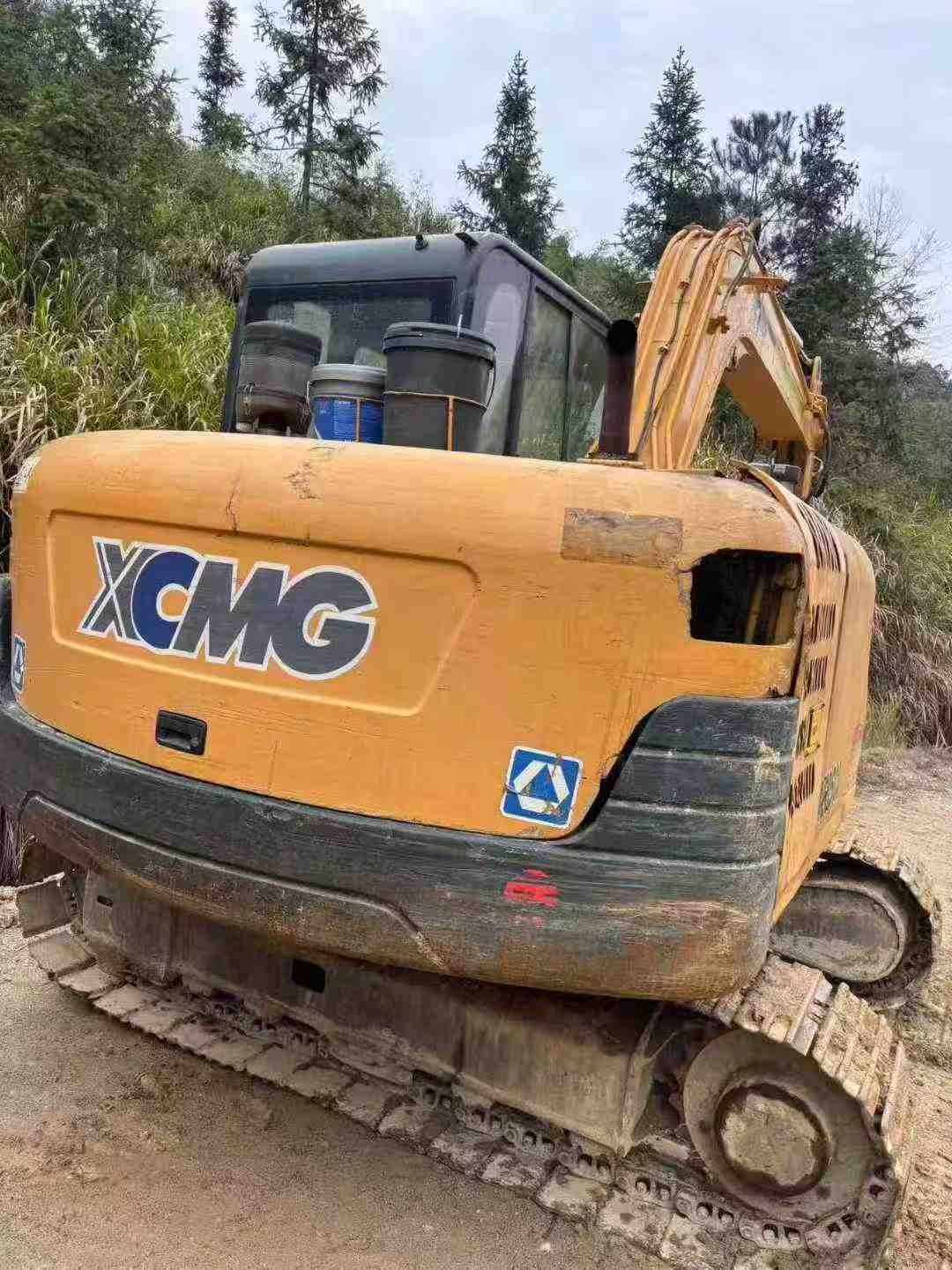

Built to withstand the demands of professional excavation, this 2011 XCMG XE85C represents over a decade of proven performance in the field. Operating at 8 tons with a robust 7,700 kg working weight, this machine delivers consistent productivity through its 4JG1TPC engine generating 53.8 kW of rated power and 255 N.m of maximum torque. Engineered for versatility, it features a 0.34 m³ backhoe bucket, 6,295 mm maximum digging radius, and impressive 4,130 mm digging depth that handles diverse job site requirements with confidence.
Hydraulic performance remains exceptional with a 198+21 l/min main pump flow rate, while the 51.2 kN bucket digging force and 34.2 kN rod digging force tackle demanding excavation tasks efficiently. Track-mounted stability comes from the 1,870 mm gauge and 450 mm track width, ensuring reliable operation on challenging terrain. Currently located in Lishui, Zhejiang, this workhorse continues demonstrating the durability and dependable construction that XCMG machines are recognized for worldwide.
- Proven 8-ton excavator with documented longevity
- Maximum digging reach: 6,295 mm
- Powerful 53.8 kW engine with 4-cylinder reliability
- Ready for immediate deployment in co
| Specifications | Value |
|---|---|
| No. | 1024063 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7700/8100 (with dozer) |
| Bucket capacity (m³) | 0.34 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4JG1TPC |
| Rated power (kw/rpm) | 53.8/2150 |
| Maximum torque (N.m/rpm) | 255/1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 34.6/36.4 (with dozer) |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 51.2 |
| Rod digging force (kN) | 34.2 |
| Maximum tractive force (kN) | 34.2 |
| Travel speed (km/h) | 4.9/2.6 |
| Maximum flow of main pump (l/min) | 198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 9.7 |
| Total transport length (mm) | 6144 |
| Total transport width (mm) | 2332 |
| Total transport height (mm) | 2712 |
| Counterweight ground clearance (mm) | 827 |
| Minimum ground clearance (mm) | 428 |
| Back end turning radius (mm) | 1805 |
| Track gauge (mm) | 1870 |
| Total track width (mm) | 450 |
| Maximum digging radius (mm) | 6295 |
| Maximum digging depth (mm) | 4130 |
| Maximum excavation height (mm) | 7165 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3500 |
| Bulldozer lift or depth (mm) | 409/438 |
| Dodging plate width × height (mm) | 2320 x 416 |
