Product Description

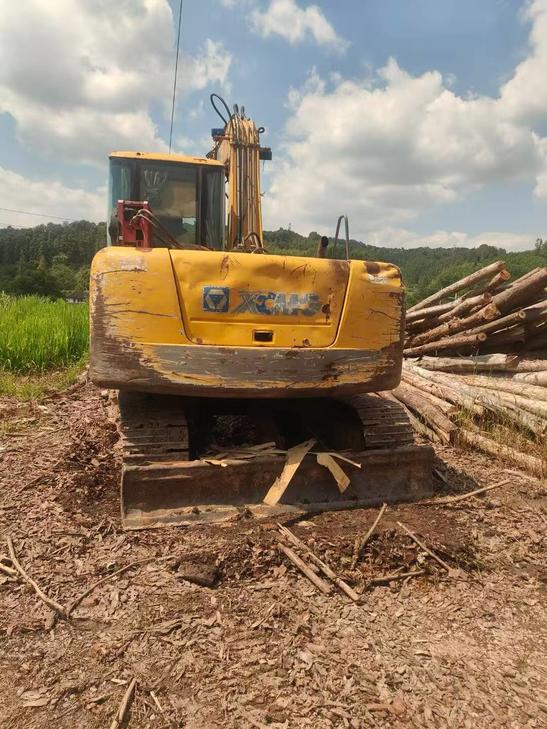

This 2014 XCMG XE85C excavator is available from Zhejiang, China. The machine comes fully equipped and ready for deployment across construction, earthmoving, and demolition applications. With over 50,000 hours of operational history, this unit has been maintained for continued service in demanding field conditions.
The XE85C represents XCMG's 8.5-ton class excavator platform, designed for versatility in confined sites and general contracting work. This specific unit includes comprehensive attachments and auxiliary equipment, making it suitable for contractors seeking a ready-to-work package.
- Year of manufacture: 2014
- Manufacturer: XCMG
- Model: XE85C
- Operating weight class: 8.5 tons
- Current location: Zhejiang Province, China
- Condition: Used, fully equipped with attachments
- Documentation: Detailed photographs and operational video available upon request
| Specifications | Value |
|---|---|
| No. | 1141590 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7700/8100 (with dozer) |
| Bucket capacity (m³) | 0.34 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4JG1TPC |
| Rated power (kw/rpm) | 53.8/2150 |
| Maximum torque (N.m/rpm) | 255/1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 34.6/36.4 (with dozer) |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 51.2 |
| Rod digging force (kN) | 34.2 |
| Maximum tractive force (kN) | 34.2 |
| Travel speed (km/h) | 4.9/2.6 |
| Maximum flow of main pump (l/min) | 198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 9.7 |
| Total transport length (mm) | 6144 |
| Total transport width (mm) | 2332 |
| Total transport height (mm) | 2712 |
| Counterweight ground clearance (mm) | 827 |
| Minimum ground clearance (mm) | 428 |
| Back end turning radius (mm) | 1805 |
| Track gauge (mm) | 1870 |
| Total track width (mm) | 450 |
| Maximum digging radius (mm) | 6295 |
| Maximum digging depth (mm) | 4130 |
| Maximum excavation height (mm) | 7165 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3500 |
| Bulldozer lift or depth (mm) | 409/438 |
| Dodging plate width × height (mm) | 2320 x 416 |
