Product Description

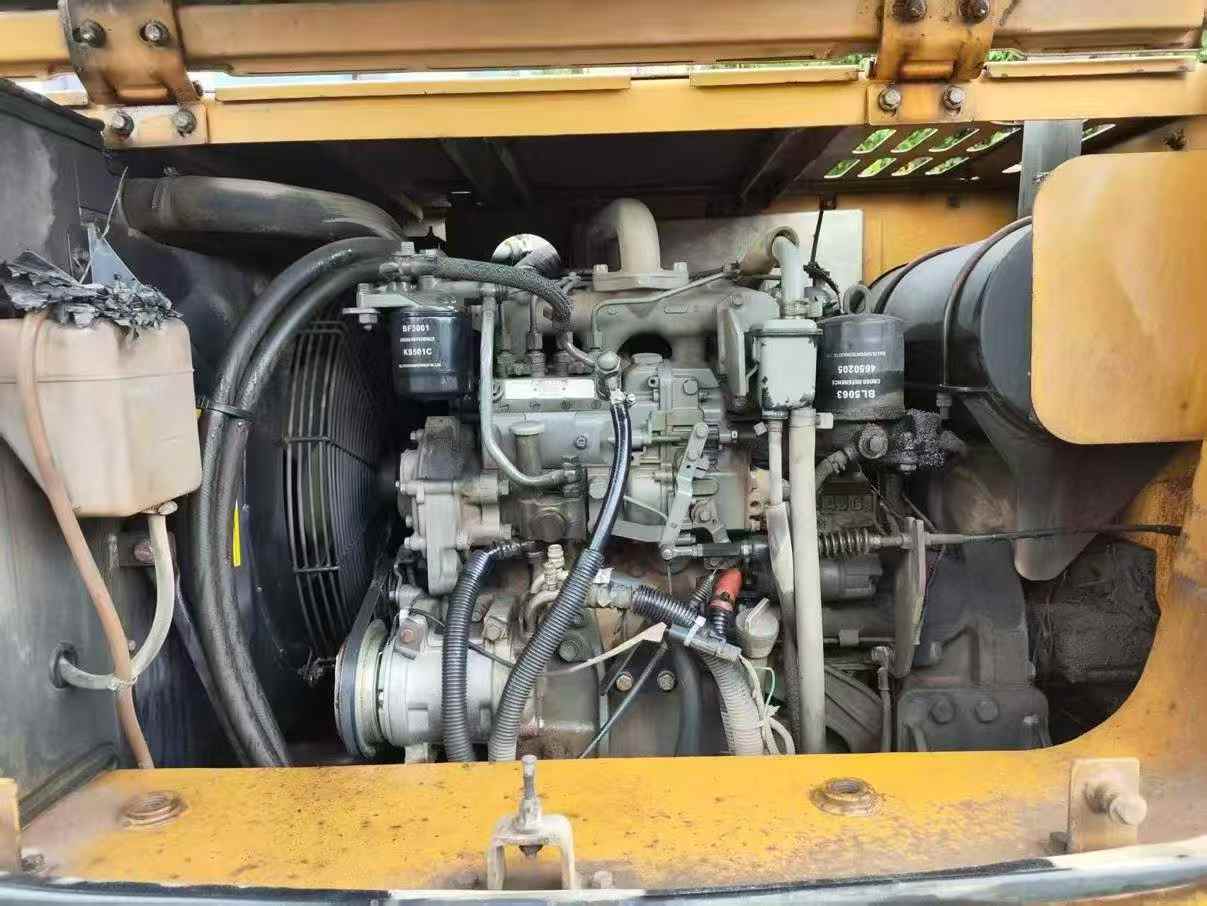

Built for contractors who cannot afford downtime, this 2015 XCMG XE85C mini excavator from Hunan, China delivers reliable 8-ton performance as a proven fleet addition or dedicated backup unit. Powered by a 4-cylinder Isuzu 4JG1TPC engine producing 53.8 kW at 2,150 RPM and 255 N·m of peak torque, it keeps pace with demanding job site schedules without hesitation.
- Digging Performance: 51.2 kN bucket digging force, 4,130 mm maximum digging depth, and 6,295 mm maximum digging radius handle trenching, grading, and utility work efficiently
- Compact Footprint: 1,805 mm rear swing radius and 2,332 mm transport width allow safe operation in confined or congested fleet yards

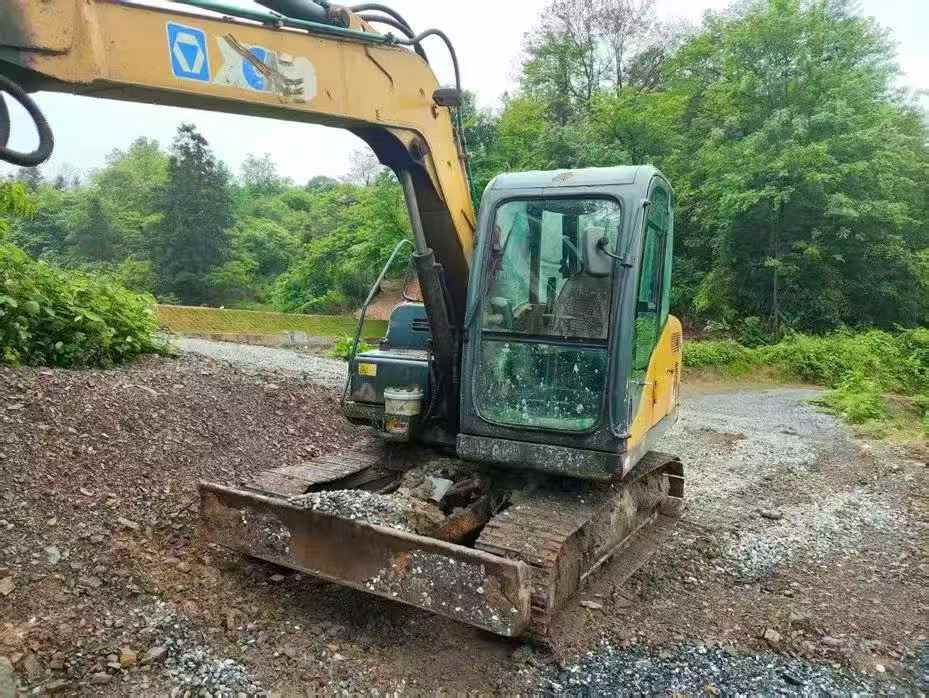

- Integrated Dozer Blade: 2,320 × 416 mm blade with 409/438 mm lift/depth range adds site-clearing versatility to every shift
- Stable Hydraulics: 198+21 L/min main pump flow with 27.4 MPa travel circuit pressure ensures consistent, responsive control under load
- Fleet-Friendly Specs: 130 L fuel tank, 35° gradeability, and dual travel speeds (4.9/2.6 km/h) support multi-site deployment with minimal operator retraining
Sourced directly from Hunan, China, this unit is inspection-ready and priced for contractors looking to strengthen fleet capacity without compromising on performance.
| Specifications | Value |
|---|---|
| No. | 1057245 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7700/8100 (with dozer) |
| Bucket capacity (m³) | 0.34 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

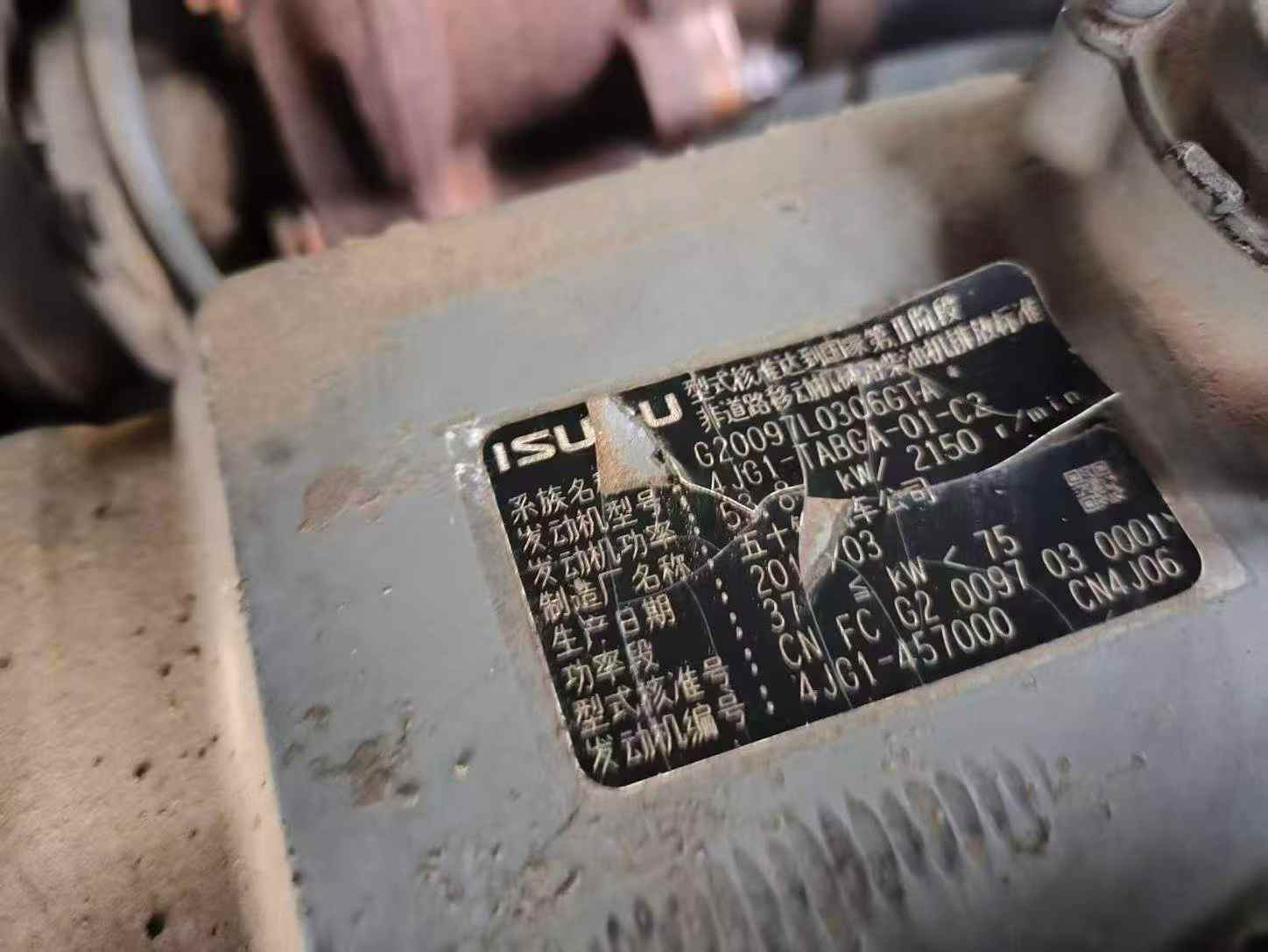

| Engine type | 4JG1TPC |
| Rated power (kw/rpm) | 53.8/2150 |
| Maximum torque (N.m/rpm) | 255/1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 34.6/36.4 (with dozer) |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 51.2 |
| Rod digging force (kN) | 34.2 |
| Maximum tractive force (kN) | 34.2 |
| Travel speed (km/h) | 4.9/2.6 |
| Maximum flow of main pump (l/min) | 198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 9.7 |
| Total transport length (mm) | 6144 |
| Total transport width (mm) | 2332 |
| Total transport height (mm) | 2712 |
| Counterweight ground clearance (mm) | 827 |
| Minimum ground clearance (mm) | 428 |
| Back end turning radius (mm) | 1805 |
| Track gauge (mm) | 1870 |
| Total track width (mm) | 450 |
| Maximum digging radius (mm) | 6295 |
| Maximum digging depth (mm) | 4130 |
| Maximum excavation height (mm) | 7165 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3500 |
| Bulldozer lift or depth (mm) | 409/438 |
| Dodging plate width × height (mm) | 2320 x 416 |
