2015 XCMG XE85C

1/5

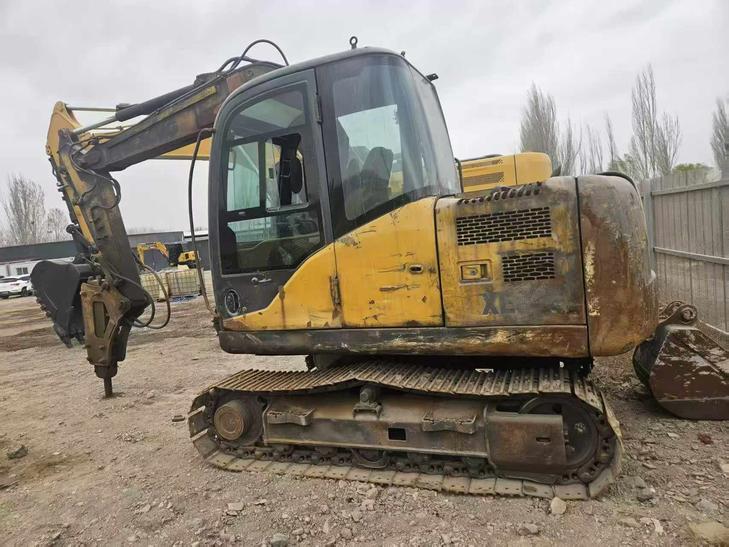

Buy XCMG XE85C Used Excavator / 1
Buy XCMG XE85C Used Excavator / 2
Buy XCMG XE85C Used Excavator / 3
Buy XCMG XE85C Used Excavator / 4
Buy XCMG XE85C Used Excavator / 5

Product Description

This 2015 XCMG XE85C excavator offers reliable performance for mid-scale earthmoving and construction operations. With nearly a decade of field use, this 8.5-ton class machine delivers proven hydraulic power and operational stability suited to contractors seeking dependable equipment at competitive pricing.

Key highlights:

  • XCMG XE85C model from 2015 production year
  • 8.5-ton operating weight class
  • Suitable for trenching, grading, and site preparation
  • Currently located in Zhejiang Province, China
  • Priced for quick sale and export readiness

XCMG's XE85C series is recognized for straightforward maintenance and parts availability across Asian markets. This unit represents an economical entry point for buyers requiring proven excavator capacity without premium cost. Inspection and shipping arrangements can be coordinated from the Zhejiang location.

SpecificationsValue
No.1076752
Tonnage (tons)8
Working weight (kg)7700/8100 (with dozer)
Bucket capacity (m³)0.34
Boom length (mm)3720
Rod length (mm)1622
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type4JG1TPC
Rated power (kw/rpm)53.8/2150
Maximum torque (N.m/rpm)255/1800
Number of cylinders (PCS)4
Displacement (L)3.059
Ground specific pressure (Kpa)34.6/36.4 (with dozer)
Rotation speed (rpm)11
Climbing ability (%)35 °
Bucket digging force (kN)51.2
Rod digging force (kN)34.2
Maximum tractive force (kN)34.2
Travel speed (km/h)4.9/2.6
Maximum flow of main pump (l/min)198+21
Traveling Hydraulic Circuit (Mpa)27.4
Rotary Hydraulic Circuit (Mpa)20.6
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)130
Hydraulic Tank (L)115
Engine Oil changes (L)9.7
Total transport length (mm)6144
Total transport width (mm)2332
Total transport height (mm)2712
Counterweight ground clearance (mm)827
Minimum ground clearance (mm)428
Back end turning radius (mm)1805
Track gauge (mm)1870
Total track width (mm)450
Maximum digging radius (mm)6295
Maximum digging depth (mm)4130
Maximum excavation height (mm)7165
Maximum unloading height (mm)5060
Maximum vertical digging depth (mm)3500
Bulldozer lift or depth (mm)409/438
Dodging plate width × height (mm)2320 x 416
see more

Overview

No.1076752

Brand Name:

XCMG

Model Number:

XE85C

Year:

2015

Location:

Zhejiang China

Pub Date
