Product Description

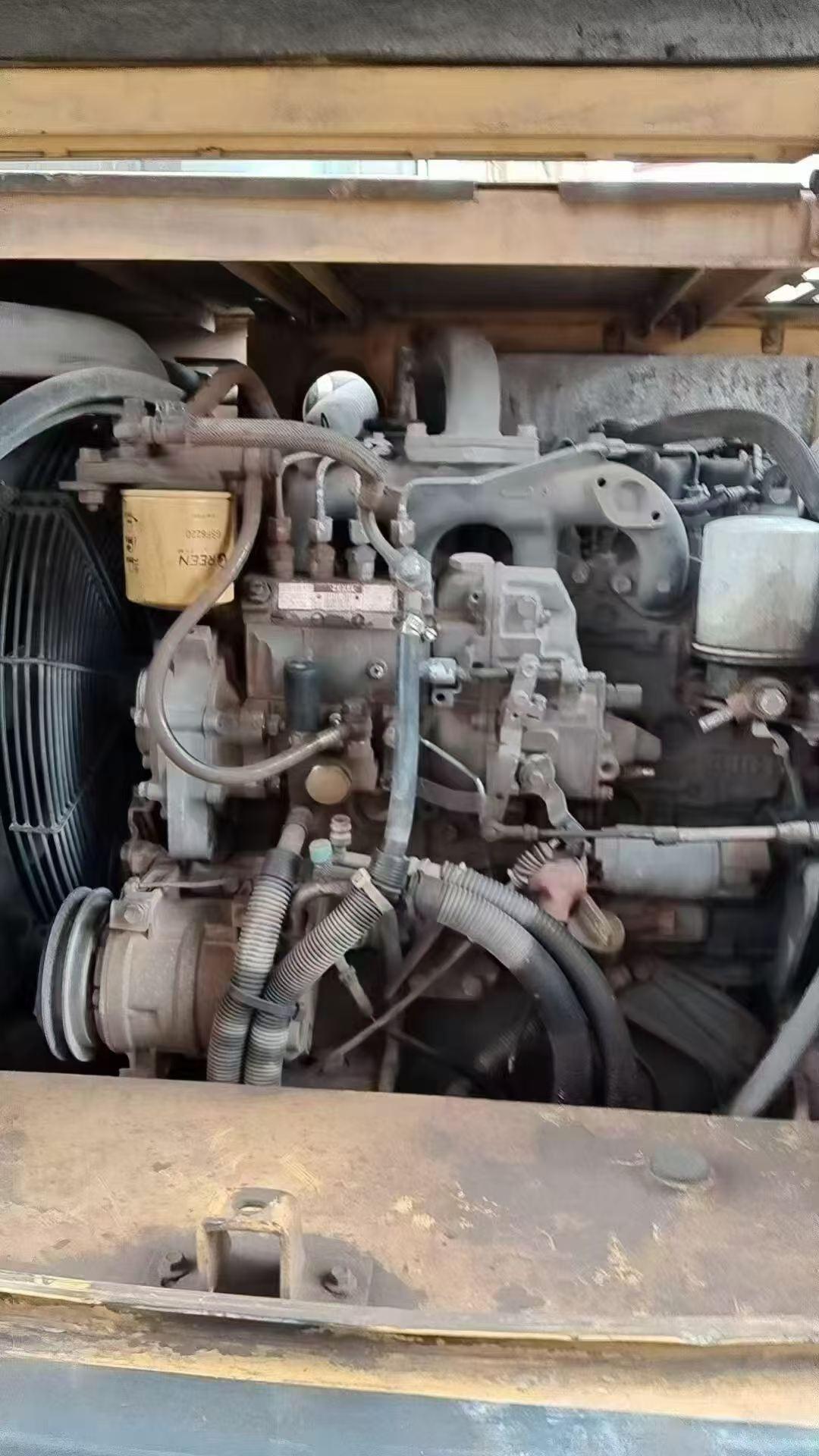

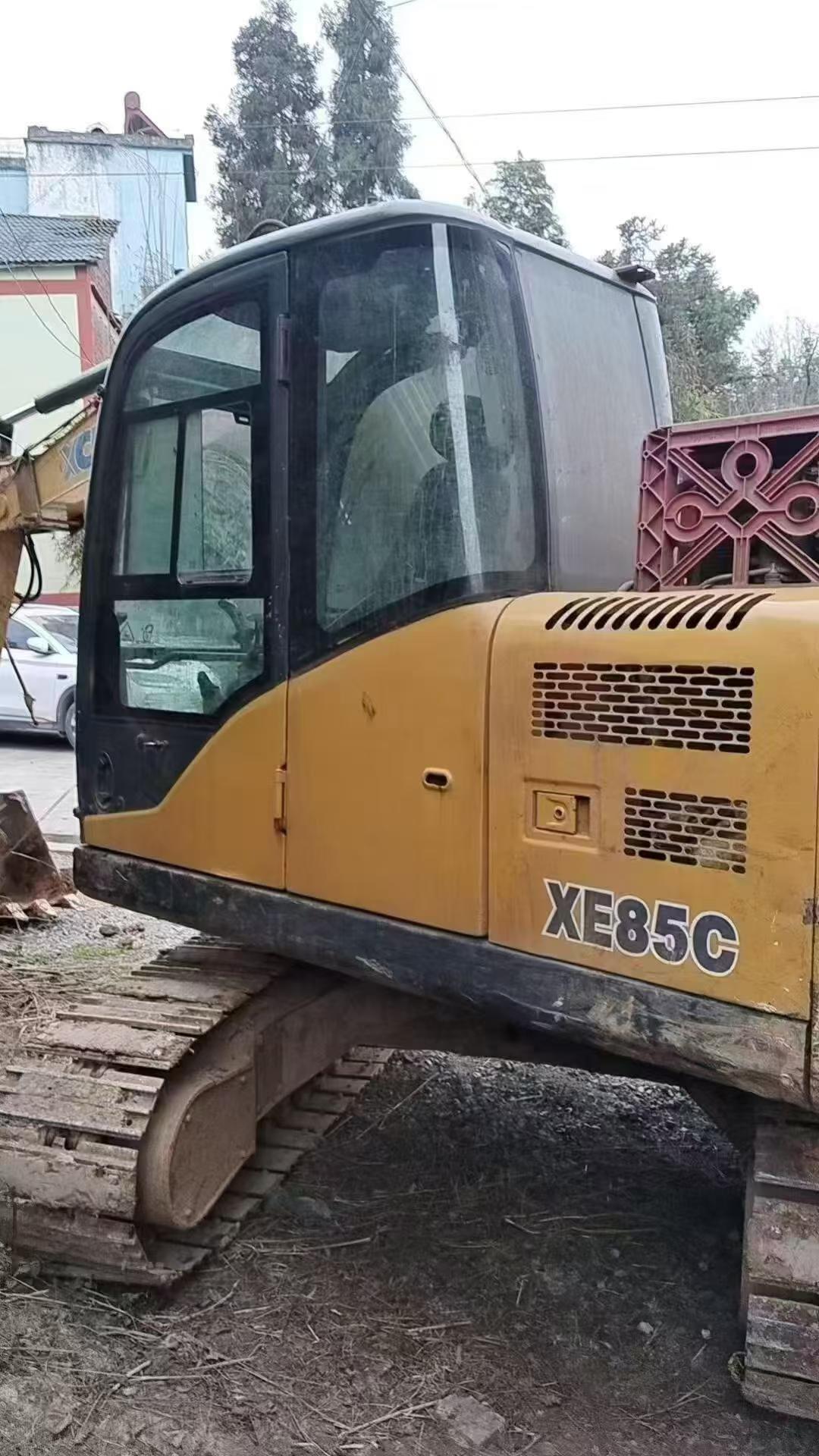

Delivering 53.8 kW of reliable power and an impressive 6,295 mm maximum digging radius, this 2016 XCMG XE85C represents exceptional value for contractors seeking proven 8-ton excavator performance without new equipment pricing. Operating weight of 8,100 kg with dozer blade provides stability across varied terrain, while the 0.34 m³ bucket capacity handles substantial material volume per cycle. Powered by a robust 4JG1TPC engine generating 255 N·m maximum torque, this machine combines Chinese manufacturing efficiency with field-tested durability.
Key specifications include 4,130 mm maximum digging depth, 51.2 kN bucket digging force, and 35° climbing ability—critical capabilities for demanding jobsites. The dual-pump hydraulic system (198+21 L/min) ensures responsive operation, while compact transport dimensions (6,144 × 2,332 × 2,712 mm) simplify relocation between projects. Currently located in Hunan, this XE85C offers smart buyers substantial cost savings compared to new equipment, delivering the performance metrics required for productive excavation, trenching, and loading operations. Invest strategically in proven machinery that maximizes your equipment budget while maintaining operational standards.
| Specifications | Value |
|---|---|
| No. | 1024658 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7700/8100 (with dozer) |
| Bucket capacity (m³) | 0.34 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4JG1TPC |
| Rated power (kw/rpm) | 53.8/2150 |
| Maximum torque (N.m/rpm) | 255/1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 34.6/36.4 (with dozer) |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 51.2 |
| Rod digging force (kN) | 34.2 |
| Maximum tractive force (kN) | 34.2 |
| Travel speed (km/h) | 4.9/2.6 |

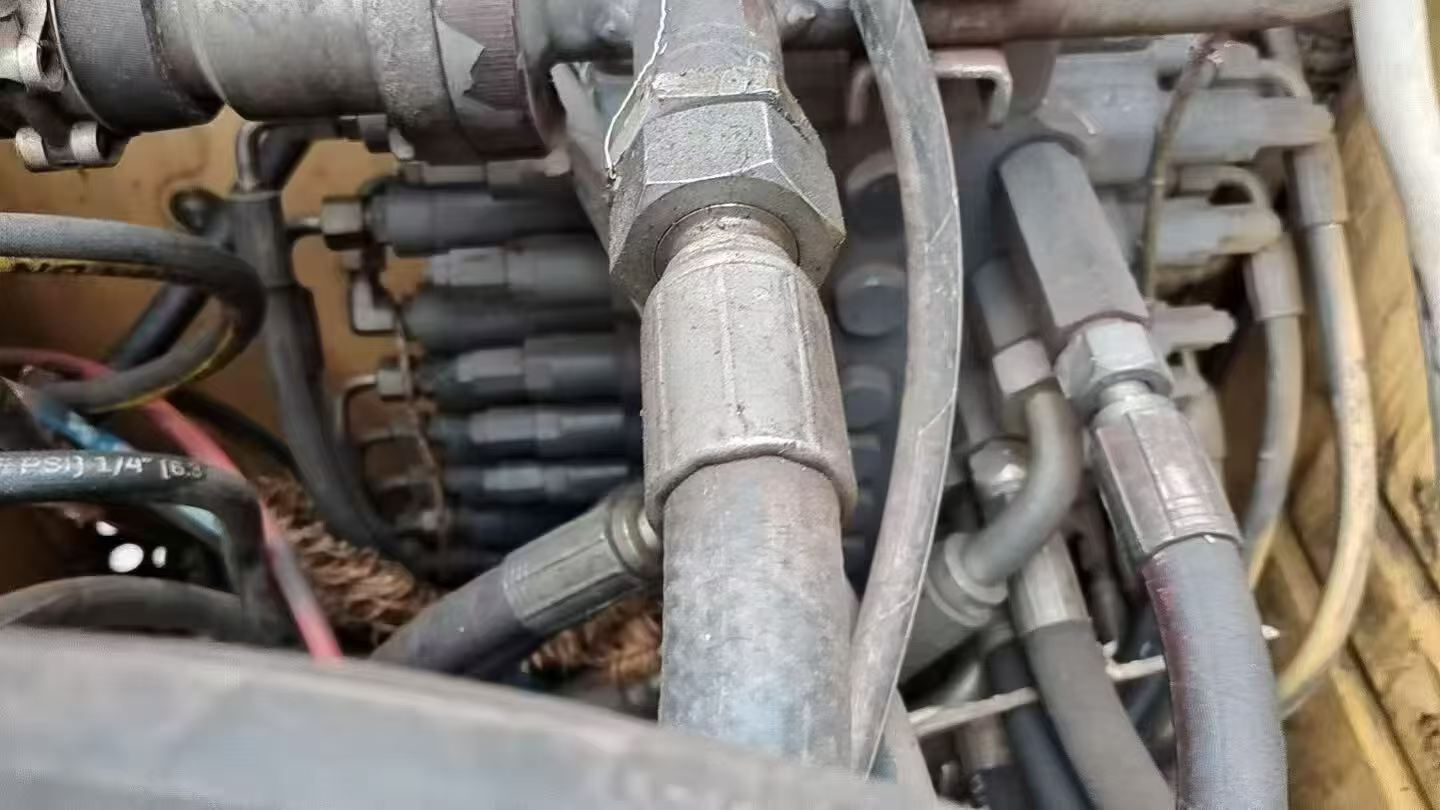

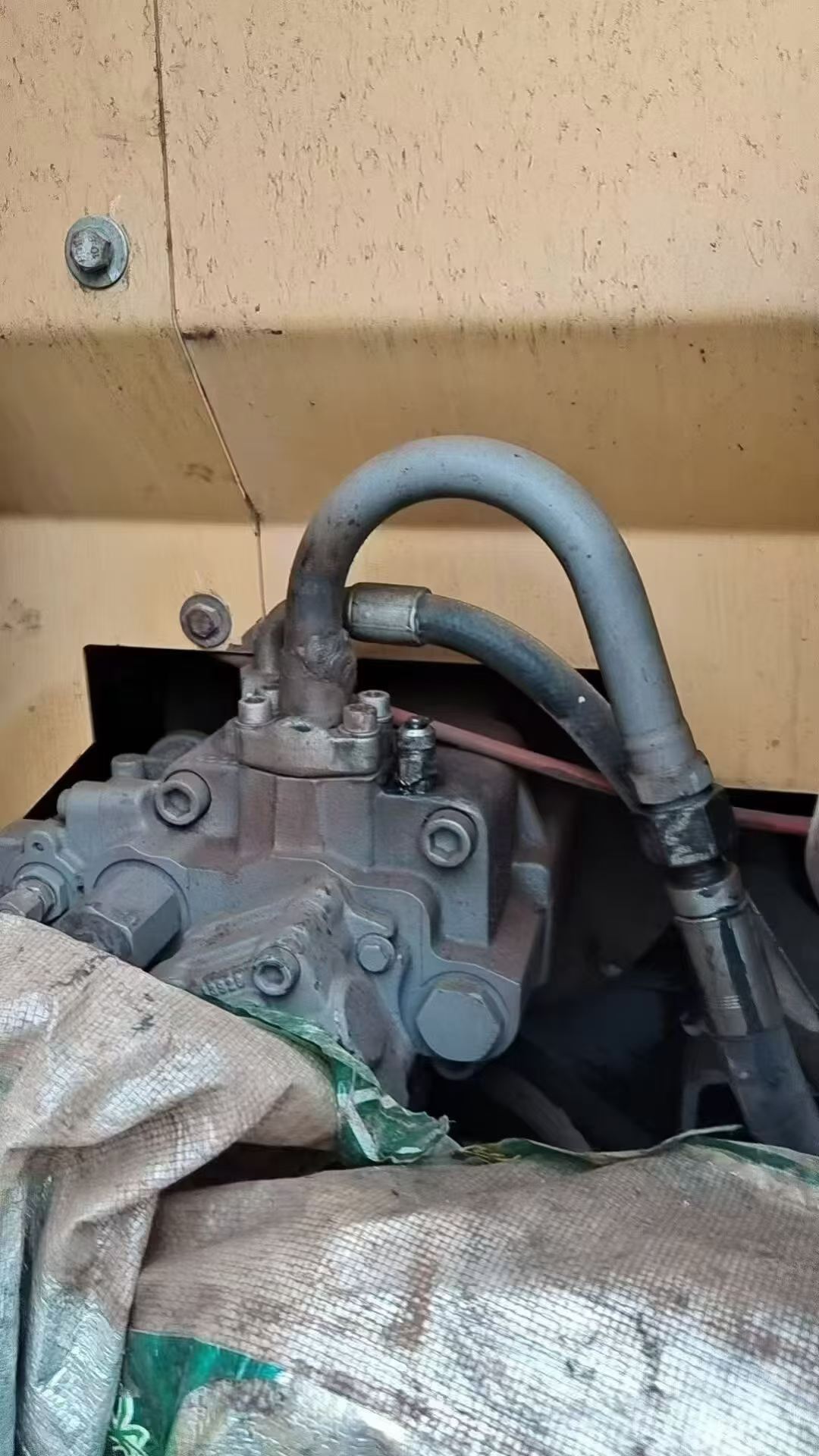

| Maximum flow of main pump (l/min) | 198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 9.7 |
| Total transport length (mm) | 6144 |
| Total transport width (mm) | 2332 |
| Total transport height (mm) | 2712 |
| Counterweight ground clearance (mm) | 827 |
| Minimum ground clearance (mm) | 428 |
| Back end turning radius (mm) | 1805 |
| Track gauge (mm) | 1870 |
| Total track width (mm) | 450 |
| Maximum digging radius (mm) | 6295 |
| Maximum digging depth (mm) | 4130 |
| Maximum excavation height (mm) | 7165 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3500 |
| Bulldozer lift or depth (mm) | 409/438 |
| Dodging plate width × height (mm) | 2320 x 416 |
