Product Description

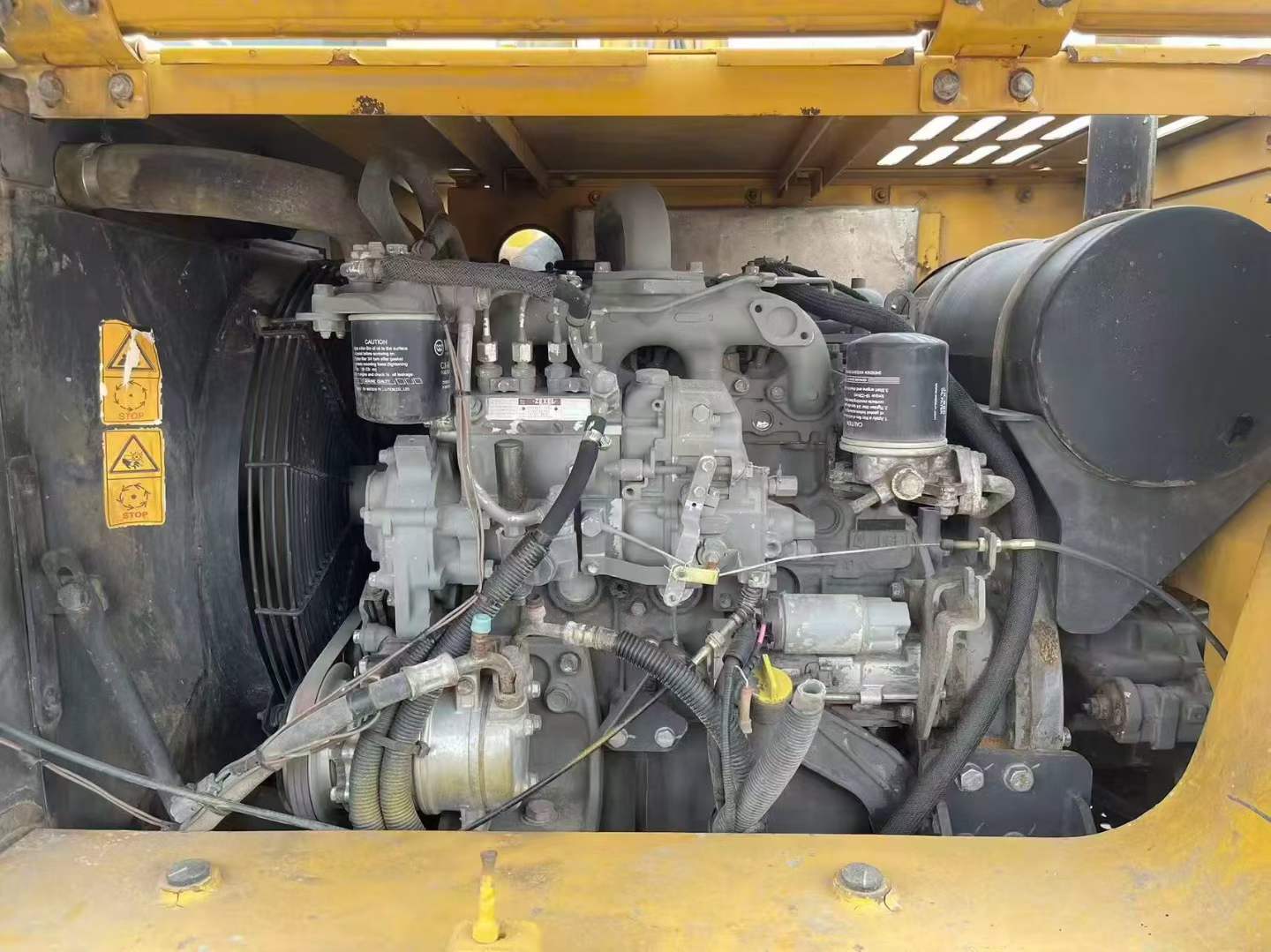

Built to endure the toughest jobsites, this 2016 XCMG XE85C 8-ton excavator from Kunming, Yunnan demonstrates proven reliability through years of consistent performance. Powered by a robust 4JG1TPC engine delivering 53.8 kW at 2150 rpm and 255 N·m of torque, this workhorse combines dependable traditional power with impressive digging capabilities. With a bucket digging force of 51.2 kN and maximum digging depth of 4,130 mm, it tackles demanding excavation tasks with confidence. Operating weight of 8,100 kg with dozer blade provides stability, while the 0.34 m³ bucket capacity ensures productive material handling.
- Proven Durability: 2016 model with established track record in Chinese construction markets
- Powerful Performance: 53.8 kW rated power, 255 N·m maximum torque
- Impressive Reach: 6,295 mm maximum digging radius, 7,165 mm excavation height
- Hydraulic Efficiency: 198+21 L/min main pump flow for responsive operation
- Compact Dimensions: 6,144 mm transport length, 2,332 mm width for versatile site access
- Complete Package: Includes dozer blade (409/438 mm lift/dep
| Specifications | Value |
|---|---|
| No. | 1025631 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7700/8100 (with dozer) |
| Bucket capacity (m³) | 0.34 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4JG1TPC |
| Rated power (kw/rpm) | 53.8/2150 |
| Maximum torque (N.m/rpm) | 255/1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 34.6/36.4 (with dozer) |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 51.2 |
| Rod digging force (kN) | 34.2 |
| Maximum tractive force (kN) | 34.2 |
| Travel speed (km/h) | 4.9/2.6 |
| Maximum flow of main pump (l/min) | 198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 9.7 |
| Total transport length (mm) | 6144 |
| Total transport width (mm) | 2332 |
| Total transport height (mm) | 2712 |
| Counterweight ground clearance (mm) | 827 |
| Minimum ground clearance (mm) | 428 |
| Back end turning radius (mm) | 1805 |
| Track gauge (mm) | 1870 |
| Total track width (mm) | 450 |
| Maximum digging radius (mm) | 6295 |
| Maximum digging depth (mm) | 4130 |
| Maximum excavation height (mm) | 7165 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3500 |
| Bulldozer lift or depth (mm) | 409/438 |
| Dodging plate width × height (mm) | 2320 x 416 |
