Product Description

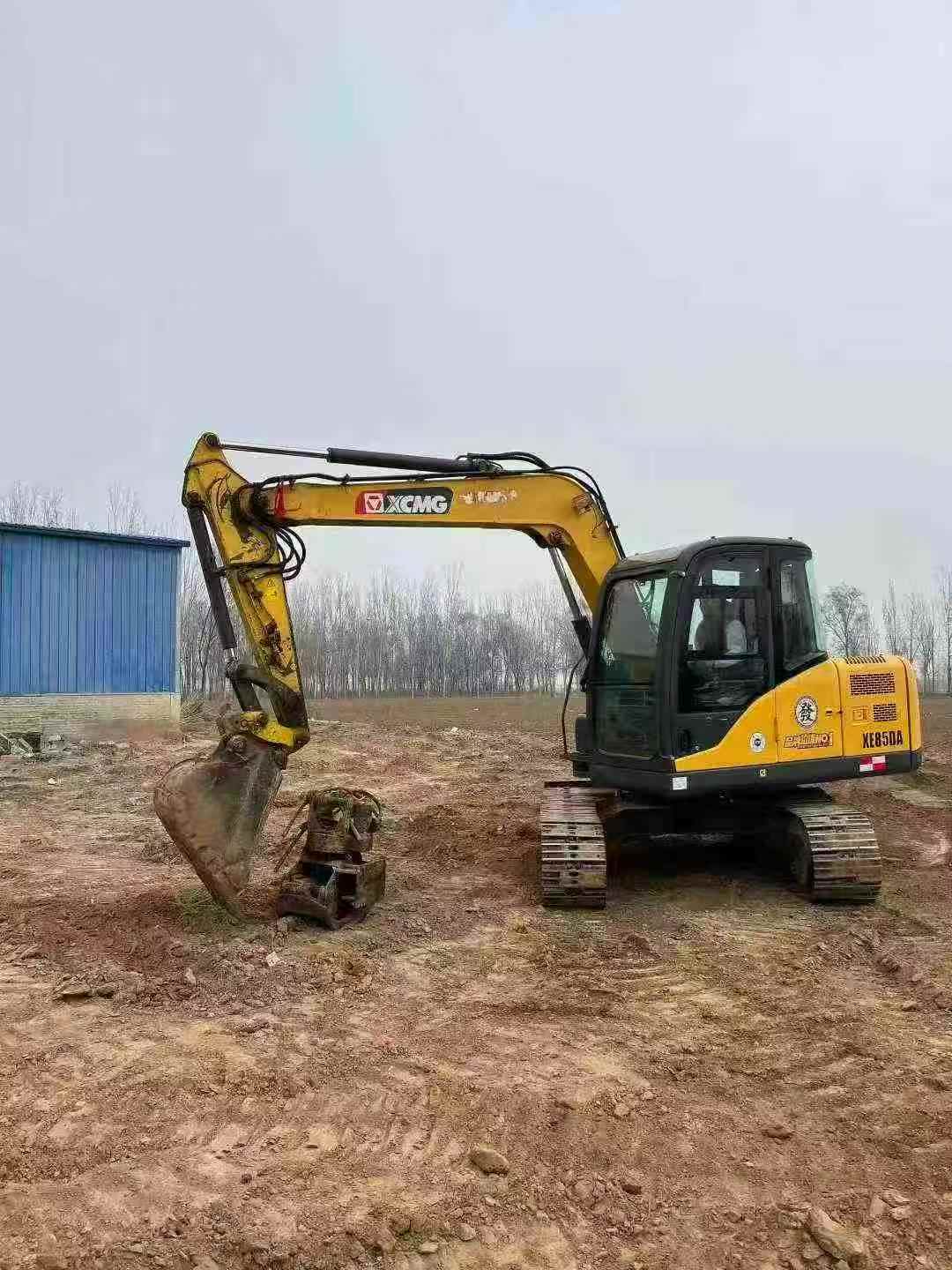

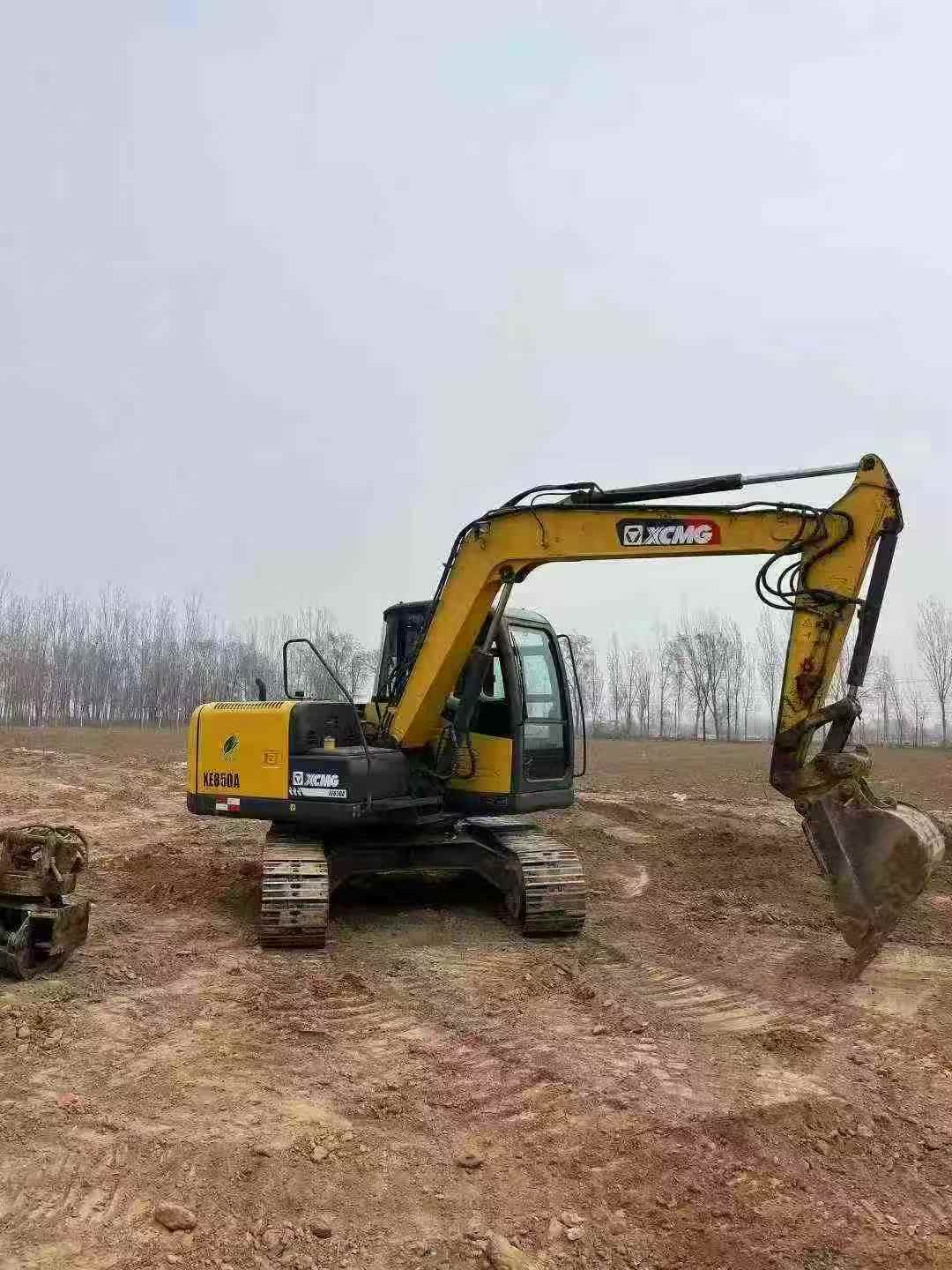

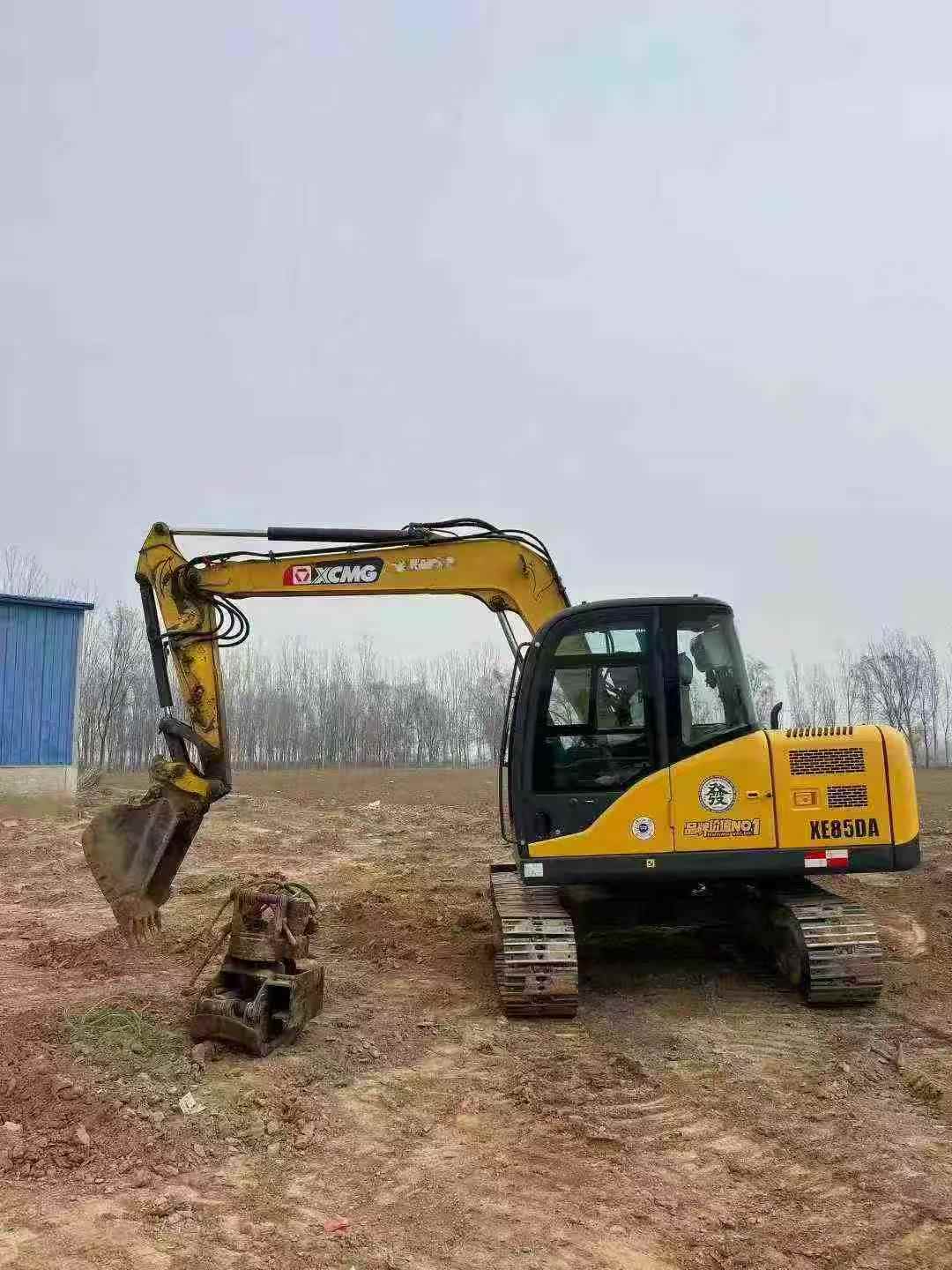

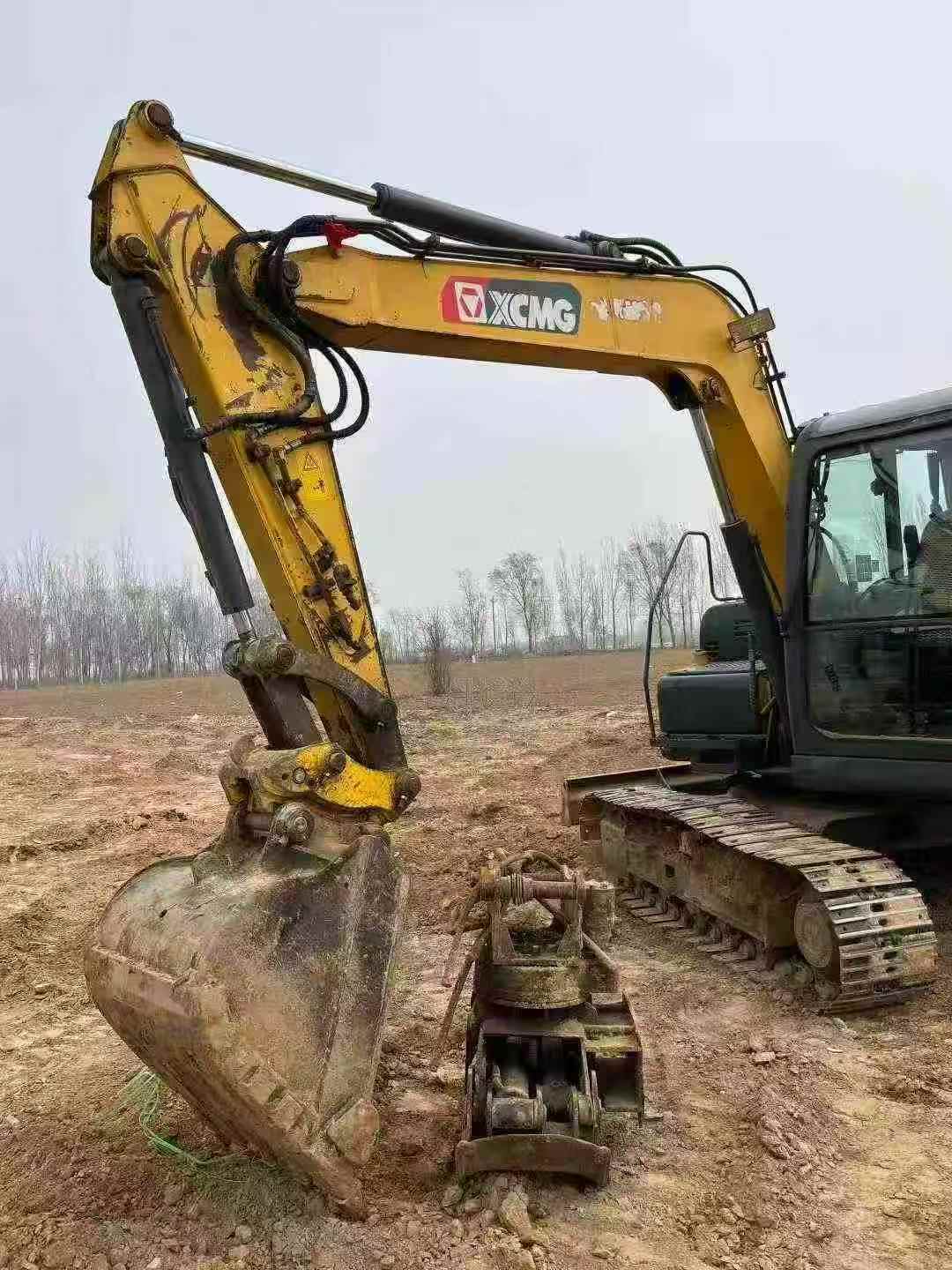

Built for demanding jobsites, this 2016 XCMG XE85C delivers reliable 8-ton performance where precision and power matter most. Powered by a 53.8kW 4JG1TPC engine generating 255 N·m of torque, this excavator tackles digging, grading, and demolition tasks with consistent efficiency. Its 0.34m³ backhoe bucket achieves 51.2kN digging force, while the 3720mm boom and 1622mm arm provide a maximum digging depth of 4130mm and reach of 6295mm—ideal for trenching, foundation work, and material handling operations.
Currently located in Hebei, this machine arrives site-ready with proven specifications:
- Working weight: 8100kg with dozer blade for enhanced stability

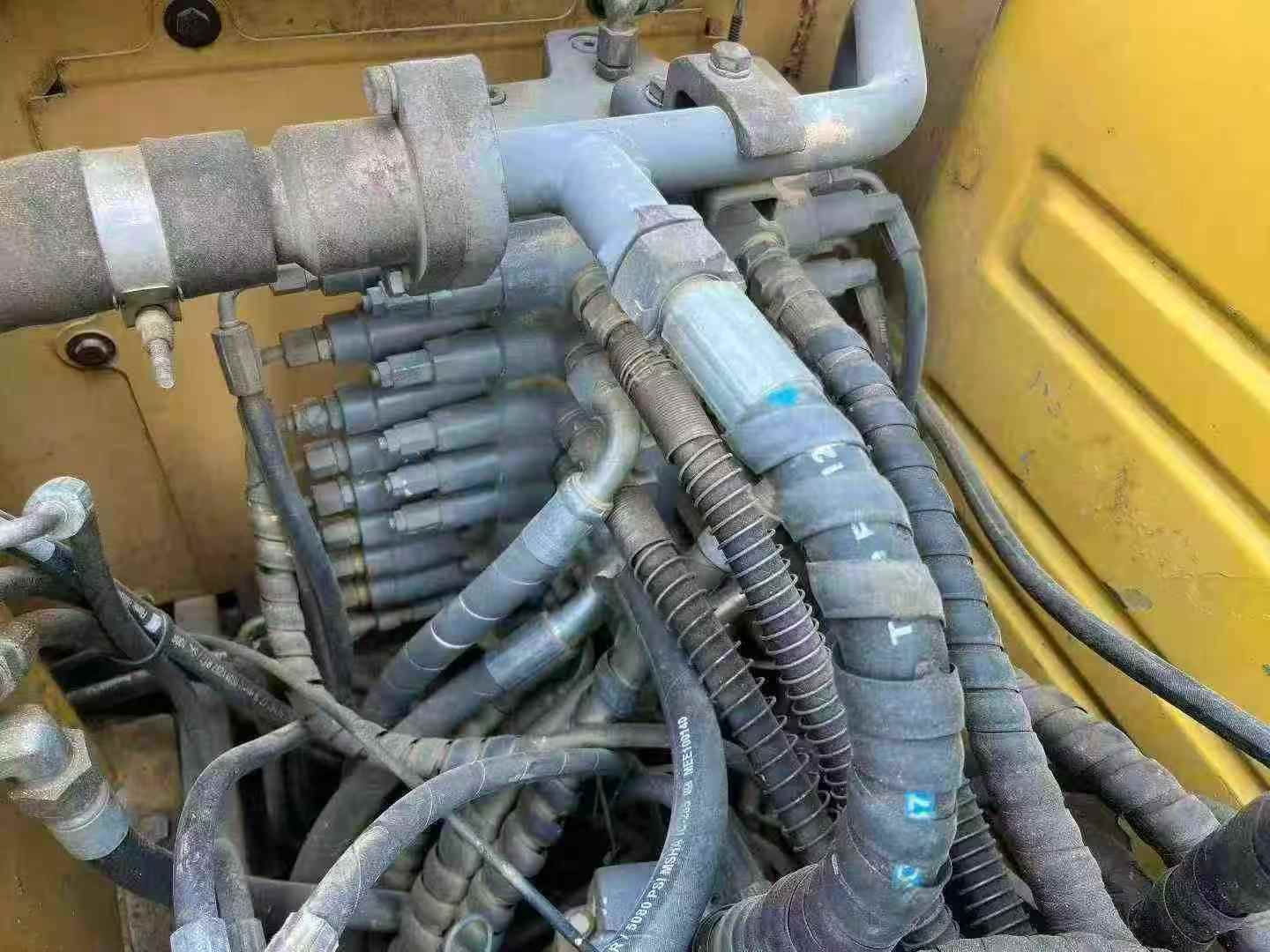

- Hydraulic flow: 198+21 L/min from main pump for responsive control
- Travel speed: 4.9 km/h for efficient positioning between work zones
- Fuel capacity: 130L tank minimizes refueling downtime
- Compact transport dimensions: 6144mm length enables easy mobilization
- 35° climbing ability handles challenging terrain
Chinese-manufactured quality meets practical functionality in this traditional-powered excavator. Ready to deploy on construction sites, utility projects, and earthmoving operations requiring dependable
| Specifications | Value |
|---|---|
| No. | 1034071 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7700/8100 (with dozer) |
| Bucket capacity (m³) | 0.34 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

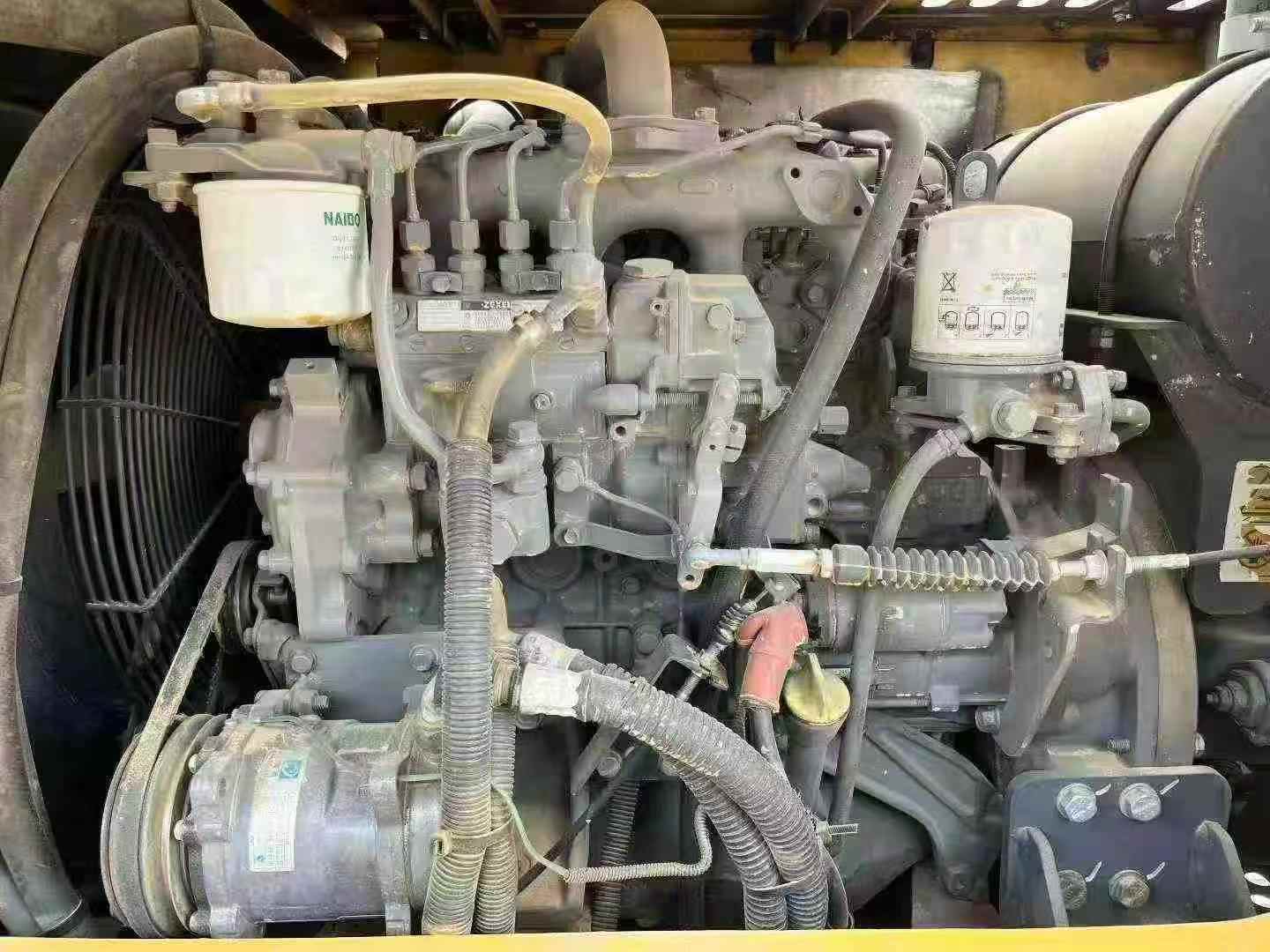

| Engine type | 4JG1TPC |
| Rated power (kw/rpm) | 53.8/2150 |
| Maximum torque (N.m/rpm) | 255/1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 34.6/36.4 (with dozer) |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 51.2 |
| Rod digging force (kN) | 34.2 |
| Maximum tractive force (kN) | 34.2 |
| Travel speed (km/h) | 4.9/2.6 |

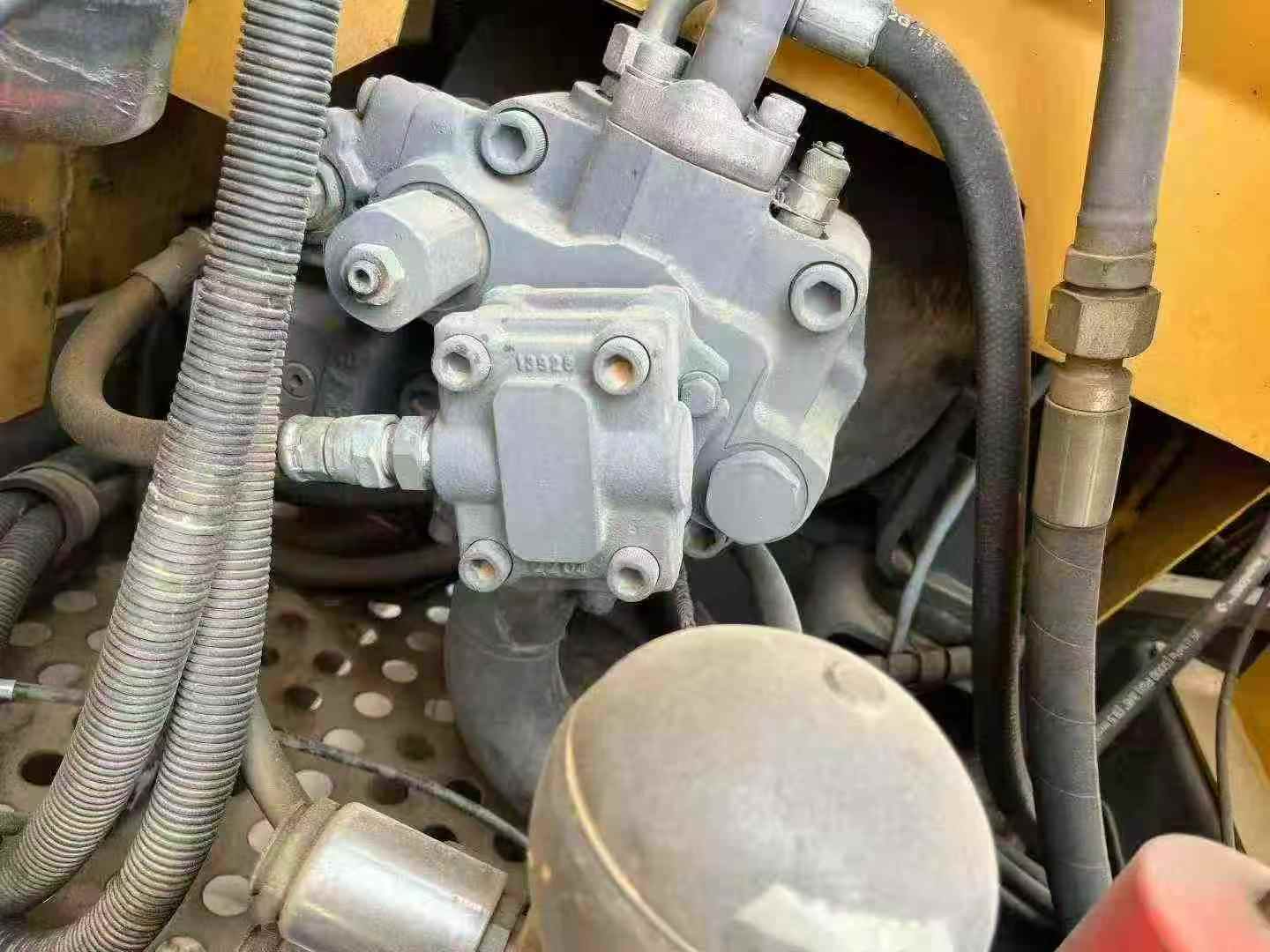

| Maximum flow of main pump (l/min) | 198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 9.7 |
| Total transport length (mm) | 6144 |
| Total transport width (mm) | 2332 |
| Total transport height (mm) | 2712 |
| Counterweight ground clearance (mm) | 827 |
| Minimum ground clearance (mm) | 428 |
| Back end turning radius (mm) | 1805 |
| Track gauge (mm) | 1870 |
| Total track width (mm) | 450 |
| Maximum digging radius (mm) | 6295 |
| Maximum digging depth (mm) | 4130 |
| Maximum excavation height (mm) | 7165 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3500 |

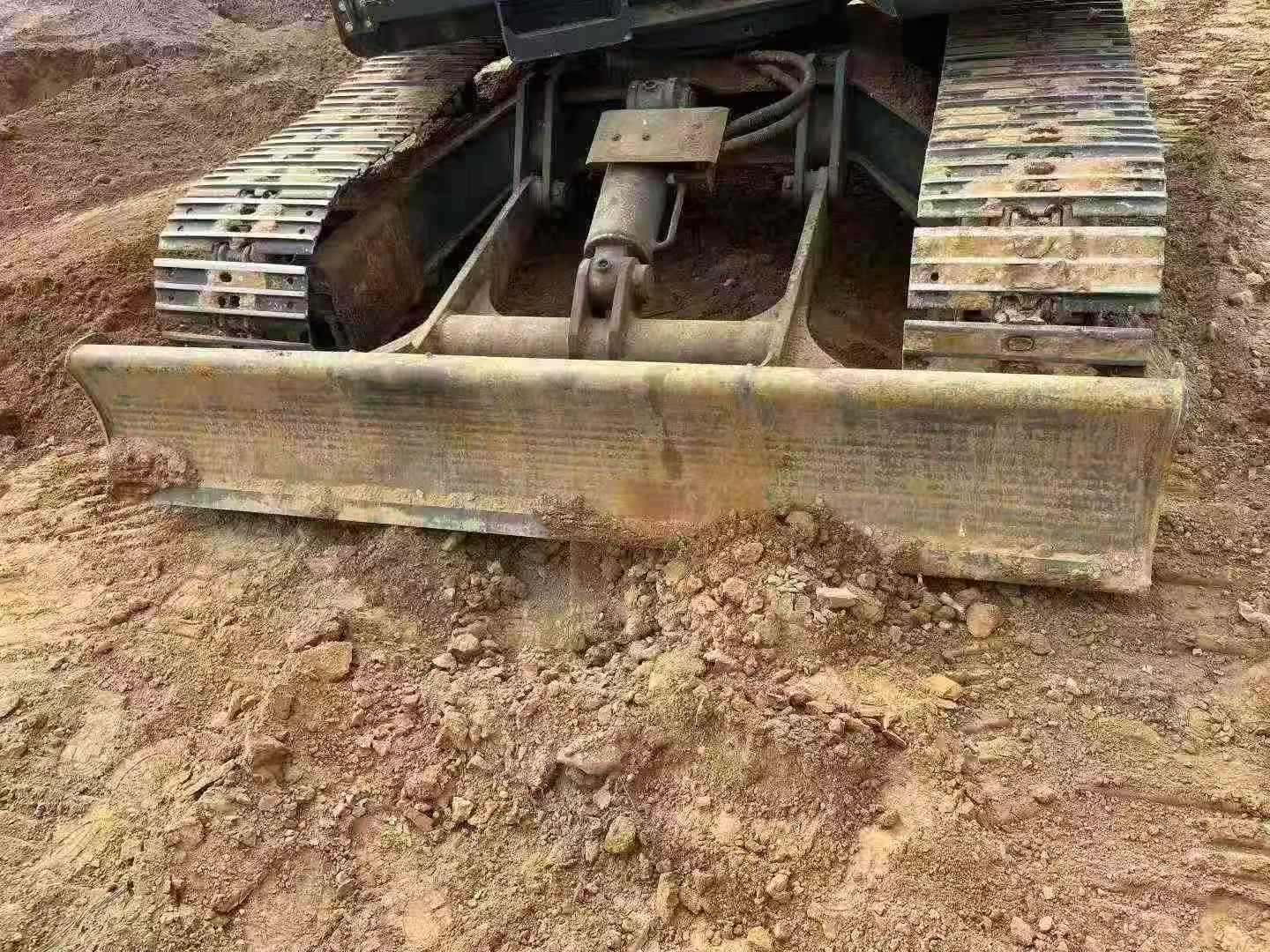

| Bulldozer lift or depth (mm) | 409/438 |
| Dodging plate width × height (mm) | 2320 x 416 |
