Product Description

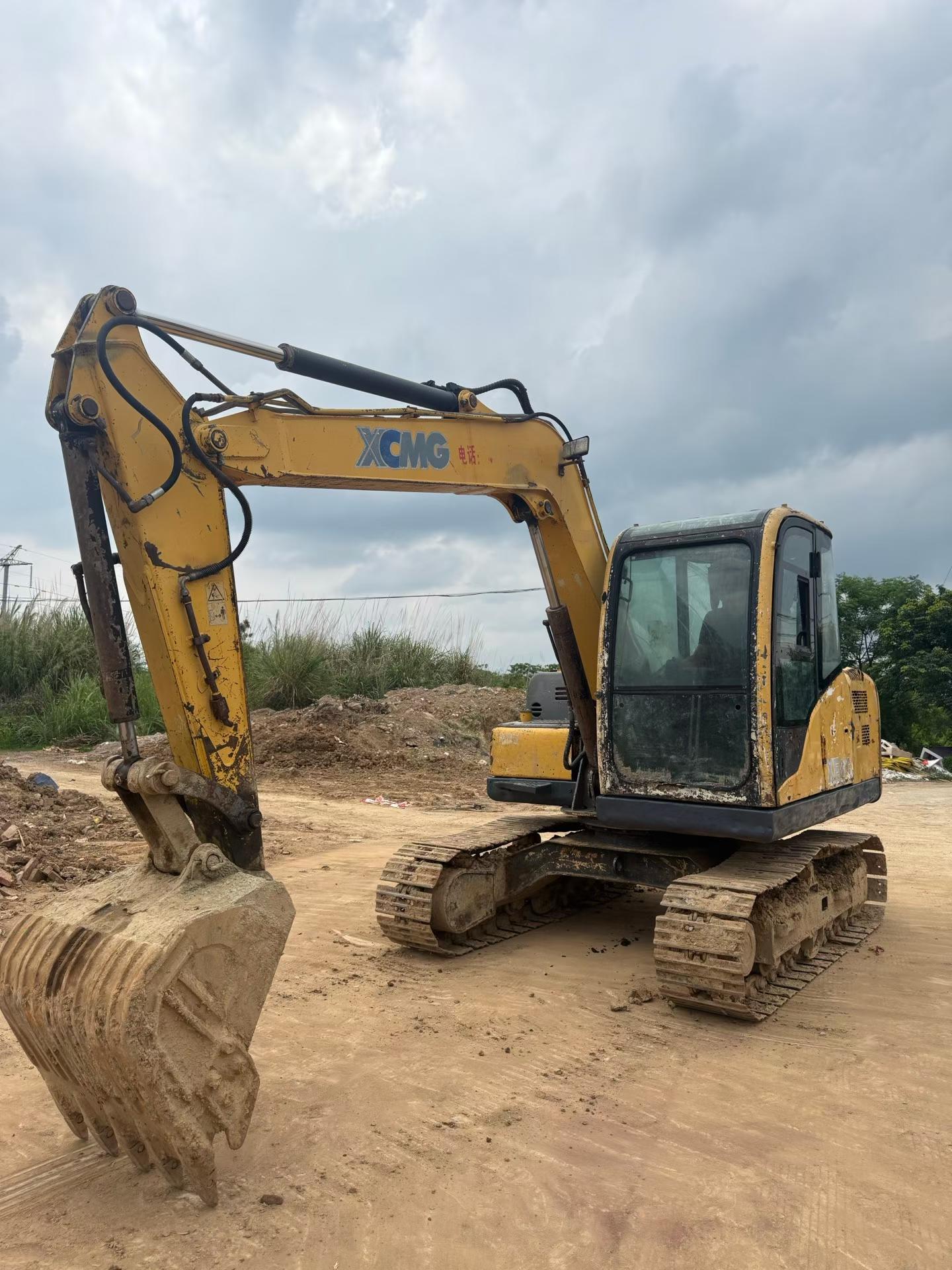

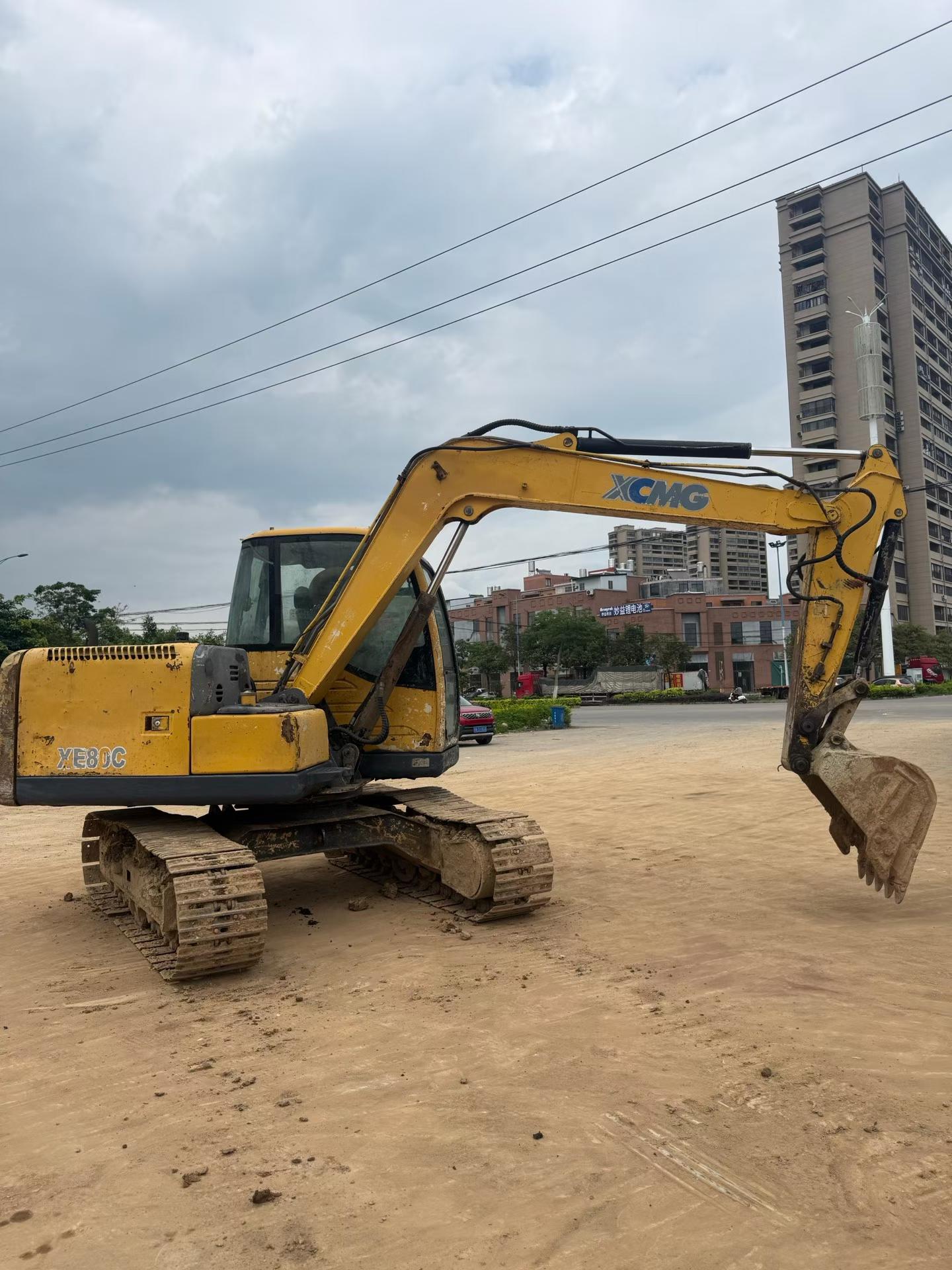

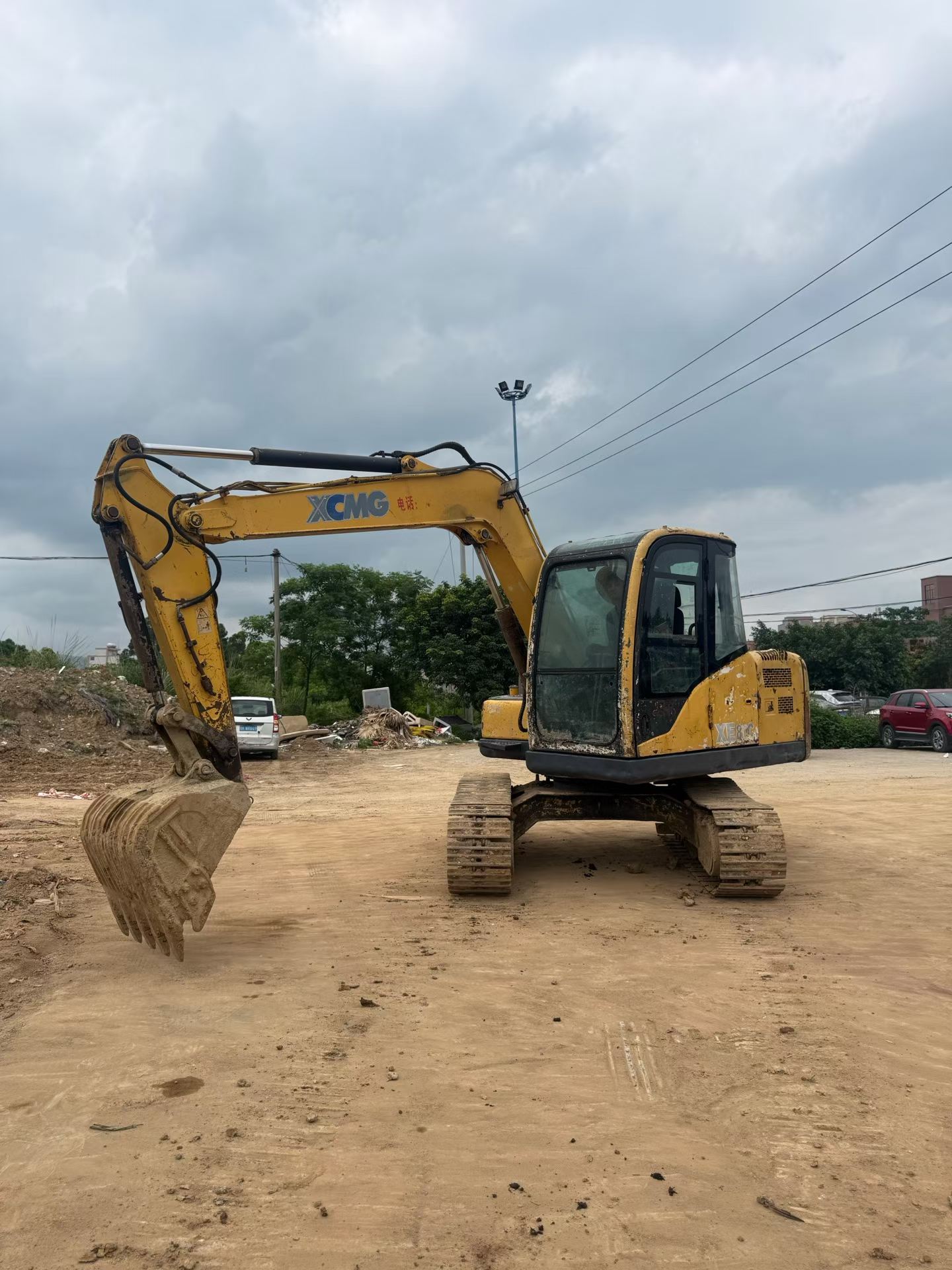

With a working weight of 7,700 to 8,100 kg and an 8-ton capacity, the XCMG XE85C excavator, located in Guangxi, China, offers high performance at a fraction of the cost of new equipment. Equipped with a 4JG1TPC engine, this machine delivers 53.8 kW of power at 2,150 rpm, ensuring reliable and efficient operation. The 0.34 m³ bucket, combined with a 3,720 mm boom and 1,622 mm rod, provides robust digging capabilities, making it ideal for various construction and excavation tasks.
- Maximum digging depth: 4,130 mm
- Maximum unloading height: 5,060 mm
- Travel speed: 4.9/2.6 km/h
- Fuel tank capacity: 130 L
- Total transport dimensions: 6,144 x 2,332 x 2,712 mm
Investing in this 2020 XCMG XE85C is a smart choice for those seeking high performance and significant cost savings. Its robust design and powerful features make it a valuable addition to any fleet, offering a cost-effective solution without compromising on quality or reliability.
| Specifications | Value |
|---|---|
| No. | 1057811 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7700/8100 (with dozer) |
| Bucket capacity (m³) | 0.34 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

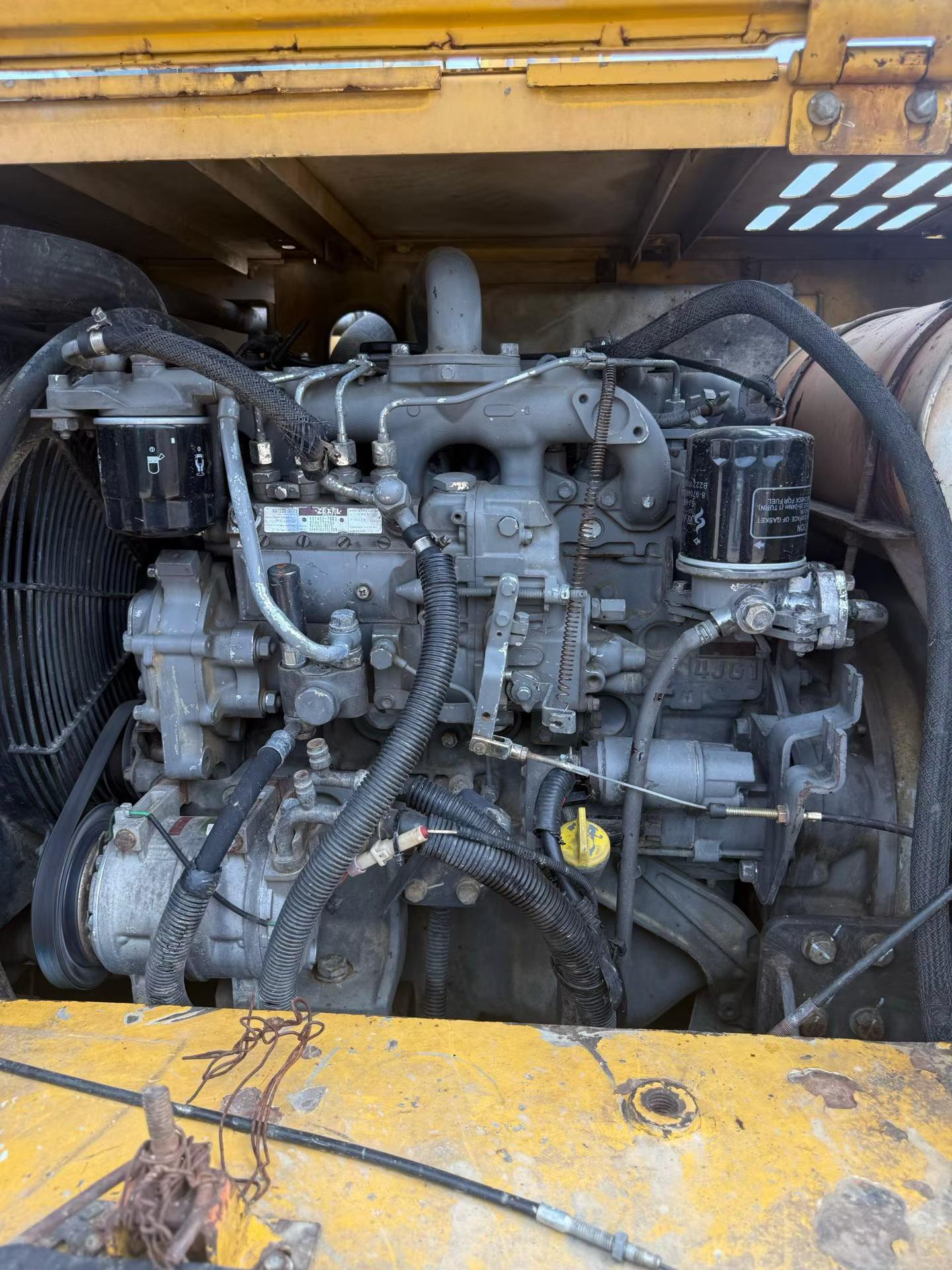

| Engine type | 4JG1TPC |
| Rated power (kw/rpm) | 53.8/2150 |
| Maximum torque (N.m/rpm) | 255/1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 34.6/36.4 (with dozer) |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 51.2 |
| Rod digging force (kN) | 34.2 |
| Maximum tractive force (kN) | 34.2 |
| Travel speed (km/h) | 4.9/2.6 |
| Maximum flow of main pump (l/min) | 198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 9.7 |
| Total transport length (mm) | 6144 |
| Total transport width (mm) | 2332 |
| Total transport height (mm) | 2712 |
| Counterweight ground clearance (mm) | 827 |
| Minimum ground clearance (mm) | 428 |
| Back end turning radius (mm) | 1805 |
| Track gauge (mm) | 1870 |
| Total track width (mm) | 450 |
| Maximum digging radius (mm) | 6295 |
| Maximum digging depth (mm) | 4130 |
| Maximum excavation height (mm) | 7165 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3500 |
| Bulldozer lift or depth (mm) | 409/438 |
| Dodging plate width × height (mm) | 2320 x 416 |
