Product Description

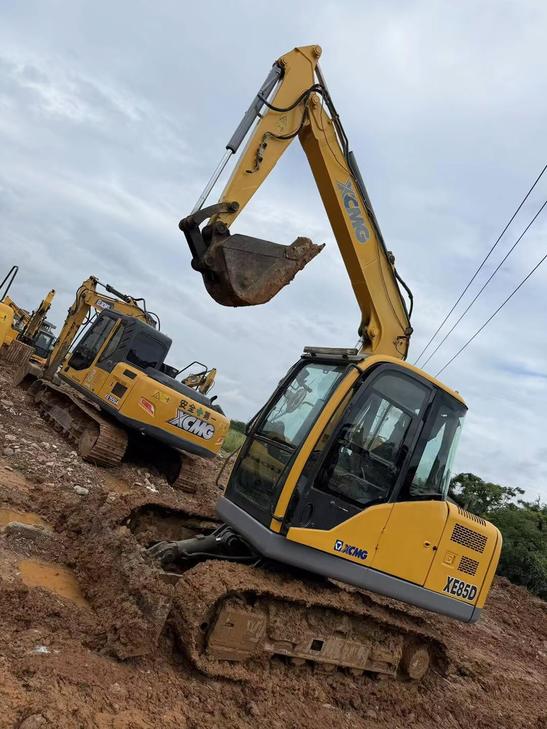

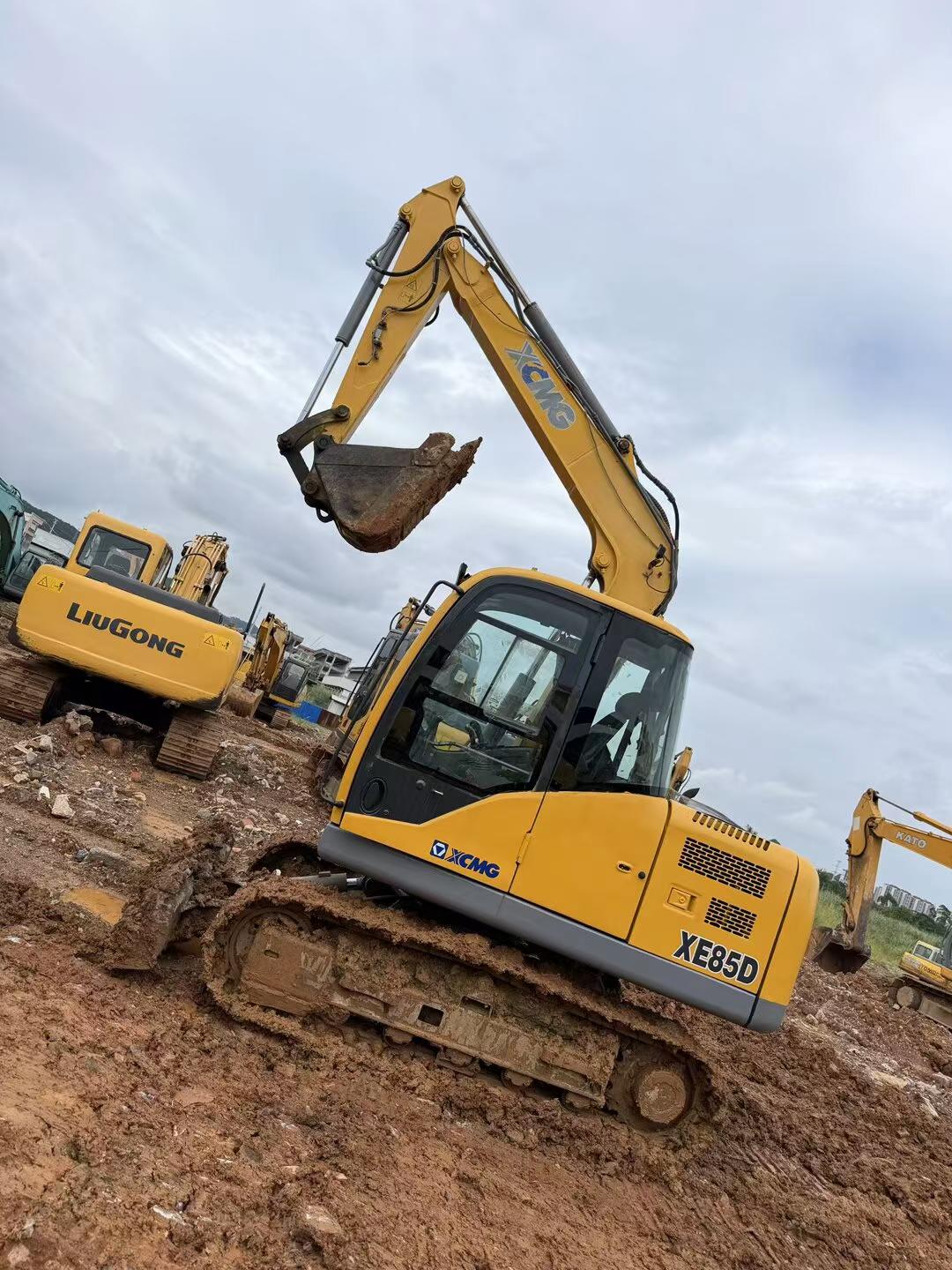

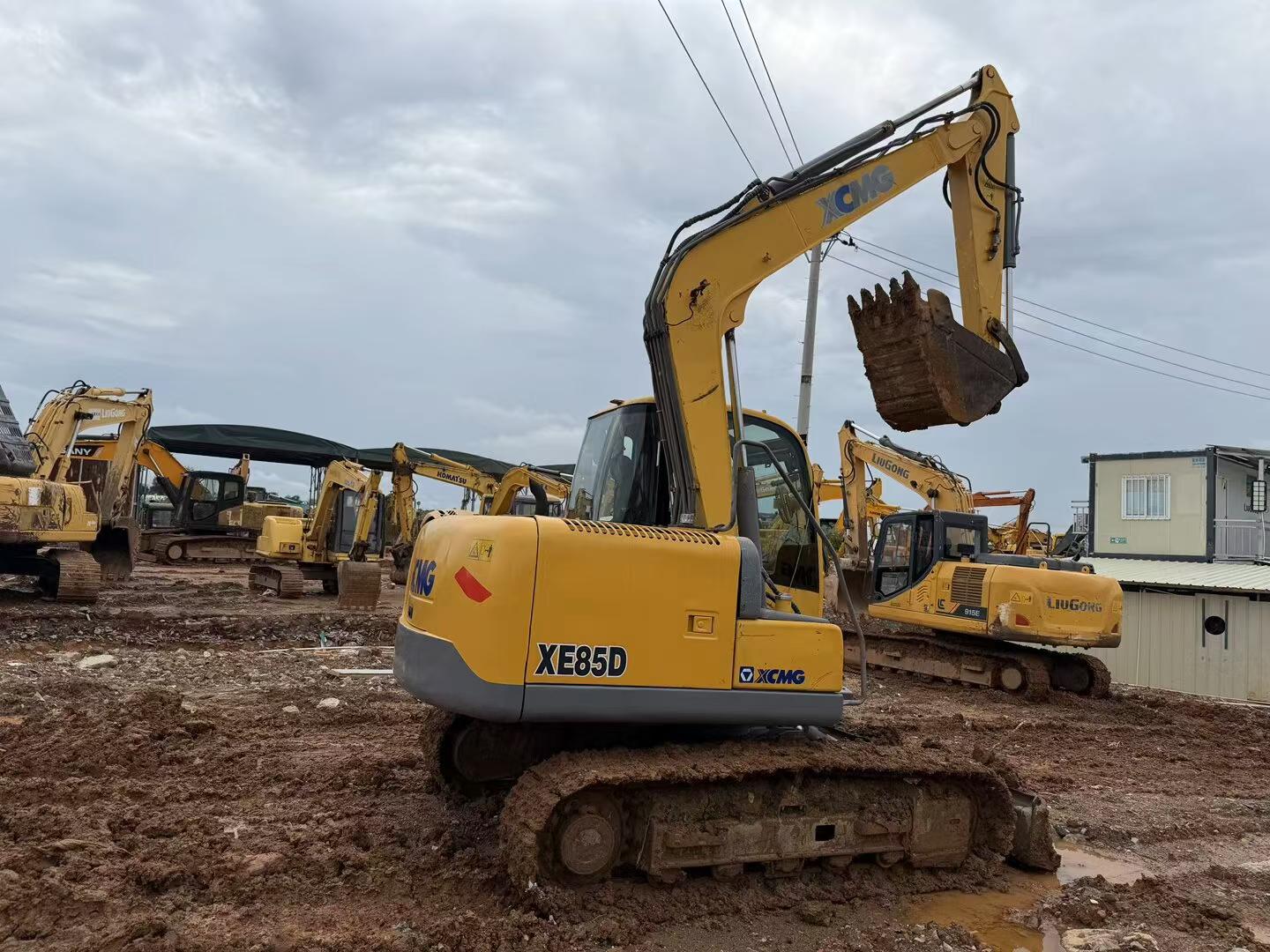

Discover the reliability and performance of the 2020 XCMG XE85C, a robust choice for your construction projects. Located in Guangxi, China, this used excavator is available at a competitive price of 68,000 RMB. The XE85C is known for its durability and efficiency, making it an excellent addition to any fleet. This model comes with comprehensive documentation and video materials, ensuring you have all the necessary information at hand. Ideal for a variety of applications, the XE85C is ready to meet the demands of your job site.
- Year: 2020
- Brand: XCMG
- Model: XE85C
- Price: 68,000 RMB
- Location: Guangxi, China
- Included: Documentation and video materials
| Specifications | Value |
|---|---|
| No. | 1129578 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7700/8100 (with dozer) |
| Bucket capacity (m³) | 0.34 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

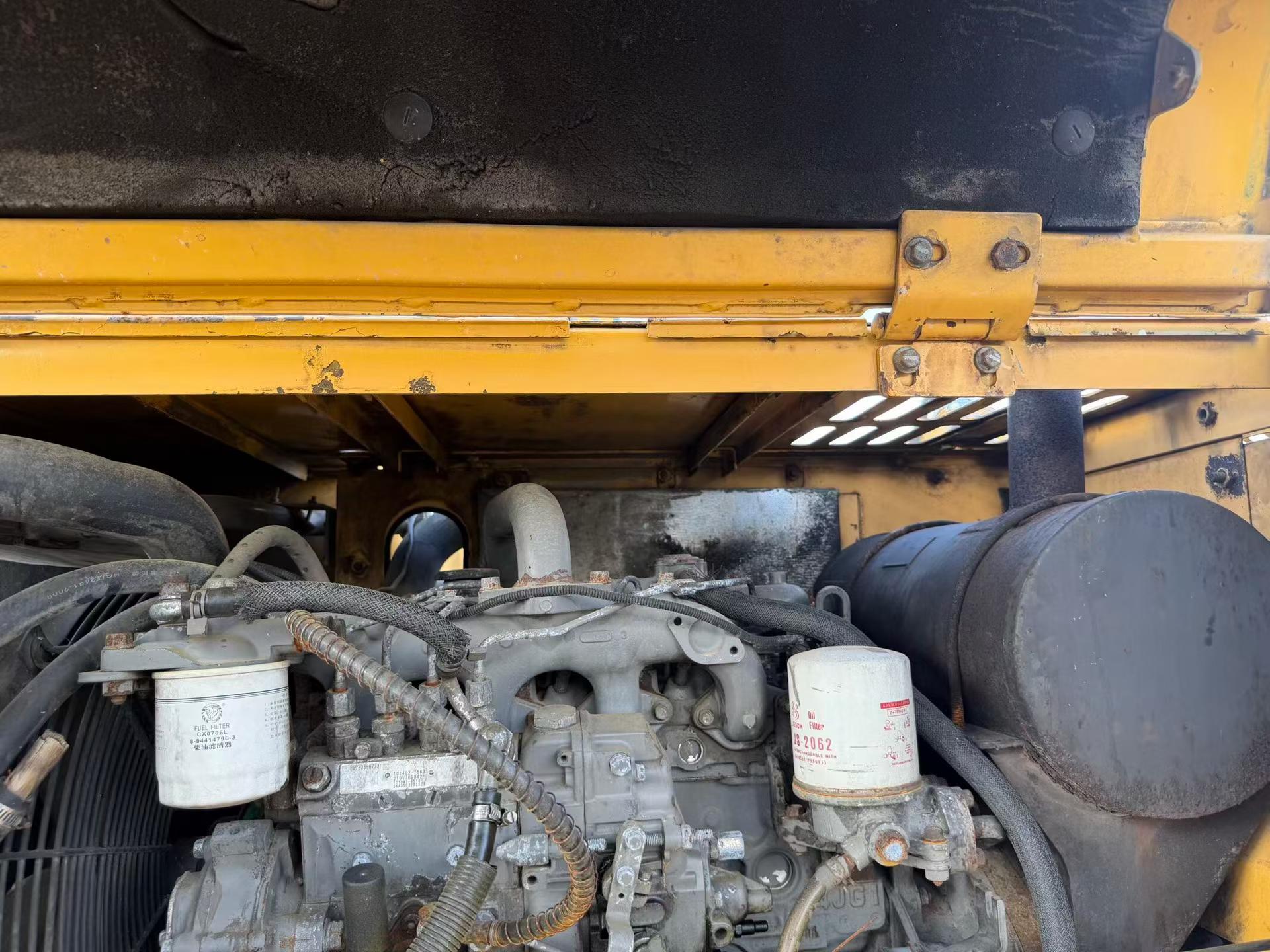

| Engine type | 4JG1TPC |
| Rated power (kw/rpm) | 53.8/2150 |
| Maximum torque (N.m/rpm) | 255/1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 34.6/36.4 (with dozer) |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 51.2 |
| Rod digging force (kN) | 34.2 |
| Maximum tractive force (kN) | 34.2 |
| Travel speed (km/h) | 4.9/2.6 |
| Maximum flow of main pump (l/min) | 198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 9.7 |
| Total transport length (mm) | 6144 |
| Total transport width (mm) | 2332 |
| Total transport height (mm) | 2712 |
| Counterweight ground clearance (mm) | 827 |
| Minimum ground clearance (mm) | 428 |
| Back end turning radius (mm) | 1805 |
| Track gauge (mm) | 1870 |
| Total track width (mm) | 450 |
| Maximum digging radius (mm) | 6295 |
| Maximum digging depth (mm) | 4130 |
| Maximum excavation height (mm) | 7165 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3500 |
| Bulldozer lift or depth (mm) | 409/438 |
| Dodging plate width × height (mm) | 2320 x 416 |
