Product Description

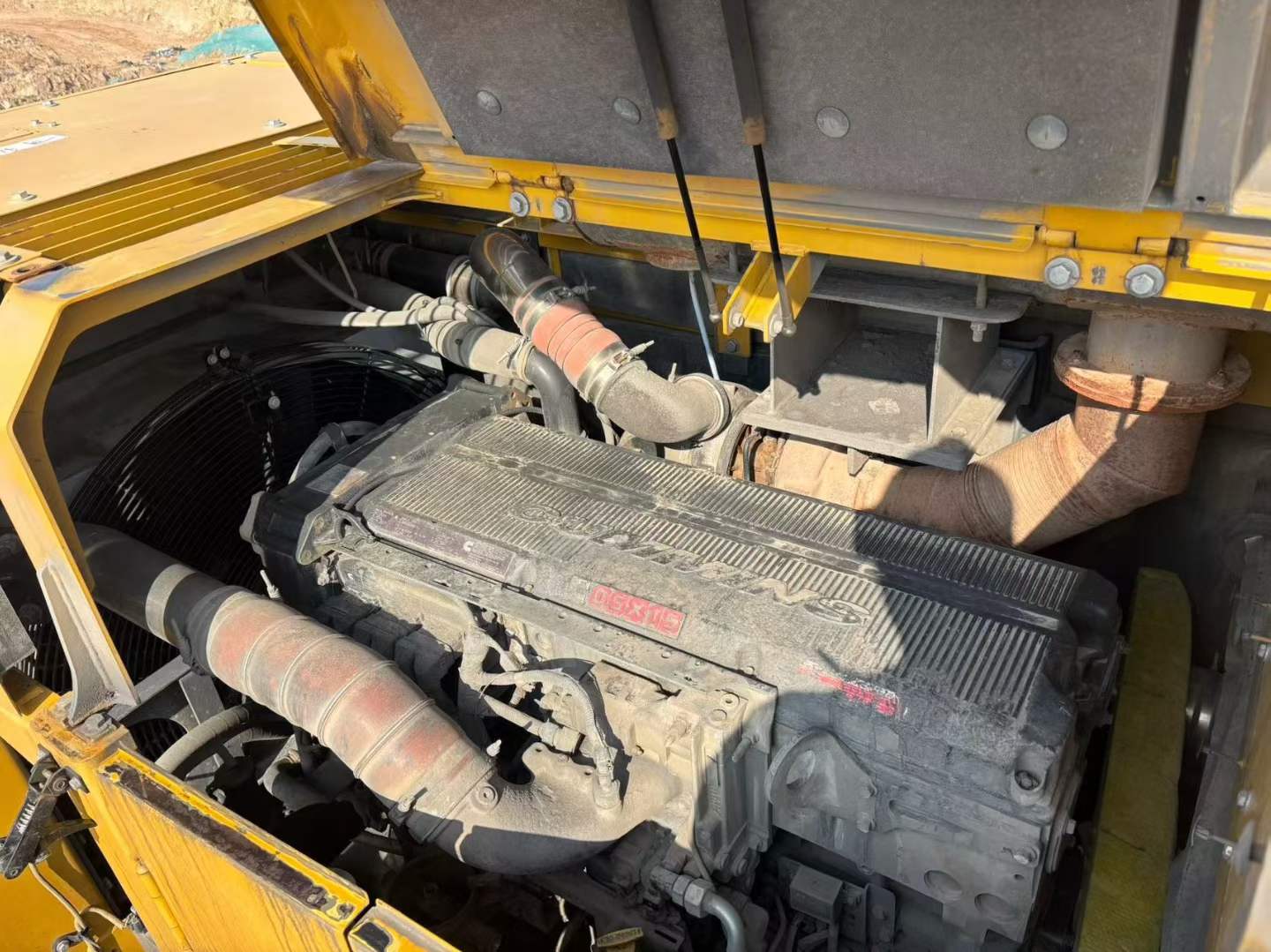

Built for large-scale excavation and heavy-duty earthmoving, this 2020 XCMG XE900C crawler excavator delivers 90 tons of pure digging power. Equipped with a CUMMINS QSX15 turbocharged engine producing 395 kW at 1800 rpm, this machine handles deep foundation work, quarry operations, and demolition projects without hesitation. Its 4.0-5.0 m³ bucket capacity and 480 kN bucket digging force cut through compacted soil, rock, and debris efficiently.
Performance specifications prove site readiness:
- Maximum digging depth: 7,250 mm for deep trenching and basement excavation
- Maximum digging radius: 12,330 mm for extended reach without repositioning

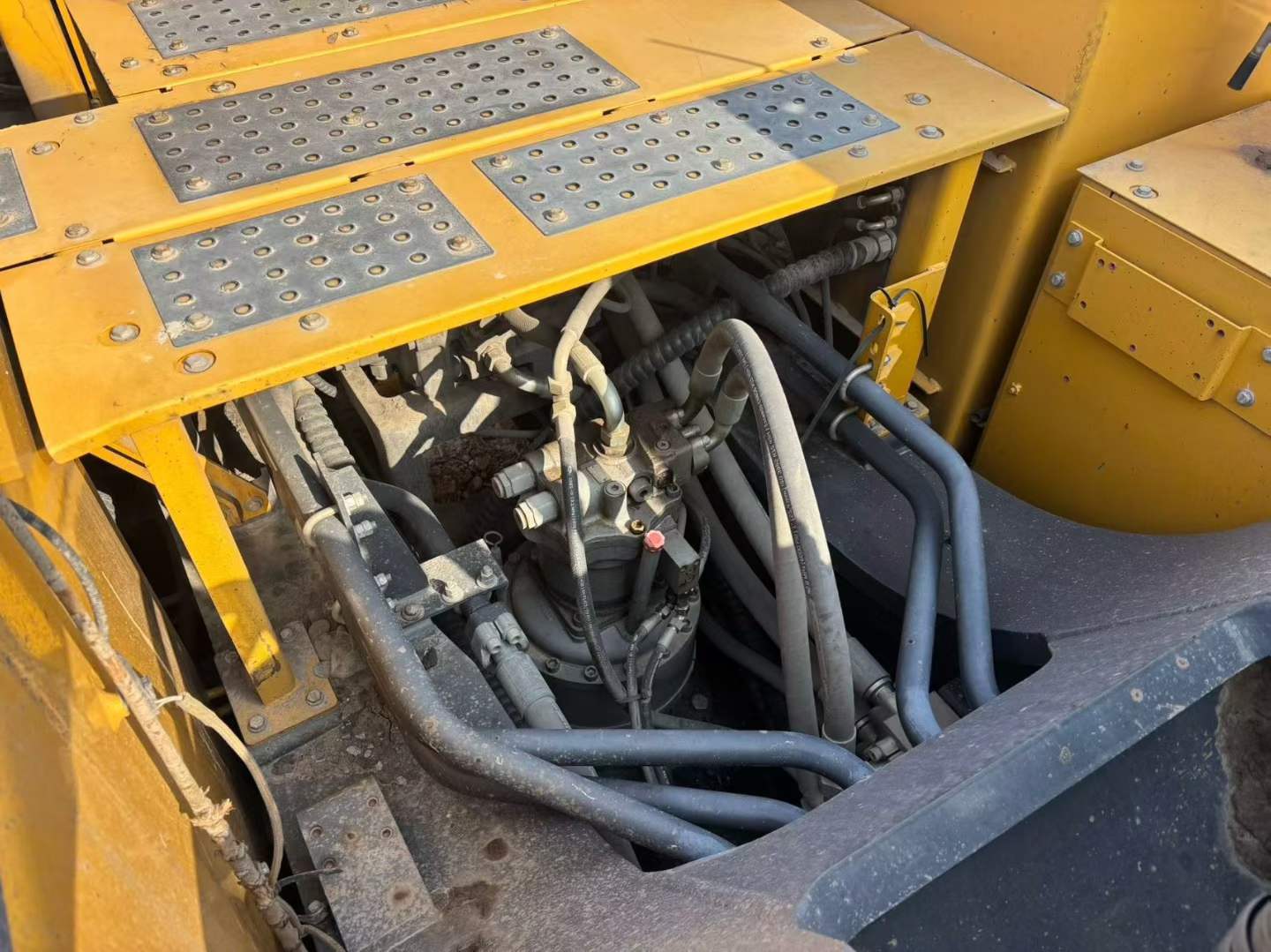

- Dual plunger pumps delivering 2×521 L/min hydraulic flow for responsive operation
- 30° climbing ability tackles challenging terrain and slopes
- 7,100 mm boom and 2,945 mm arm provide versatile working range
- 1,225 L fuel tank supports extended work shifts
Currently located in Maoming, Guangdong, this water-cooled, 6-cylinder excavator arrives ready for immediate deployment on mining, infrastructure, or heavy construction sites requiring serious digging capacity.
| Specifications | Value |
|---|---|
| No. | 1027382 |
| Tonnage (tons) | 90 |
| Working weight (kg) | 88000 |
| Bucket capacity (m³) | 4.0-5.0 |
| Boom length (mm) | 7100 |
| Rod length (mm) | 2945 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | CUMMINS QSX15 |
| Rated power (kw/rpm) | 395/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15 |
| Working form | Turbocharged/air-to-air cooling |
| Ground specific pressure (Kpa) | 131 |
| Rotation speed (rpm) | 7.3 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 480 |
| Rod digging force (kN) | 370 |
| Travel speed (km/h) | 3.9/2.7 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*521 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 1225 |
| Hydraulic Tank (L) | 755 |
| Engine Oil changes (L) | 48 |
| Total transport length (mm) | 13570 |
| Total transport width (mm) | 4550 |
| Total transport height (mm) | 5090 |
| Full cab height (mm) | 1680 |
| Minimum ground clearance (mm) | 880 |
| Minimum turning radius of front working device (mm) | 5200 |
| Back end turning radius (mm) | 4700 |
| Track gauge (mm) | 2960/3500 |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 4545 |
| Maximum digging radius (mm) | 12330 |
| Maximum digging depth (mm) | 7250 |
| Maximum excavation height (mm) | 12060 |
| Maximum unloading height (mm) | 8070 |
| Maximum vertical digging depth (mm) | 4200 |
