Product Description

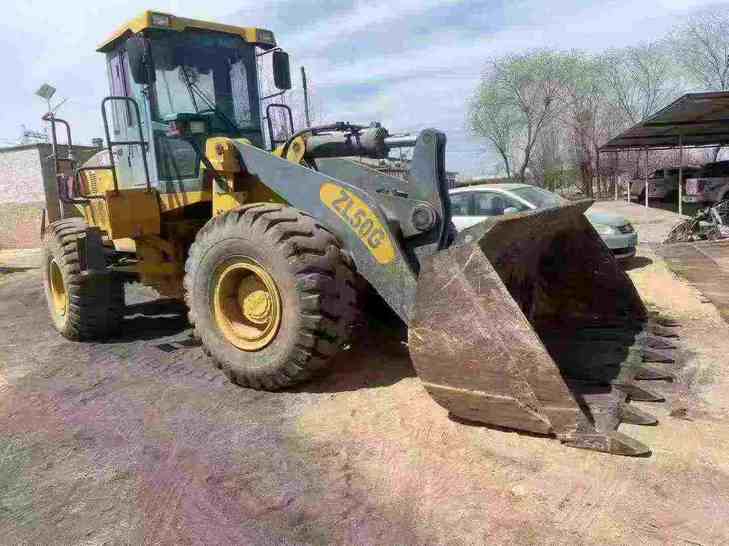

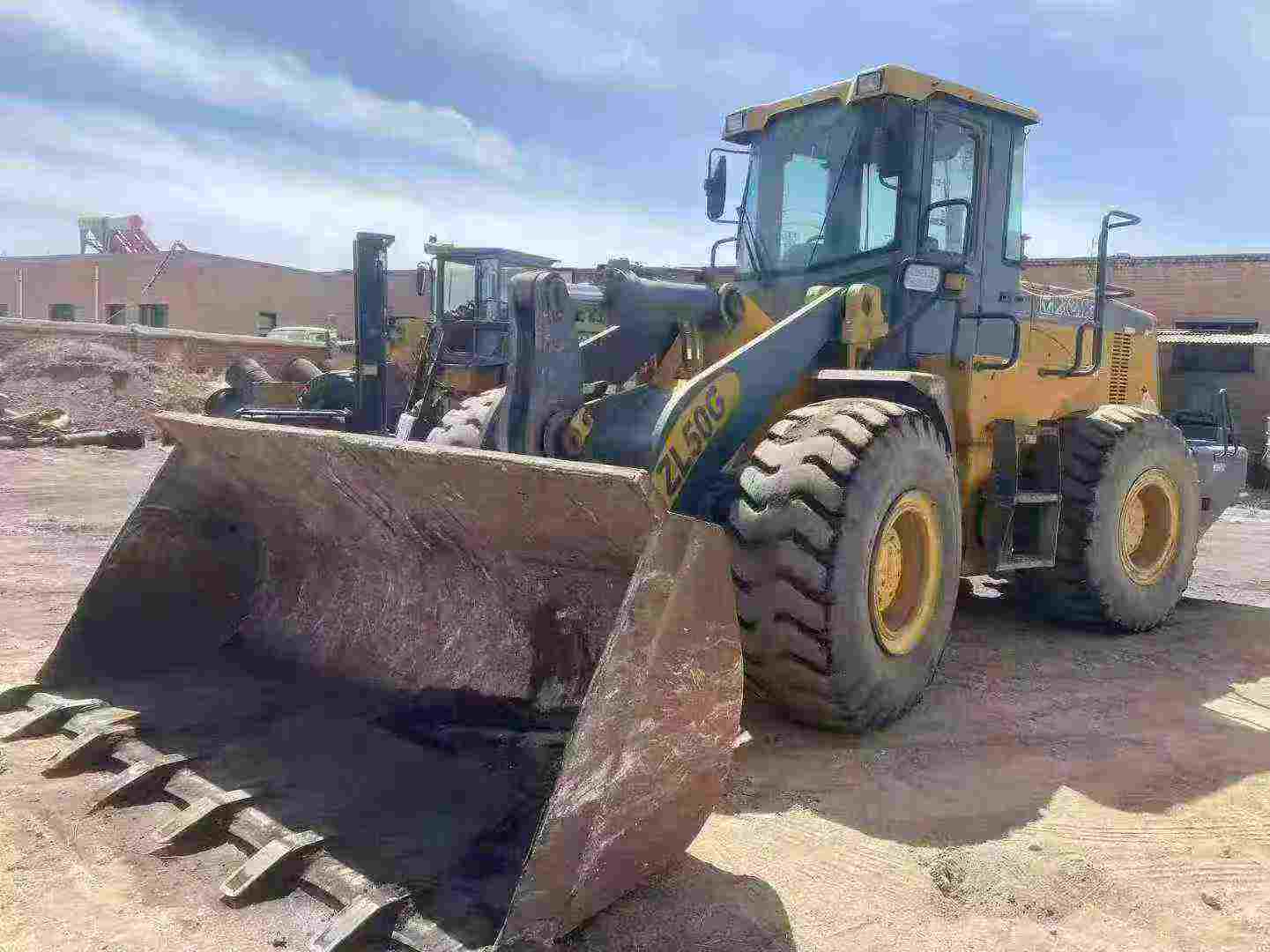

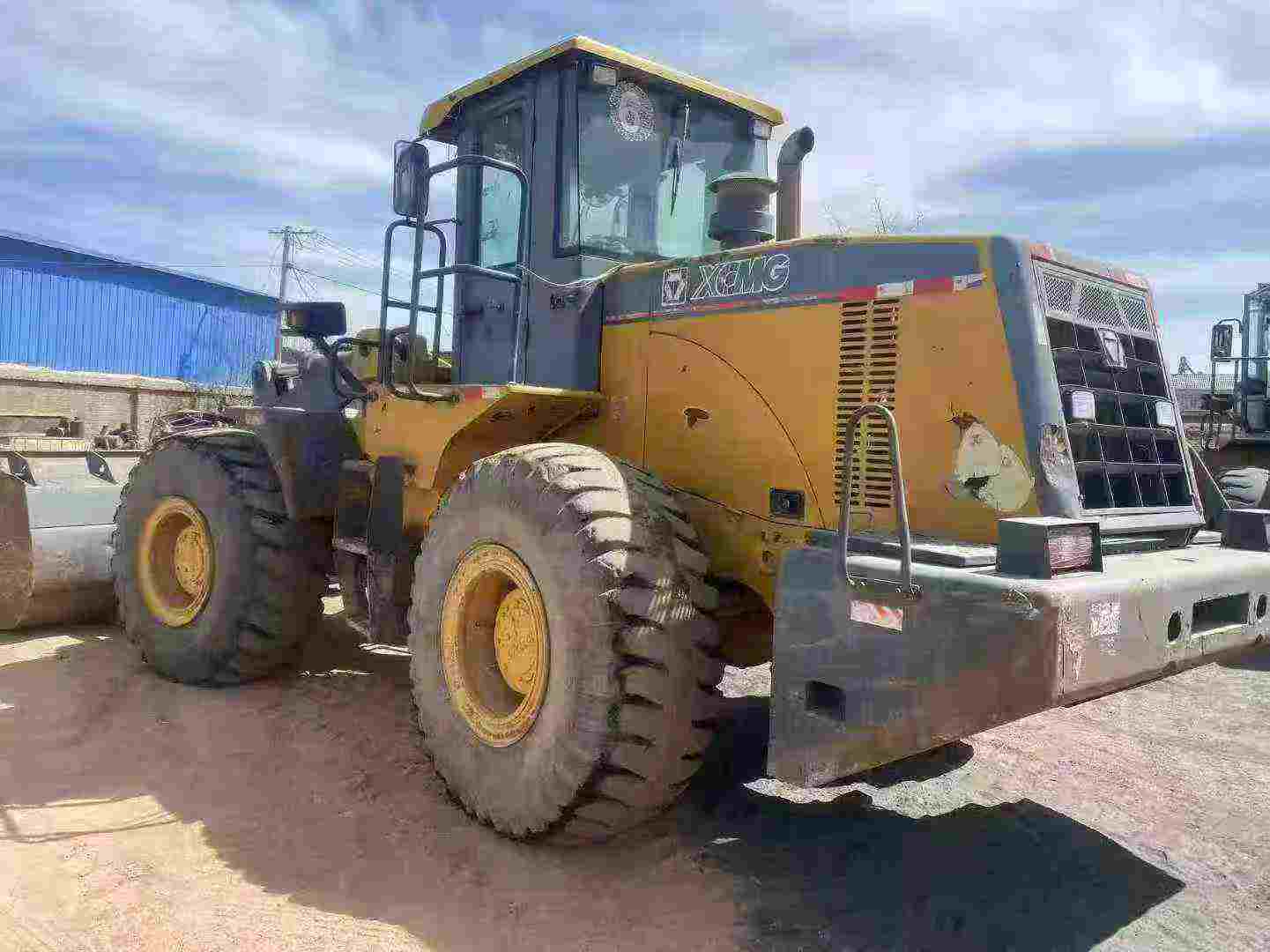

Available now from our 河北保定 (Hebei Baoding) yard, this 2011 XCMG ZL50G wheel loader delivers immediate deployment without factory lead times. Powered by a 162kW engine at 2200 rpm, this proven workhorse handles 5000kg rated loads with a substantial 3m³ bucket capacity and 170kN digging force. Operating weight of 18,000kg provides the stability required for demanding material handling operations across construction, mining, and logistics sites.
Performance specifications include:
- Maximum tractive force: 145kN with 28° climbing capability
- Unloading height: 3090mm at 45° angle, 1130mm reach
- Fast cycle times: 6-second lift, 11-second combined operation
- Two-speed transmission: 11.5/16.5 km/h (first), 37 km/h (second)
- Compact turning radius: 6400mm for confined jobsite maneuverability
- Overall dimensions: 8110mm (L) × 3000mm (W) × 3460mm (H)
Skip months of factory waiting. Secure this ready-to-work loader from 河北保定 and accelerate your project timeline with immediate equipment availability and fast deployment to your operational site.
| Specifications | Value |
|---|---|
| No. | 1015234 |
| Engine type | |
| Rated power (kw/rpm) | 162/2200 |
| Bucket capacity (m³) | 3 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 170 |
| Machine operating weight (kg) | 18000 |
| Unloading height - Unloading Angle 45°(mm) | 3090 |
| Unloading distance - Unloading Angle 45°(mm) | 1130 |
| Maximum tractive force (kN) | 145 |
| Maximum climbing ability (°) | 28 |
| Wheelbase (mm) | 3300 |
| Wheel base (mm) | 2200 |
| Machine length (mm) | 8110 |
| Machine width (mm) | 3000 |
| Machine height (mm) | 3460 |
| Minimum turning radius of outer wheel center line | 6400 |
| Lift (s) | 6 |
| Ternary sum (s) | 11 |
| Speed 1 gear (km/h) | 11.5/16.5 |
| Speed 2 (km/h) | 37 |
