Product Description
Engineered for demanding mining operations, this 2020 XCMG ZL50G mining-spec loader delivers exceptional operator control in the harshest environments. Operators benefit from a reinforced cabin structure designed to withstand rigorous worksite conditions while maintaining superior visibility across all critical zones. The ergonomic control layout reduces fatigue during extended shifts, positioning all primary functions within natural reach.
Stability remains paramount in mining applications. This unit features a reinforced frame geometry and optimized counterweight distribution that ensures confident handling when maneuvering loaded buckets across uneven terrain. Responsive hydraulic steering provides precise control even at full payload capacity.

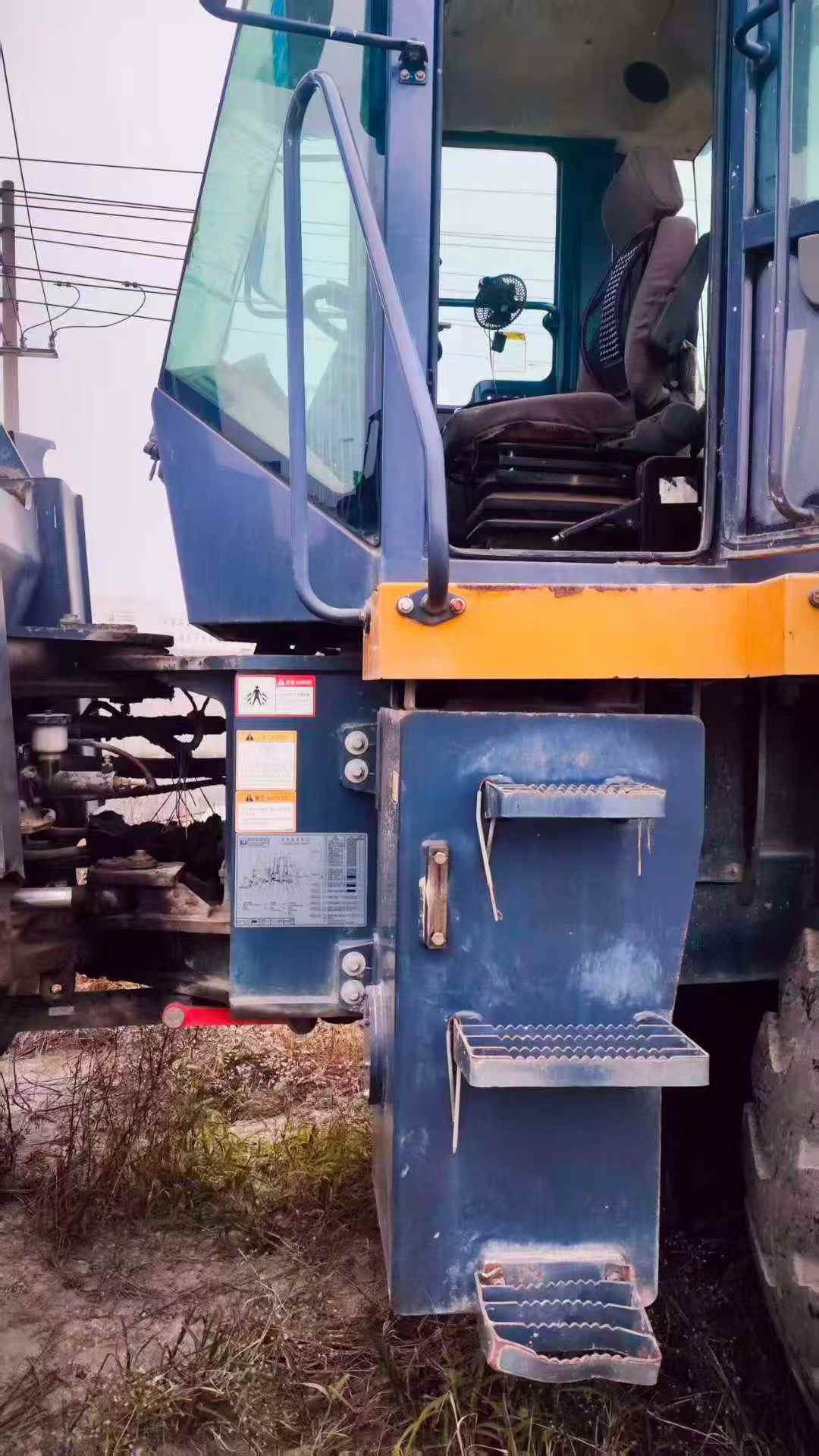

- Enhanced cabin visibility with strategically positioned support pillars
- Reinforced operator station with improved sound dampening
- Intuitive control placement for reduced operator strain
- Stable platform design for confident operation on challenging grades
- Currently located in Hebei, ready for immediate deployment
Built to XCMG's mining-grade specifications, this ZL50G prioritizes operator comfort and machine control wh
| Specifications | Value |
|---|---|
| No. | 1005182 |
| Engine type | |
| Rated power (kw/rpm) | 162/2200 |
| Working form | |
| Exhaust volume (L) | 10.45 |
| Bucket capacity (m³) | 2.5 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 170 |
| Machine operating weight (kg) | 17500 |
| Unloading height - Unloading Angle 45°(mm) | 3090 |
| Unloading distance - Unloading Angle 45°(mm) | 1130 |
| Maximum tractive force (kN) | 150 |
| Maximum climbing ability (°) | 28 |
| Transaxle swing Angle (°) | 12 |
| Steering Angle | 35 |
| Minimum turning radius of outer wheel center line | 6400 |
| Turning radius - Outside of bucket (mm) | 7300 |
| Lift (s) | 6 |
| Ternary sum (s) | 11 |
| Machine length (mm) | 8194 |
| Machine width (mm) | 2800 |
| Machine height (mm) | 3460 |
