Product Description

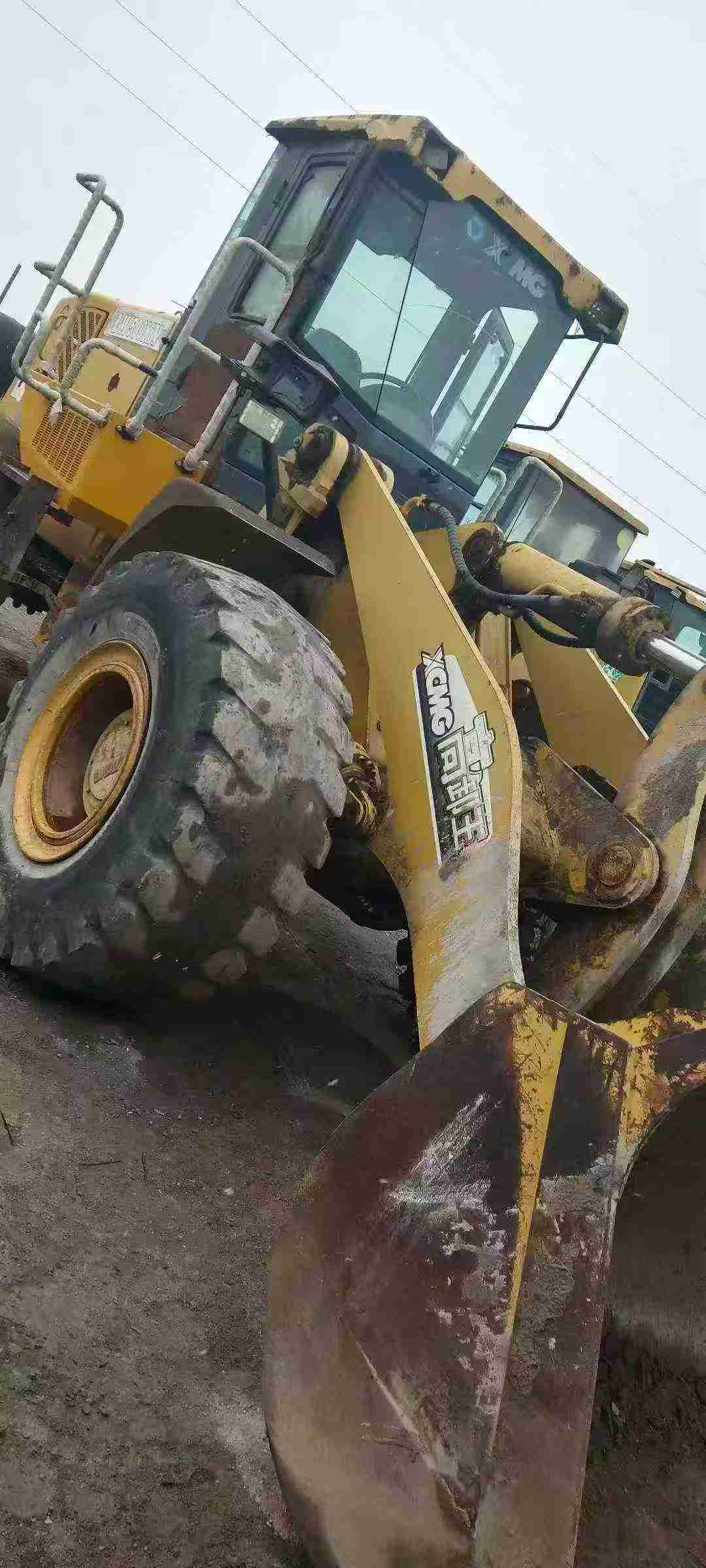

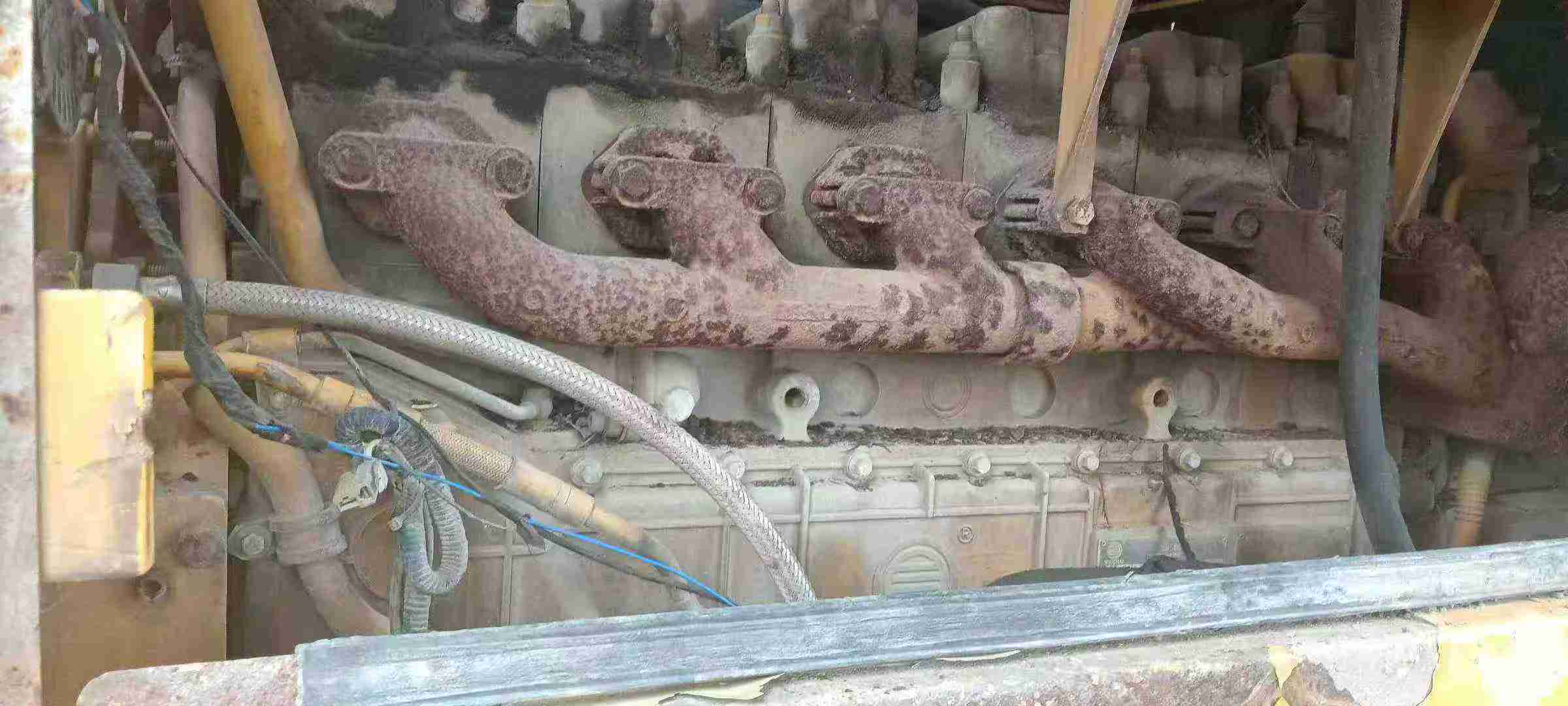

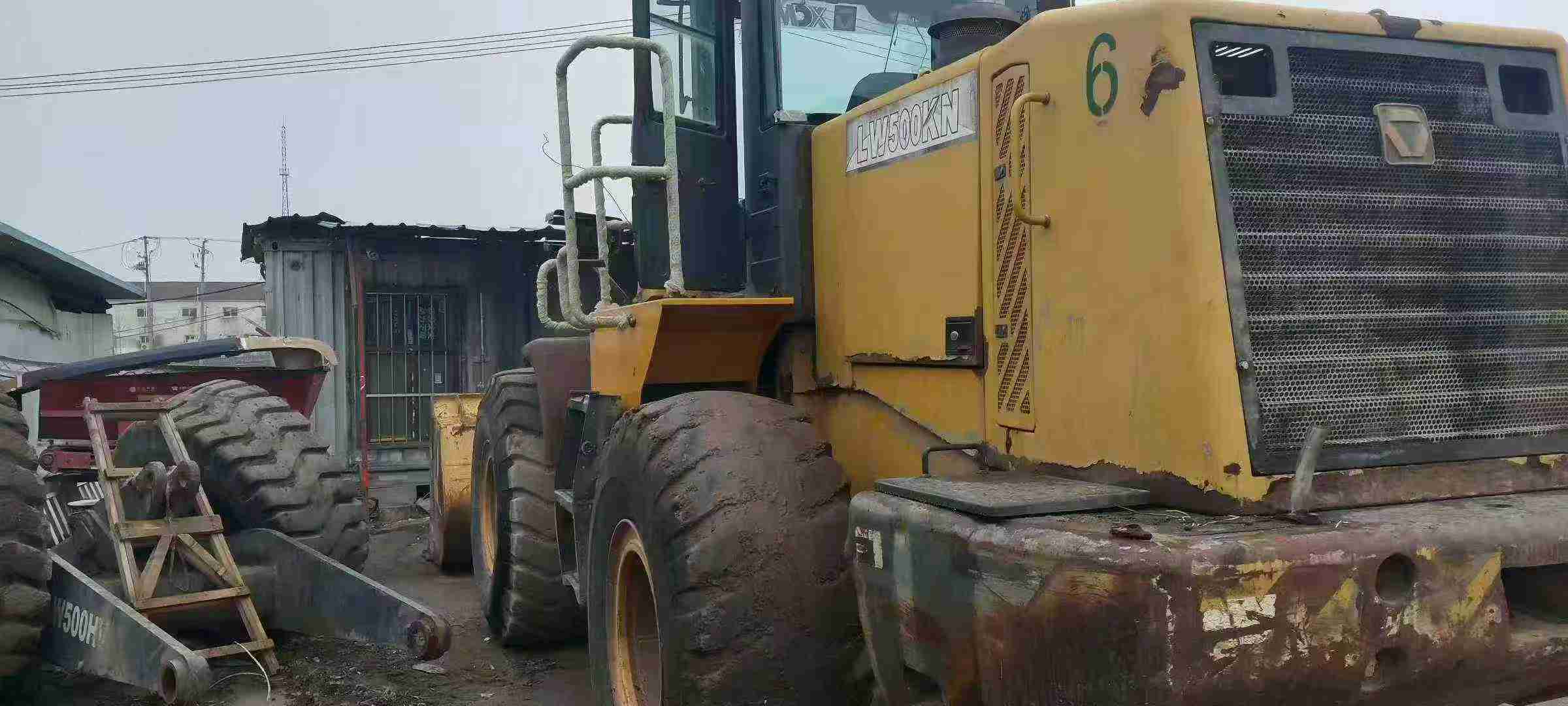

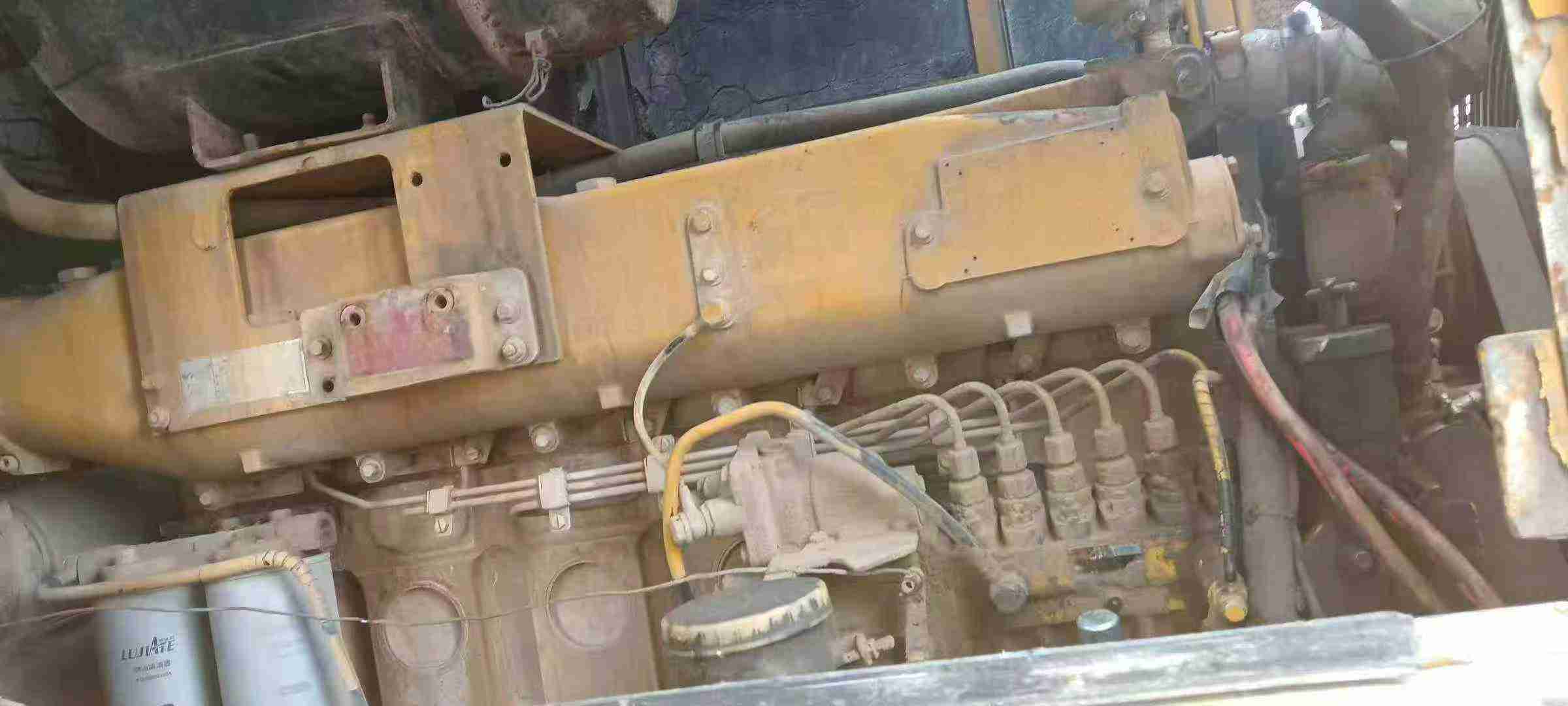

Engineered for high-volume material handling, this 2016 wheel loader combines XCMG's proven drivetrain architecture with robust hydraulic systems. Powered by a WD10G220E23 engine delivering 162 kW at 2000 rpm, the ZL50GN maintains consistent performance across demanding load cycles. The 5000 kg rated load capacity pairs with a 3300 mm wheelbase to ensure stability during transport operations, while the 30° maximum climbing ability enables work on challenging terrain gradients.
Hydraulic responsiveness is optimized through XCMG's torque converter and power-shift transmission configuration. A 35° transaxle swing angle facilitates precise material placement in confined spaces. The 8165 mm overall length and 3016 mm width deliver maneuverability without sacrificing structural integrity. Maximum travel speed reaches 38 km/h for efficient site-to-site repositioning.
Currently located in Baoding, Hebei, this machine represents XCMG's commitment to durable construction equipment. The 23.5-25-16PR tire specification provides traction across mixed surface conditions, supporting continuous operation in quarry, stockyard, and construction environments.
| Specifications | Value |
|---|---|
| No. | 1012972 |
| Engine type | WD10G220E23 |
| Rated power (kw/rpm) | 162/2000 |
| Bucket capacity (m³) | |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | |
| Machine operating weight (kg) | |
| Unloading height - Unloading Angle 45°(mm) | |
| Unloading distance - Unloading Angle 45°(mm) | |
| Maximum tractive force (kN) | |
| Maximum climbing ability (°) | 30 |
| Wheelbase (mm) | 3300 |
| Wheel base (mm) | 2250 |
| Machine length (mm) | 8165 |
| Machine width (mm) | 3016 |
| Machine height (mm) | 3485 |
| Transaxle swing Angle (°) | 35 |
| Tyre specification | 23.5-25-16PR |
| Minimum turning radius of outer wheel center line | |
| Lift (s) | |
| Ternary sum (s) | |
| Speed 1 gear (km/h) | |
| Speed 2 (km/h) | |
| Maximum speed (km/h) | 38 |
