Product Description

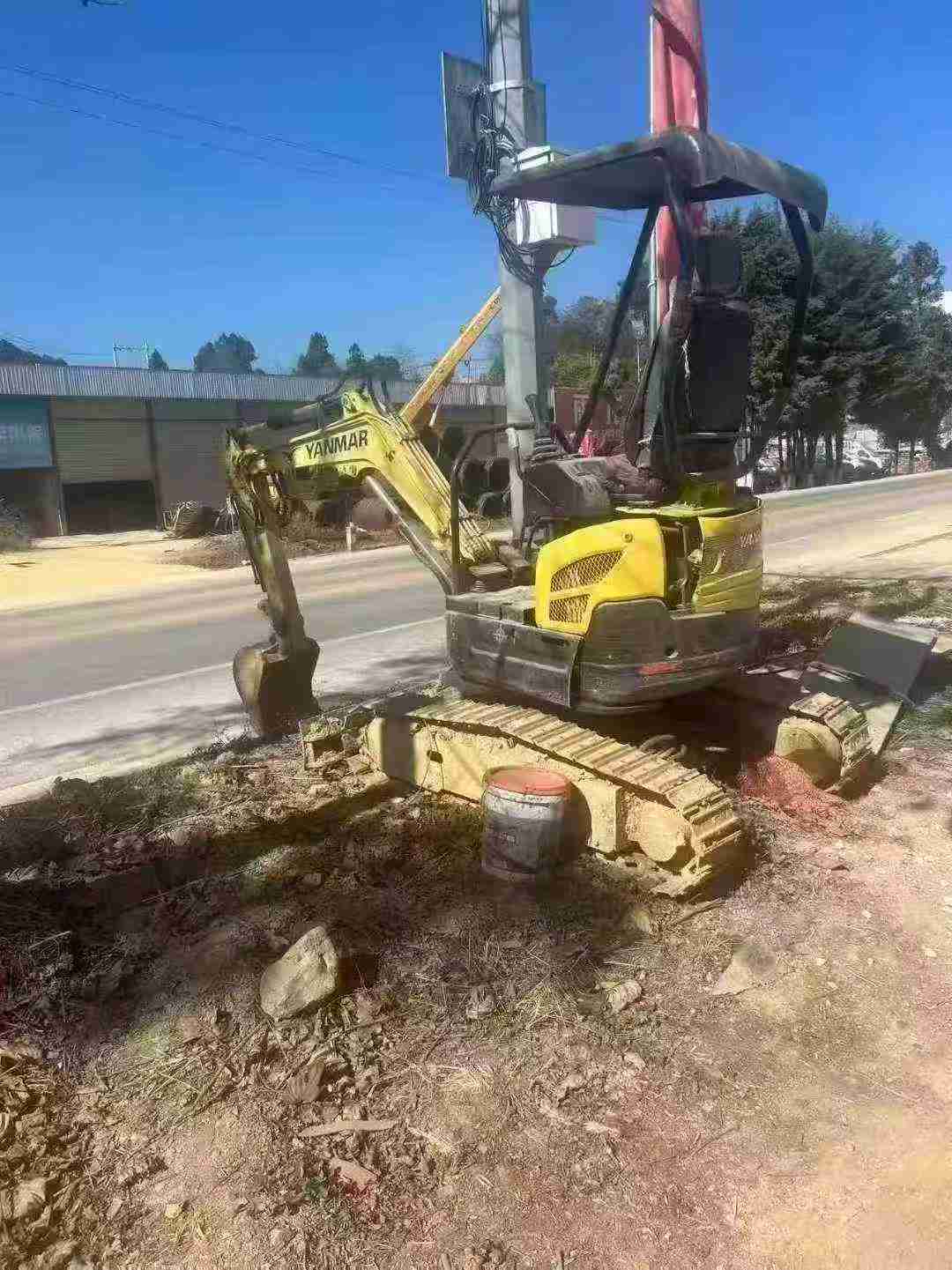

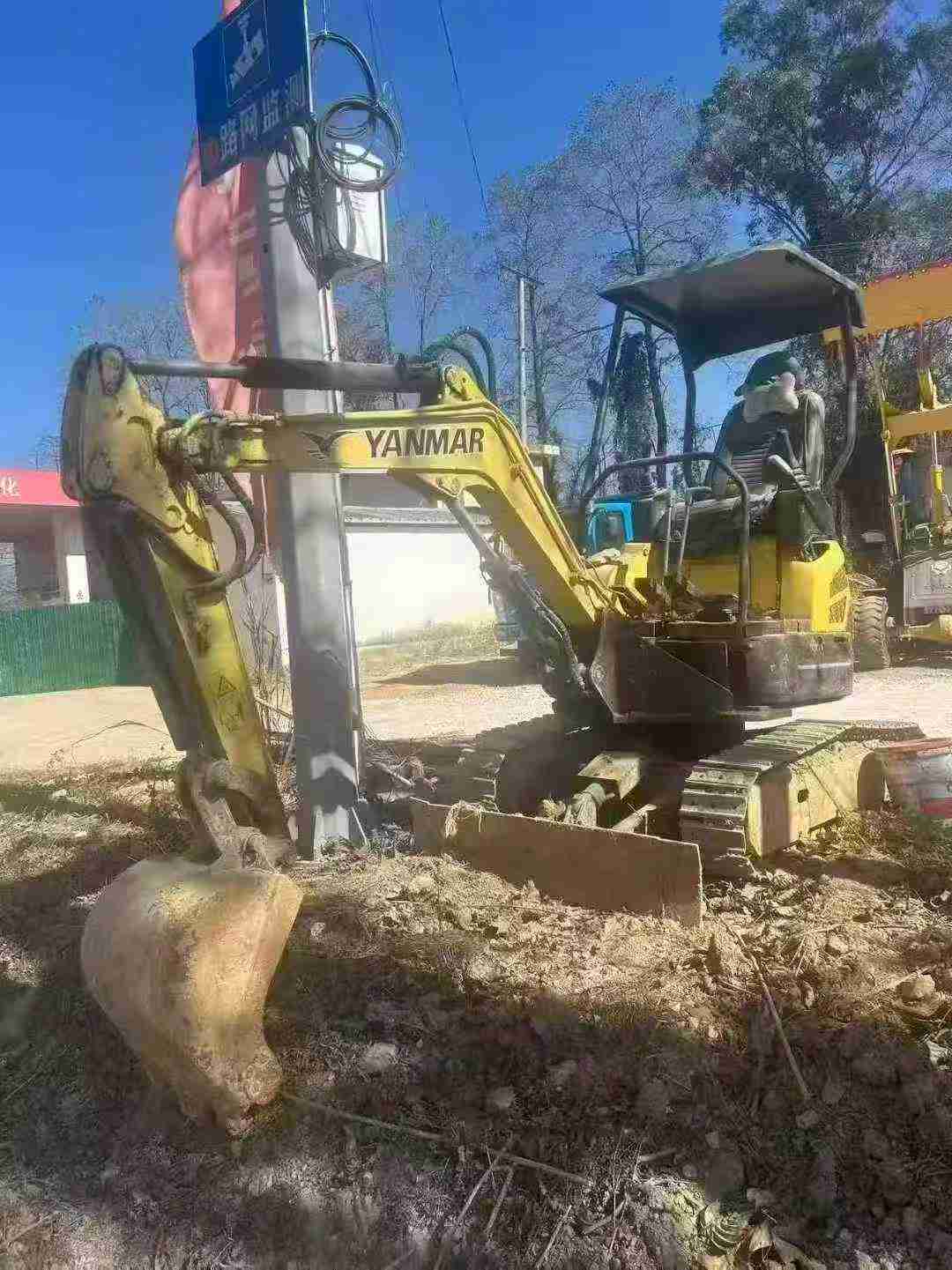

With a working weight of 1700 kg and a bucket capacity of 0.05 m³, this 2016 Yanmar Vio17 mini excavator, located in 四川泸州, is a compact yet powerful machine. Featuring a traditional power Yanmar 3TNV70-XBV engine, it delivers 10.1 kW at 2200 rpm, ensuring reliable performance. Water-cooled with 3 cylinders, the engine operates efficiently, providing a robust 15.2 kN of bucket digging force. The Vio17 moves smoothly at speeds up to 3.8 km/h, and its 17.6 l/min main pump flow ensures consistent hydraulic power. Built to last, this proven workhorse offers a maximum digging depth of 2200 mm and a maximum unloading height of 2630 mm, making it ideal for various construction and landscaping tasks. Its durability and proven record make it a trusted choice for professionals.
| Specifications | Value |
|---|---|
| No. | 1000239 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1700 |
| Bucket capacity (m³) | 0.05 |
| Bucket width (mm) | 450 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 3TNV70-XBV |
| Rated power (kw/rpm) | 10.1/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Working form | Vertical water cooling; 3 cylinders; Direct injection |
| Ground specific pressure (Kpa) | Rubber track 28/ Steel 29 |
| Rotation speed (rpm) | 9.5 |
| Bucket digging force (kN) | 15.2 |
| Travel speed (km/h) | High 3.8 Low 1.9 |
| Main overflow set pressure (Mpa) | 20.6 * 2 + 16.7 * 1 |
| Maximum flow of main pump (l/min) | 17.6 * 2 + 13.2 |
| Fuel Tank (L) | 20 |
| Total transport length (mm) | 3450 |
| Total transport width (mm) | 1280 (950) |
| Total transport height (mm) | 2370 |
| Full cab height (mm) | 2370 |
| Minimum ground clearance (mm) | 175 |
| Minimum turning radius of front working device (mm) | 1520 |
| Back end turning radius (mm) | 640 |
| Total track length (mm) | 1525 |
| Track gauge (mm) | 1050 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 1280 |
| Maximum digging radius (mm) | 3710 |
| Maximum digging depth (mm) | 2200 |
| Maximum excavation height (mm) | 3690 |
| Maximum unloading height (mm) | 2630 |
| Maximum vertical digging depth (mm) | 1850 |
| Bulldozer lift or depth (mm) | 260/205 |
| Dodging plate width × height (mm) | 950/1280 x 235 |
| Boom turning Angle (left/right °) | 42/75 |
