Product Description

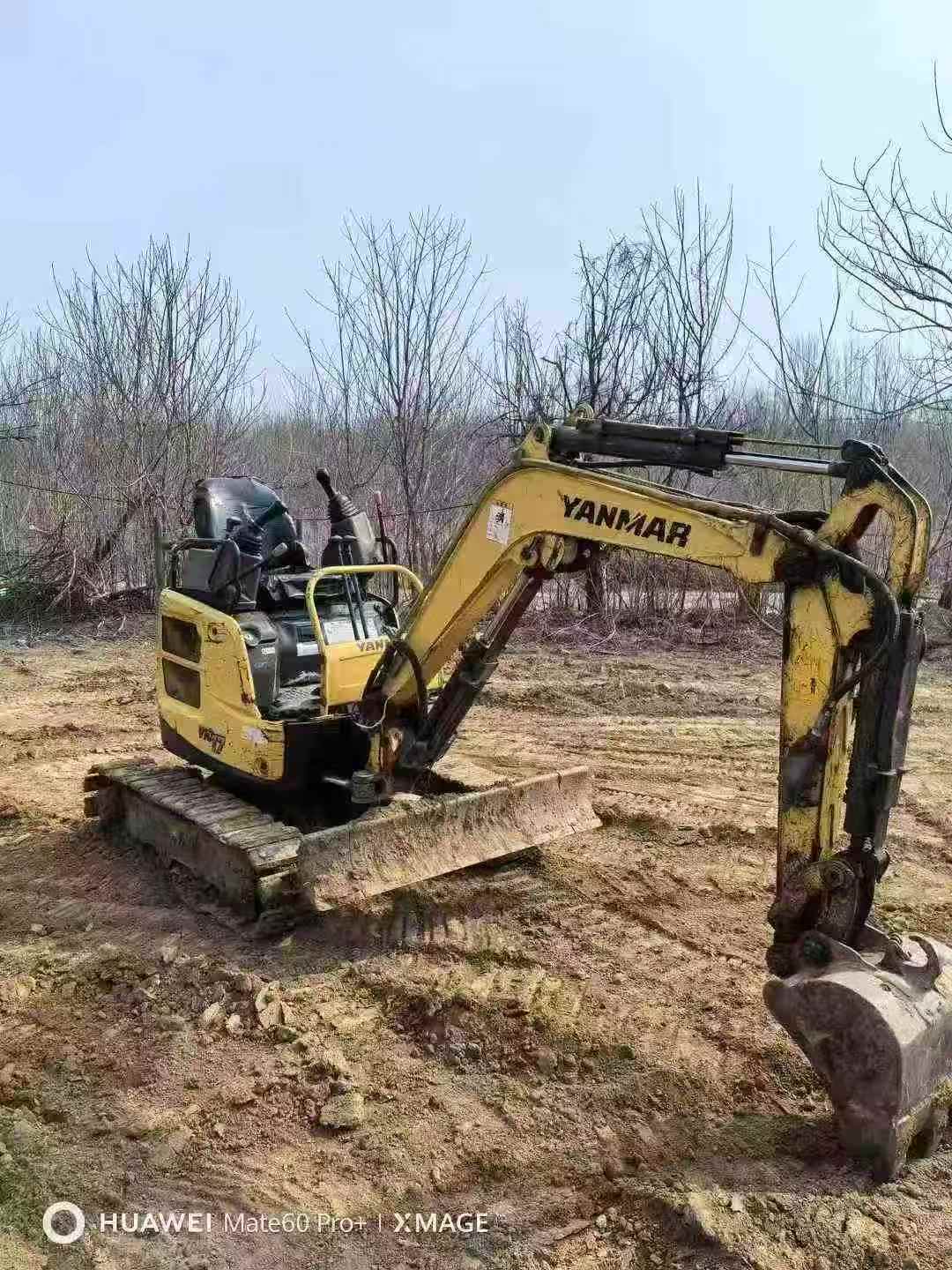

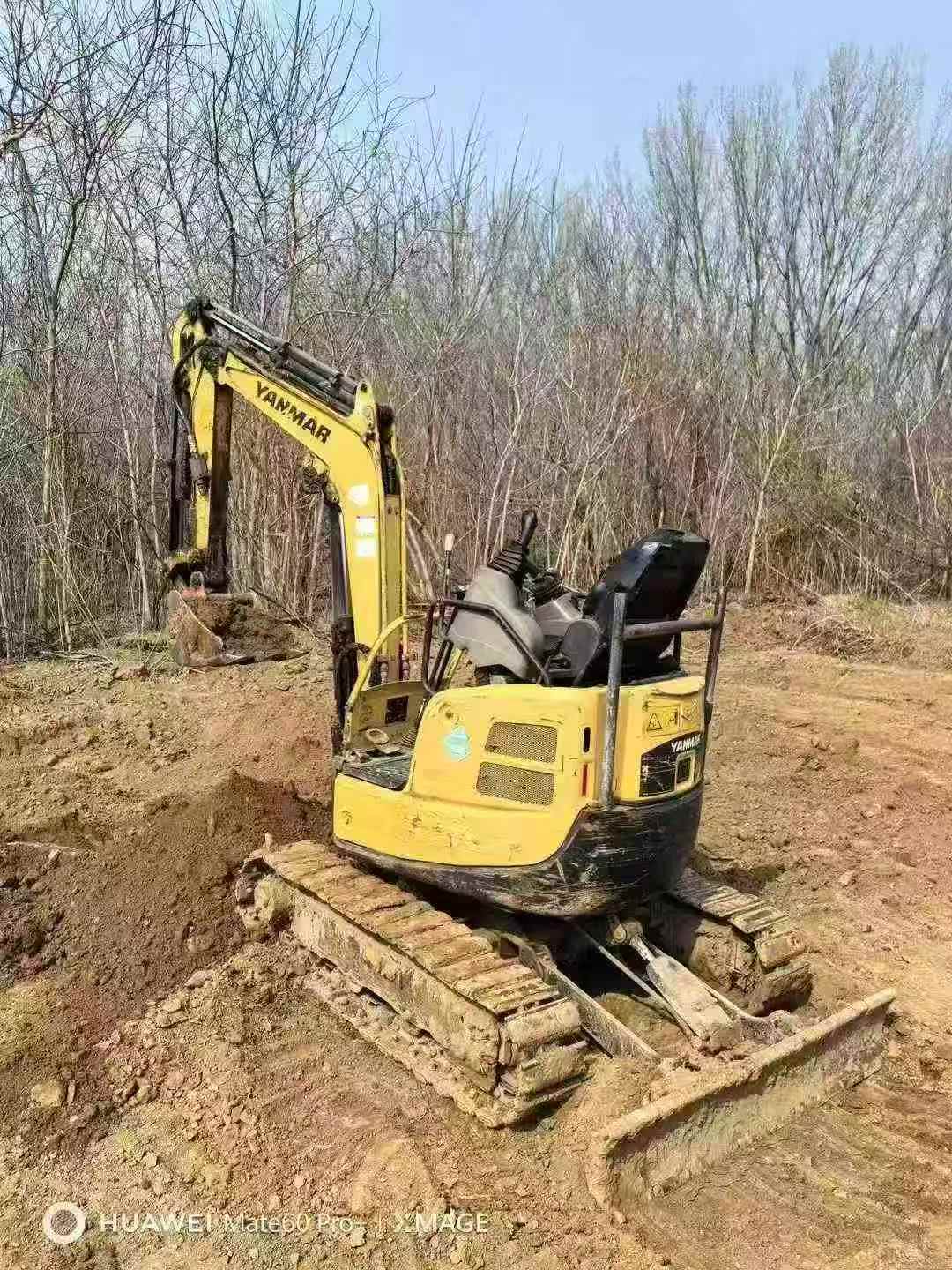

Available now from our Hebei facility, this 2016 Yanmar Vio17 mini excavator delivers immediate deployment without factory wait times. Powered by a reliable Yanmar 3TNV70-XBV engine producing 10.1 kW at 2200 rpm, this compact 1.7-ton machine combines precise maneuverability with robust digging performance for confined jobsites across urban and rural environments.
Engineered for versatility, the Vio17 offers a maximum digging depth of 2200mm and digging radius of 3710mm, while its 450mm bucket width and 15.2 kN digging force handle demanding trenching and excavation tasks. Compact transport dimensions of 3450mm length × 1280mm width enable easy trailer transport and access through tight gates. Dual travel speeds (3.8 km/h high, 1.9 km/h low) provide optimal control for precision work or rapid repositioning.
Key specifications:
- Operating weight: 1700 kg with minimal ground pressure (28 Kpa rubber track)
- 3-cylinder water-cooled direct injection engine for fuel efficiency
- Boom swing capability: 42° left / 75° right for obstacle clearance
- 20-liter fuel tank supports extended operation cycles
- Minimum turning radius: 1520mm front, 640mm rear
Re
| Specifications | Value |
|---|---|
| No. | 1029316 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1700 |
| Bucket capacity (m³) | 0.05 |
| Bucket width (mm) | 450 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 3TNV70-XBV |
| Rated power (kw/rpm) | 10.1/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Working form | Vertical water cooling; 3 cylinders; Direct injection |
| Ground specific pressure (Kpa) | Rubber track 28/ Steel 29 |
| Rotation speed (rpm) | 9.5 |
| Bucket digging force (kN) | 15.2 |
| Travel speed (km/h) | High 3.8 Low 1.9 |
| Main overflow set pressure (Mpa) | 20.6 * 2 + 16.7 * 1 |
| Maximum flow of main pump (l/min) | 17.6 * 2 + 13.2 |
| Fuel Tank (L) | 20 |
| Total transport length (mm) | 3450 |
| Total transport width (mm) | 1280 (950) |
| Total transport height (mm) | 2370 |
| Full cab height (mm) | 2370 |
| Minimum ground clearance (mm) | 175 |
| Minimum turning radius of front working device (mm) | 1520 |
| Back end turning radius (mm) | 640 |
| Total track length (mm) | 1525 |
| Track gauge (mm) | 1050 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 1280 |
| Maximum digging radius (mm) | 3710 |
| Maximum digging depth (mm) | 2200 |
| Maximum excavation height (mm) | 3690 |
| Maximum unloading height (mm) | 2630 |
| Maximum vertical digging depth (mm) | 1850 |
| Bulldozer lift or depth (mm) | 260/205 |
| Dodging plate width × height (mm) | 950/1280 x 235 |
| Boom turning Angle (left/right °) | 42/75 |
