Product Description

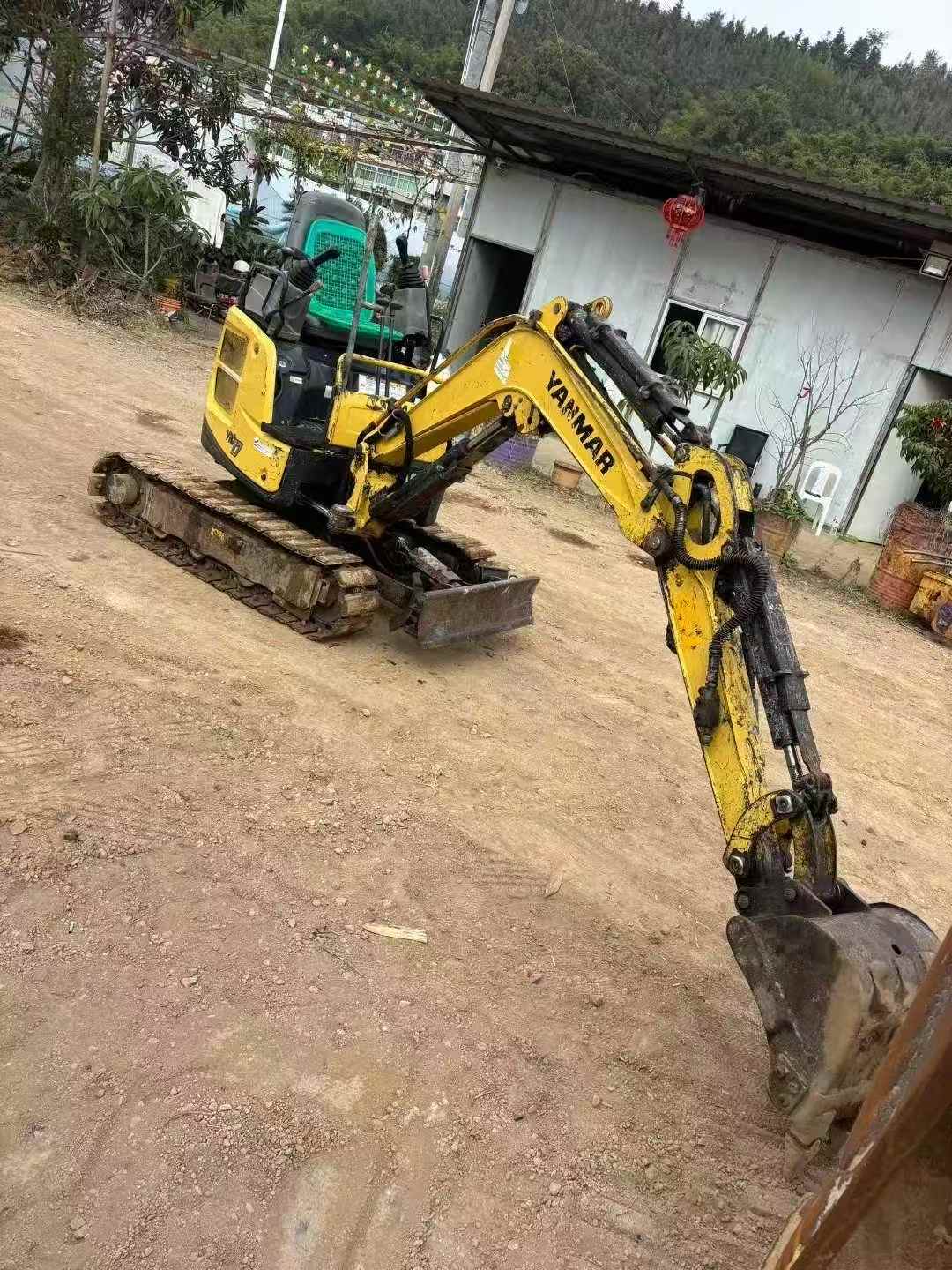

With a working weight of 1,700 kg and a bucket capacity of 0.05 m³, the 2017 Yanmar Vio17 is designed for precision and efficiency in digging, grading, and demolition tasks. Located in 福建三明, this compact excavator is powered by a reliable Yanmar 3TNV70-XBV engine, delivering 10.1 kW at 2,200 rpm. Featuring a backhoe bucket with a width of 450 mm, it provides a robust digging force of 15.2 kN, ideal for various site-specific needs.
- Travel speed: High 3.8 km/h, Low 1.9 km/h
- Total transport dimensions: 3450 x 1280 (950) x 2370 mm
- Maximum digging depth: 2200 mm
- Fuel tank capacity: 20 L
- Track gauge: 1050 mm
Equipped with a water-cooled, 3-cylinder engine, the Vio17 ensures consistent performance and reliability. Its compact design and versatile capabilities make it an essential asset for any construction site, ready to tackle immediate project demands.
| Specifications | Value |
|---|---|
| No. | 1004082 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1700 |
| Bucket capacity (m³) | 0.05 |
| Bucket width (mm) | 450 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

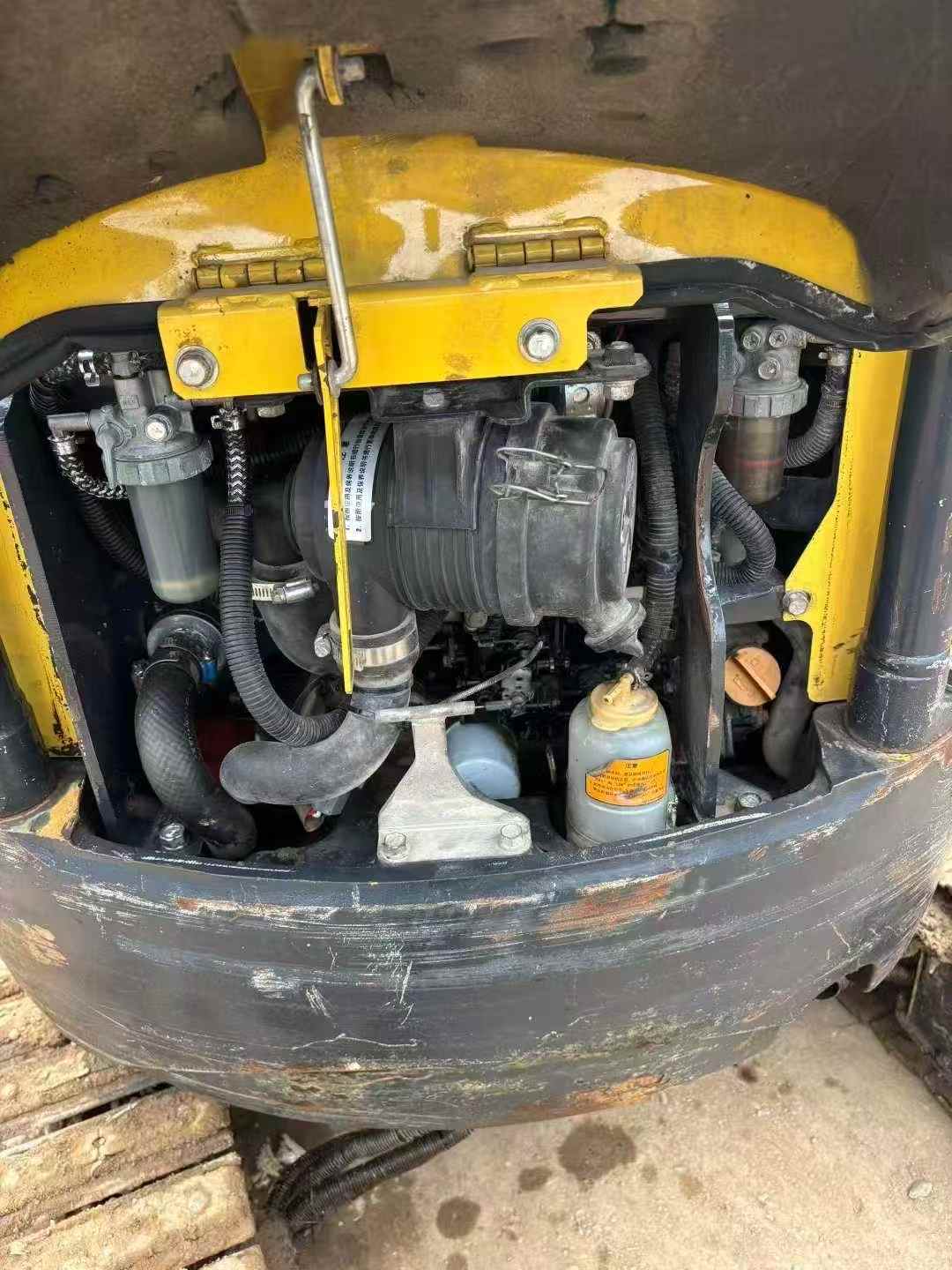

| Engine type | Yanmar 3TNV70-XBV |
| Rated power (kw/rpm) | 10.1/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Working form | Vertical water cooling; 3 cylinders; Direct injection |
| Ground specific pressure (Kpa) | Rubber track 28/ Steel 29 |
| Rotation speed (rpm) | 9.5 |
| Bucket digging force (kN) | 15.2 |
| Travel speed (km/h) | High 3.8 Low 1.9 |
| Main overflow set pressure (Mpa) | 20.6 * 2 + 16.7 * 1 |
| Maximum flow of main pump (l/min) | 17.6 * 2 + 13.2 |
| Fuel Tank (L) | 20 |
| Total transport length (mm) | 3450 |
| Total transport width (mm) | 1280 (950) |
| Total transport height (mm) | 2370 |
| Full cab height (mm) | 2370 |
| Minimum ground clearance (mm) | 175 |
| Minimum turning radius of front working device (mm) | 1520 |
| Back end turning radius (mm) | 640 |

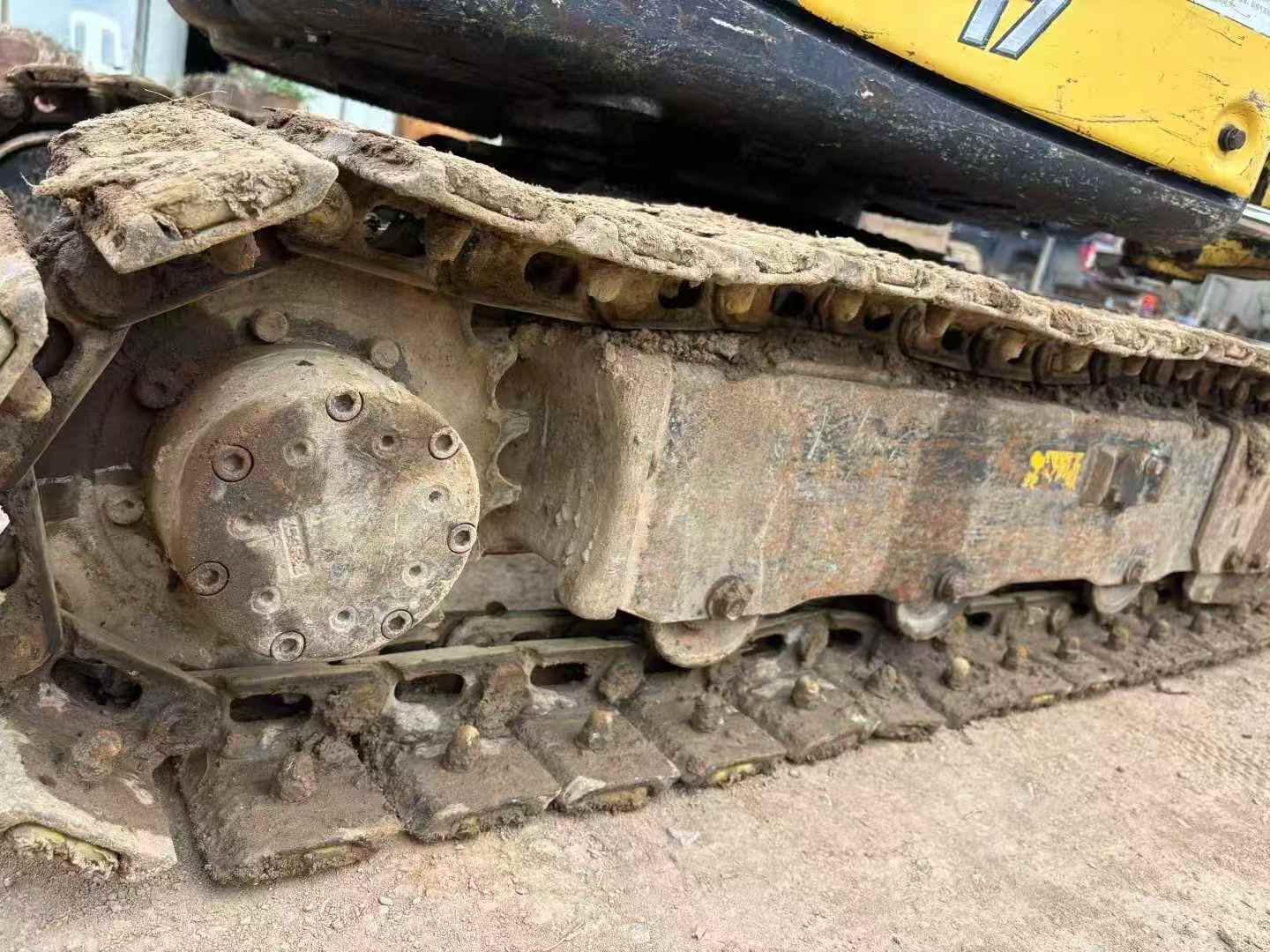

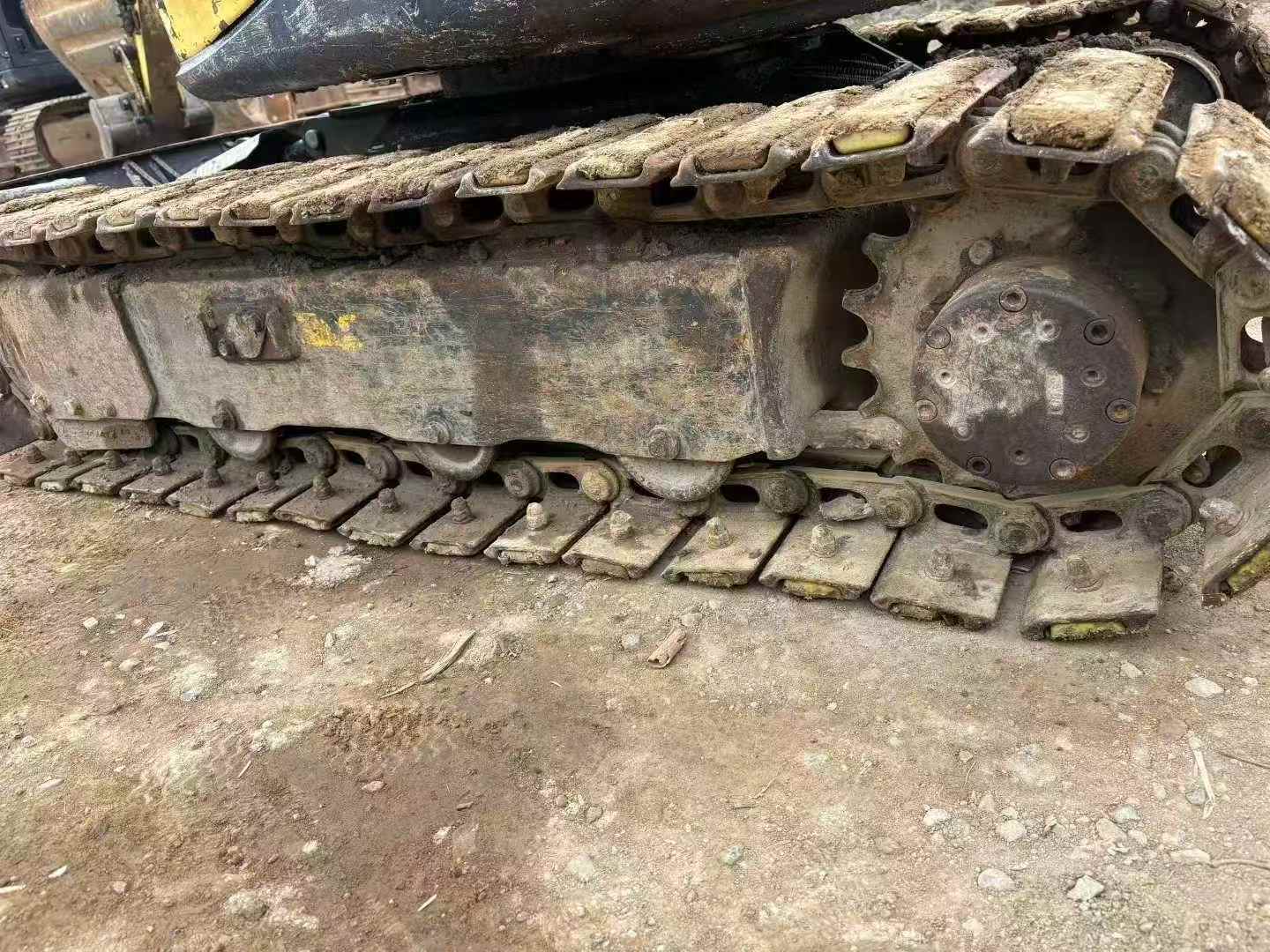

| Total track length (mm) | 1525 |
| Track gauge (mm) | 1050 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 1280 |
| Maximum digging radius (mm) | 3710 |
| Maximum digging depth (mm) | 2200 |
| Maximum excavation height (mm) | 3690 |
| Maximum unloading height (mm) | 2630 |
| Maximum vertical digging depth (mm) | 1850 |
| Bulldozer lift or depth (mm) | 260/205 |
| Dodging plate width × height (mm) | 950/1280 x 235 |
| Boom turning Angle (left/right °) | 42/75 |
