Product Description

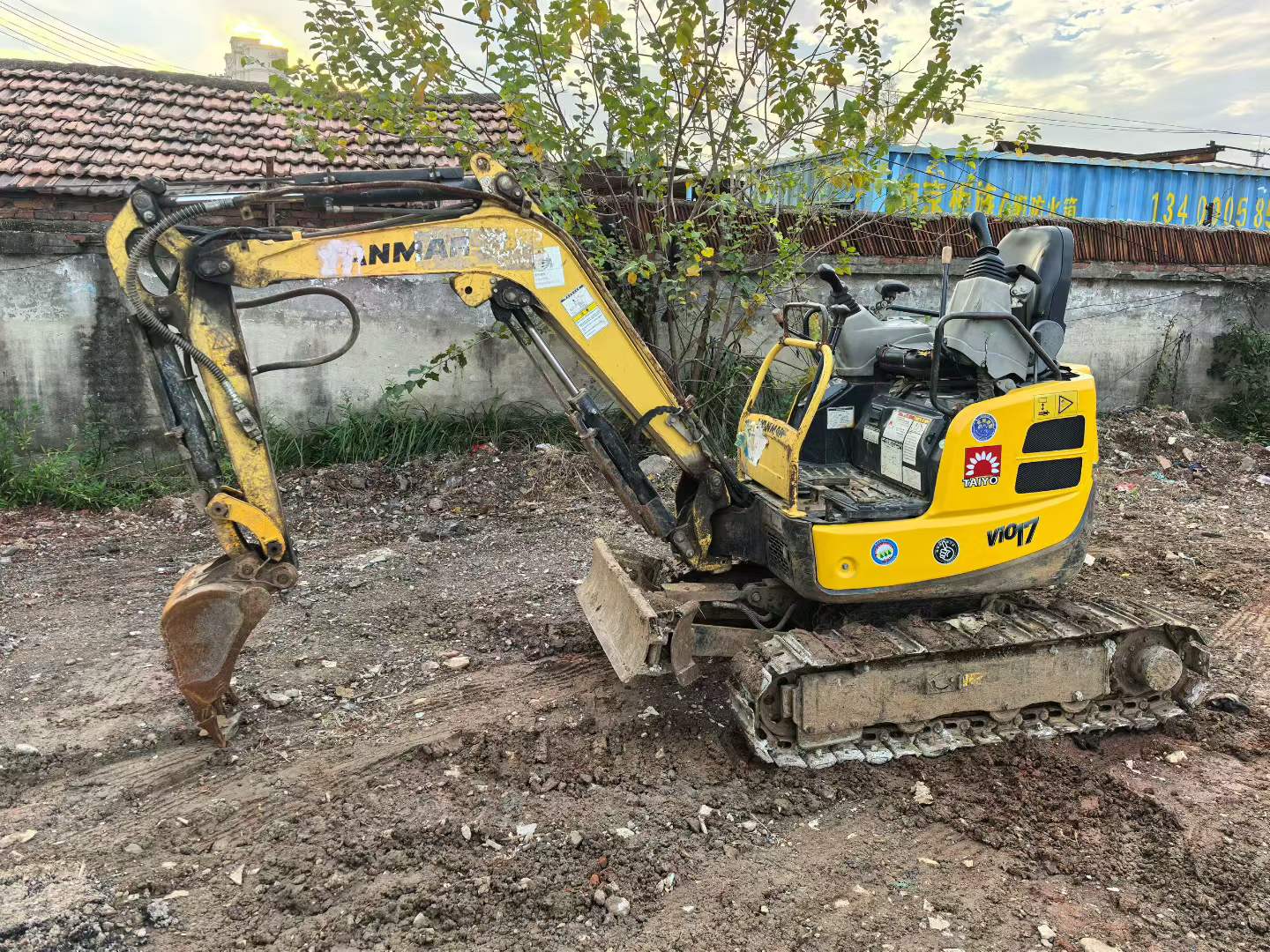

Compact power meets immediate availability with this 2017 Yanmar Vio17 mini excavator, currently located in Maoming, Guangdong and ready for fast deployment to your site. Weighing just 1,700 kg with a 1-ton operating capacity, this nimble machine delivers exceptional performance in tight urban spaces, utility work, and confined construction zones where larger equipment simply cannot operate.

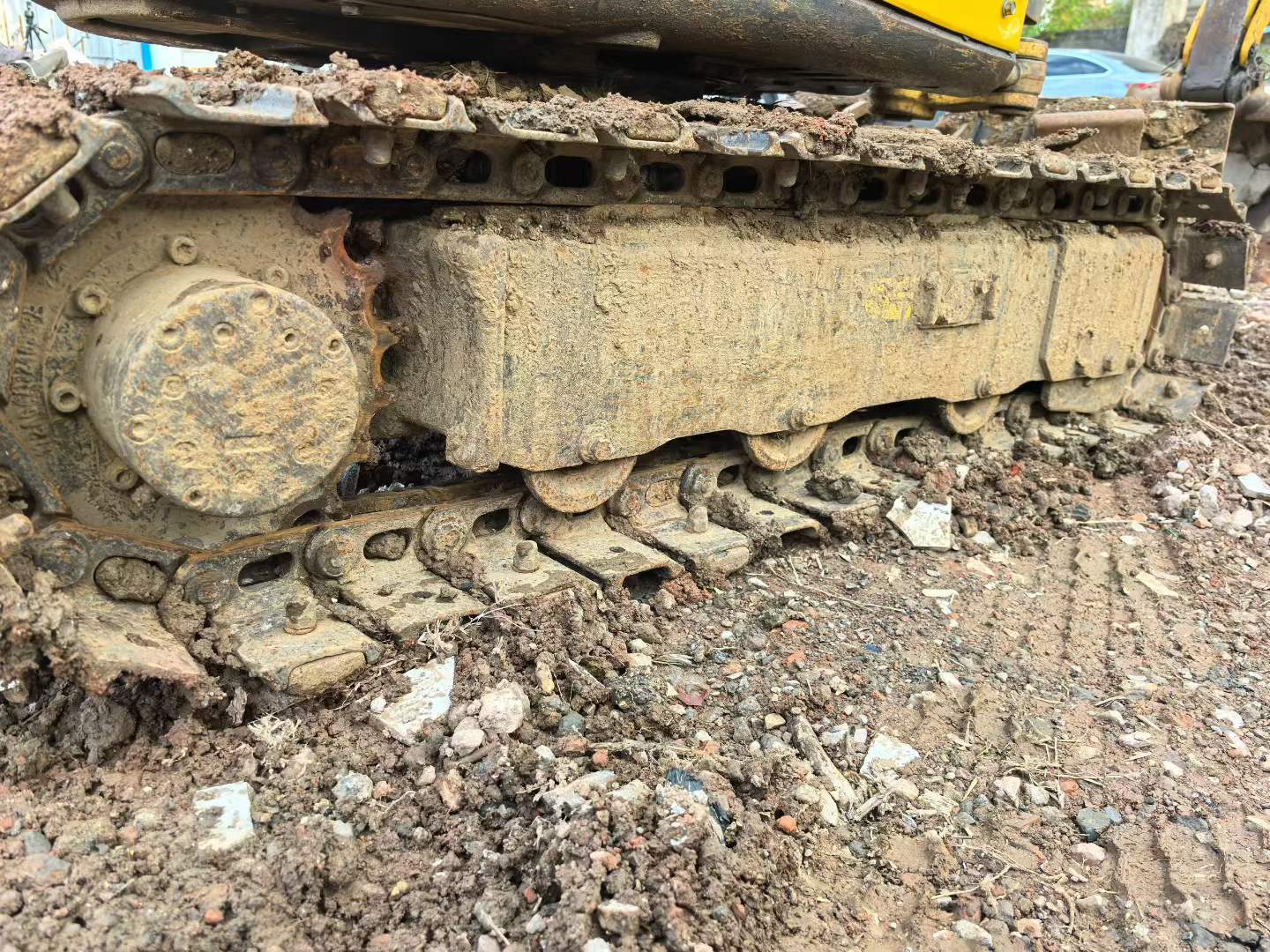

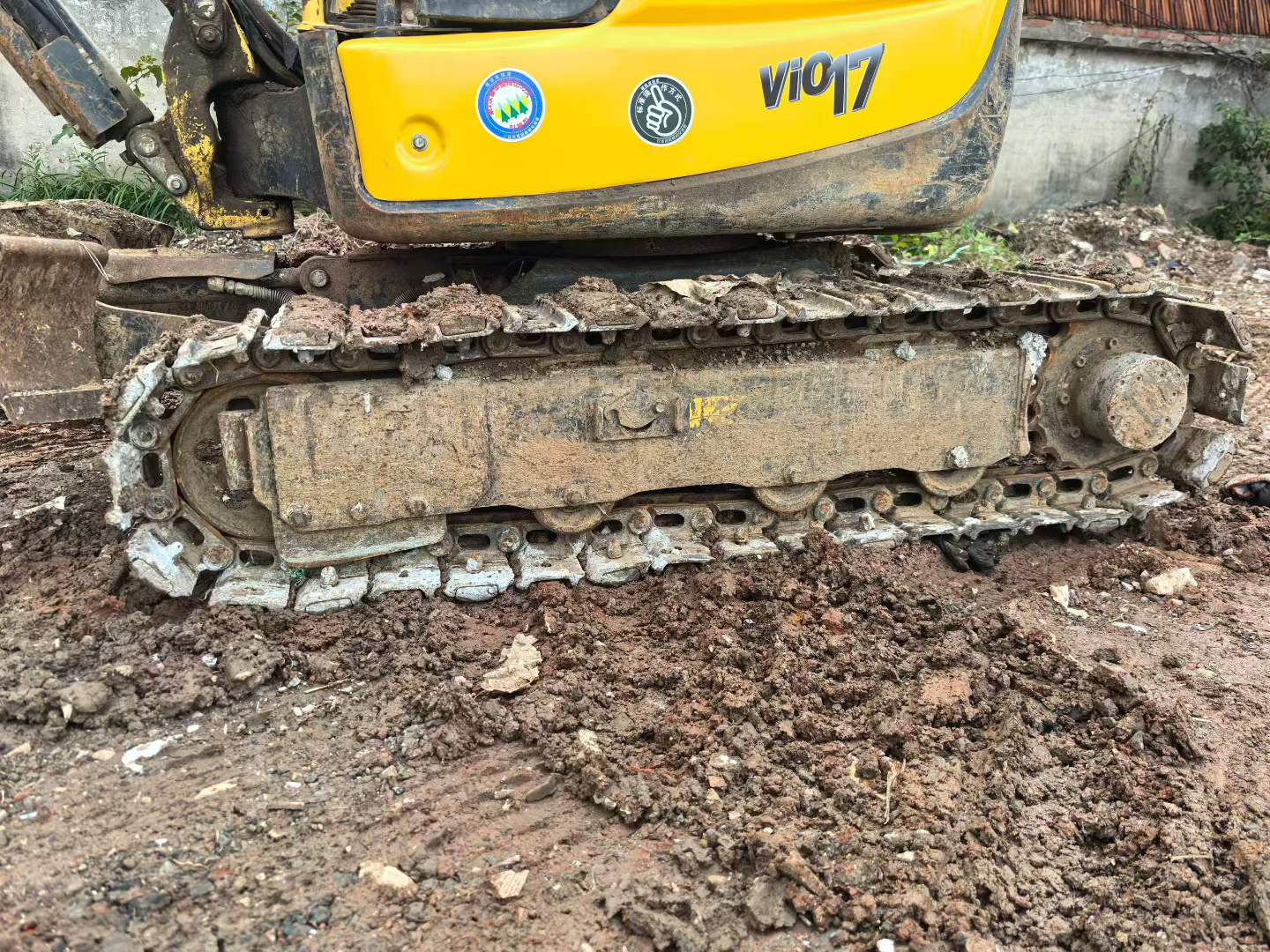

Powered by a reliable Yanmar 3TNV70-XBV water-cooled engine producing 10.1 kW at 2200 rpm, this joint-venture manufactured excavator offers proven durability with a maximum digging depth of 2,200 mm and a digging radius extending to 3,710 mm. Rubber tracks provide minimal ground pressure at just 28 kPa, protecting finished surfaces while the 950 mm retractable width allows passage through standard doorways and gates.
- Available now from Guangdong—skip factory lead times of 3-6 months
- Bucket digging force: 15.2 kN with 0.05 m³ capacity
- Dual-speed travel: 3.8 km/h high, 1.9 km/h low for precision work
- Compact transport dimensions: 3,450 mm × 1,280 mm × 2,370 mm
- 20L fuel tank for extended operation between refills
| Specifications | Value |
|---|---|
| No. | 1024116 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1700 |
| Bucket capacity (m³) | 0.05 |
| Bucket width (mm) | 450 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

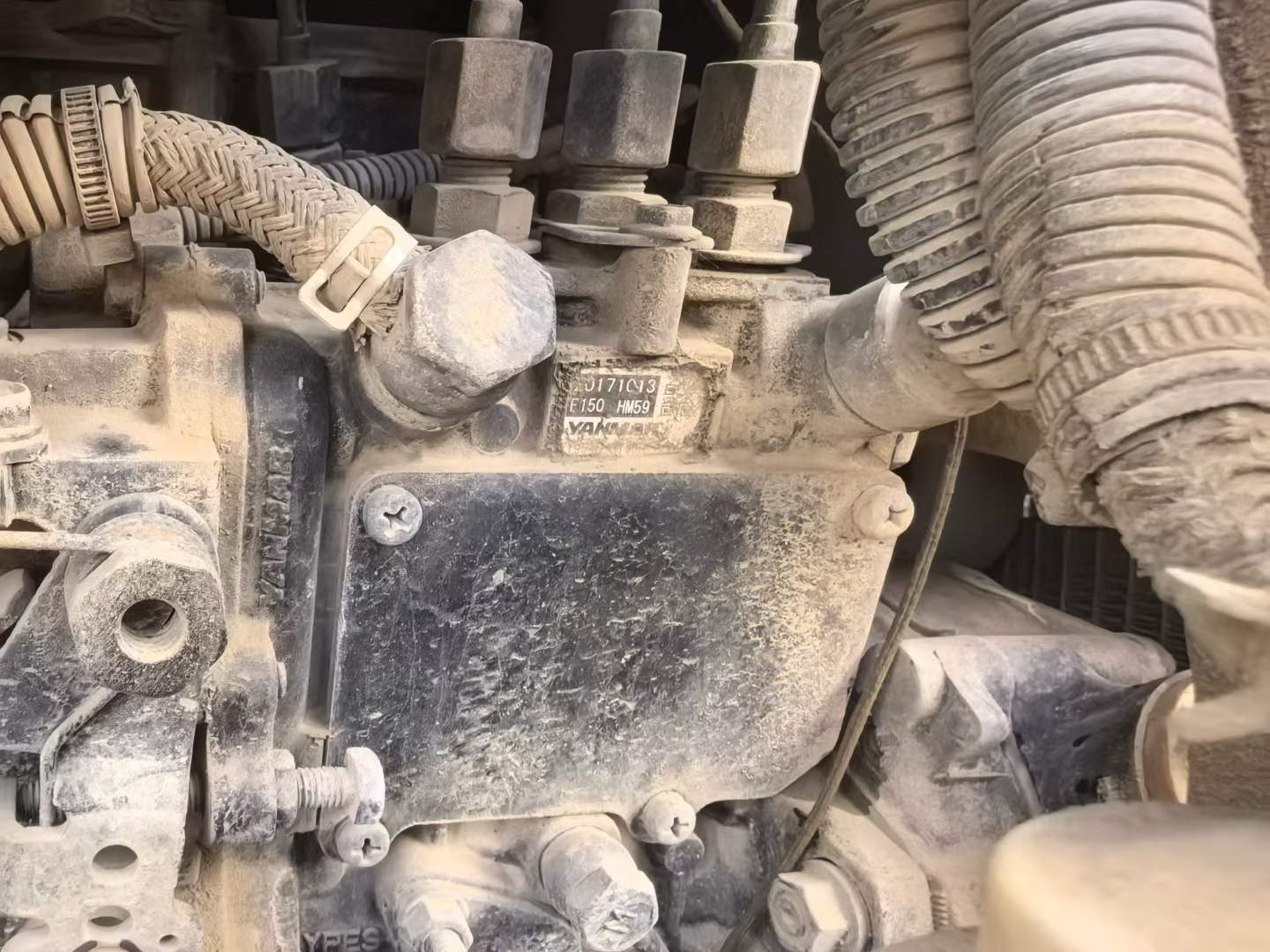

| Engine type | Yanmar 3TNV70-XBV |
| Rated power (kw/rpm) | 10.1/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Working form | Vertical water cooling; 3 cylinders; Direct injection |
| Ground specific pressure (Kpa) | Rubber track 28/ Steel 29 |
| Rotation speed (rpm) | 9.5 |
| Bucket digging force (kN) | 15.2 |
| Travel speed (km/h) | High 3.8 Low 1.9 |
| Main overflow set pressure (Mpa) | 20.6 * 2 + 16.7 * 1 |
| Maximum flow of main pump (l/min) | 17.6 * 2 + 13.2 |
| Fuel Tank (L) | 20 |
| Total transport length (mm) | 3450 |
| Total transport width (mm) | 1280 (950) |
| Total transport height (mm) | 2370 |
| Full cab height (mm) | 2370 |
| Minimum ground clearance (mm) | 175 |
| Minimum turning radius of front working device (mm) | 1520 |
| Back end turning radius (mm) | 640 |
| Total track length (mm) | 1525 |
| Track gauge (mm) | 1050 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 1280 |
| Maximum digging radius (mm) | 3710 |
| Maximum digging depth (mm) | 2200 |
| Maximum excavation height (mm) | 3690 |
| Maximum unloading height (mm) | 2630 |
| Maximum vertical digging depth (mm) | 1850 |
| Bulldozer lift or depth (mm) | 260/205 |
| Dodging plate width × height (mm) | 950/1280 x 235 |
| Boom turning Angle (left/right °) | 42/75 |
