Product Description

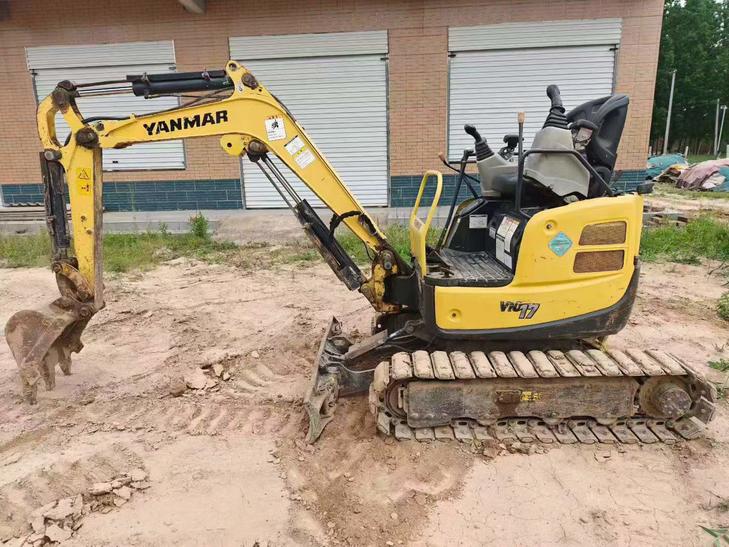

This 2021 Yanmar Vio17 mini excavator represents an excellent opportunity for contractors seeking reliable compact earthmoving equipment. Currently located in Beijing, China, this machine demonstrates outstanding overall condition with verified performance capabilities suitable for immediate deployment.
The unit maintains original factory specification with no unauthorized modifications or aftermarket alterations. All major components including the engine, hydraulic system, and undercarriage exhibit proper operation with no evidence of oil leaks or fluid loss, confirming consistent maintenance standards throughout its operational history.
Key features of the Yanmar Vio17 include:
- Compact design ideal for urban construction and confined workspace applications
- Proven Yanmar diesel engine reliability
- Original equipment condition throughout
- Well-maintained major assemblies with verified integrity
- Ready for immediate operational use
Suitable for landscaping, utility installation, and light construction projects requiring maneuverability and dependable performance.
| Specifications | Value |
|---|---|
| No. | 1099641 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1700 |
| Bucket capacity (m³) | 0.05 |
| Bucket width (mm) | 450 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 3TNV70-XBV |
| Rated power (kw/rpm) | 10.1/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Working form | Vertical water cooling; 3 cylinders; Direct injection |
| Ground specific pressure (Kpa) | Rubber track 28/ Steel 29 |
| Rotation speed (rpm) | 9.5 |
| Bucket digging force (kN) | 15.2 |
| Travel speed (km/h) | High 3.8 Low 1.9 |
| Main overflow set pressure (Mpa) | 20.6 * 2 + 16.7 * 1 |
| Maximum flow of main pump (l/min) | 17.6 * 2 + 13.2 |
| Fuel Tank (L) | 20 |
| Total transport length (mm) | 3450 |
| Total transport width (mm) | 1280 (950) |
| Total transport height (mm) | 2370 |
| Full cab height (mm) | 2370 |
| Minimum ground clearance (mm) | 175 |
| Minimum turning radius of front working device (mm) | 1520 |
| Back end turning radius (mm) | 640 |
| Total track length (mm) | 1525 |
| Track gauge (mm) | 1050 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 1280 |
| Maximum digging radius (mm) | 3710 |
| Maximum digging depth (mm) | 2200 |
| Maximum excavation height (mm) | 3690 |
| Maximum unloading height (mm) | 2630 |
| Maximum vertical digging depth (mm) | 1850 |
| Bulldozer lift or depth (mm) | 260/205 |
| Dodging plate width × height (mm) | 950/1280 x 235 |
| Boom turning Angle (left/right °) | 42/75 |
