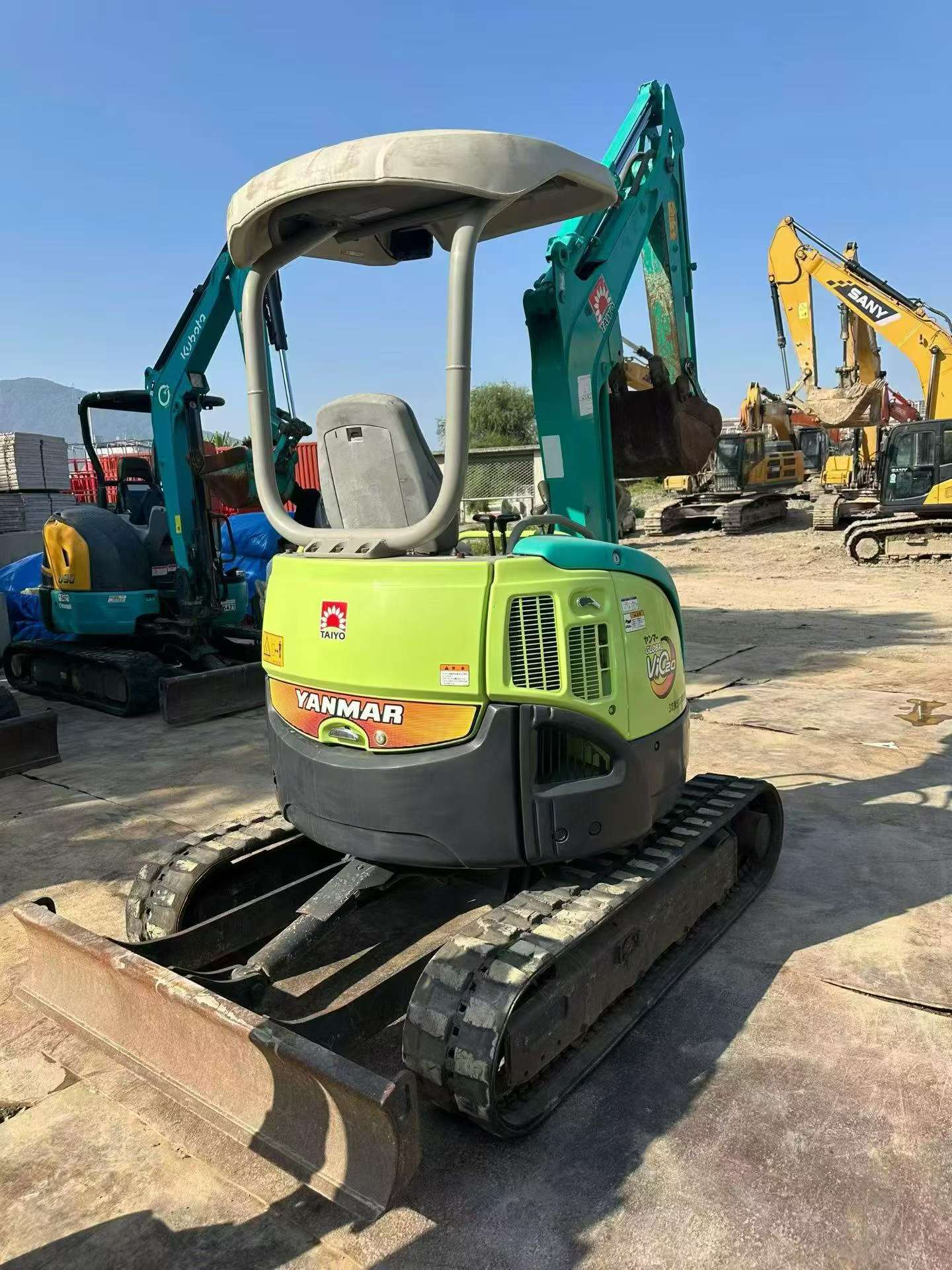

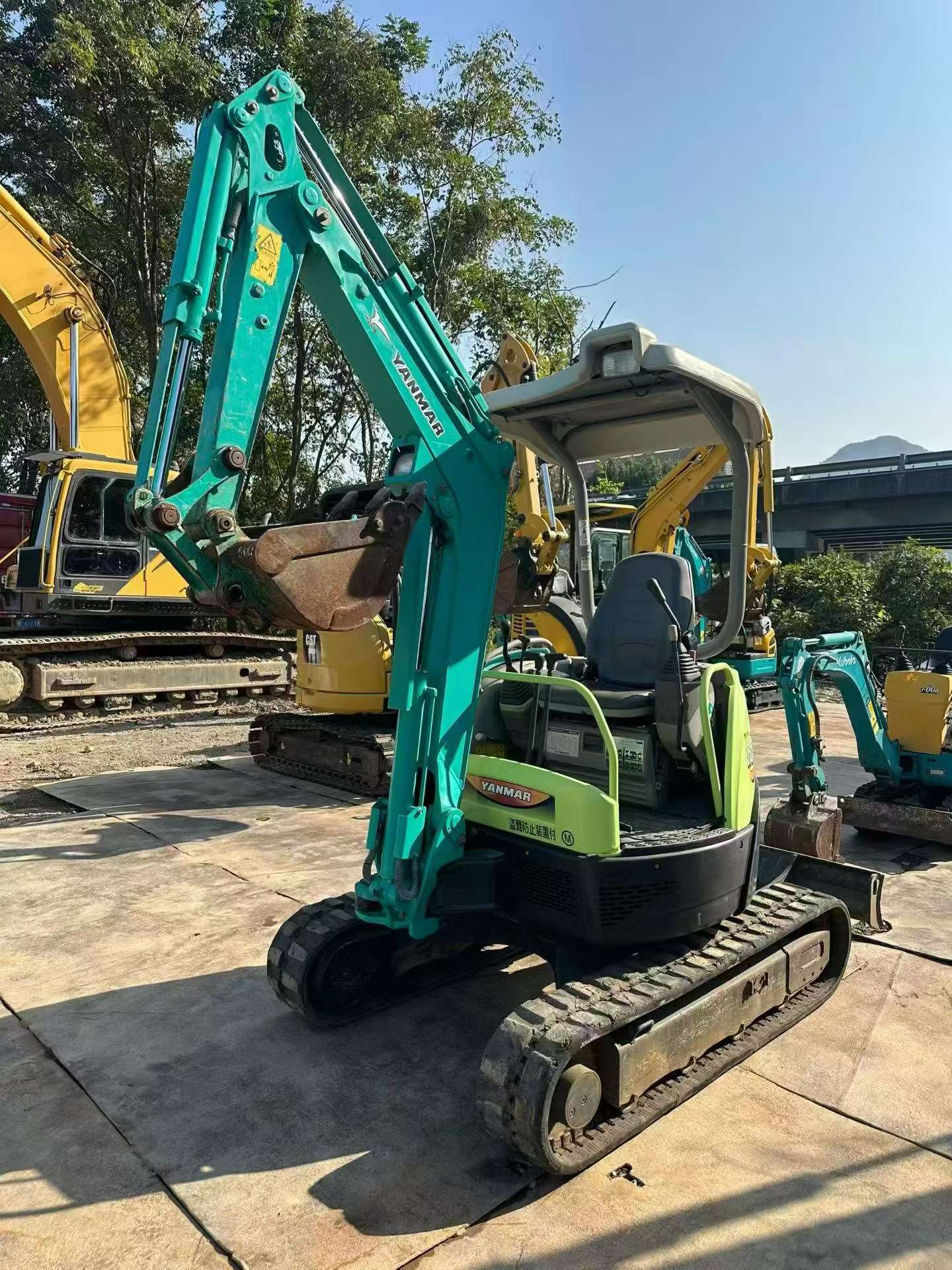

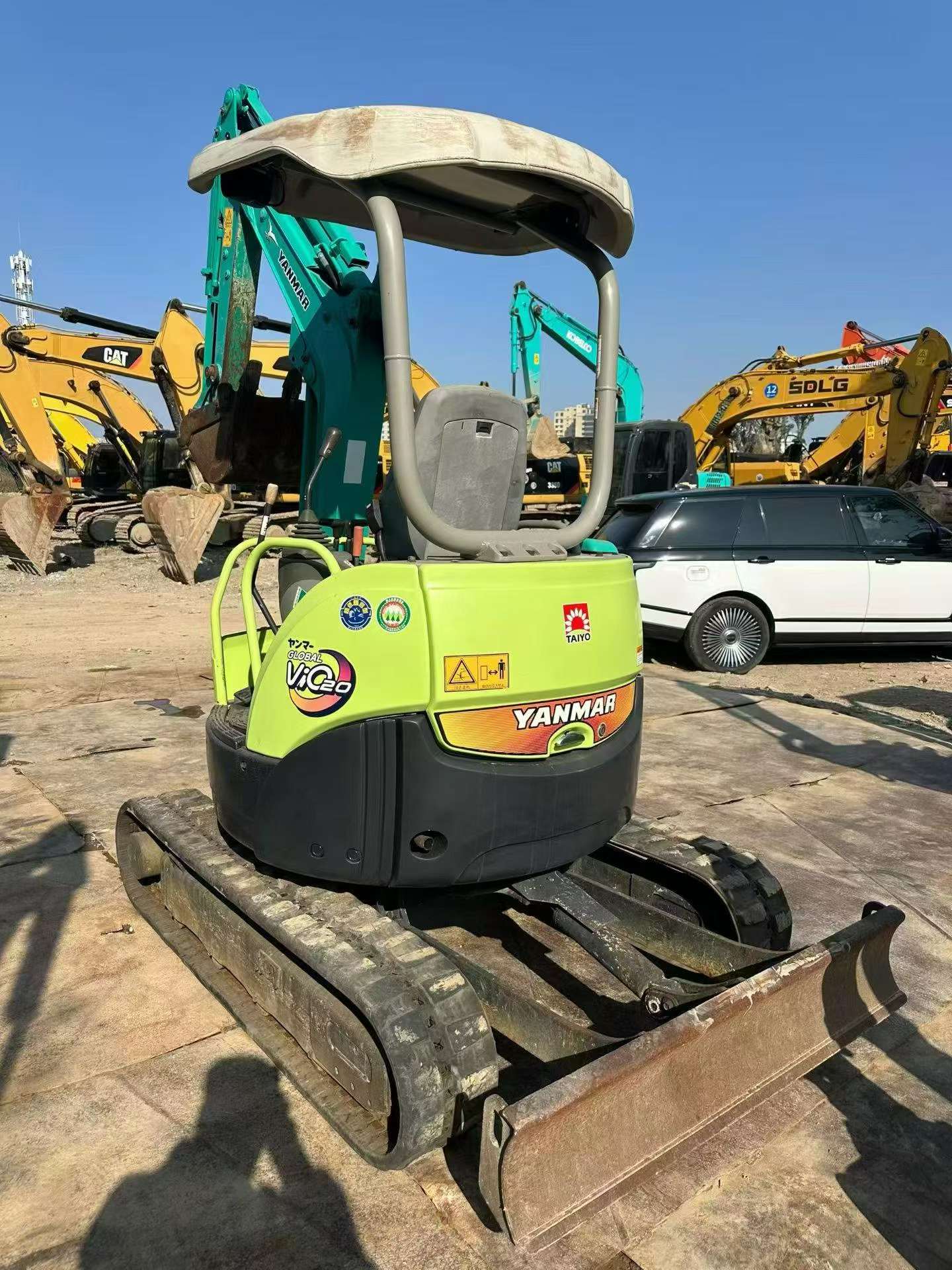

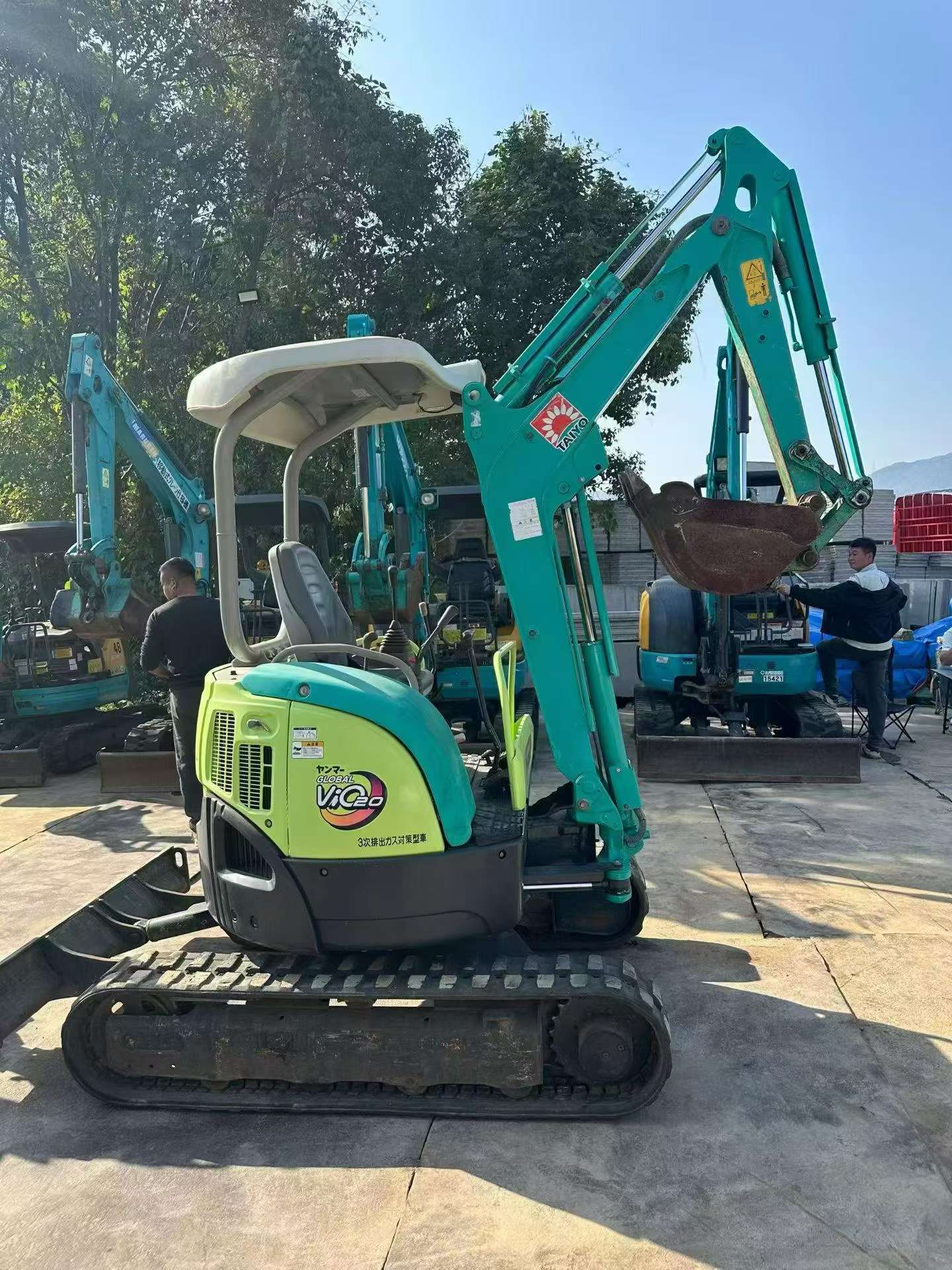

Name: Used Excavators 2025 Yanmar Vio20-3
Brand: Yanmar
SKU: USED-1038936
Availability: InStock
Rating: 4.3 (69 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

With a working weight of 2,230 kg and a bucket capacity of 0.066 m³, the Yanmar Vio20-3 from 2025 offers reliable performance for your construction needs. Equipped with a Yanmar 3TNV76-PBV engine, this excavator delivers 14.3 kW at 2,400 rpm, ensuring efficient operation. Known for their robust build and high resale value, Yanmar machines are a safe investment in the used market. Parts availability is excellent, making maintenance and repairs straightforward. The Vio20-3 features a backhoe bucket, providing a digging force of 17.7 kN, and a travel speed of up to 4.4 km/h, enhancing productivity on any job site. Located in Wenzhou, Zhejiang, this compact excavator is ready to meet your project demands.
<ul>
 <li>Engine: Yanmar 3TNV76-PBV, 14.3 kW at 2,400 rpm</li>
 <li>Bucket Capacity: 0.066 m³</li>
 <li>Working Weight: 2,230 kg</li>
 <li>Maximum Digging Depth: 2,600 mm</li>
 <li>Travel Speed: 4.4/2.2 km/h</li>
</ul>

Expand your operational capacity with this 2021 Kobelco SK130 excavator, currently available in Wenzhou, Zhejiang. Built for contractors managing multiple jobsites simultaneously, this 13-ton machine delivers reliable performance as a primary unit or strategic fleet backup. The Mitsubishi D04FR engine generates 74 kW at 2000 rpm, providing consistent power for demanding earthmoving applications.

<ul>
 <li>Working Weight: 12,800 kg with proven stability across varied terrain</li>
 <li>Digging Performance: 8,340 mm maximum reach, 5,520 mm depth, 90.1 kN bucket force</li>
 <li>Productivity Features: 0.52 m³ bucket capacity, 11.5 rpm rotation speed for efficient cycle times</li>
 <li>Transport Dimensions: 7,790 mm length × 2,490 mm width × 2,710 mm height for straightforward logistics</li>
 <li>Operational Range: 275L fuel tank supports extended shifts with minimal downtime</li>
</ul>

Manufactured through Kobelco's joint-venture/import program, this SK130 combines Japanese engineering standards with practical serviceability. Ideal for contractors requiring immediate deployment capability or scheduled rotation coverage across active project

Kobelco SK130

Built in 2016, this Hyundai R215-7C delivers proven performance backed by one of the industry's most trusted names in heavy equipment. Operating at 21 tons with a robust Cummins B5.9-C engine generating 112kW, this excavator combines reliable power with exceptional digging force—132.4kN bucket force and 95.1kN arm force—making it ideal for demanding excavation and earthmoving projects.

Hyundai's joint-venture manufacturing ensures global parts availability and consistent quality, critical factors when investing in used machinery. With a 0.92m³ bucket capacity, 9,930mm maximum digging reach, and 6,800mm digging depth, this R215-7C handles diverse jobsite requirements efficiently. Water-cooled six-cylinder turbocharged engine provides durability you can count on.

Why Choose Hyundai in the Used Market:
<ul>
<li>Extensive dealer network guarantees parts accessibility worldwide</li>
<li>Strong resale value protects your investment</li>
<li>Proven Cummins powertrain simplifies maintenance</li>
<li>Comprehensive hydraulic system (2×220 L/min pumps) ensures productivity</li>
<li>Currently located in Shandong, ready for immediate deployment</li>
</ul>

Secure, dependable, and built to last—this R215-7C

Hyundai R215-7C

Proven performance meets global serviceability with this 2013 Caterpillar M318D wheeled excavator from Hunan. Powered by the reliable CATERPILLAR C6.6 Acert engine delivering 129.8kW, this 18-ton machine combines mobility with serious digging capability—reaching 8,970mm maximum excavation radius and 5,750mm digging depth. Caterpillar's worldwide parts network ensures minimal downtime, while the brand's strong resale value protects your investment long-term.

<ul>
<li>Operating Weight: 20,100 kg with exceptional stability</li>
<li>Bucket Capacity: 0.74/0.57/1.6 m³ versatile configurations</li>
<li>Road Speed: 37 km/h for efficient site-to-site transport</li>
<li>Hydraulic System: 35 Mpa main overflow pressure for consistent performance</li>
<li>Fuel Capacity: 386.1L tank for extended operation</li>
<li>Compact Transport: 8,870mm length × 2,550mm width fits standard haul requirements</li>
</ul>

Backed by Caterpillar's reputation for durability and parts availability in every major market, this M318D represents a low-risk acquisition for contractors demanding dependable wheeled excavation equipment with predictable maintenance

Caterpillar M318D

Built for immediate deployment on demanding worksites, this 2015 Komatsu PC300-8 delivers proven excavation power across digging, grading, and demolition applications. Operating at 30 tons with traditional power systems, this joint venture/import machine combines Komatsu's engineering reliability with the versatility of a backhoe configuration. Currently positioned in Hunan, China, it stands ready to tackle foundation work, site preparation, and material handling tasks without delay.

<ul>
 <li>30-ton operating weight for stable, productive excavation</li>
 <li>Komatsu PC300-8 platform with proven hydraulic efficiency</li>
 <li>Backhoe bucket configuration for trenching and precision digging</li>
 <li>Traditional power system ensuring fuel availability and serviceability</li>
 <li>2015 model year with substantial operational life remaining</li>
 <li>Located in Hunan, ready for inspection and immediate work deployment</li>
</ul>

Purpose-built for contractors requiring dependable excavation capacity, this PC300-8 eliminates downtime with field-tested components and straightforward maintenance access. Whether you're moving earth on infrastructure projects or handling demolition contracts, this machine provides the digging

Komatsu PC300-8

Built for precision and performance, this 2020 XCMG XE135B excavator delivers reliable operation across demanding jobsites. Weighing 13,800 kg with a 0.4-0.52 m³ bucket capacity, this 13-ton machine combines ISUZU BB-4BG1TRP power (69.6 kW at 2200 rpm) with responsive hydraulic controls for consistent productivity. Operators benefit from excellent visibility and intuitive handling, while the water-cooled turbocharged engine maintains steady performance during extended shifts.

<ul>
<li>Operator-Focused Design: Enhanced cabin visibility and ergonomic controls reduce fatigue during long hours</li>
<li>Stable Performance: 42 kPa ground pressure and 2910 mm track ground length ensure balanced weight distribution on varied terrain</li>
<li>Versatile Reach: 8296 mm maximum digging radius and 5538 mm digging depth handle diverse excavation tasks</li>
<li>Proven Power: ISUZU 4-cylinder engine with dual plunger pumps (2×123 L/min flow) delivers 85 kN bucket digging force</li>
<li>Compact Mobility: 5.16 km/h travel speed and 2335 mm minimum turning radius enable efficient maneuvering in confined spaces</li>
</ul>

Currently located in Hunan, China, thi

XCMG XE135B

Engineered with precision by Kobelco's advanced joint venture manufacturing, this 2022 SK200-10 excavator delivers robust performance through a proven 118kW/2000rpm power system. Operating at 21,300kg working weight, the machine generates exceptional digging forces of 143kN (bucket) and 102kN (arm), providing reliable productivity across demanding excavation projects.

This 20-ton class excavator features a 0.8m³ backhoe bucket configuration optimized for versatile earthmoving applications. Hydraulic engineering excellence enables a maximum digging radius of 9,900mm and depth capacity reaching 6,700mm, while the 9,720mm maximum excavation height and 6,910mm unloading height ensure efficient truck loading operations.

<ul>
<li>Rated Power: 118kW at 2000rpm</li>
<li>Working Weight: 21,300kg</li>
<li>Bucket Digging Force: 143kN</li>
<li>Maximum Digging Depth: 6,700mm</li>
<li>Maximum Reach: 9,900mm</li>
<li>Current Location: Hunan Province</li>
</ul>

Built to joint venture/import quality standards, this SK200-10 represents Kobelco's commitment to hydraulic efficiency and structural durability in the medium excavator segment.

Kobelco SK200-10

Ready to tackle demanding excavation, grading, and demolition tasks, this 2016 Komatsu PC200-7 delivers proven performance with 20-ton operating capacity and 107kW of reliable power. Equipped with the Komatsu SAA6D102E-2 engine and dual variable piston pumps flowing 428 L/min combined, this machine provides the hydraulic muscle needed for continuous production work. The 0.8m³ bucket generates 149kN of digging force, while the rod delivers 145kN for breaking through compacted soil and fractured rock.

Built for versatility, this excavator offers interchangeable rod lengths (1840/2410mm) to match your jobsite requirements—whether you're trenching utilities at 5380mm depth or loading trucks at 6890mm discharge height. The 9380mm working radius covers substantial ground per setup, reducing repositioning time on large sites.

Key Specifications:
<ul>
<li>Operating weight: 20,253kg with optimal stability</li>
<li>Maximum digging reach: 9380mm</li>
<li>Travel speed: 12.4 km/h for efficient site mobility</li>
<li>Fuel capacity: 400L for extended shifts</li>
<li>Water-cooled 4-stroke diesel engine</li>
<li>Currently located in Dezhou, Shandong—available for immediate deployment</li>
</ul>

Komatsu PC200-7

Built for precision and all-day productivity, this 2022 Hitachi EX210-5 delivers the control and visibility operators demand on challenging jobsites. Powered by a proven traditional diesel engine, this 21-ton excavator combines responsive hydraulics with exceptional stability across uneven terrain. The spacious cabin offers panoramic sightlines to the backhoe bucket and work area, reducing blind spots and enhancing safety during loading, trenching, and grading operations.

<ul>
 <li>Year: 2022</li>
 <li>Model: Hitachi EX210-5</li>
 <li>Operating Weight: 21 tons</li>
 <li>Power Type: Traditional diesel</li>
 <li>Bucket Configuration: Backhoe</li>
 <li>Manufacturer: Joint venture/Import</li>
 <li>Current Location: Dezhou, Shandong, China</li>
</ul>

Engineered for smooth handling and consistent performance, this machine minimizes operator fatigue while maximizing cycle efficiency. Ideal for excavation contractors seeking reliable joint-venture quality with proven Hitachi engineering. Available for immediate inspection in Dezhou.

Hitachi EX210-5

Engineered for precision work in demanding environments, this 2016 Kobelco SK200-2 excavator delivers reliable 20-ton performance with operator-centered design. Sourced from Fujian Sanming, this joint venture/imported machine combines proven traditional power with the ergonomic advantages Kobelco built into this generation.

Operators benefit from enhanced cabin visibility that reduces blind spots during complex maneuvers, while responsive hydraulic controls provide smooth, predictable handling across varied terrain. Stability remains consistent whether loading trucks, digging foundations, or performing grade work with the backhoe bucket configuration.

<ul>
<li>20-ton operating weight for versatile jobsite applications</li>
<li>Traditional powertrain with established service network support</li>
<li>Backhoe bucket equipped for trenching and excavation tasks</li>
<li>Operator cabin designed for all-day comfort and sightline optimization</li>
<li>Joint venture/imported quality standards</li>
</ul>

Currently located in Fujian Sanming, China. Suitable for contractors requiring dependable mid-size excavation capacity with operator-friendly controls and proven mechanical reliability.

Kobelco SK200-2

Secure proven performance without the factory wait. This 2020 Sany SY35C mini excavator ships directly from 福建三明 (Fujian Sanming), ready for immediate deployment to your project site. Powered by traditional diesel architecture and built in China to Sany's compact equipment standards, this 3-ton backhoe delivers the agility and reach your confined-space operations demand.

<ul>
 <li>Year: 2020</li>
 <li>Model: Sany SY35C</li>
 <li>Operating Weight: 3 tons</li>
 <li>Power Type: Traditional diesel</li>
 <li>Attachment: Backhoe bucket included</li>
 <li>Origin: Made in China</li>
 <li>Current Location: 福建三明 (Fujian Sanming)</li>
</ul>

Available now for fast-track acquisition. Skip months of factory lead times and coordinate logistics directly from one of China's key industrial hubs. Ideal for contractors requiring compact excavation capability with minimal mobilization delay. Contact Fair Trade Machinery today to arrange inspection and secure rapid shipment to your site.

Sany SY35C

Acquire proven excavation power without the premium price tag. This 2020 Sany SY245H delivers 24-ton performance with a robust 147kW D06FRC engine, generating 750 N.m of torque to handle demanding earthmoving applications. With just three years of operation, this machine offers the reliability of near-new equipment at a fraction of replacement cost—making it a strategic acquisition for contractors seeking maximum ROI.

<ul>
 <li>Powerful 1.3-1.5 m³ bucket capacity with 175 kN digging force</li>
 <li>Impressive 10,225 mm maximum reach and 6,705 mm digging depth</li>
 <li>Water-cooled 6-cylinder engine rated at 147 kW/2100 rpm</li>
 <li>Heavy-duty 25,500 kg operating weight for superior stability</li>
 <li>Efficient 5.4 km/h travel speed with 70% grading capability</li>
 <li>Generous 475L fuel tank for extended operation cycles</li>
 <li>Currently located in Wenzhou, Zhejiang—ready for immediate deployment</li>
</ul>

Backed by Sany's engineering reputation and Chinese manufacturing quality, this SY245H represents smart capital allocation. Secure high-specification excavation capability while preserving budget for additional fleet expansion or project investment.

Sany SY245H

Built to endure the toughest jobsites, this 2019 Caterpillar 305.5 mini excavator stands as a proven workhorse in the compact equipment category. Powered by a reliable Mitsubishi M4M0 engine delivering 56 horsepower, this 5-ton machine combines joint venture quality with Caterpillar's legendary durability. Operating at a working weight of 5,480 kg, it offers exceptional maneuverability without compromising performance on demanding excavation tasks.

<ul>
<li>Bucket digging force: 38.7 kN for aggressive material penetration</li>
<li>Rod digging force: 26 kN ensuring consistent trenching power</li>
<li>Bucket capacity: 0.18 m³ optimized for precision work</li>
<li>Traditional power system for straightforward maintenance</li>
<li>Backhoe bucket configuration for versatile applications</li>
<li>Currently located in Maoming, Guangdong</li>
</ul>

Five years of operational history demonstrates this machine's robust construction and reliability. Engineered for longevity, the 305.5 continues to deliver consistent productivity across construction, landscaping, and utility projects. This is dependable equipment built to last, ready for its next project.

Caterpillar 305.5

Backed by Caterpillar's global reputation, this 2016 374D excavator delivers proven reliability for heavy-duty excavation and mining operations. Operating at 70 tons with traditional power configuration, this joint venture/import machine represents a strategic investment in equipment that maintains value and performance over decades. Currently located in Hunan, China, this backhoe-equipped model offers the durability contractors depend on when project timelines and budgets are non-negotiable.

<ul>
<li>Year: 2016</li>
<li>Operating Weight: 70 tons</li>
<li>Power Type: Traditional power</li>
<li>Configuration: Backhoe</li>
<li>Origin: Joint venture/Import</li>
<li>Location: Hunan, China</li>
</ul>

Caterpillar parts remain available worldwide, ensuring minimal downtime and straightforward maintenance schedules. Resale values for Cat equipment consistently outperform competitors, protecting your capital investment. This 374D combines proven hydraulic systems with the manufacturer's extensive dealer network—critical advantages when operating in demanding environments where equipment failure isn't an option.

Caterpillar 374D

Available now in Chongqing, this 2021 Hyundai R215-7 excavator eliminates factory wait times and delivers immediate productivity to your operation. Powered by a robust Hyundai D6BT-C six-cylinder turbocharged engine producing 110kW at 1950rpm, this 21-ton workhorse combines proven reliability with exceptional digging performance. Skip months of lead time—this machine is ready for fast deployment directly to your site.

<ul>
<li>Operating weight: 20,700 kg with 0.92 m³ bucket capacity</li>
<li>Maximum digging reach: 9,930 mm; digging depth: 6,800 mm</li>
<li>Dual variable axial piston pumps (2×220 L/min) for responsive hydraulics</li>
<li>Bucket digging force: 123.3 kN; arm digging force: 95.1 kN</li>
<li>Water-cooled 7L displacement engine built for continuous duty</li>
<li>Current location: Chongqing—ready for immediate inspection and delivery</li>
</ul>

Secure this joint-venture quality excavator today and put it to work while competitors wait for new builds. Contact Fair Trade Machinery for rapid logistics arrangements throughout China and international shipping options.

Hyundai R215-7

Engineered with precision, this 2016 Kobelco SK75-8 delivers robust performance through its ISUZU 4-cylinder turbocharged engine, generating 42kW at 2200 rpm with direct injection and intercooling technology. The advanced hydraulic system features a variable displacement axial piston pump supplying 132 L/min, paired with a 107-liter capacity that ensures consistent power delivery across all functions. Operating at 6,850 kg working weight, this 7-ton compact excavator combines agility with serious capability.

<ul>
<li>Digging Performance: 52.7 kN bucket force, 39.4 kN arm force, 6,460 mm maximum reach</li>
<li>Hydraulic Efficiency: 29.4 Mpa travel circuit, 24.5 Mpa swing circuit for responsive operation</li>
<li>Versatile Dimensions: 2,320 mm width, 375 mm ground clearance, 1,760 mm front turning radius</li>
<li>Engine Reliability: Water-cooled, 2.179L displacement, 211 N·m peak torque at 1600 rpm</li>
<li>Work Range: 4,170 mm dig depth, 7,400 mm max height, 70% grading capability</li>
</ul>

Currently located in Hangzhou, Zhejiang, this joint-venture manufactured machine represents proven SK75-8 engineering quality with comprehensive technic

Kobelco SK75-8

Expand your operational capacity with this 2015 Hitachi EX60-5, a proven 6-ton mini excavator engineered for reliable performance in tight-access projects. Built in Japan with Hitachi's renowned quality standards, this compact machine delivers 40.3kW of power through its Nissan A-BD30 water-cooled engine, making it an ideal fleet addition for contractors managing multiple job sites simultaneously.

Designed for versatility, this unit offers a maximum digging depth of 4,150mm and excavation radius of 6,160mm while maintaining a compact transport width of just 2,200mm. The backhoe configuration and 158.4 L/min hydraulic flow ensure consistent productivity across residential, utility, and landscaping applications. With a ground clearance of 760mm at the counterweight and 29.4 kPa ground pressure, it navigates challenging terrain without compromising stability.

<ul>
<li>Working weight: 6,300kg with balanced load distribution</li>
<li>Boom/arm: 3,720mm/1,620mm for optimal reach-to-size ratio</li>
<li>Travel speed: 4.8 km/h for efficient site repositioning</li>
<li>Fuel capacity: 35.7L for extended runtime between refills</li>
<li>Currently located in Hangzhou, Zhejiang—ready for immediate deployment</li>
</ul>

Specifications	Value
No.	1038936
Tonnage (tons)	2
Working weight (kg)	2230
Bucket capacity (m³)	0.066
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe

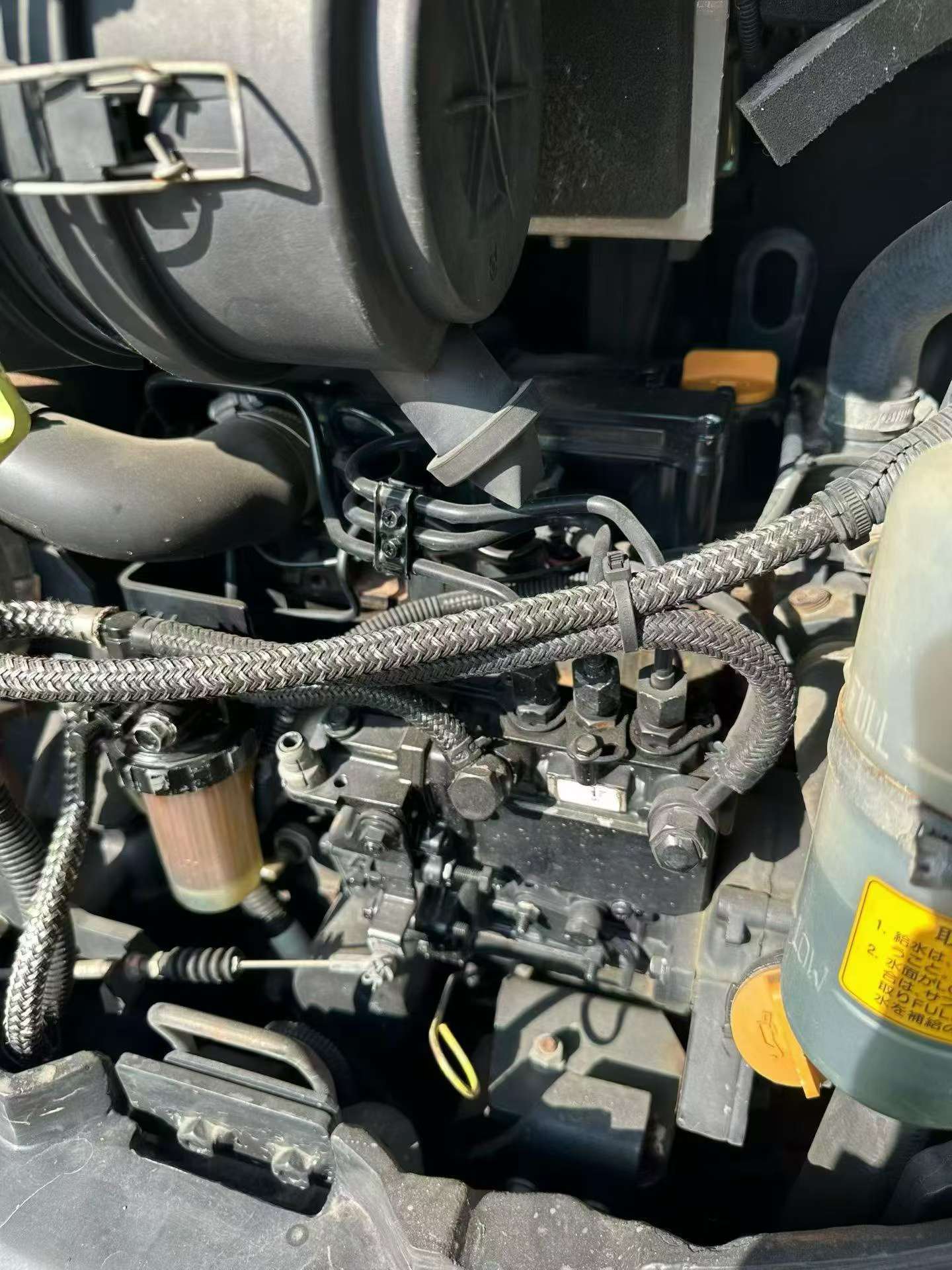

Engine type	Yanmar 3TNV76-PBV
Rated power (kw/rpm)	14.3 /2400
Number of cylinders (PCS)	3
Displacement (L)	1
Ground specific pressure (Kpa)	27.7
Rotation speed (rpm)	9.5
Bucket digging force (kN)	17.7
Rod digging force (kN)	13.1
Travel speed (km/h)	4.4/2.2
Main overflow set pressure (Mpa)	20.6
Maximum flow of main pump (l/min)	76
Fuel Tank (L)	28.5
Total transport length (mm)	3915
Total transport width (mm)	1380
Total transport height (mm)	2400
Minimum ground clearance (mm)	280
Back end turning radius (mm)	690
Track plate width (mm)	250
Track ground length (mm)	1890
Maximum digging depth (mm)	2600
Maximum excavation height (mm)	4000
Maximum unloading height (mm)	2580
Maximum vertical digging depth (mm)	1900
Dodging plate width × height (mm)	1380 x 295
Maximum excavation radius of stop surface (mm)	4160

2025 Yanmar Vio20-3
