Product Description
With a working weight of 7,775 kg and an 8-ton capacity, this 2016 Yanmar Vio80 excavator is available now in 四川泸州. Skip the factory lead times and deploy this robust machine to your site swiftly. Equipped with a Yanmar 4TNV98-XBVB engine, it delivers 43.4 kW at 2000 rpm, ensuring reliable performance. The water-cooled, four-stroke diesel engine provides efficient power, while its 3.318 L displacement ensures durability and longevity. This excavator features a backhoe bucket with a 0.3 m³ capacity, ideal for various construction tasks. Its 30° climbing ability, 4.3/2.4 km/h travel speed, and 24.5 Mpa main overflow set pressure make it a versatile and powerful addition to any fleet. Available now, this Yanmar Vio80 is ready for immediate deployment.
- Working weight: 7,775 kg
- Bucket capacity: 0.3 m³

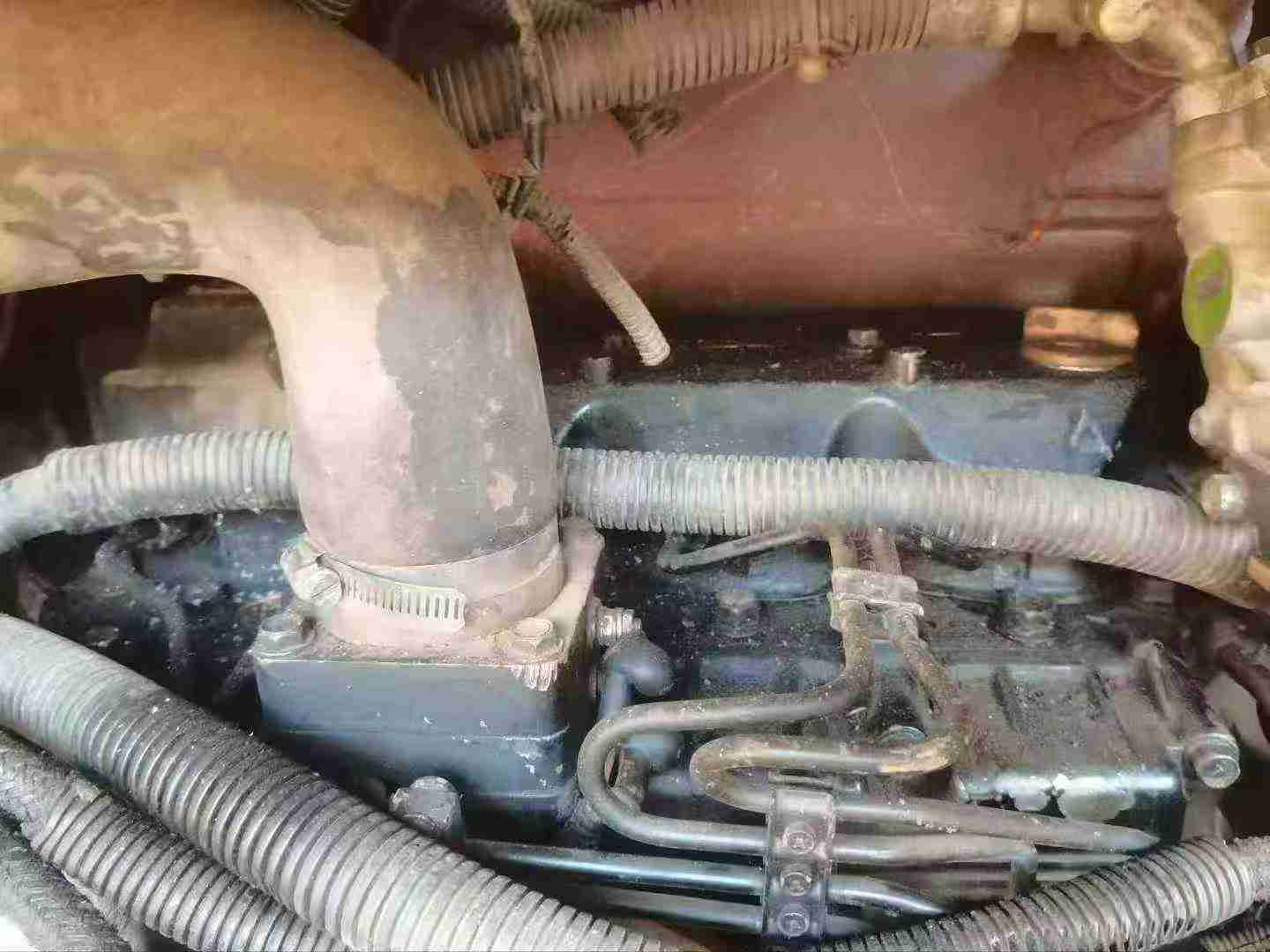

- Engine: Yanmar 4TNV98-XBVB, 43.4 kW at 2000 rpm
- Travel speed: 4.3/2.4 km/h
- Location: 四川泸州, available for fast deployment
| Specifications | Value |
|---|---|
| No. | 1002319 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7775 |
| Bucket capacity (m³) | 0.3 |
| Country of origin | Fukuoka, Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanmar 4TNV98-XBVB |
| Rated power (kw/rpm) | 43.4/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Four-stroke water-cooled diesel engine |
| Ground specific pressure (Kpa) | 33.9 |
| Rotation speed (rpm) | 9.4 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 54.8 |
| Rod digging force (kN) | 38.2 |
| Travel speed (km/h) | 4.3/2.4 |
| Main overflow set pressure (Mpa) | 24.5 |
| Maximum flow of main pump (l/min) | 70.4+60.4+13.0 |
| Fuel Tank (L) | 100 |
| Total transport length (mm) | 6290 |
| Total transport width (mm) | 2270 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum ground clearance (mm) | 380 |
| Minimum turning radius of front working device (mm) | 2120 |
| Back end turning radius (mm) | 1130 |
| Total track length (mm) | 2890 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2270 |
| Maximum digging depth (mm) | 4400 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 4920 |
| Maximum vertical digging depth (mm) | 3500 |
| Bulldozer lift or depth (mm) | 460 |
| Dodging plate width × height (mm) | 2260 x 450 |
| Maximum excavation radius of stop surface (mm) | 6740 |
| Boom turning Angle (left/right °) | 68/68 |
