Product Description

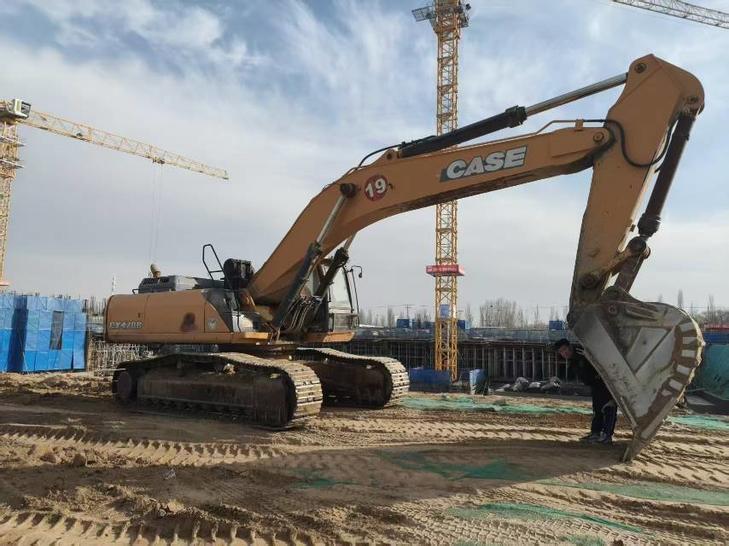

This 2013 Case 470 excavator is currently in active operation in Ningxia, China. As a reliable mid-sized machine from Case Construction Equipment, this model offers proven performance for contractors and operators seeking dependable excavation capacity. The unit has been maintained in working condition and continues to perform daily tasks on site.
Key features include:
- Manufacturing year: 2013
- Brand: Case Construction Equipment
- Model: 470 Excavator
- Current status: Operational and in use
- Location: Ningxia Province, China
This excavator represents a practical choice for businesses requiring immediate deployment capability. The machine's active working status demonstrates its continued serviceability. Suitable for earthmoving, trenching, and general construction applications where mid-range excavation power is required.
| Specifications | Value |
|---|---|
| No. | 1169511 |
| Tonnage (tons) | 47 |
| Working weight (kg) | 46800 |
| Bucket capacity (m³) | 1.6-2.6 |
| Boom length (mm) | 6980 |
| Rod length (mm) | 2530 |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-6UZ1XYSS(Tie3) |
| Rated power (kw/rpm) | 270/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 120 x 145 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 9.84 |
| Working form | Four-stroke, direct injection, full electronic control, turbocharged, with intercooling, no cooling fan |
| Ground specific pressure (Kpa) | 80 |
| Rotation speed (rpm) | 9 |
| Bucket digging force (kN) | 250 (Standard mode) /270 (Plus mode) |
| Rod digging force (kN) | 260 (Standard mode) /285 (Extra mode) |
| Travel speed (km/h) | 3.1/5.3 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 360 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29.4 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-165 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-200 x 1820 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-170 x 1550 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 230 |
| Engine Oil changes (L) | 36 |
| Coolant (L) | 38 |
| Hydraulic System (L) | 460 |
| Total transport length (mm) | 12060 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3640 |
| Full cab height (mm) | 3290 |
| Counterweight ground clearance (mm) | 1330 |
| Minimum ground clearance (mm) | 540 |
| Minimum turning radius of front working device (mm) | 4990 |
| Back end turning radius (mm) | 3680 |
| Total track length (mm) | 5450 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Track ground length (mm) | 4400 |
| Maximum digging radius (mm) | 11230 |
| Maximum digging depth (mm) | 6870 |
| Maximum excavation height (mm) | 10820 |
| Maximum unloading height (mm) | 7420 |
| Maximum vertical digging depth (mm) | 5670 |
| Maximum excavation radius of stop surface (mm) | 10990 |
| Maximum effective digging depth (mm) | 6690 |
