2014 Case CX210B

1/4

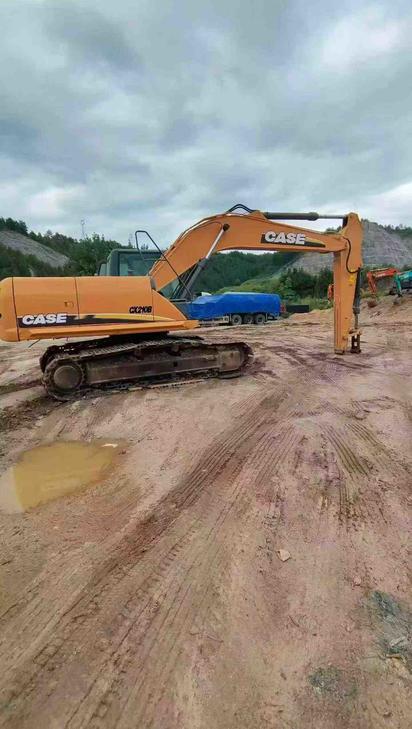

Buy Case CX210B Used Excavator / 1
Buy Case CX210B Used Excavator / 2
Buy Case CX210B Used Excavator / 3
Buy Case CX210B Used Excavator / 4

Product Description

Discover the reliability and performance of the 2014 Case CX210B excavator, now available for immediate purchase. This robust machine, located in Sichuan, China, is offered at a competitive price of 99,000 RMB. Ideal for construction, excavation, and demolition tasks, the CX210B is known for its durability and efficiency on the job site.

  • Year: 2014
  • Brand: Case
  • Model: CX210B
  • Location: Sichuan, China
  • Price: 99,000 RMB
SpecificationsValue
No.1073011
Tonnage (tons)21
Working weight (kg)21050
Bucket capacity (m³)0.5-1.1
Boom length (mm)5700
Rod length (mm)2950
Country of originShanghai
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu AI-4HK1X (Tier 3)
Rated power (kw/rpm)117.3/1800
Cooling modewater-cooling
Cylinder diameter × stroke (mm)115 x 125
Number of cylinders (PCS)4
Displacement (L)5.193
Working formFour-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling
Ground specific pressure (Kpa)43
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)145 (Standard mode) /156 (Extra mode)
Rod digging force (kN)105 (Standard mode) /112 (Extra mode)
Travel speed (km/h)3.4/5.6
Rotary hydraulic motor typeQuantitative axial piston motor
Type of walking hydraulic motorVariable axial piston motor
Maximum flow of main pump (l/min)211 x 2
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29.4
Control Hydraulic Circuit (Mpa)3.9
Main pump typeVariable axial piston pump ×2 with adjustment system
Working Hydraulic Circuit (Mpa)36.8
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1010
Bucket rod cylinders - Number × diameter × stroke (mm)1-140 x 1460
Boom cylinders - Number × diameter × stroke (mm)2-120 x 1255
Fuel Tank (L)410
Hydraulic Tank (L)147
Engine Oil changes (L)23.1
Coolant (L)26
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Full cab height (mm)2940
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2720
Total track length (mm)4180
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6650
Maximum excavation height (mm)9610
Maximum unloading height (mm)6810
Maximum vertical digging depth (mm)5960
Maximum excavation radius of stop surface (mm)9730
Maximum effective digging depth (mm)6470
see more

Overview

No.1073011

Brand Name:

Case

Model Number:

CX210B

Year:

2014

Location:

Sichuan China

Pub Date
