Product Description
Built for production digging and heavy-duty excavation, this 2015 Case CX360B delivers 36 tons of working weight and 207.3 kW of Isuzu turbocharged power to tackle demanding earthmoving projects. Currently located in Fuzhou, Fujian, this machine combines a 10,670 mm maximum digging radius with up to 6,730 mm digging depth—perfect for foundation work, trenching, and large-scale grading operations.
Equipped with dual variable axial piston pumps providing 600 L/min total flow, the CX360B generates exceptional bucket digging force of 252 kN in Extra mode. The 1.4-2.1 m³ bucket capacity moves serious material volumes while maintaining precise control through full electronic fuel management and water-cooled efficiency.
- 36,100 kg operating weight with 67 kPa ground pressure for stability
- 6,450 mm boom and 2,630 mm stick for versatile reach
- 580L fuel capacity for extended runtime
- 9.8 rpm swing speed with quantitative axial piston motor
- Transport dimensions: 11,130 × 3,200 × 3,500 mm
Site-ready for demolition, excavation, or material handling. This CX360B is prepared to deliver immediate productivity on your next project.
| Specifications | Value |
|---|---|
| No. | 1023698 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36100 |
| Bucket capacity (m³) | 1.4-2.1 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 2630 |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

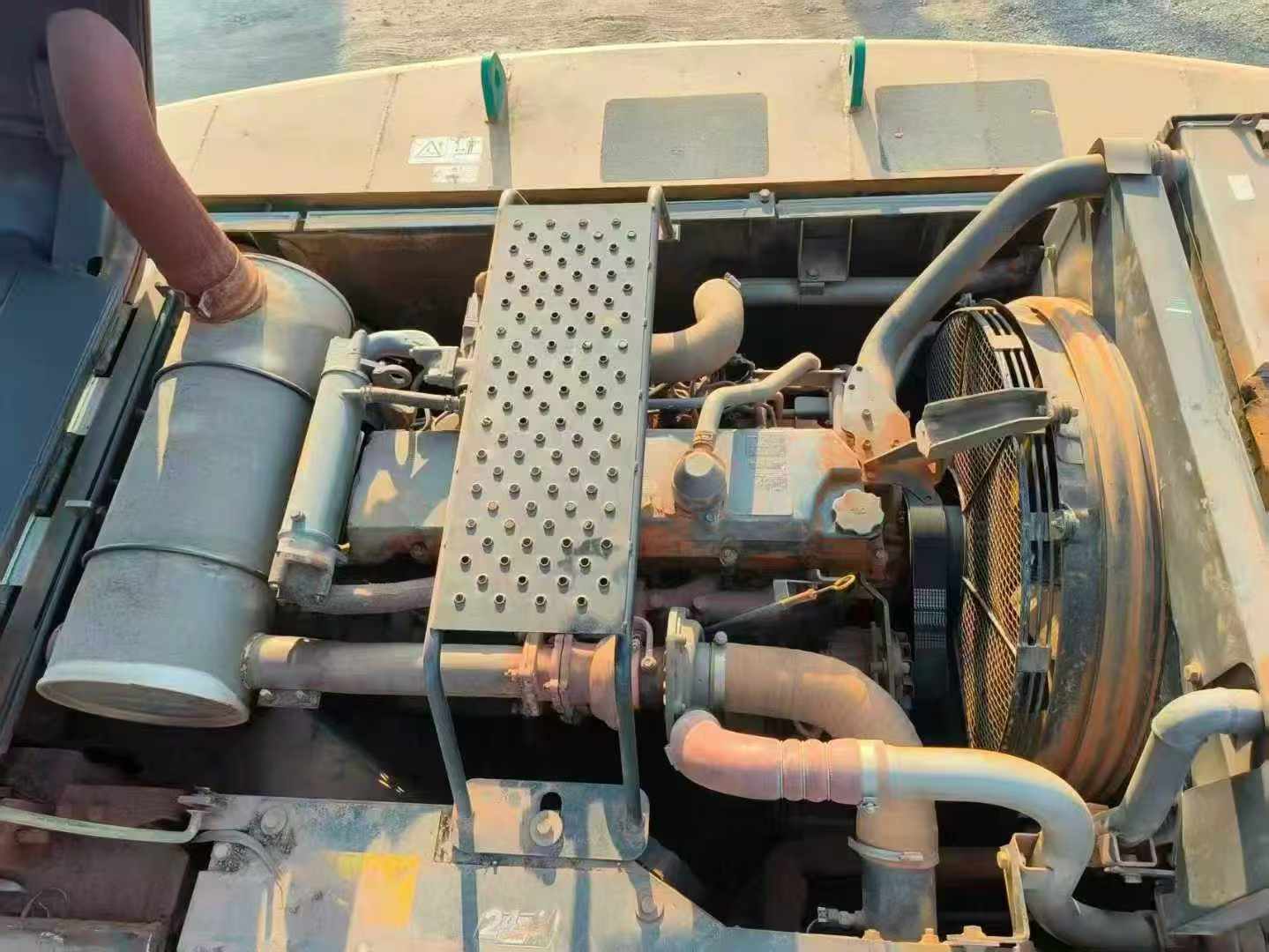

| Engine type | Isuzu AH-6HK1XYSS(Tie3) |
| Rated power (kw/rpm) | 207.3/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Four-stroke, direct injection, full electronic control, turbocharged, with intercooling |
| Ground specific pressure (Kpa) | 67 |
| Rotation speed (rpm) | 9.8 |
| Bucket digging force (kN) | 232 (Standard mode) /252 (Extra mode) |
| Rod digging force (kN) | 199 (Standard mode) /215 (Plus mode) |
| Travel speed (km/h) | 3.5/5.5 |

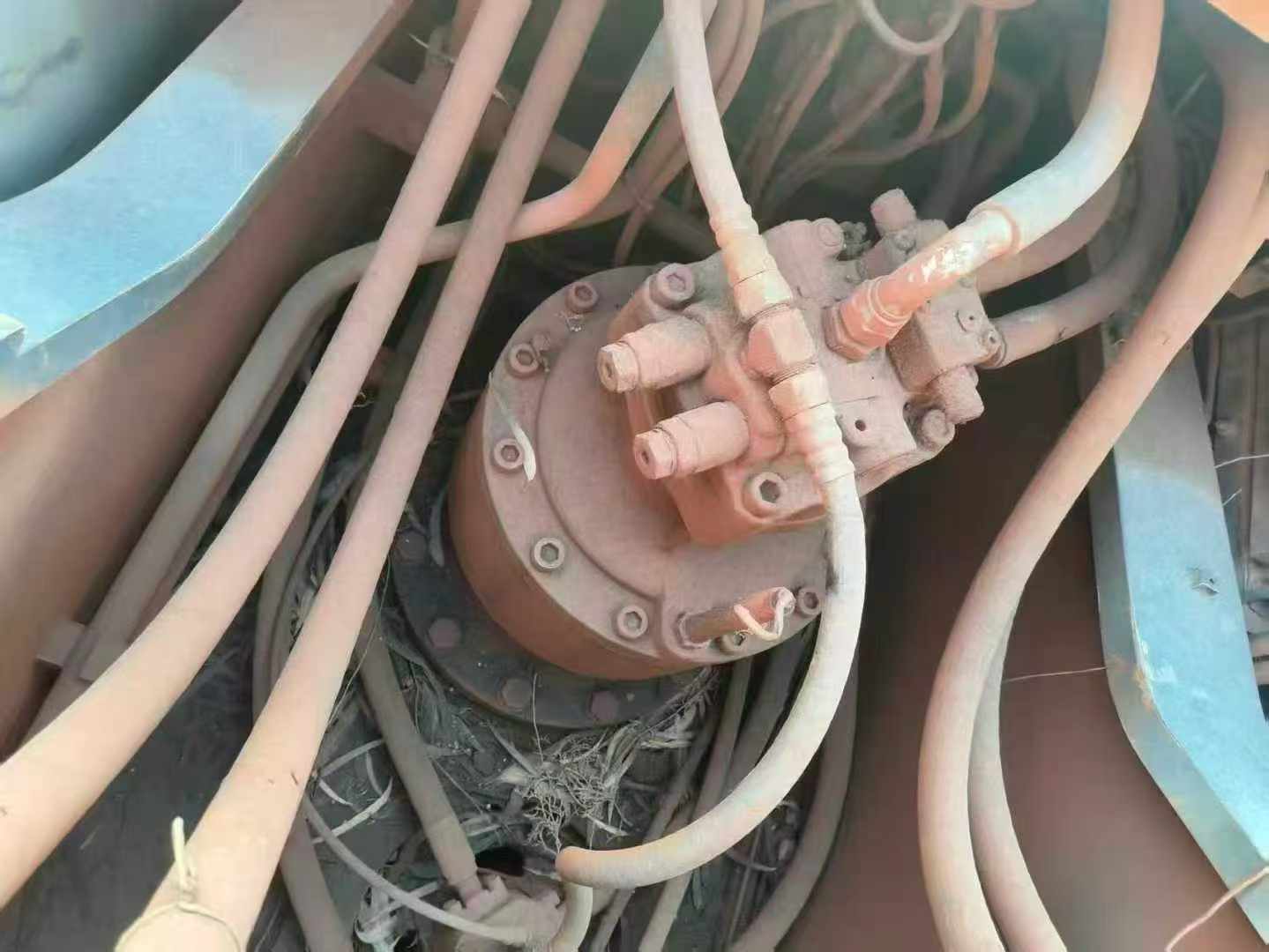

| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 300 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30.4 |
| Control Hydraulic Circuit (Mpa) | 3.9 |

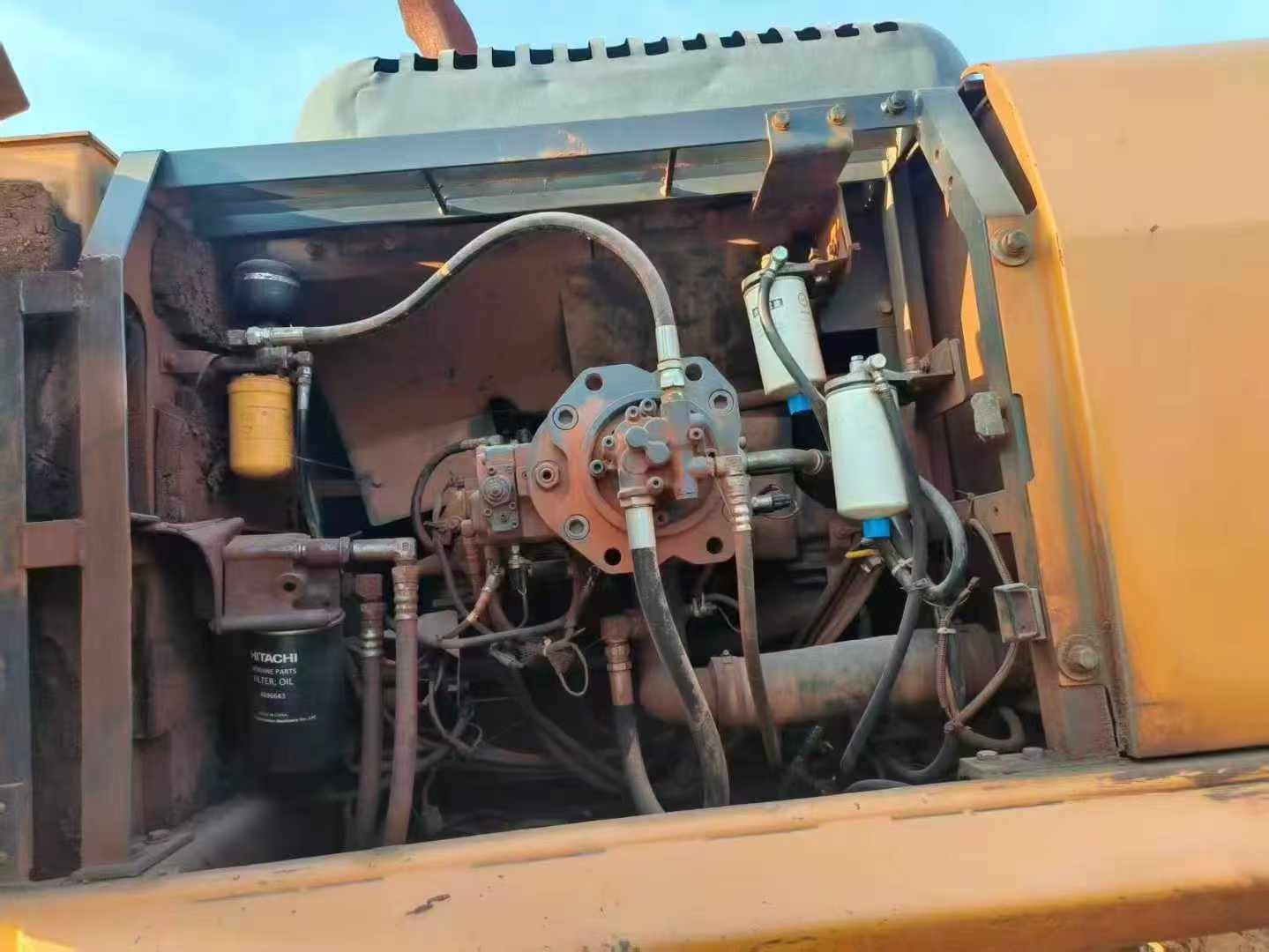

| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-150 x 1210 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-170 x 1748 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-145 x 1495 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11130 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3500 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4980 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 4040 |
| Maximum digging radius (mm) | 10670 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 10320 |
| Maximum unloading height (mm) | 7140 |
| Maximum vertical digging depth (mm) | 5970 |
| Maximum excavation radius of stop surface (mm) | 10470 |
| Maximum effective digging depth (mm) | 6550 |
