Product Description

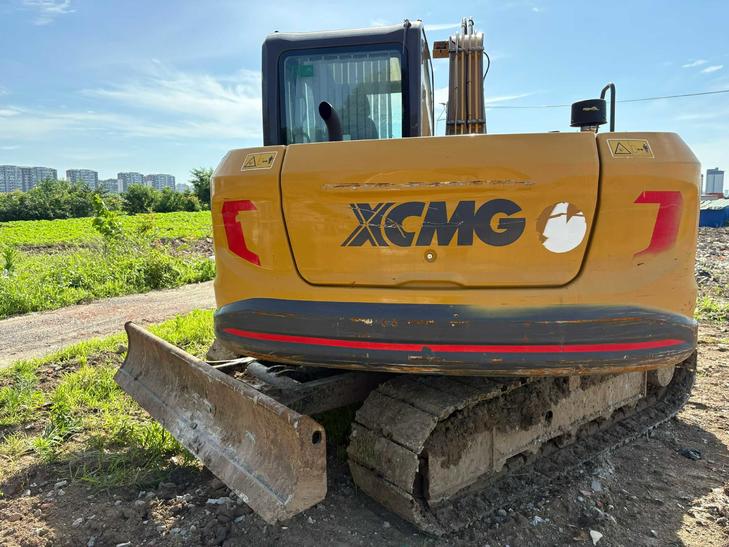

Built for precision and control, this 2025 XCMG XE75C mini excavator delivers exceptional operator experience across demanding job sites. With a compact 7,450 kg working weight and intelligent design, operators benefit from superior cabin visibility that enhances safety during complex maneuvers in confined spaces.
Powered by a robust V2607 engine producing 43 kW at 2,000 rpm, this 7-ton machine combines responsive hydraulics with stable ground pressure of just 33.5 kPa. The ergonomic cabin design minimizes operator fatigue during extended shifts, while smooth rotation at 10 rpm enables confident positioning around obstacles.
- Maximum digging depth: 4,020 mm for versatile trenching applications
- Bucket digging force: 57 kN with 0.30 m³ capacity
- Maximum digging radius: 6,260 mm extends work envelope
- Dual travel speeds: 5.4/2.9 km/h for precise positioning
- Generous fuel capacity: 130L supports full-day operations
Currently located in Fuyang, Anhui, this Chinese-manufactured excavator represents proven XCMG engineering with operator-centric features that reduce learning curves and maximize productivity from day one.
| Specifications | Value |
|---|---|
| No. | 1032070 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
