Product Description

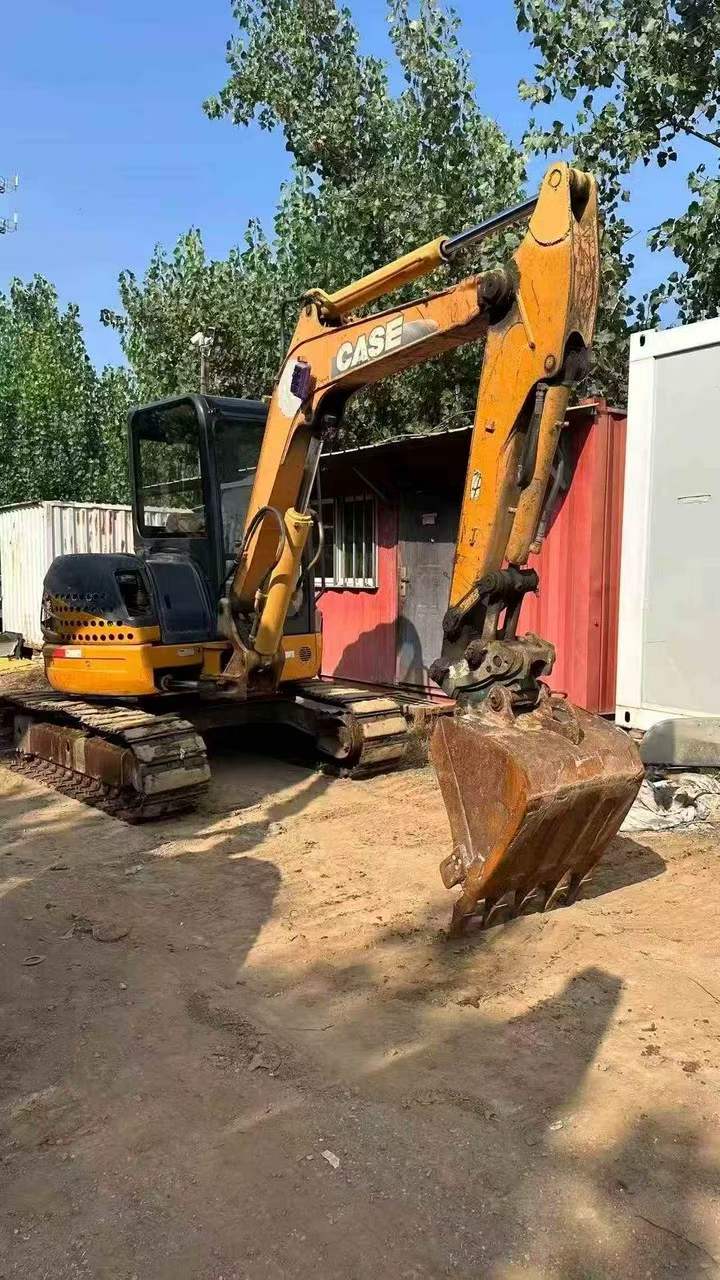

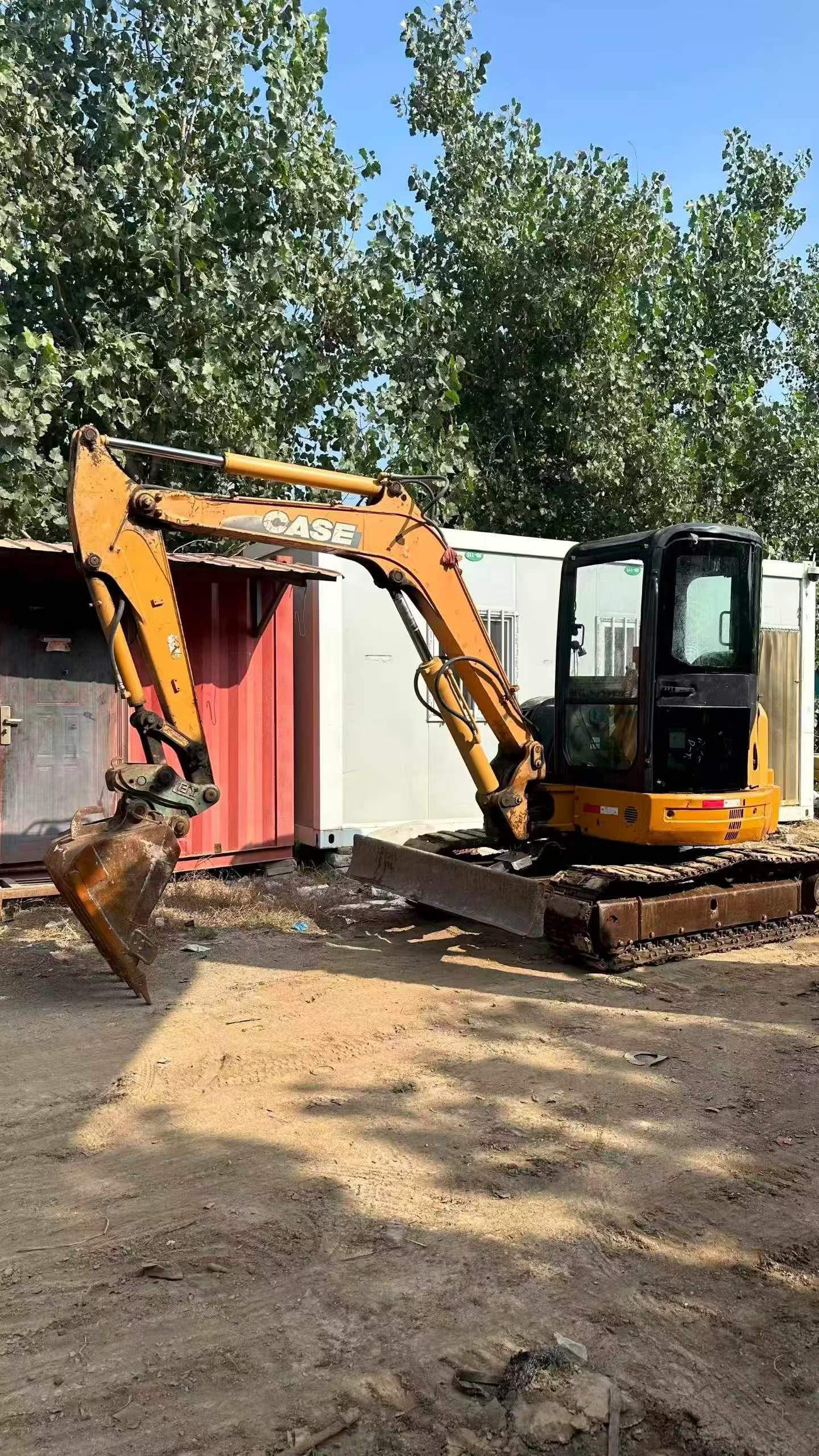

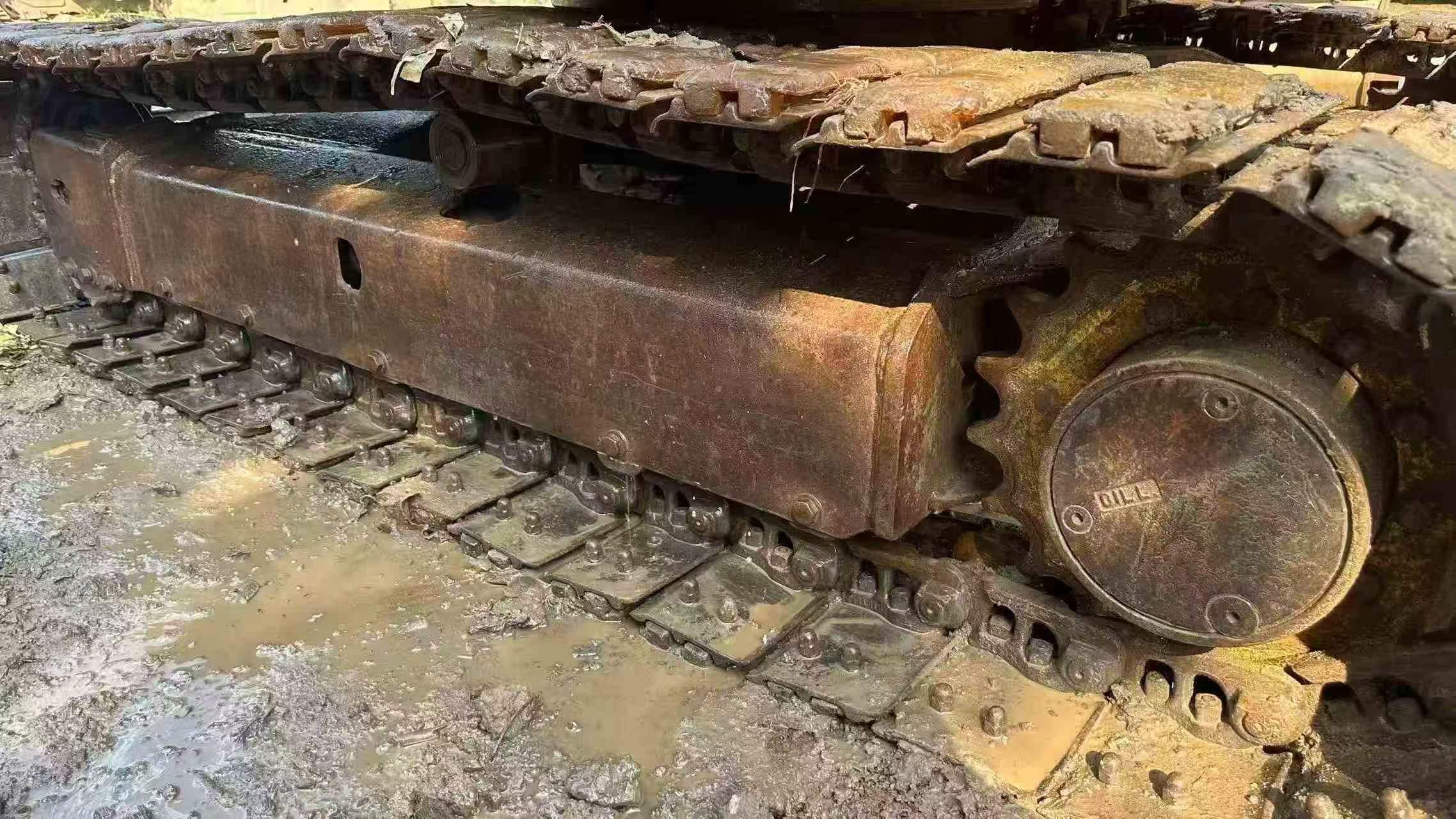

Discover the reliability and efficiency of the 2020 Case CX55B, a robust mini excavator available for purchase in Peking, China. This used machine is priced at 5.28 (currency not specified) and comes equipped with rubber tracks, ensuring minimal ground disturbance and maximum maneuverability on various terrains. The quick coupler system enhances versatility, allowing for swift attachment changes to meet diverse project needs. Ideal for construction, landscaping, and utility work, the CX55B offers the power and precision you need for your next job.
- Year: 2020
- Brand: Case
- Model: CX55B
- Location: Peking, China

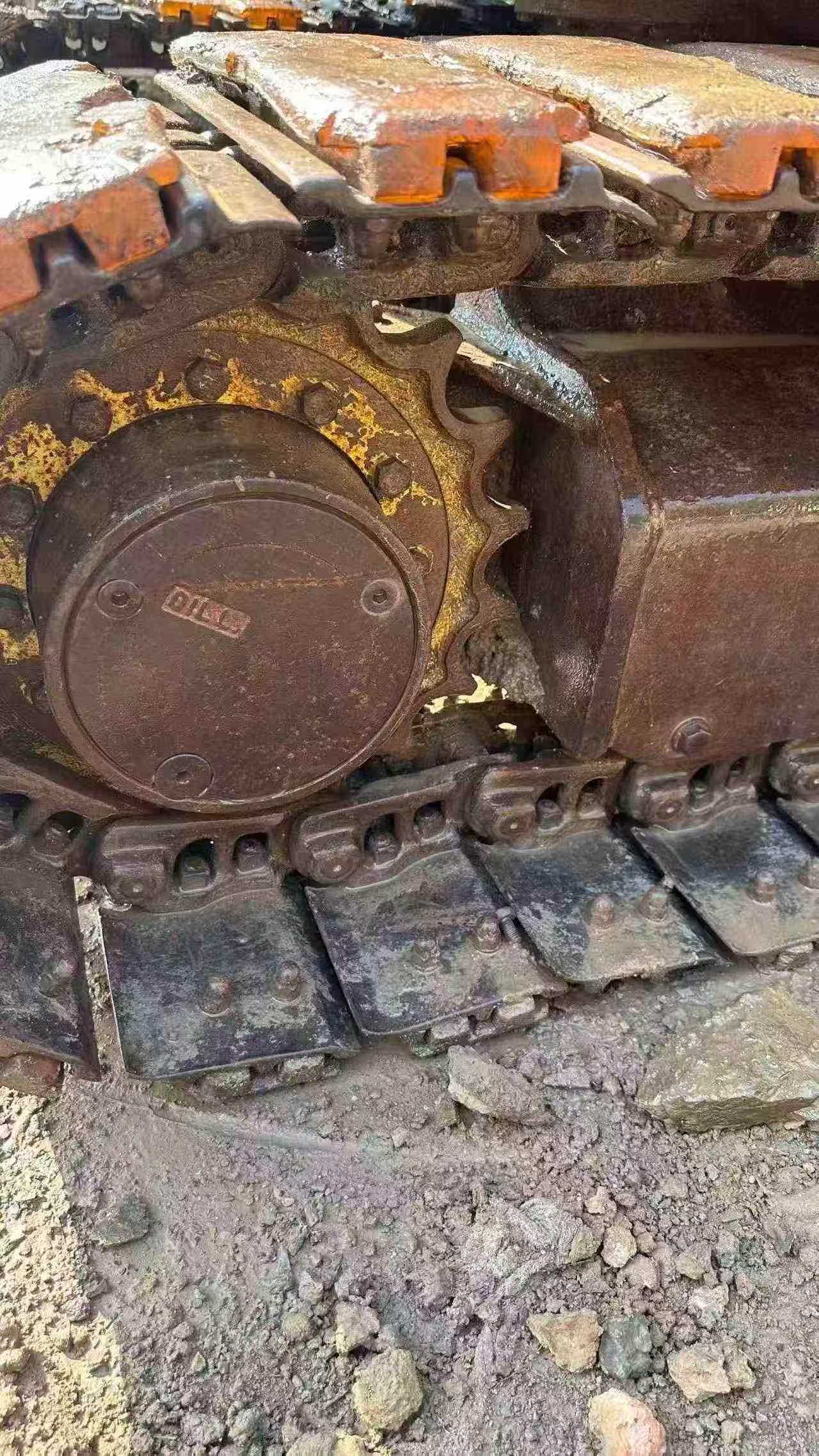

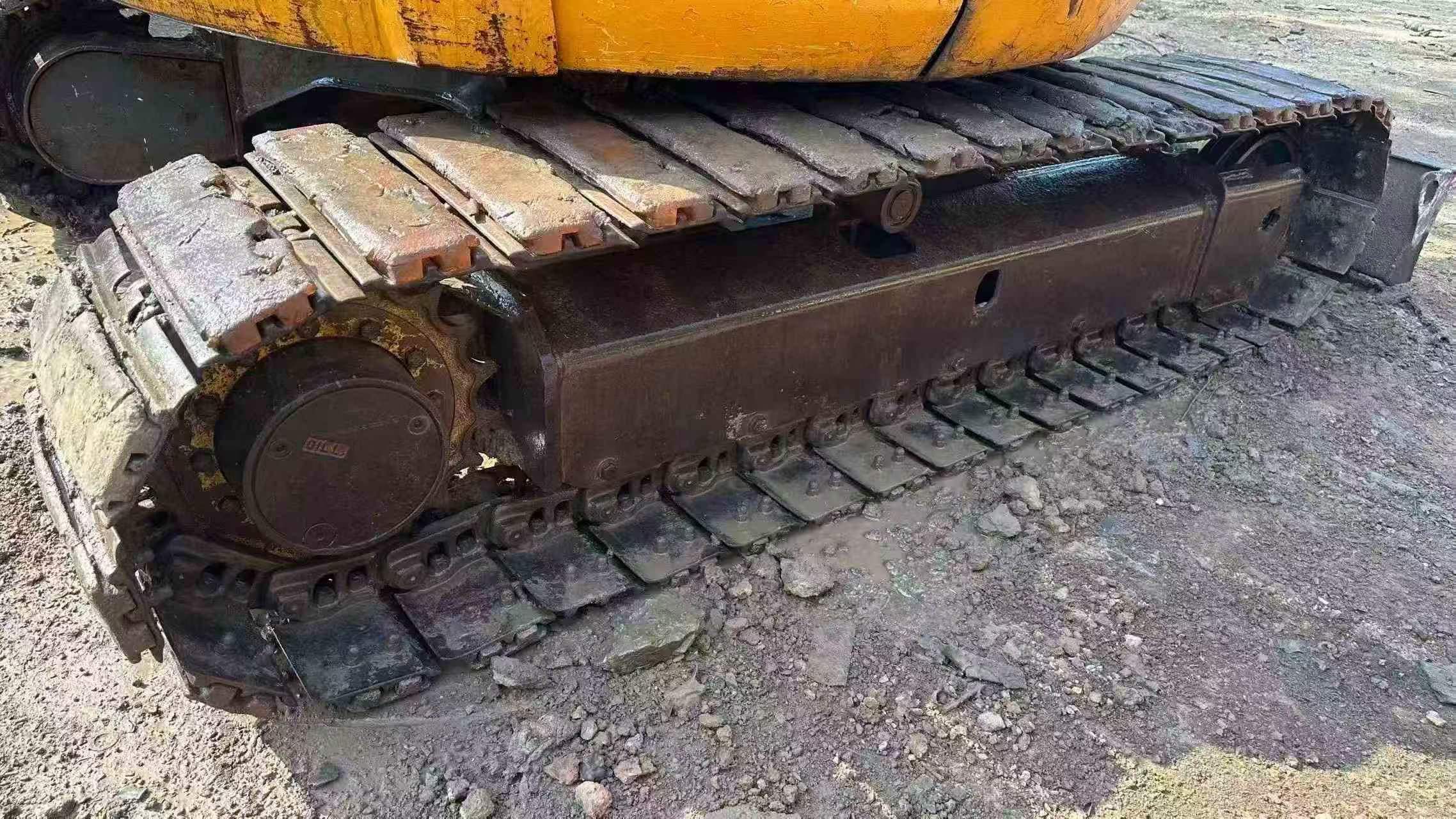

- Features: Rubber tracks, Quick coupler
| Specifications | Value |
|---|---|
| No. | 1135928 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5300 |
| Bucket capacity (m³) | 0.08-0.28 |
| Boom length (mm) | 2900 |
| Rod length (mm) | 1560 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

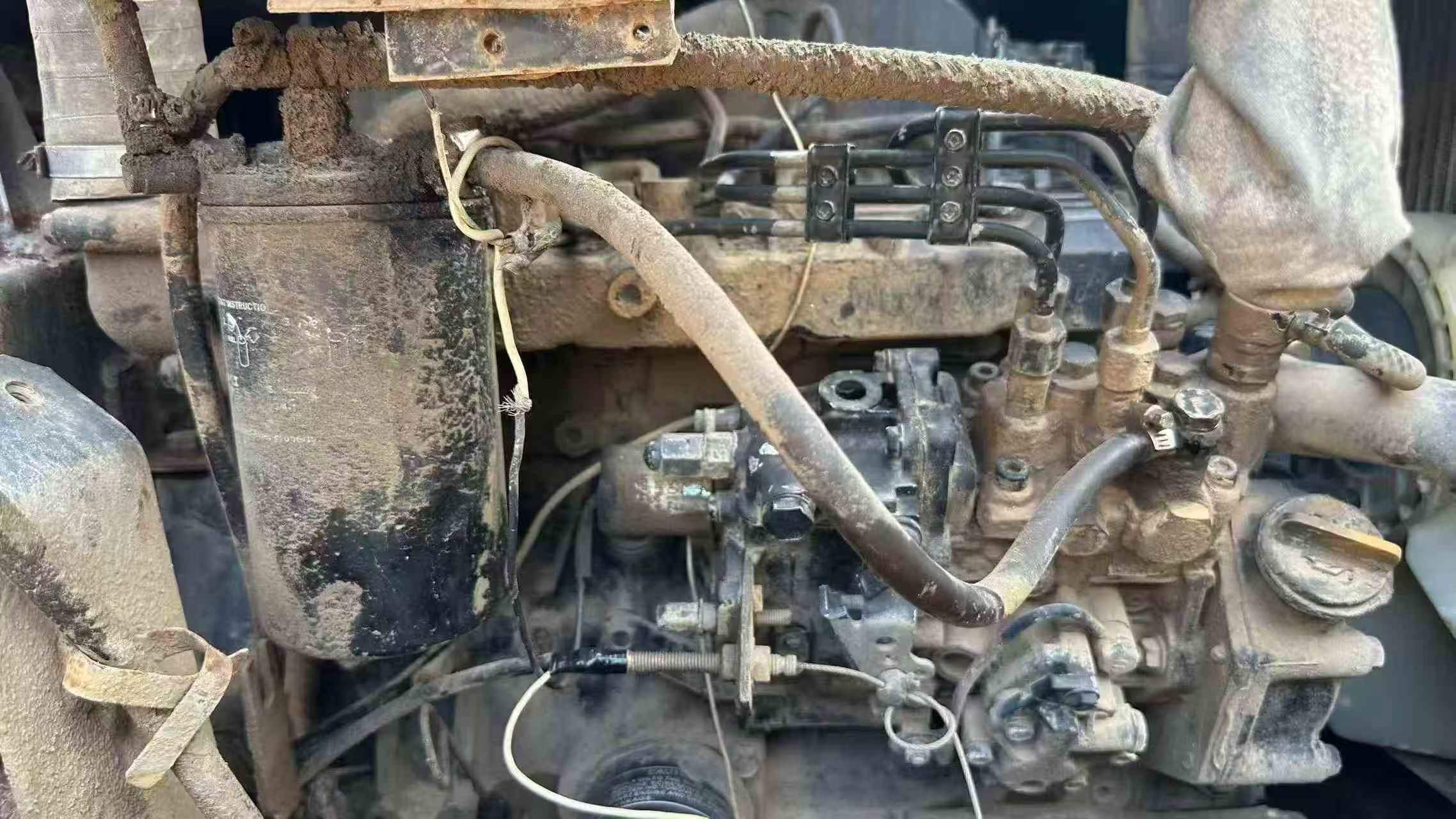

| Engine type | Yanmar 4TNV88bxyB |
| Rated power (kw/rpm) | 30.2/2400 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 88 x 90 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.189 |
| Working form | Four-stroke, direct-injection diesel engine, maximum torque: 139.3N.m/1440rpm |
| Ground specific pressure (Kpa) | 27 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 35.3 |
| Rod digging force (kN) | 26.3 |
| Travel speed (km/h) | 2.8/4.6 |
| Rotary hydraulic motor type | Axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 57.1 * 2 + 33.8 + 12.2 |
| Traveling Hydraulic Circuit (Mpa) | 23 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Variable axial piston pump ×2+ gear pump ×2 |
| Working Hydraulic Circuit (Mpa) | 23 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-75 x 546 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-90 x 716 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-100 x 666 |
| Fuel Tank (L) | 53 |
| Hydraulic Tank (L) | 42 |
| Engine Oil changes (L) | 7.4 |
| Coolant (L) | 6 |
| Hydraulic System (L) | 63 |
| Total transport length (mm) | 5230 |
| Total transport width (mm) | 1960 |
| Total transport height (mm) | 2800 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 635 |
| Minimum turning radius of front working device (mm) | 2130 |
| Back end turning radius (mm) | 1080 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1560 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1960 |
| Track ground length (mm) | 1970 |
| Maximum digging radius (mm) | 5890 |
| Maximum digging depth (mm) | 3590 |
| Maximum excavation height (mm) | 5210 |
| Maximum unloading height (mm) | 3680 |
| Maximum vertical digging depth (mm) | 2810 |
| Bulldozer lift or depth (mm) | 495/375 |
| Dodging plate width × height (mm) | 1960 x 345 |
| Maximum excavation radius of stop surface (mm) | 5750 |
| Boom turning Angle (left/right °) | 70/60 |
| Maximum effective digging depth (mm) | 3160 |
