Product Description

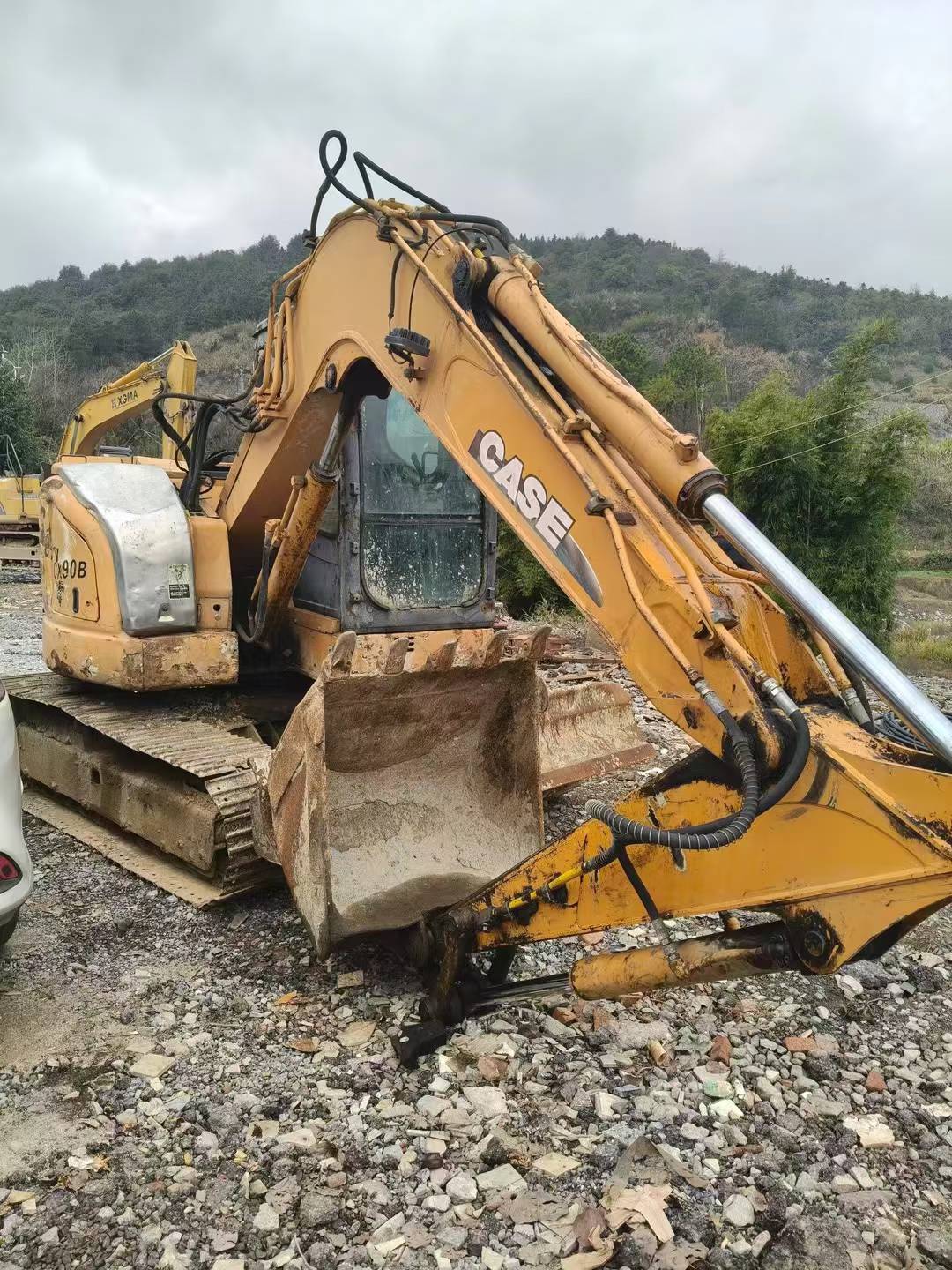

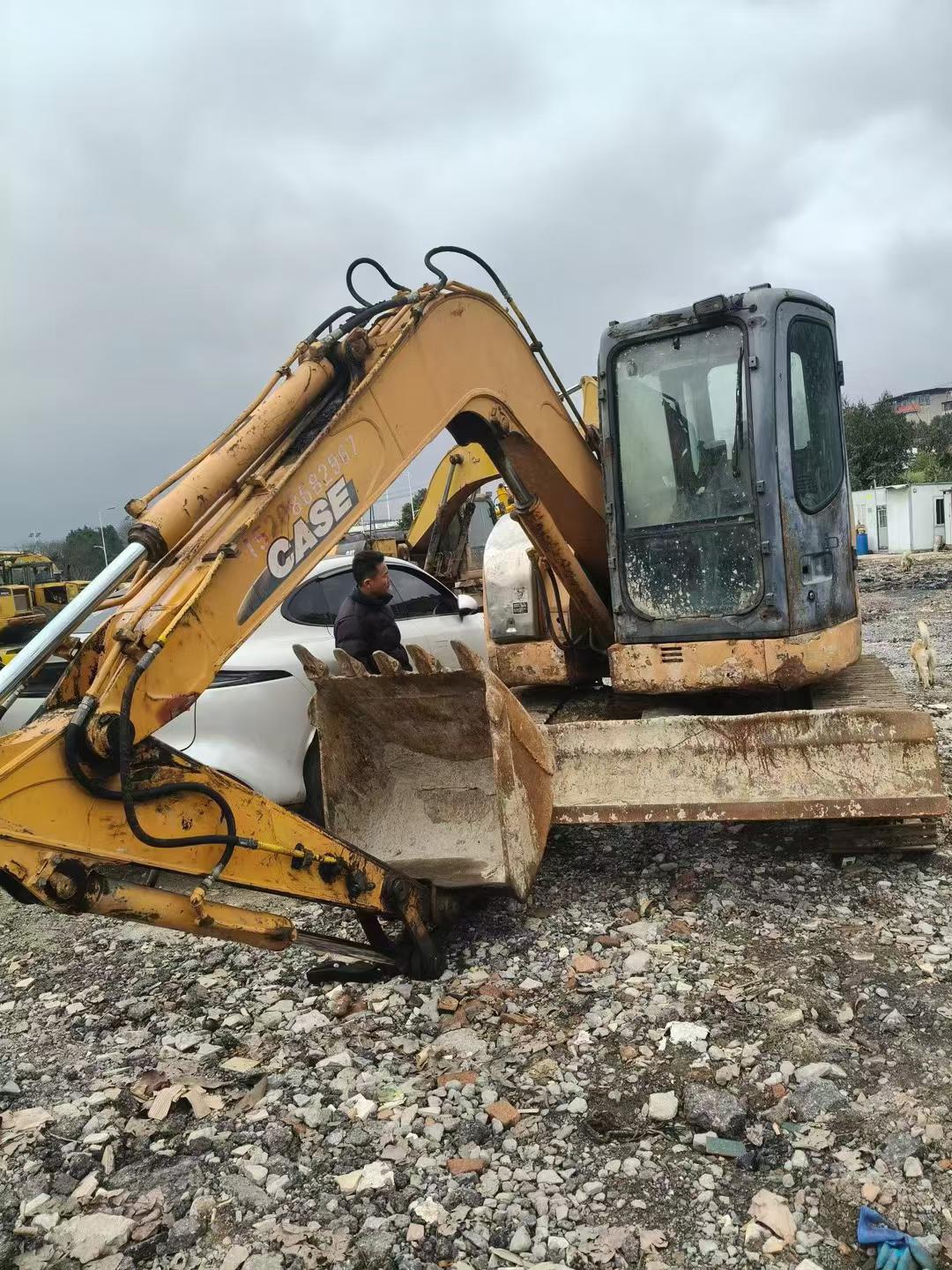

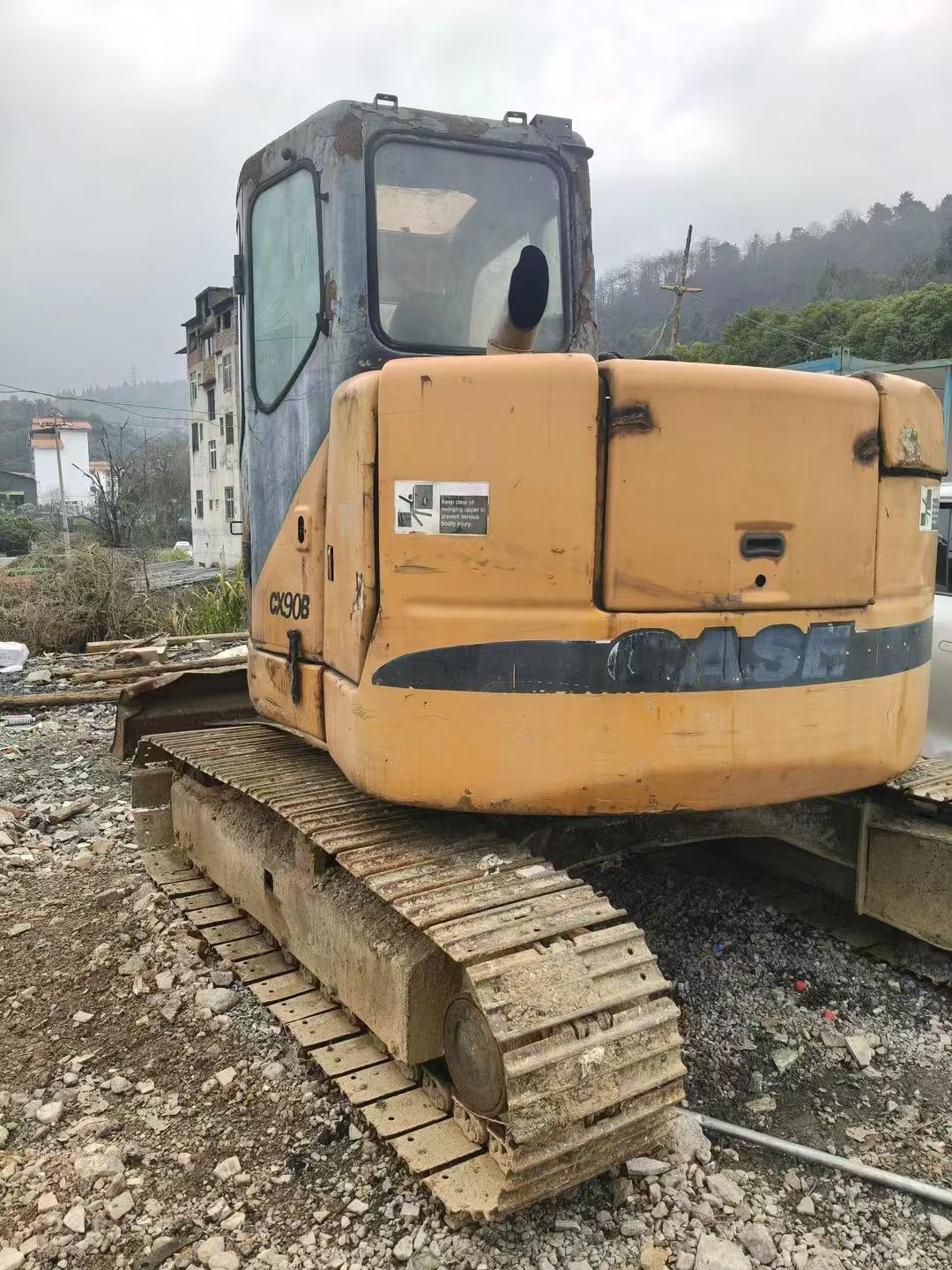

With a robust 8-ton working weight and an ISUZU AU-4LE2X engine, this 2015 Case CX75 excavator is primed for immediate deployment. Equipped with a backhoe bucket, it delivers a digging force of 60 kN and a rod digging force of 41 kN, making it ideal for tough digging and demolition tasks. Its 3870 mm boom and 1710 mm rod provide extensive reach, ensuring efficient grading and excavation. The machine's 3.3/5.1 km/h travel speed and 9.5 rpm rotation speed enhance maneuverability on site. Featuring a variable axial piston pump and motor, it ensures precise control and high performance. Ready to work, this excavator comes with a 100 L fuel tank, 50 L hydraulic tank, and a total transport length of 5915 mm, making it a versatile and reliable addition to any construction fleet.

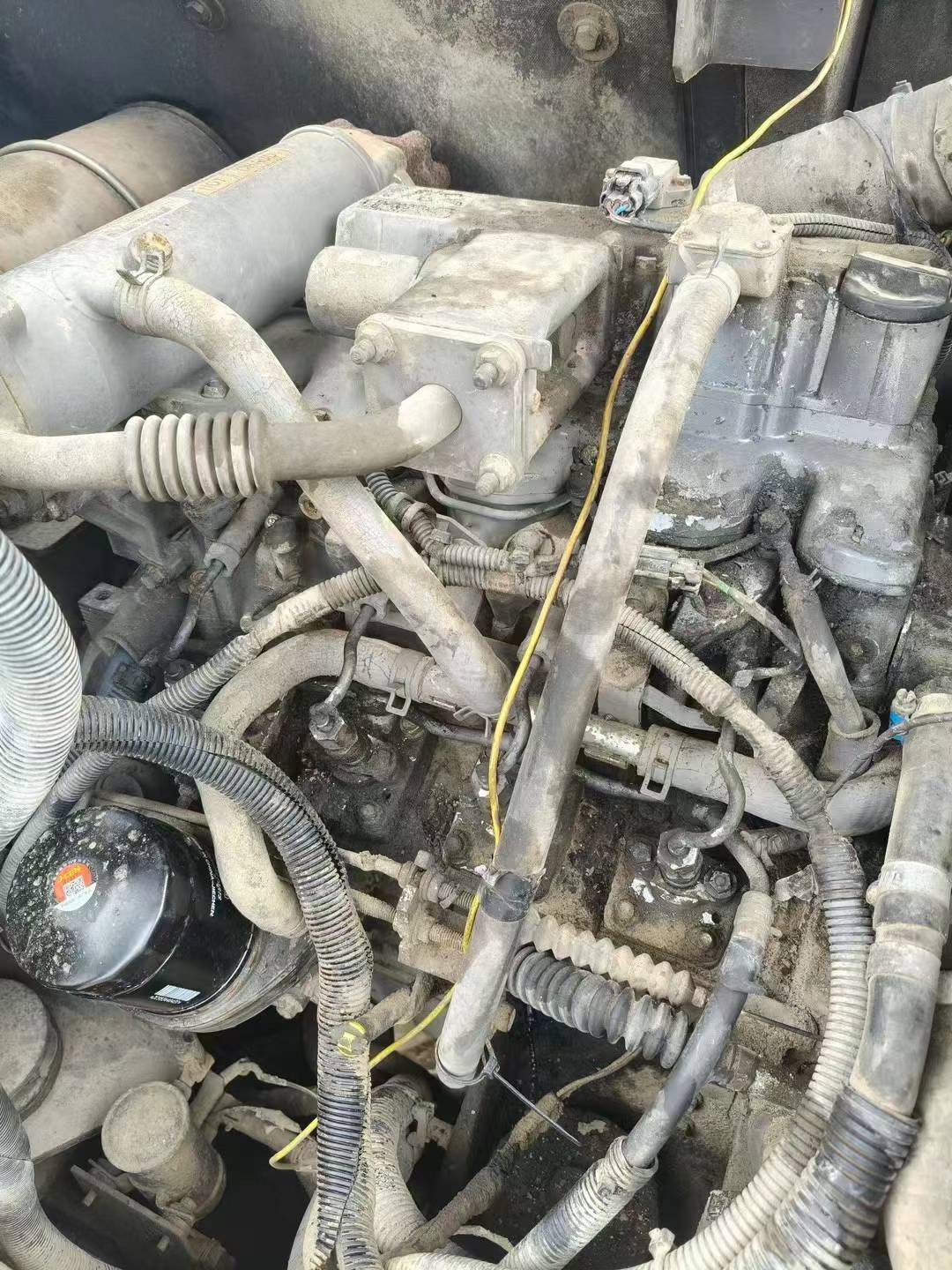

- Engine: ISUZU AU-4LE2X (Tie3), 40 kW at 2000 rpm
- Bucket capacity: 0.28-0.40 m³
- Maximum digging depth: 4140 mm
- Travel speed: 3.3/5.1 km/h
- Total transport dimensions: 5915 mm x 2320 mm x 2700 mm
| Specifications | Value |
|---|---|
| No. | 1021222 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7950 |
| Bucket capacity (m³) | 0.28-0.40 |
| Boom length (mm) | 3870 |
| Rod length (mm) | 1710 |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

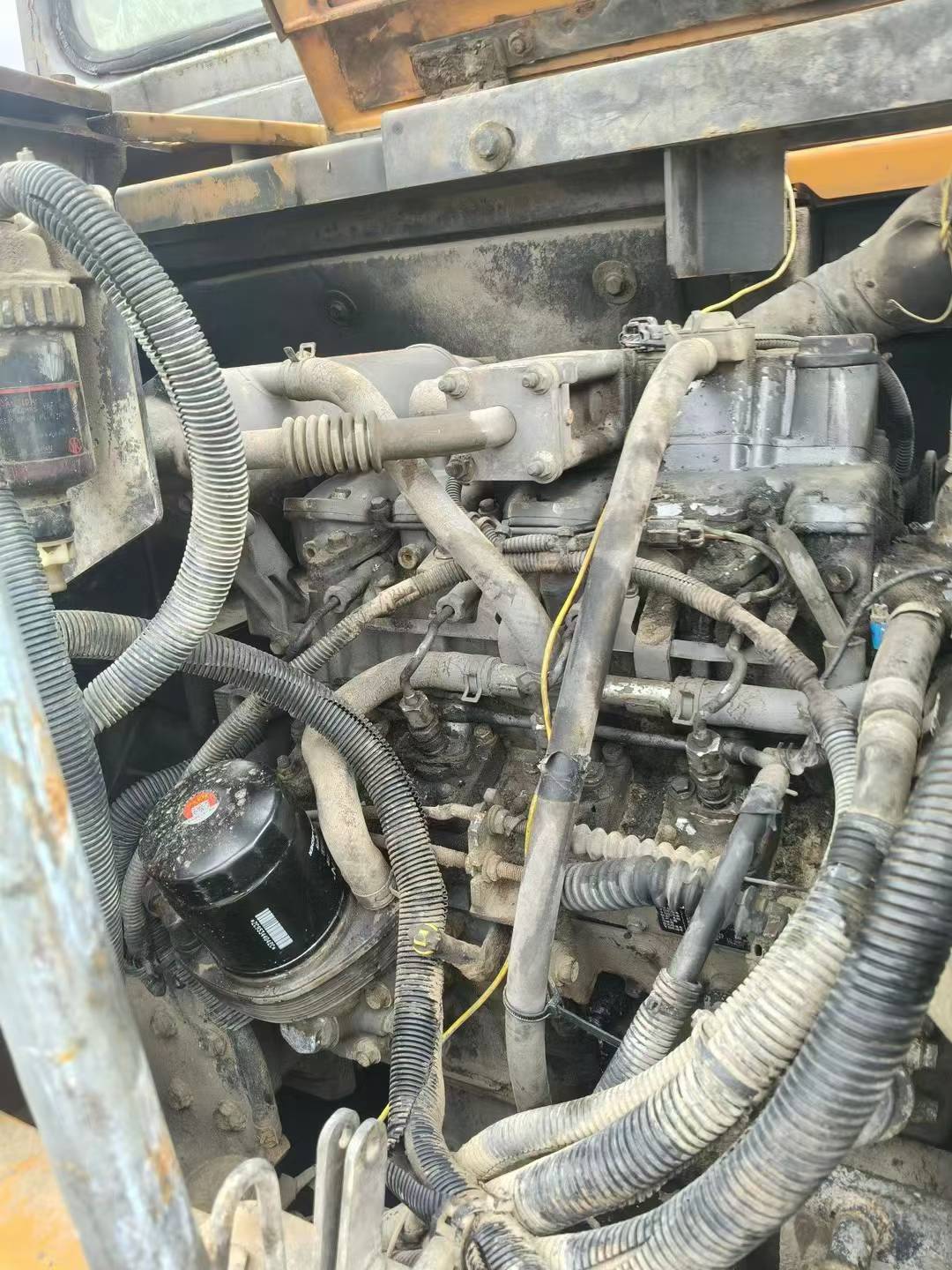

| Engine type | ISUZU AU-4LE2X (Tie3) |
| Rated power (kw/rpm) | 40/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Working form | Four-stroke, direct injection, turbocharged and air-cooled diesel engine |
| Ground specific pressure (Kpa) | 35 |
| Rotation speed (rpm) | 9.5 |
| Bucket digging force (kN) | 60 |
| Rod digging force (kN) | 41 |
| Travel speed (km/h) | 3.3/5.1 |

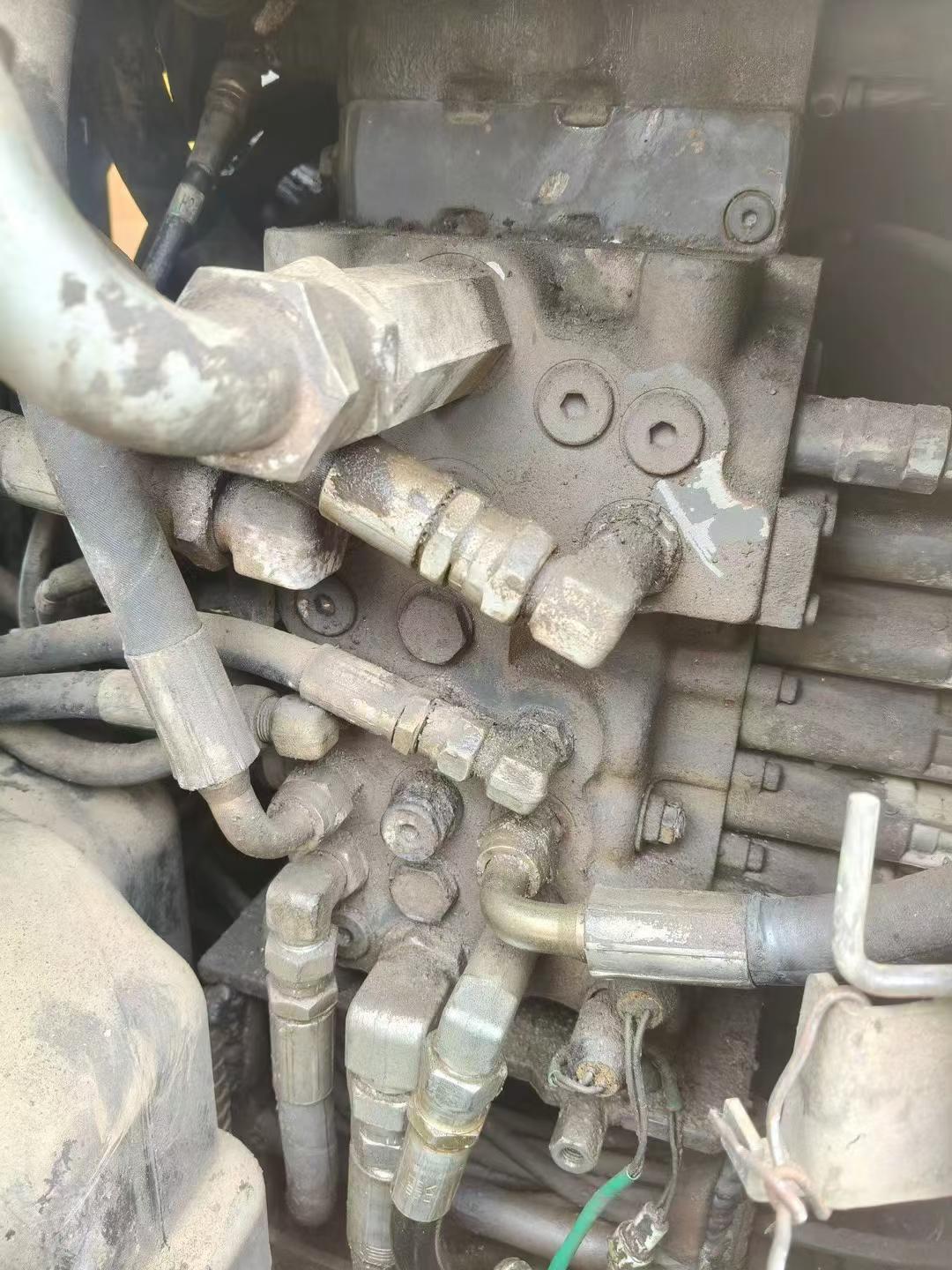

| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 68 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 29.4 |
| Rotary Hydraulic Circuit (Mpa) | 22.6 |
| Control Hydraulic Circuit (Mpa) | 4.2 |
| Main pump type | Variable axial piston pump ×2, adjustable |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-85 x 665 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-95 x 797 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-110 x 911 |
| Fuel Tank (L) | 100 |
| Hydraulic Tank (L) | 50 |
| Engine Oil changes (L) | 9 |
| Coolant (L) | 10.2 |
| Hydraulic System (L) | 97.3 |
| Total transport length (mm) | 5915 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2700 |
| Full cab height (mm) | 2700 |
| Counterweight ground clearance (mm) | 745 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1785 |
| Back end turning radius (mm) | 1235 |

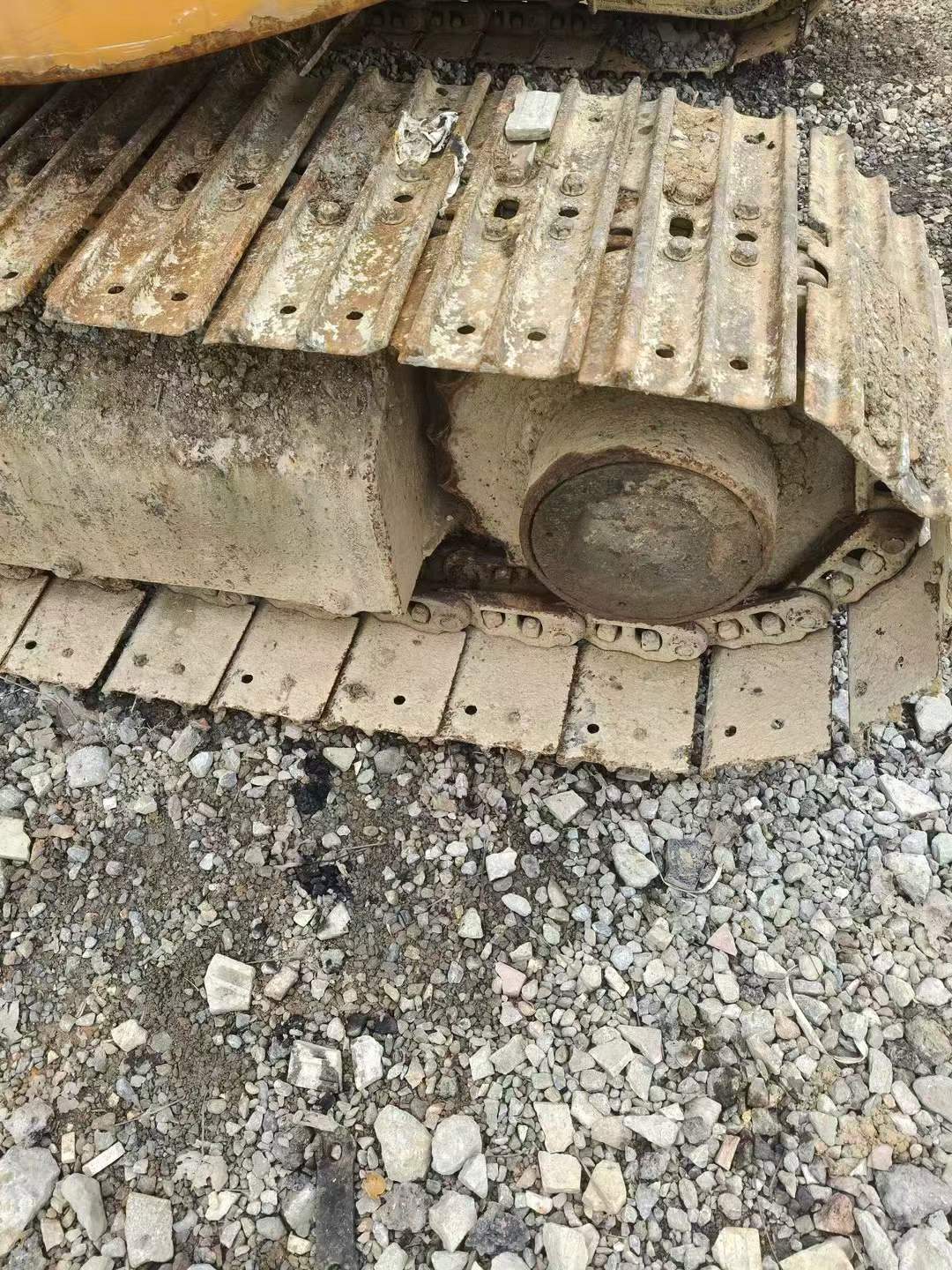

| Total track length (mm) | 2850 |
| Track gauge (mm) | 1870 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6520 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7330 |
| Maximum unloading height (mm) | 5250 |
| Maximum vertical digging depth (mm) | 3640 |
| Maximum excavation radius of stop surface (mm) | 6390 |
| Maximum effective digging depth (mm) | 3805 |
