Product Description

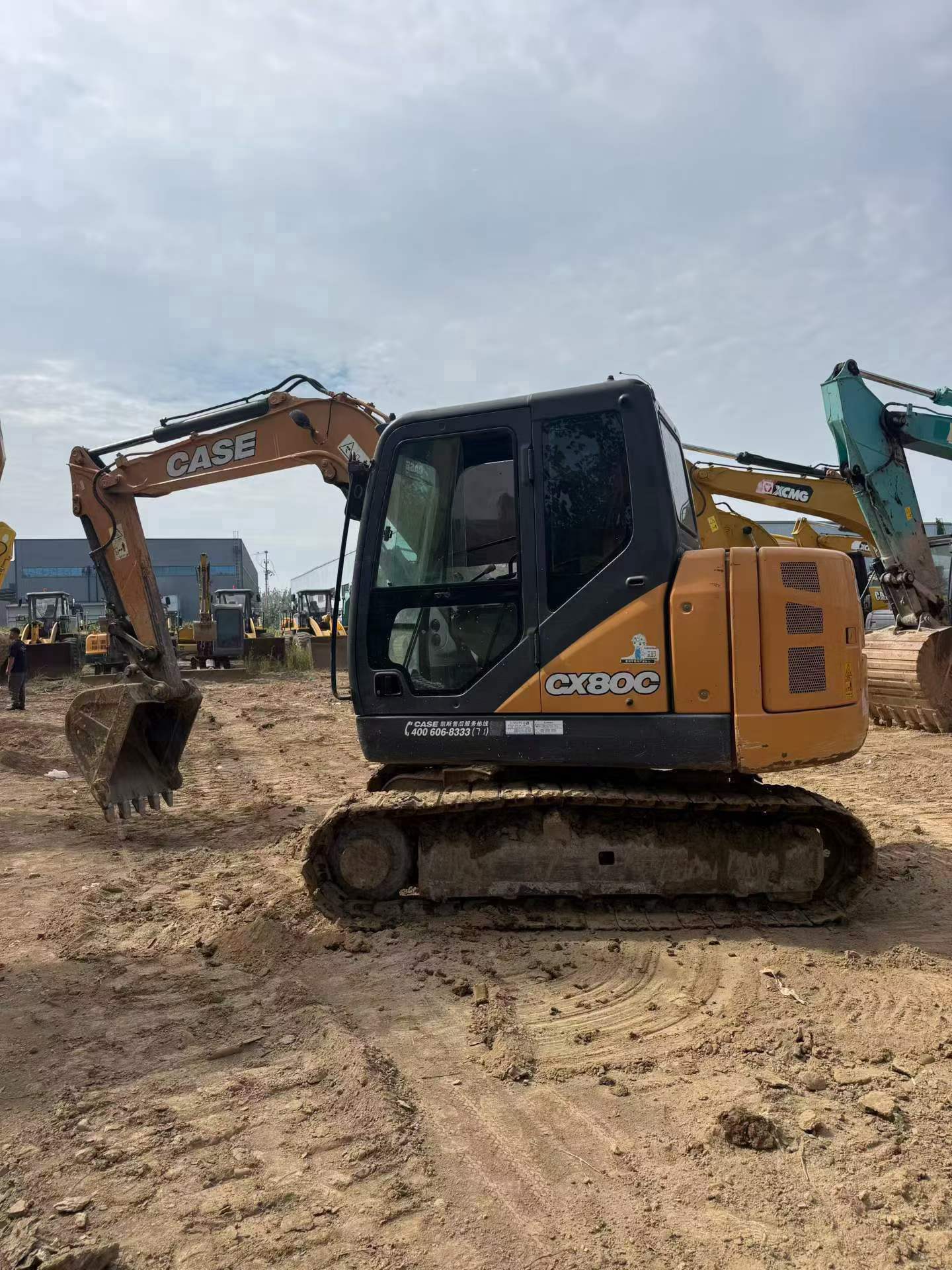

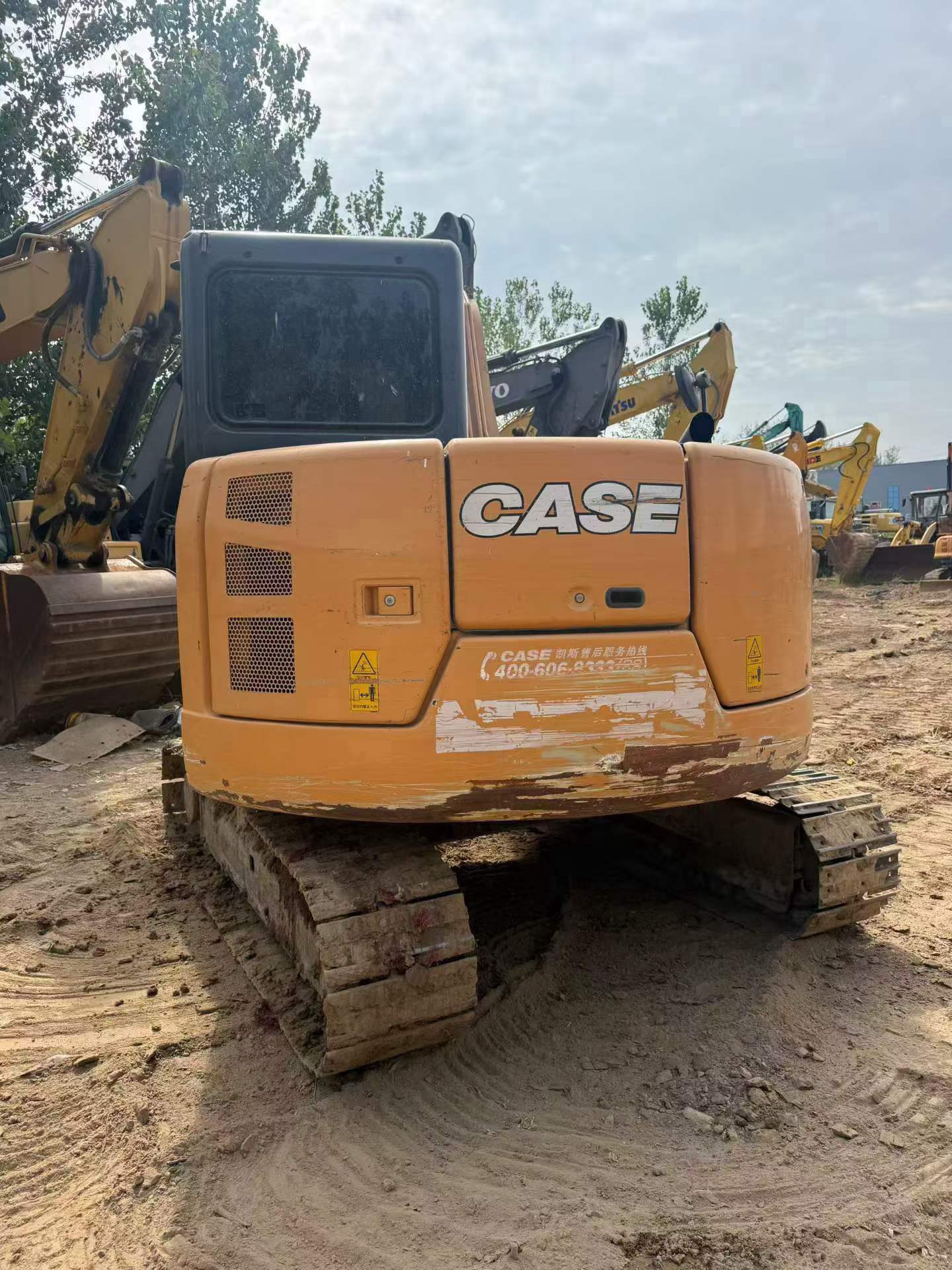

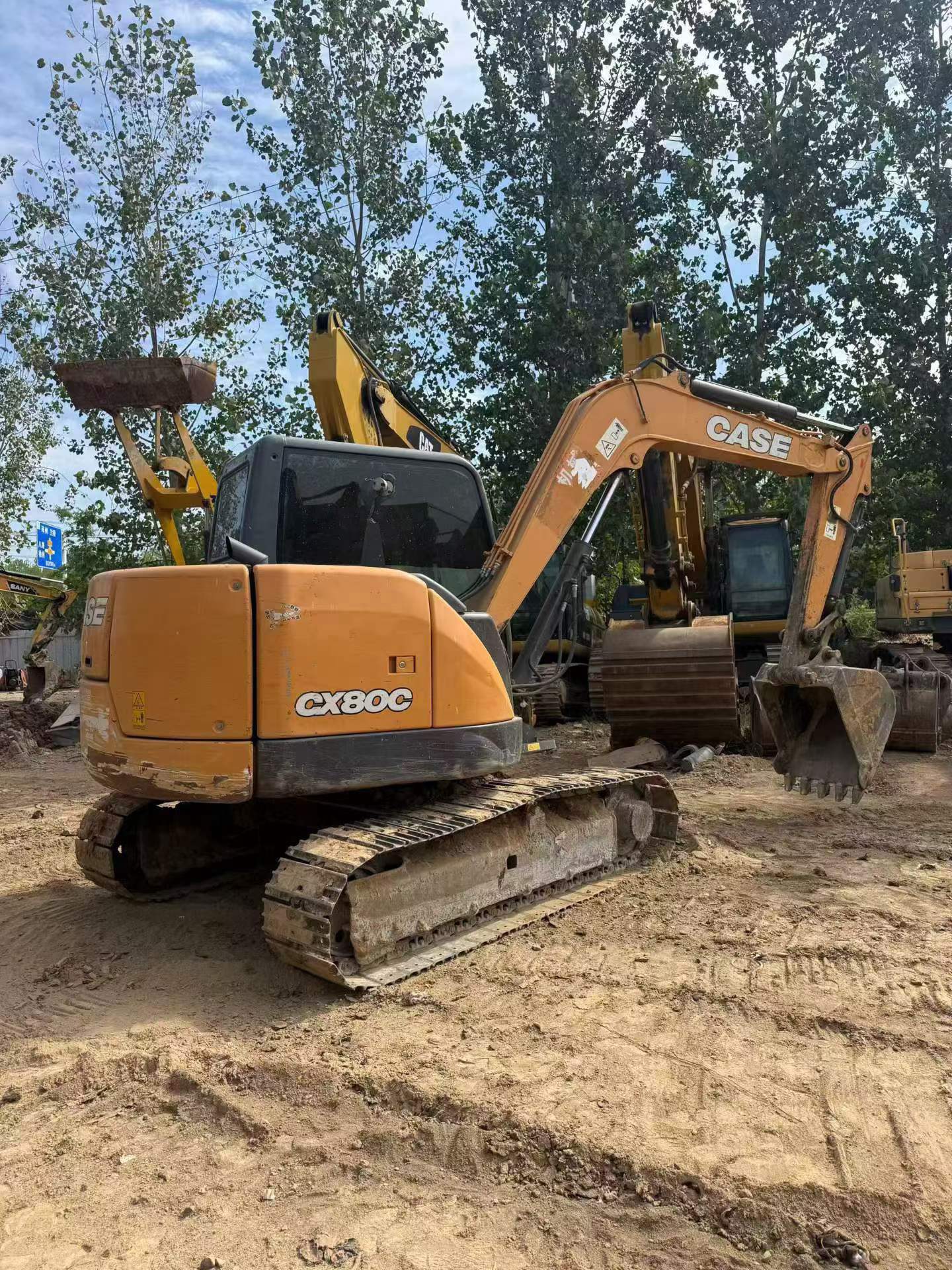

This 2018 Case CX80 is a used compact excavator offered from stock in Zhejiang, China. The meter shows 6,880 hours, and its working history is straightforward earthmoving — digging, trenching and bulk soil handling — rather than breaker, demolition or attachment-heavy duty.

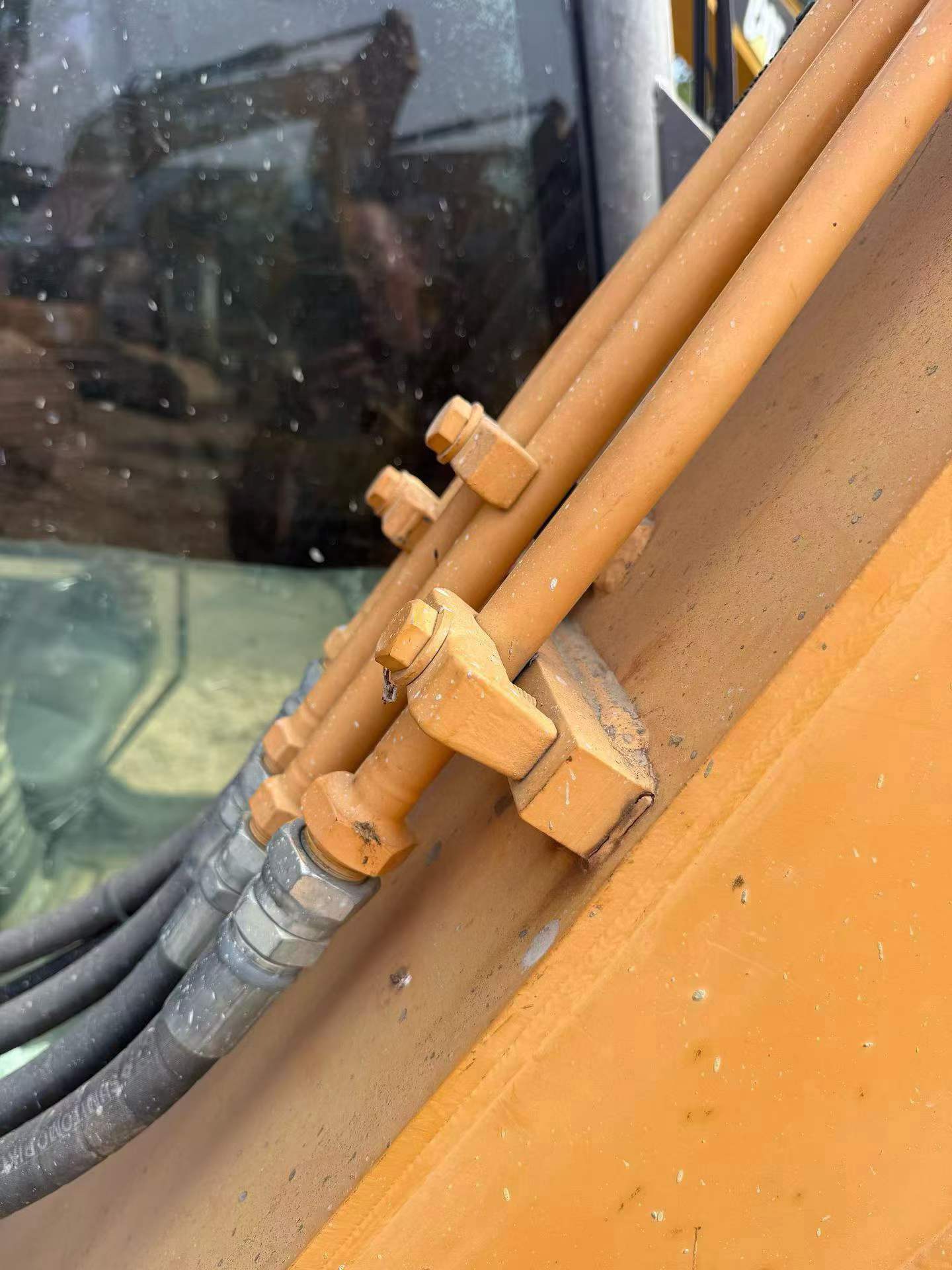

The unit is presented as original: factory paint, panels and decals remain in place, with no sign of repaint or structural repair. For a machine of this year and class, the hour reading points to steady commercial use rather than constant production work.
- Year: 2018
- Brand / Model: Case CX80
- Class: approximately 8-tonne compact excavator

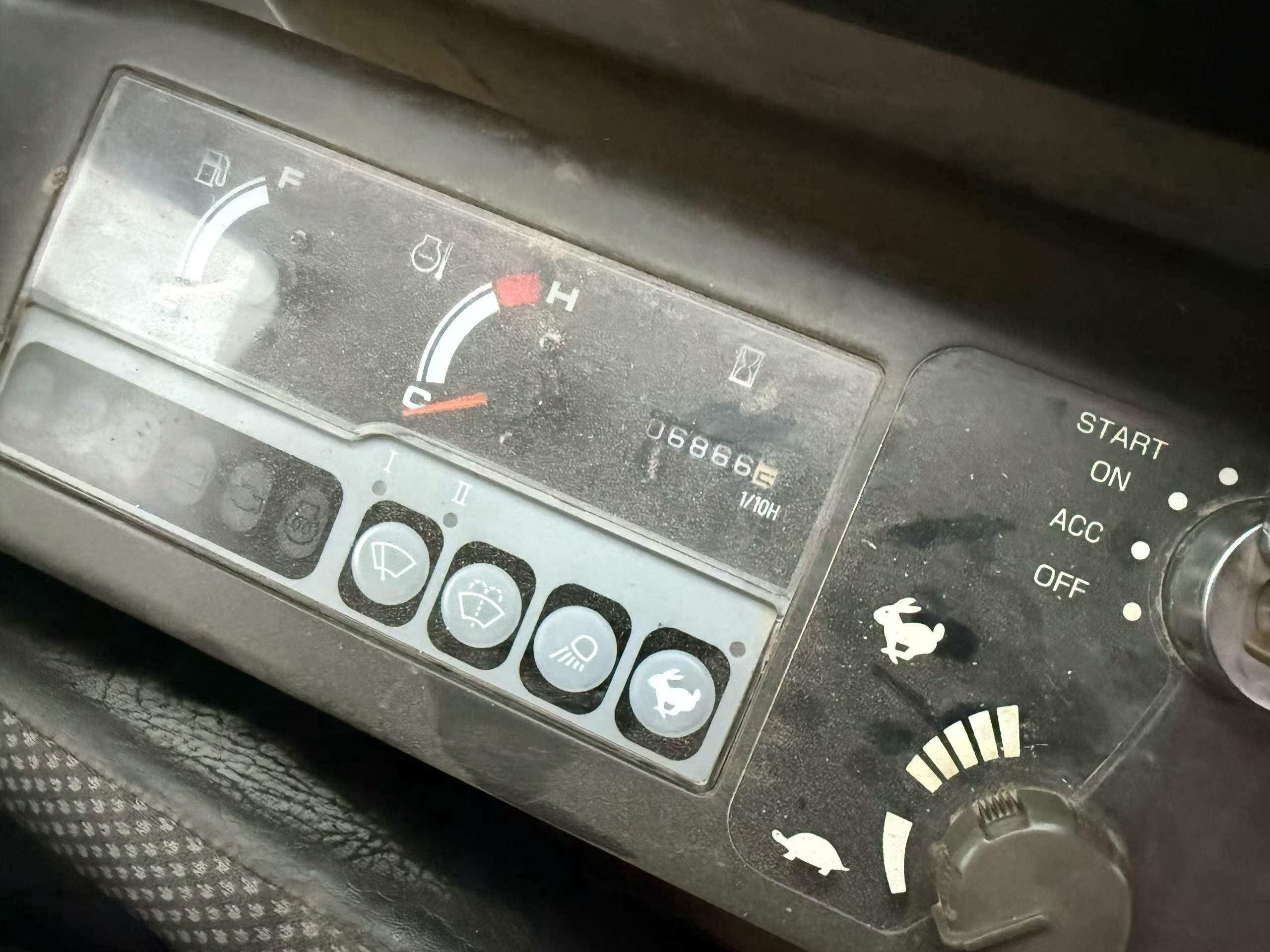

- Working hours: 6,880
- Application history: earthwork only
- Condition: original paint, no reported repaint
- Location: Zhejiang, China
Inspection at the yard is welcome, and photo or video walkarounds can be arranged on request. A practical option for contractors and dealers needing an 8-tonne class machine for soil work. Contact FairTradeMachinery for availability, current pricing and shipping terms.
| Specifications | Value |
|---|---|
| No. | 1157353 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 8430 |
| Bucket capacity (m³) | 0.18-0.34 |
| Boom length (mm) | 3500 |
| Rod length (mm) | 1710 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

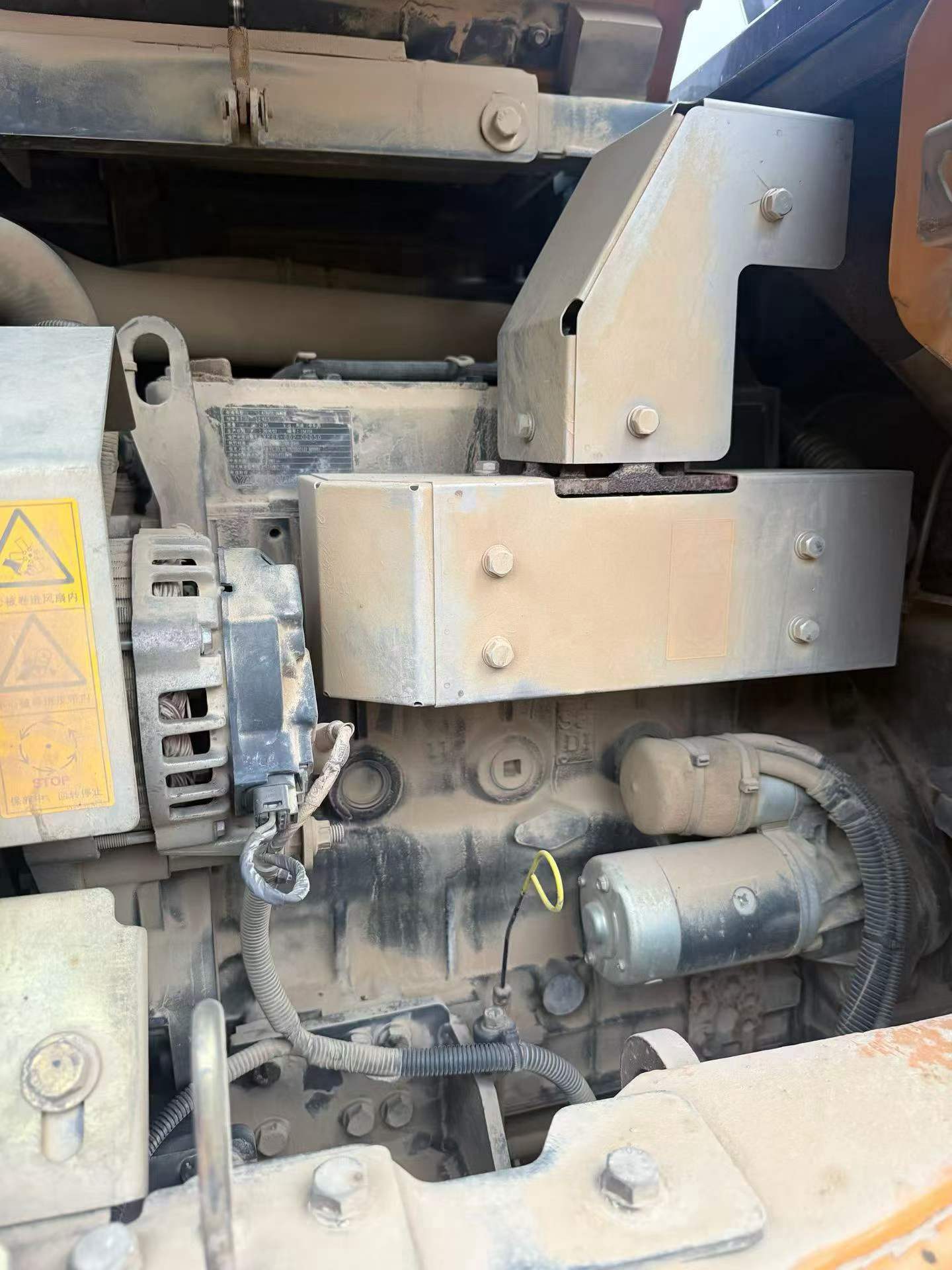

| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Ground specific pressure (Kpa) | 38 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 56.9 |
| Rod digging force (kN) | 38.3 |
| Travel speed (km/h) | 3.4/5.1 |

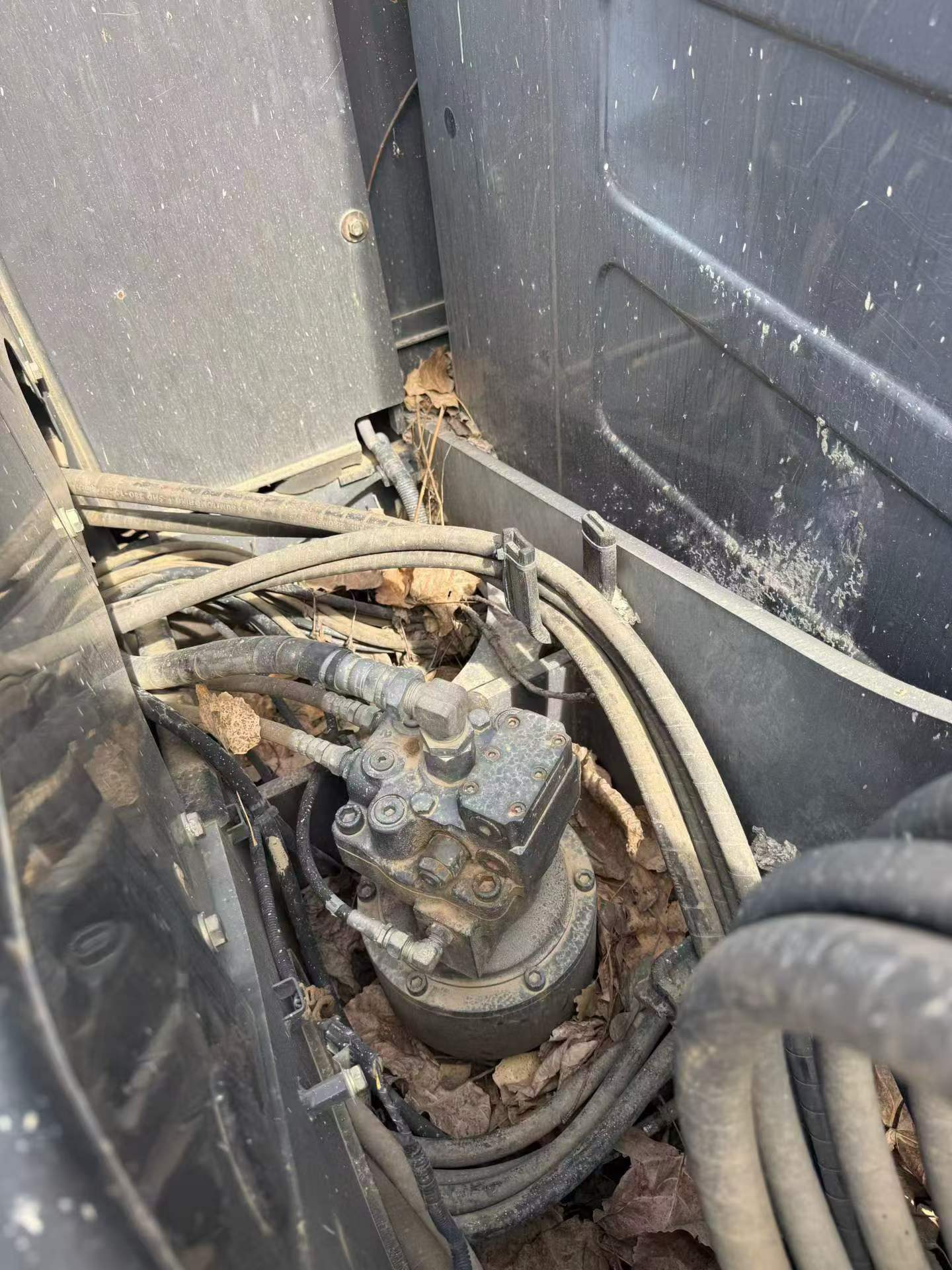

| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 68 * 2 + 21.4 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Pilot Oil Circuit (MPa) | 4.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-85 x 665 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-95 x 797 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-110 x 911 |
| Fuel Tank (L) | 100 |
| Hydraulic Tank (L) | 50 |
| Engine Oil changes (L) | 9 |
| Coolant (L) | 10.2 |
| Hydraulic System (L) | 97.3 |
| Total transport length (mm) | 6660 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2700 |
| Full cab height (mm) | 2700 |
| Counterweight ground clearance (mm) | 750 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 2750 |
| Back end turning radius (mm) | 1660 |
| Total track length (mm) | 2850 |
| Track gauge (mm) | 1870 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 7030 |
| Maximum digging depth (mm) | 4180 |
| Maximum excavation height (mm) | 6390 |
| Maximum unloading height (mm) | 4390 |
| Maximum vertical digging depth (mm) | 3080 |
| Bulldozer lift or depth (mm) | 420/210 |
| Dodging plate width × height (mm) | 2320 x 450 |
| Maximum excavation radius of stop surface (mm) | 6890 |
| Boom turning Angle (left/right °) | 80/50 |
| Maximum effective digging depth (mm) | 3780 |
