2019 Caterpillar 301.4C











Product Description
Discover the 2019 Caterpillar 301.4C, a robust and versatile compact excavator currently available in Peking, China. This machine is in excellent condition, boasting an original paint job with no signs of oil leaks, ensuring reliable performance. Equipped with a 180-degree side wall digging capability, it offers enhanced flexibility on various job sites. The electronic control system features forward and reverse functions, facilitating easier maneuverability. Recently fitted with new tracks, this excavator is ready for immediate deployment. Ideal for earthmoving tasks, this unit presents a cost-effective solution for your construction needs.
- Year: 2019
- Brand: Caterpillar
- Model: 301.4C
- Location: Peking, China

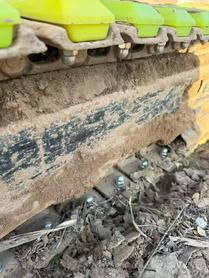

- Features: 180-degree side wall digging, electronic controls with forward and reverse, newly installed tracks
| Specifications | Value |
|---|---|
| No. | 1130994 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1380-1558 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanmar 3TNV76 |
| Rated power (kw/rpm) | 13.2 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.116 |
| Climbing ability (%) | 30 ° / 58% |
| Bucket digging force (kN) | 16 |
| Rod digging force (kN) | 7.1 |
| Travel speed (km/h) | 2.5 |
| Maximum flow of main pump (l/min) | 35 |
| Traveling Hydraulic Circuit (Mpa) | 20 |
| Rotary Hydraulic Circuit (Mpa) | 15 |
| Working Hydraulic Circuit (Mpa) | 20 |
| Fuel Tank (L) | 24 |
| Hydraulic Tank (L) | 20 |
| Total transport length (mm) | 3645 |
| Total transport width (mm) | 990 |
| Total transport height (mm) | 2276 |
| Full cab height (mm) | 2276 |
| Back end turning radius (mm) | 1075 |
| Total track length (mm) | 1460 |
| Track plate width (mm) | 230 |
| Maximum digging radius (mm) | 3700 |
| Maximum digging depth (mm) | 2240 |
| Maximum excavation height (mm) | 3390 |
| Maximum unloading height (mm) | 2370 |
| Maximum vertical digging depth (mm) | 1640 |
| Bulldozer lift or depth (mm) | 264/211 |
| Dodging plate width × height (mm) | 980 x 232 |
| Maximum excavation radius of stop surface (mm) | 3650 |
| Boom turning Angle (left/right °) | 49 ° 73 ° / |
