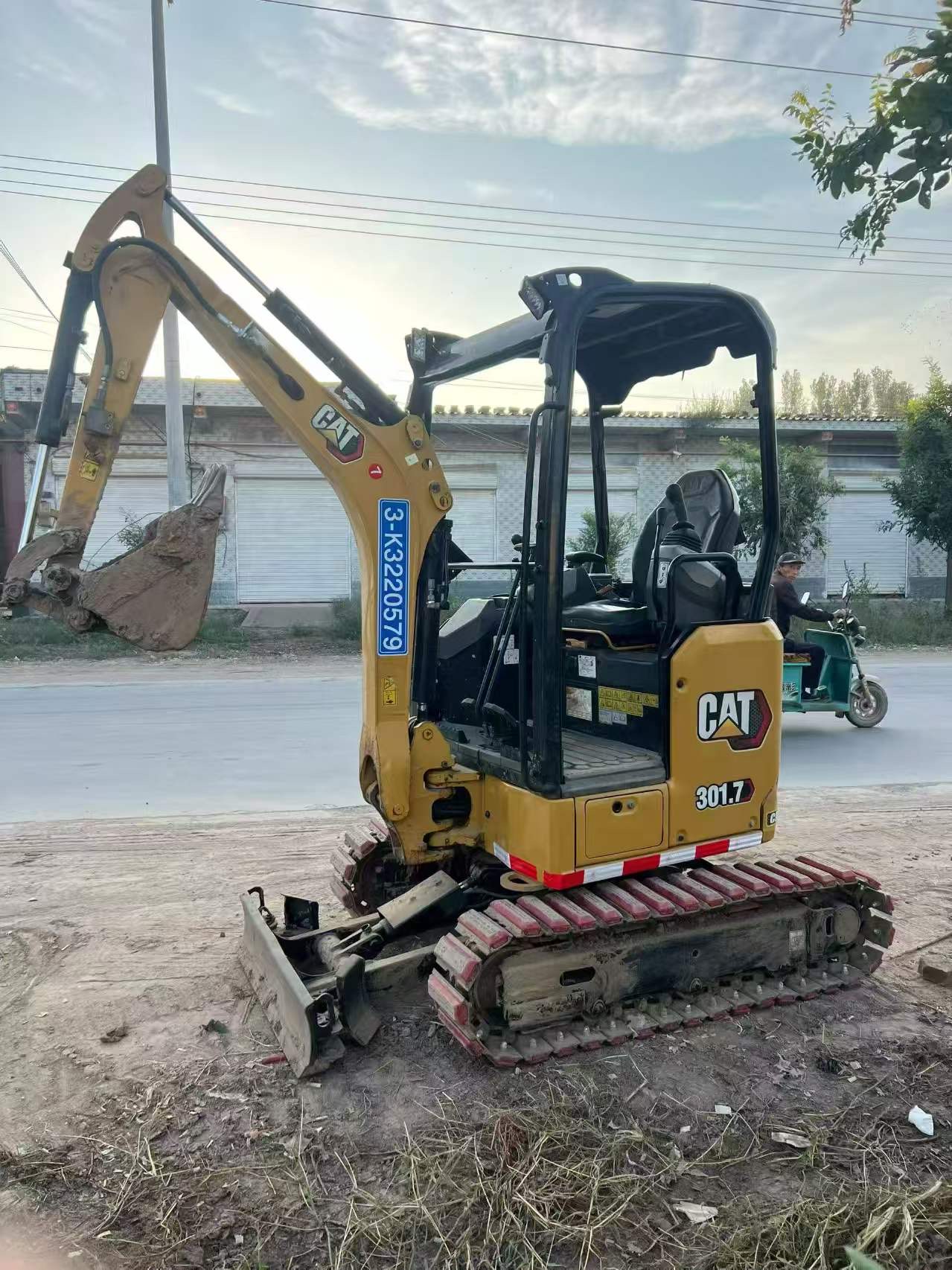

2020 Caterpillar 301.7CR











Product Description

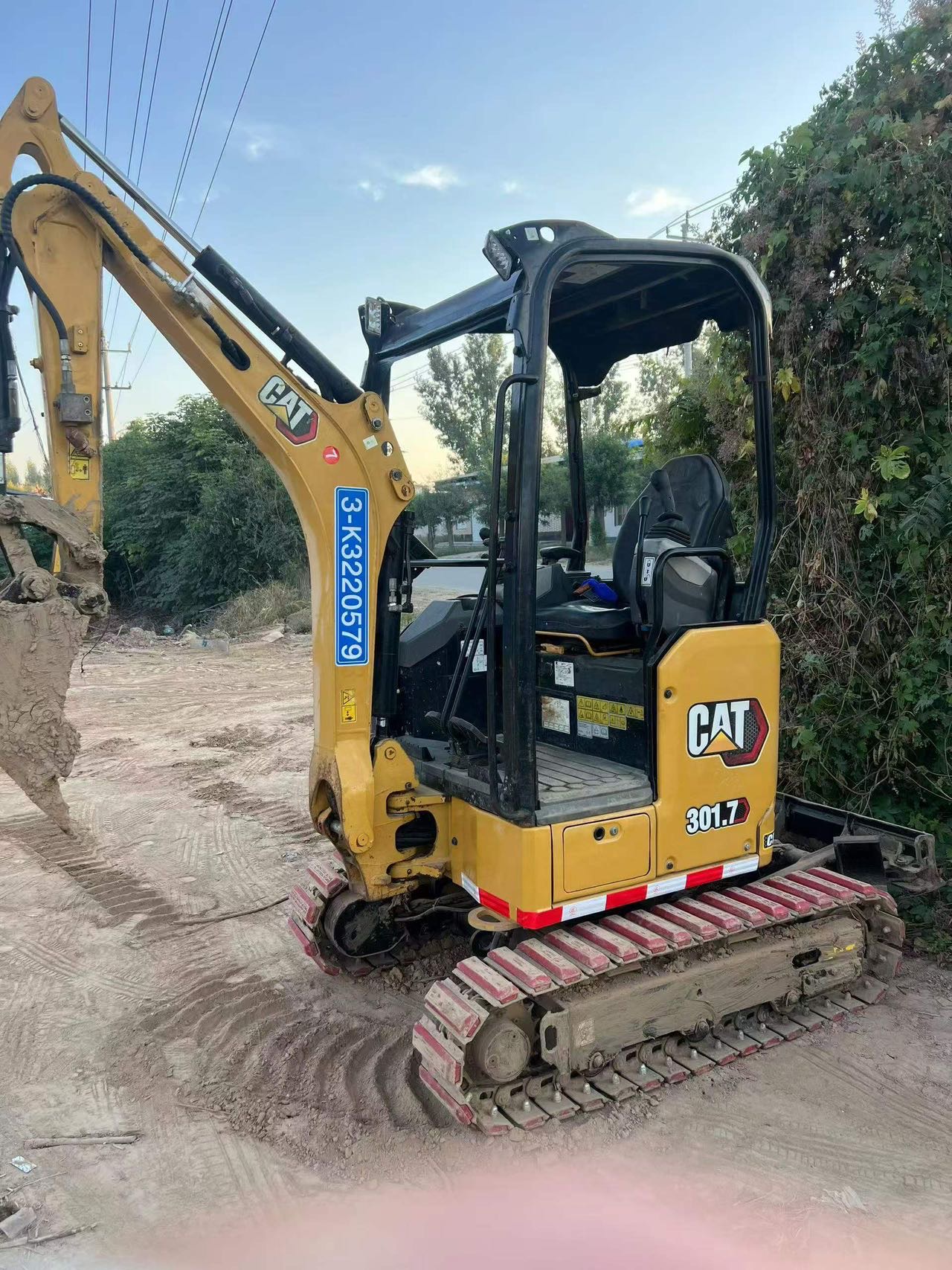

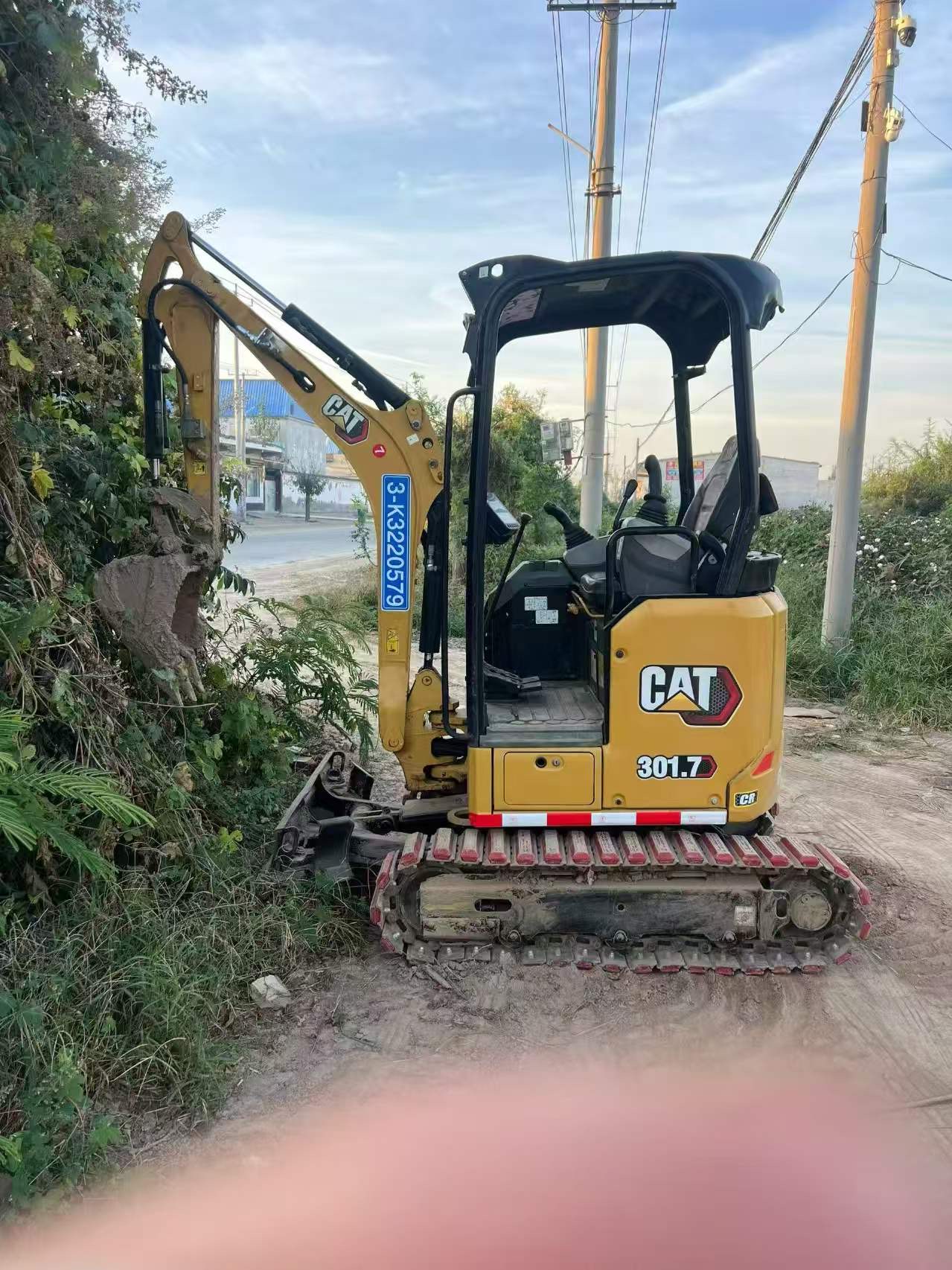

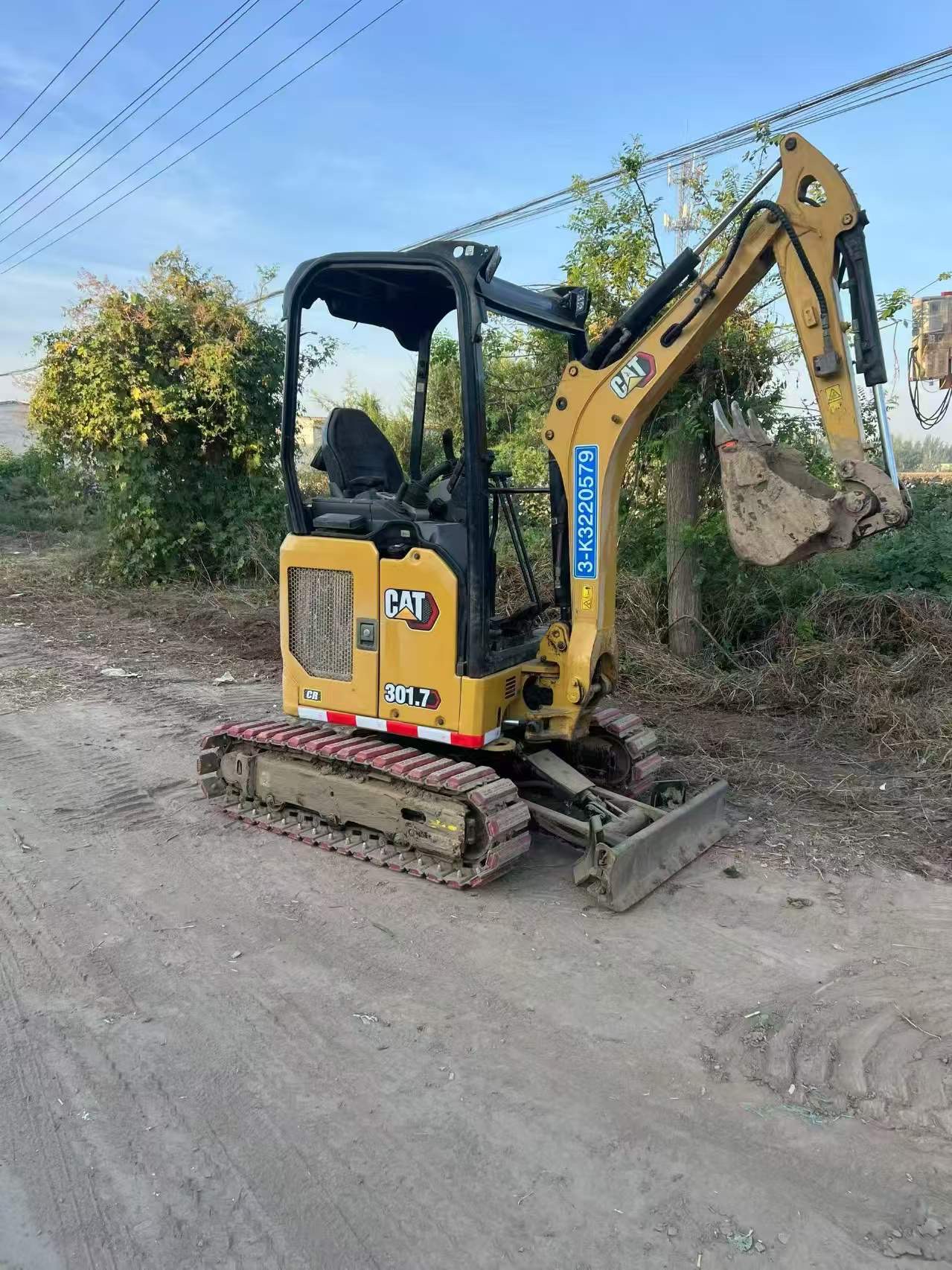

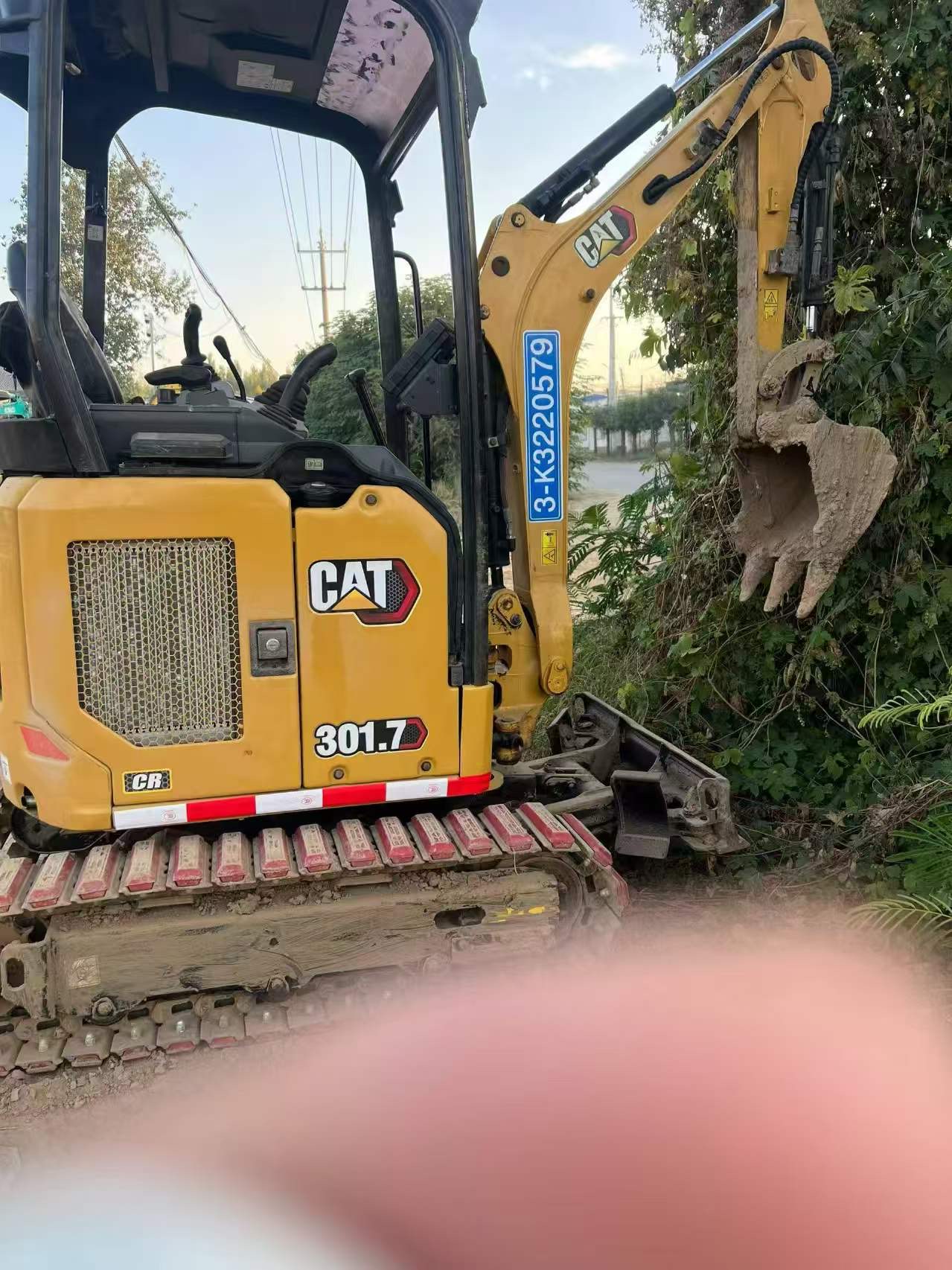

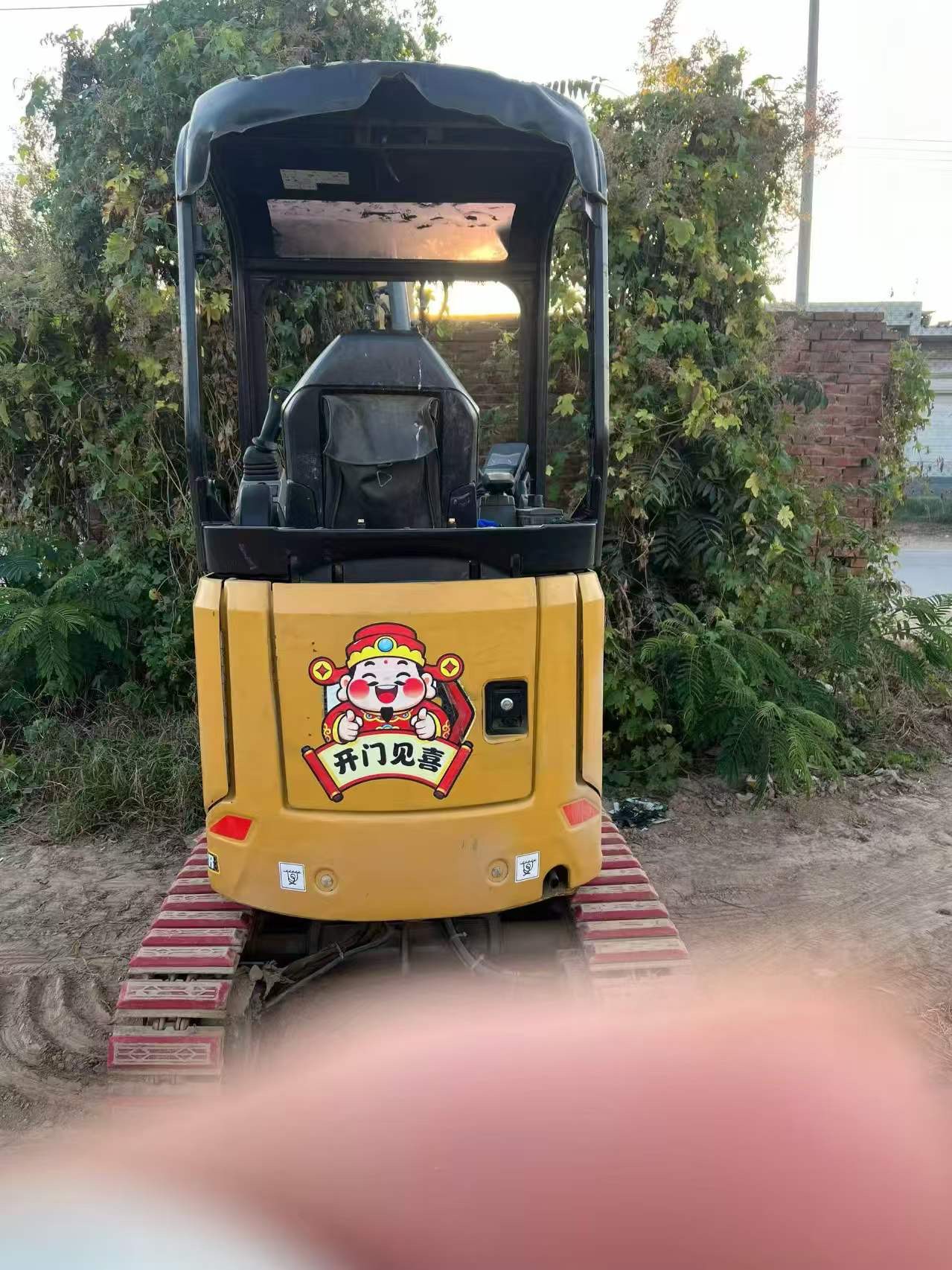

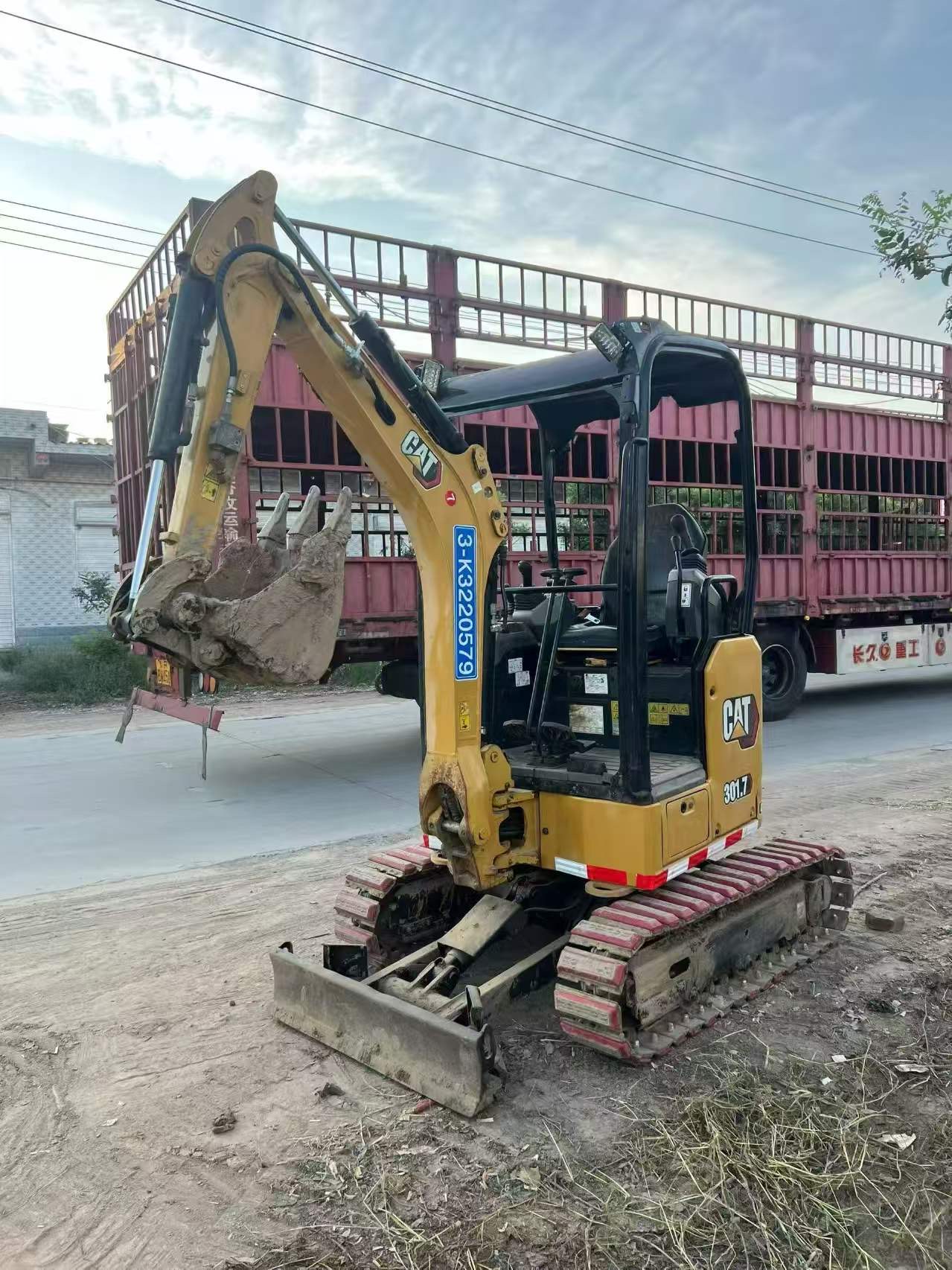

This 2020 Caterpillar 301.7CR mini excavator, currently located in Hebei, China, represents a well-maintained compact solution for confined jobsites. With complete documentation and high-specification features including auto-idle mode, this machine delivers reliable performance for contractors requiring maneuverability without sacrificing capability.

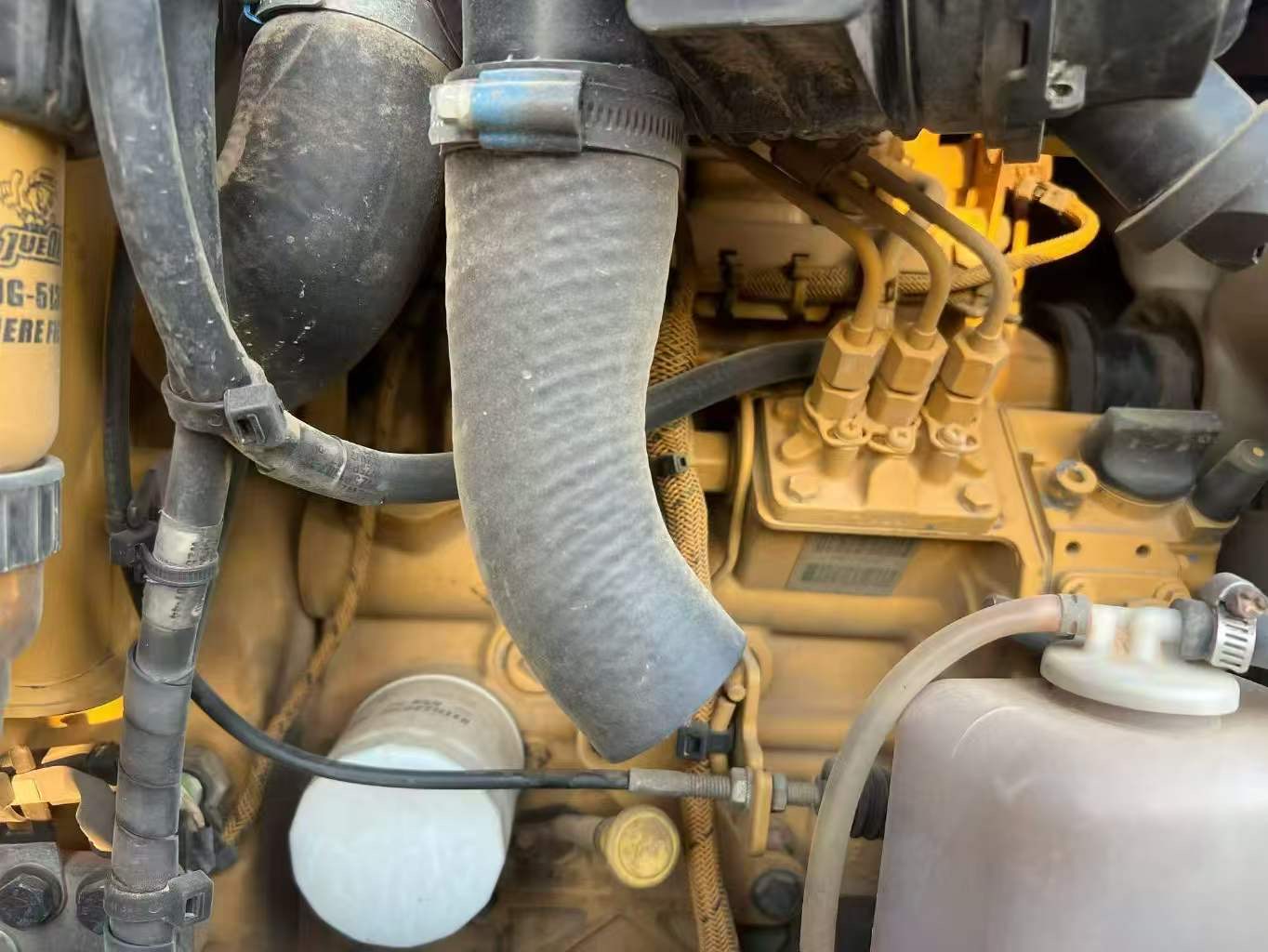

The hydraulic system operates smoothly across all functions, while the engine demonstrates strong power delivery. Major components remain in original condition with no previous rebuilds or replacements. The unit shows minimal wear with no evidence of fluid leaks, indicating consistent preventive maintenance throughout its operational history.
- Year: 2020
- Model: Caterpillar 301.7CR
- Location: Hebei, China
- Condition: Good working order
- Features: Auto-idle function, high-spec configuration
- Documentation: Complete paperwork available
| Specifications | Value |
|---|---|
| No. | 1145944 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1690.0 |
| Bucket capacity (m³) | 0.02-0.04 |
| Rod length (mm) | 940.0 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 3 tnv76 |
| Rated power (kw/rpm) | 13.2/2200 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 14.2 kN |
| Rod digging force (kN) | 8.4 kN |
| Travel speed (km/h) | 2.8-5.6 |
| Maximum flow of main pump (l/min) | 39.6 L/min |
| Traveling Hydraulic Circuit (Mpa) | 240.0 ba |
| Rotary Hydraulic Circuit (Mpa) | 180.0 bar |
| Working Hydraulic Circuit (Mpa) | 240.0 bar |
| Fuel Tank (L) | 19.0 |
| Hydraulic Tank (L) | 20.0 |
| Total transport length (mm) | 3584.0 |
| Total transport width (mm) | 1300.0 |
| Back end turning radius (mm) | 660 |
| Track ground length (mm) | 1607.0 |
| Maximum digging depth (mm) | 2321.0 |
| Maximum excavation height (mm) | 3434.0 |
| Maximum unloading height (mm) | 2441.0 |
| Maximum vertical digging depth (mm) | 1578.0 |
| Bulldozer lift or depth (mm) | 271.0 mm*390.0 mm |
| Dodging plate width × height (mm) | 990 *230.0 mm |
| Maximum excavation radius of stop surface (mm) | 3842.0 |
