2020 Caterpillar 305.5E2









Product Description

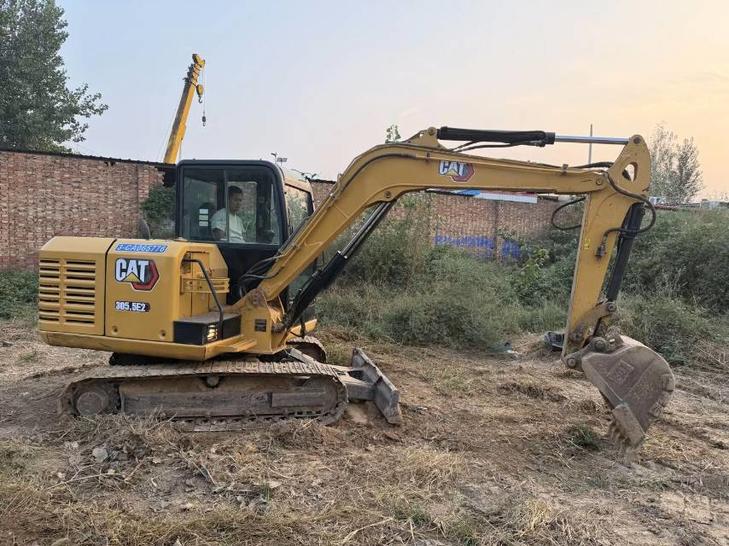

Discover the reliability and performance of the 2020 Caterpillar 305.5E2 Excavator, now available in Peking, China. This unit, known for its robust design and efficient operation, is in good condition with minimal usage. The excavator boasts a powerful engine and a hydraulic system that are both in excellent working order, ensuring smooth and efficient operations on your job site. Ideal for a variety of construction and excavation tasks, this machine is ready to meet your project needs. Self-pickup is supported, and we are open to discussing pricing to suit your budget. Contact us for more details and to request additional images.
- Year: 2020
- Brand: Caterpillar
- Model: 305.5E2
- Location: Peking, China
| Specifications | Value |
|---|---|
| No. | 1164987 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5400 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3200.0 |
| Rod length (mm) | 1500.0 |
| Bucket width (mm) | 766.0 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cat C2.4 DI |
| Rated power (kw/rpm) | 34.1 |
| Cylinder diameter × stroke (mm) | 87.0*102.4 |
| Displacement (L) | 2.4 |
| Rotation speed (rpm) | 10.5 min-1 |
| Climbing ability (%) | 50 |
| Bucket digging force (kN) | 35.0 |
| Rod digging force (kN) | 27.2 |
| Maximum tractive force (kN) | 40.2 |
| Travel speed (km/h) | 4.3/2.8 |
| Turning torque (Nm) | 13.9 N·m |
| Maximum flow of main pump (l/min) | 140.0 |
| Main pump type | Load sensing hydraulic system with variable displacement piston pump |
| Fuel Tank (L) | 78 |
| Hydraulic Tank (L) | 58 |
| Engine Oil changes (L) | 9.5 |
| Coolant (L) | 9.8 |
| Hydraulic System (L) | 85 |
| Total transport length (mm) | 5765.0 |
| Total transport width (mm) | 1950.0 |
| Total transport height (mm) | 2540.0 |
| Minimum ground clearance (mm) | 628.0 |
| Back end turning radius (mm) | 1580.0 |
| Total track length (mm) | 2440.0 |
| Track gauge (mm) | 1550.0 |
| Track plate width (mm) | 400.0 |
| Center distance of support wheel (mm) | 1920.0 |
| Maximum digging radius (mm) | 5955.0 |
| Maximum digging depth (mm) | 3720.0 |
| Maximum excavation height (mm) | 5460.0 |
| Maximum unloading height (mm) | 3835.0 |
| Maximum vertical digging depth (mm) | 2210.0 |
| Bulldozer lift or depth (mm) | 365.0/480.0 |
| Dodging plate width × height (mm) | 1950.0*360.0 |
| Maximum excavation radius of stop surface (mm) | 5830.0 |
