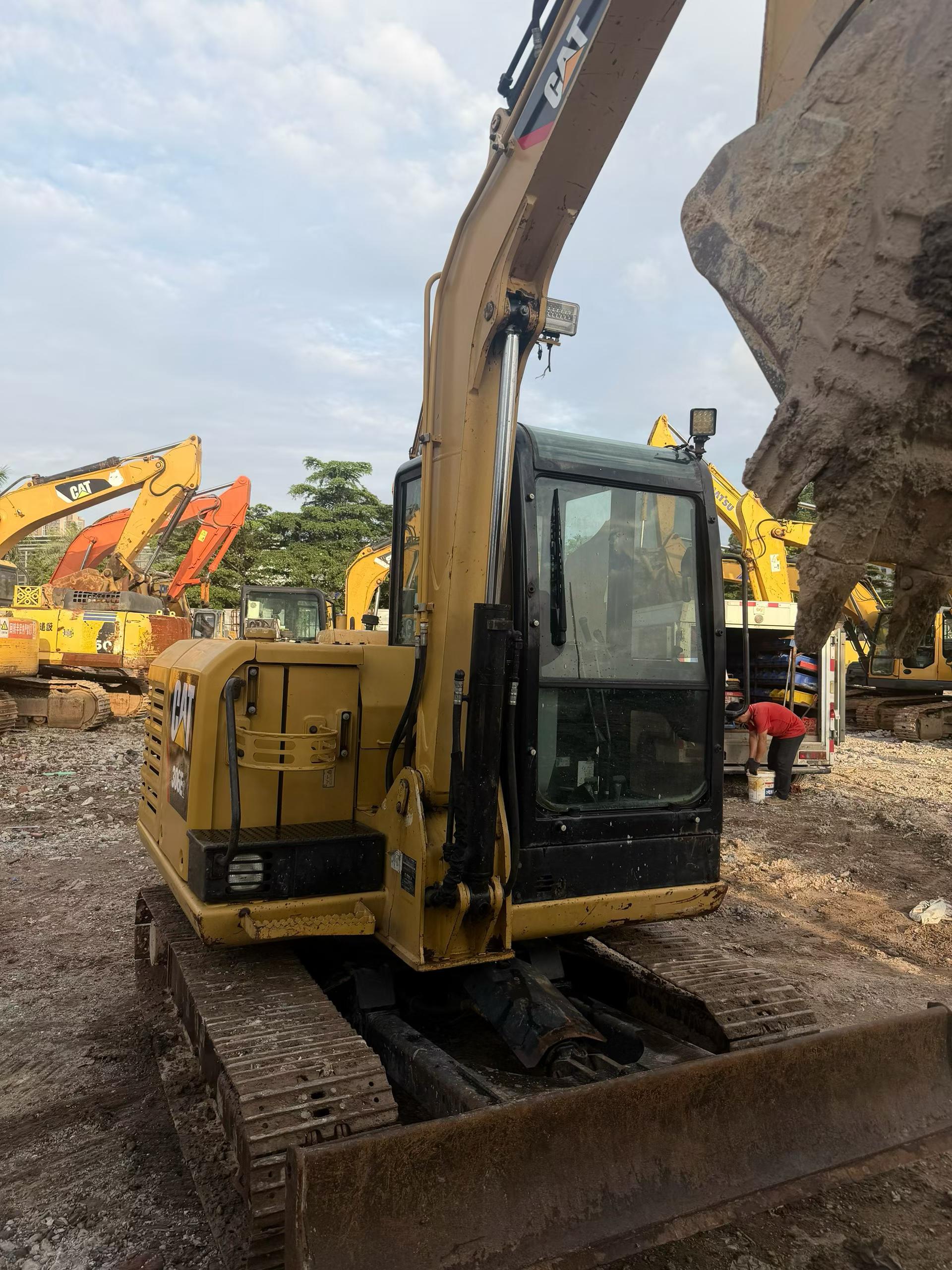

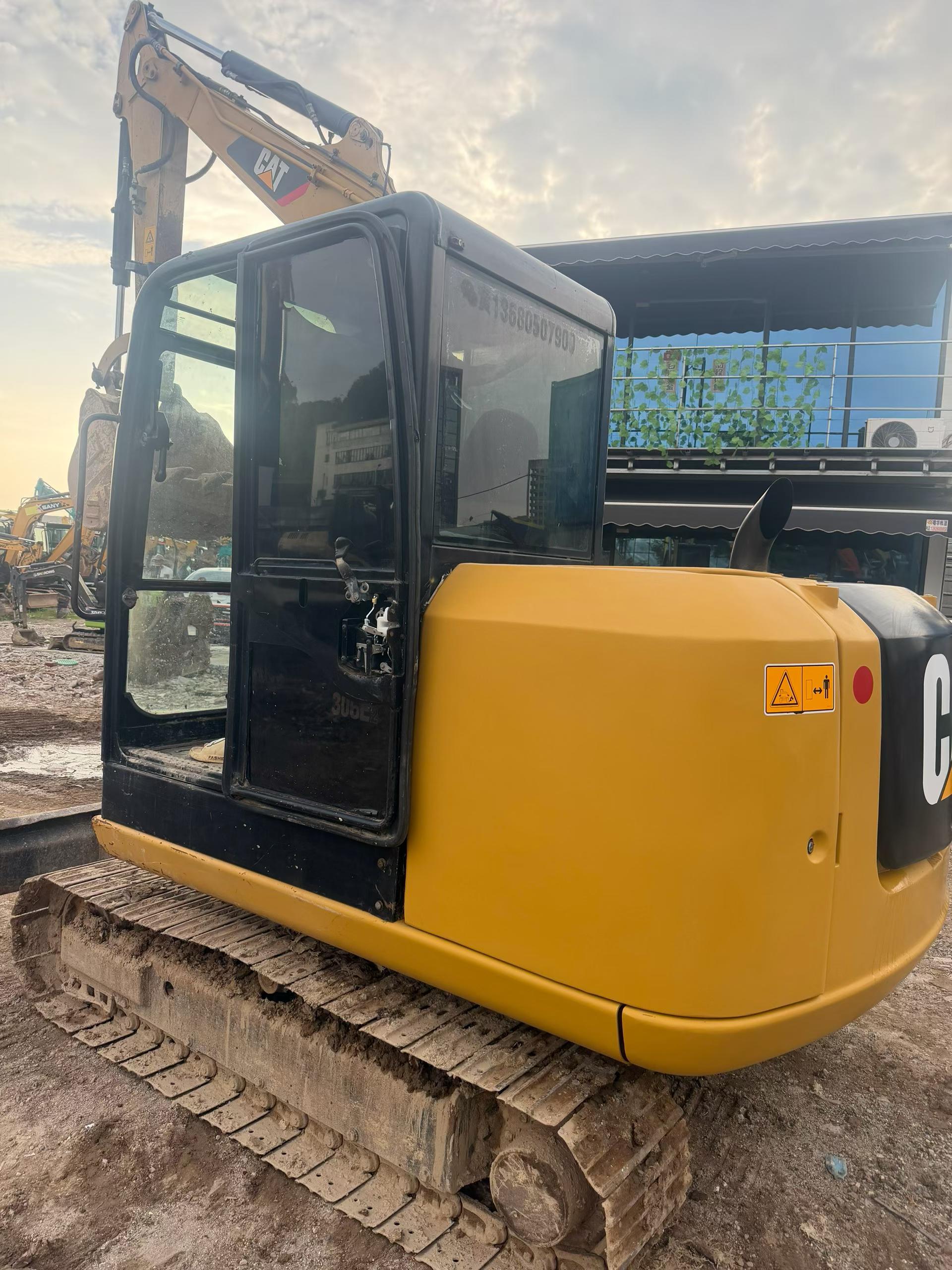

2020 Caterpillar 306D











Product Description
Discover the reliability and efficiency of the 2020 Caterpillar 306D, available in Guangdong, China. This compact excavator is a top performer, ideal for a wide range of construction and excavation tasks. Built with the robustness Caterpillar is known for, the 306D offers exceptional digging depth and reach, making it perfect for tight spaces and challenging job sites.
- Year: 2020
- Brand: Caterpillar
- Model: 306D
- Location: Guangdong, China
| Specifications | Value |
|---|---|
| No. | 1114847 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5775 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | 4M40 |
| Rated power (kw/rpm) | 41 |
| Cylinder diameter × stroke (mm) | 95 x100 |
| Rotation speed (rpm) | 8.8 RPM |
| Bucket digging force (kN) | 38.6 |
| Rod digging force (kN) | 25.5 |
| Maximum tractive force (kN) | 48.2 kN |
| Travel speed (km/h) | 4.8 km/h |
| Turning torque (Nm) | 12.3 kN·m |
| Main overflow set pressure (Mpa) | 24500 |
| Maximum flow of main pump (l/min) | 152 |
| Fuel Tank (L) | 135 L |
| Hydraulic Tank (L) | 57 L |
| Engine Oil changes (L) | 11.2 L |
| Hydraulic System (L) | 85 L |
| Track plate width (mm) | 400 mm |
see more
Overview
No.1114847
Brand Name:
CaterpillarModel Number:
306DYear:
2020
Location:
Guangdong China
Pub Date:
