2020 Caterpillar 307C

1/9
Buy Caterpillar 307C Used Excavator / 1

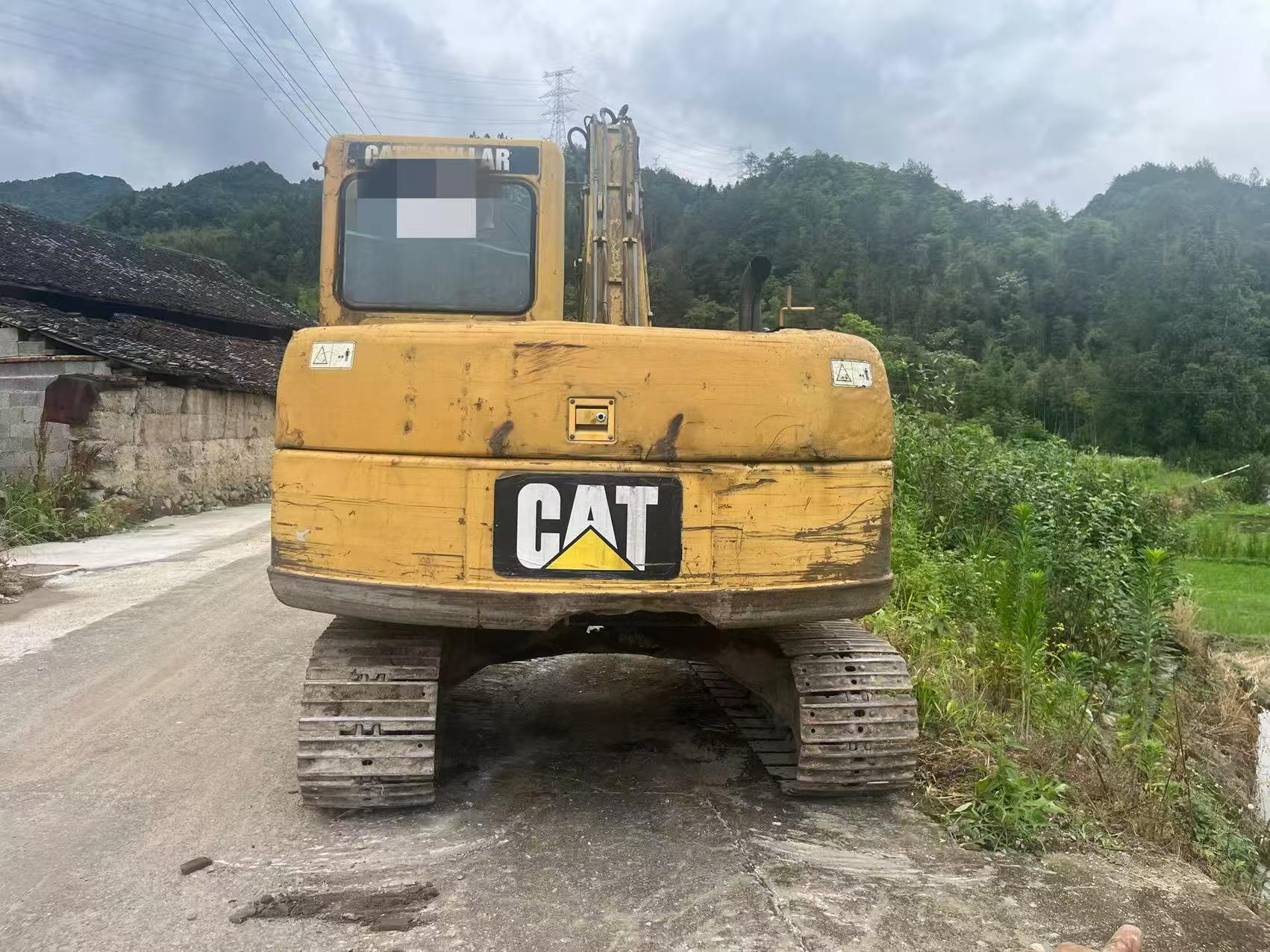

Buy Caterpillar 307C Used Excavator / 2

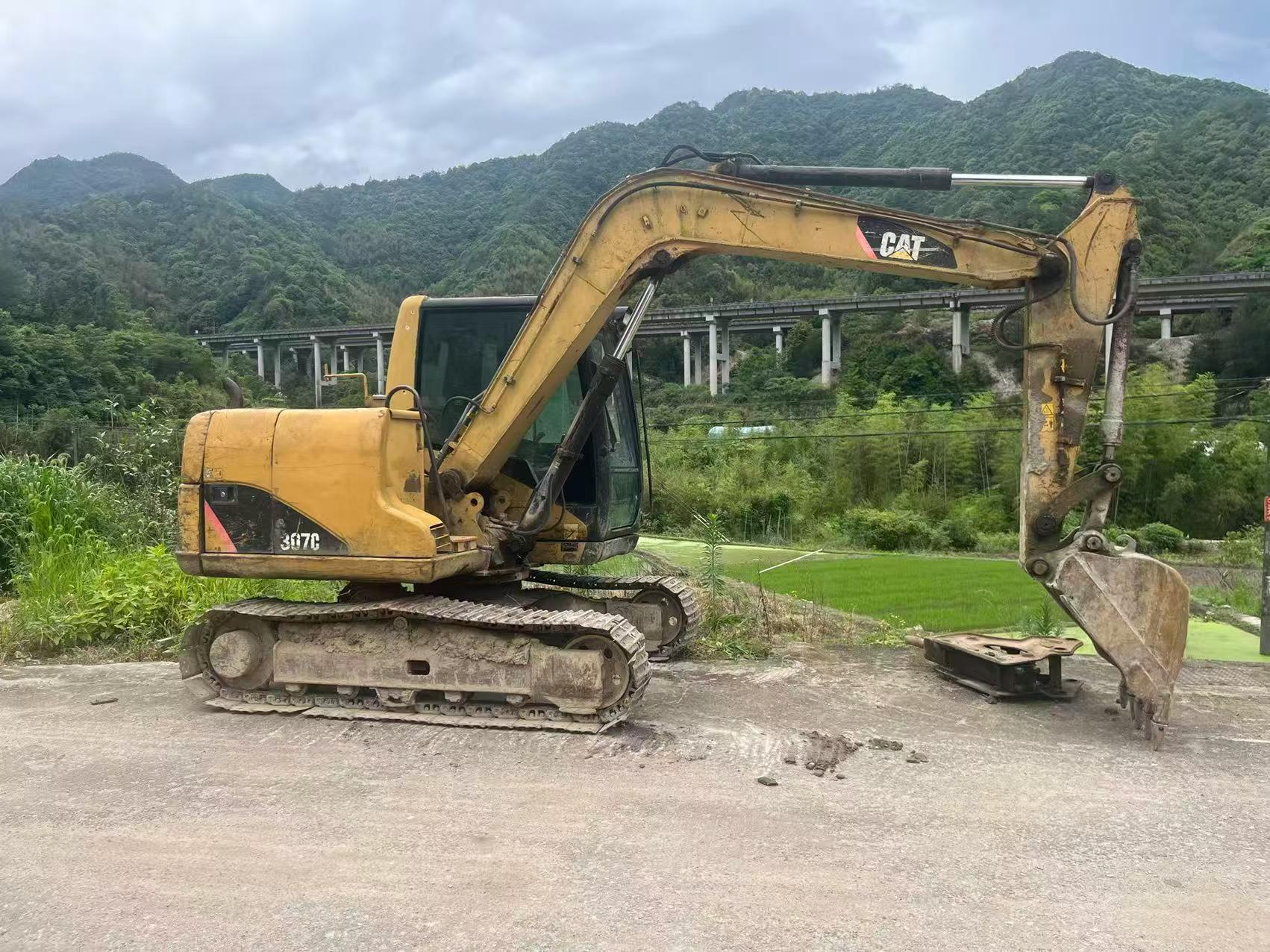

Buy Caterpillar 307C Used Excavator / 3

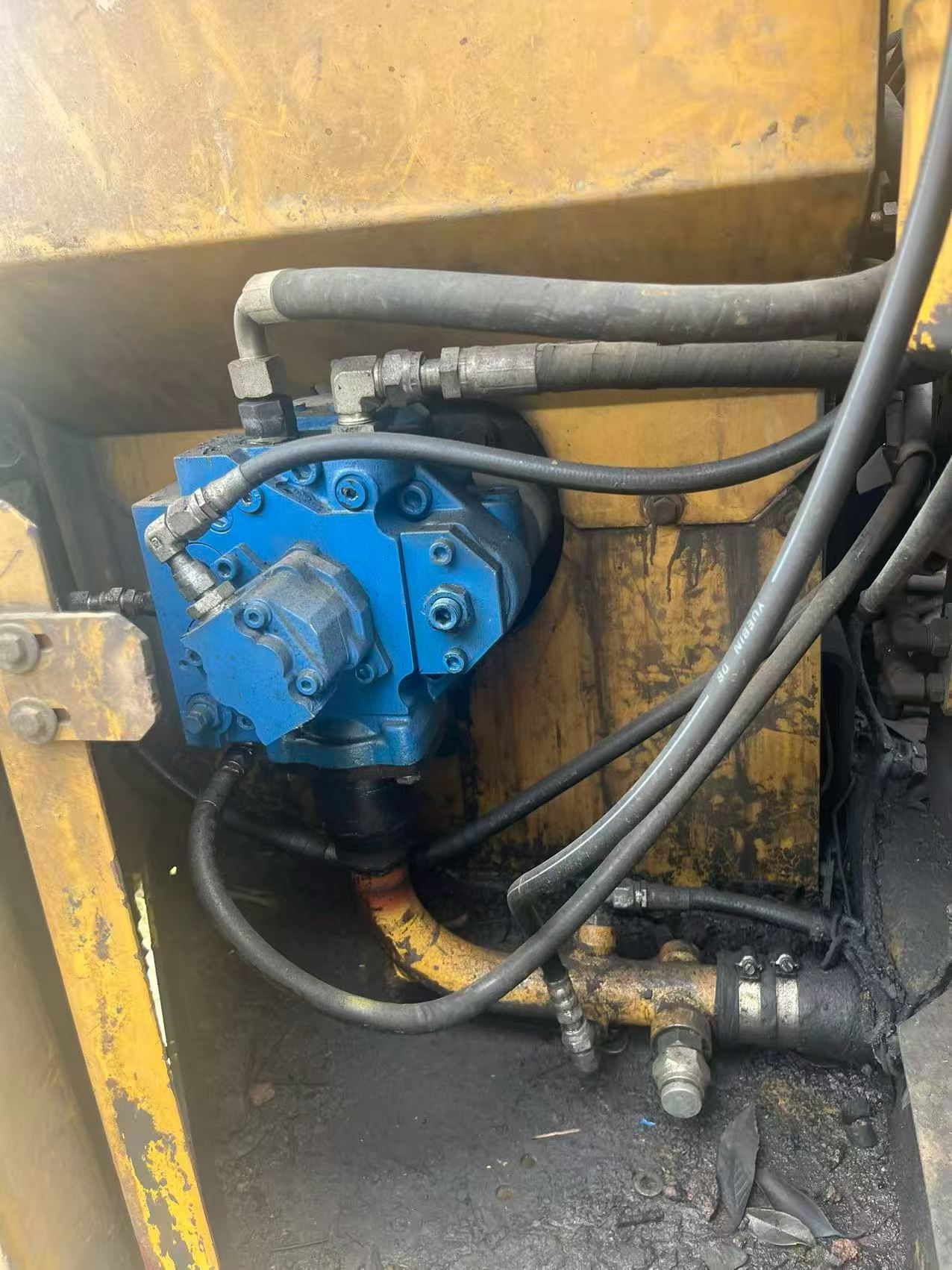

Buy Caterpillar 307C Used Excavator / 4

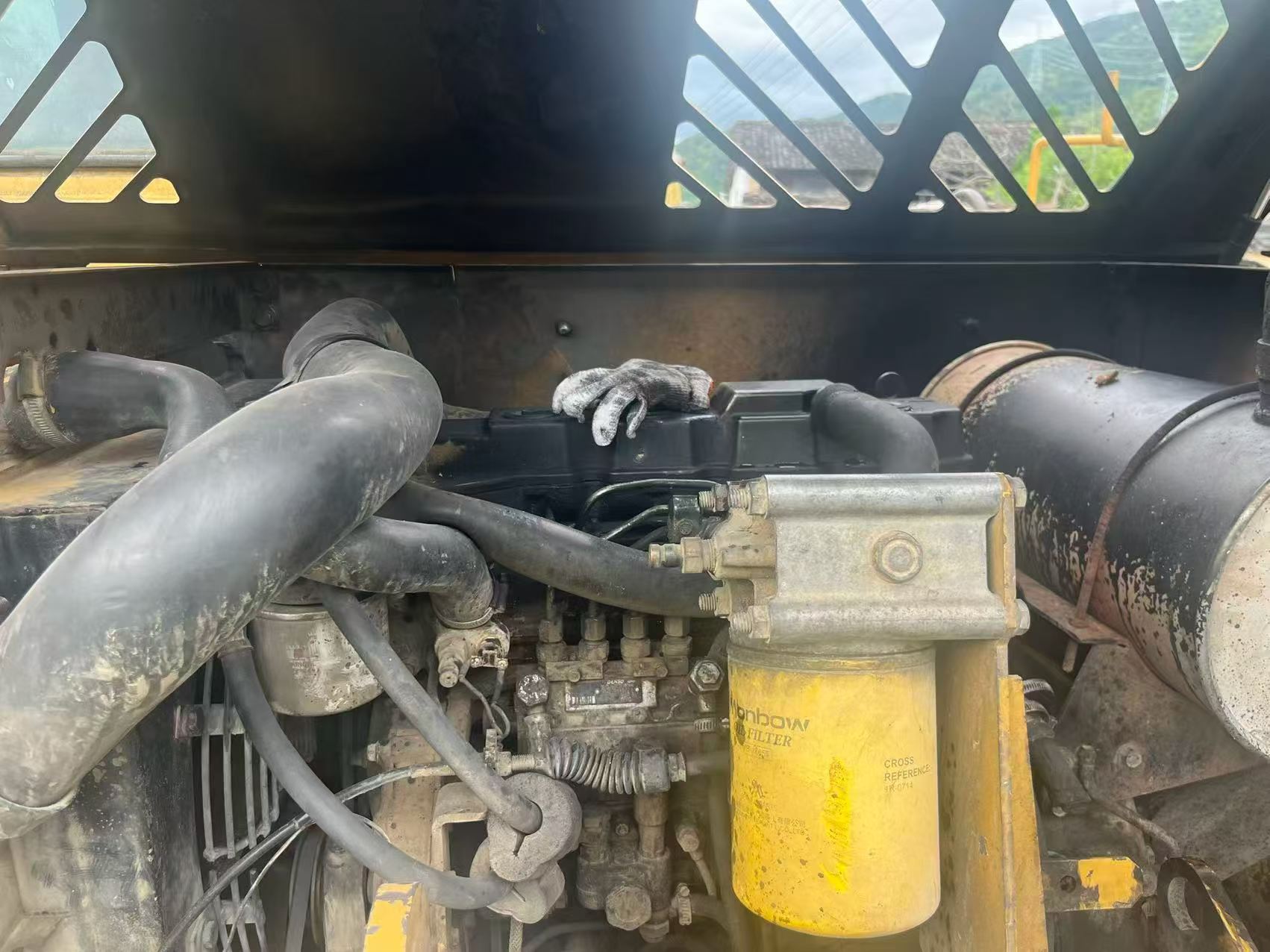

Buy Caterpillar 307C Used Excavator / 5

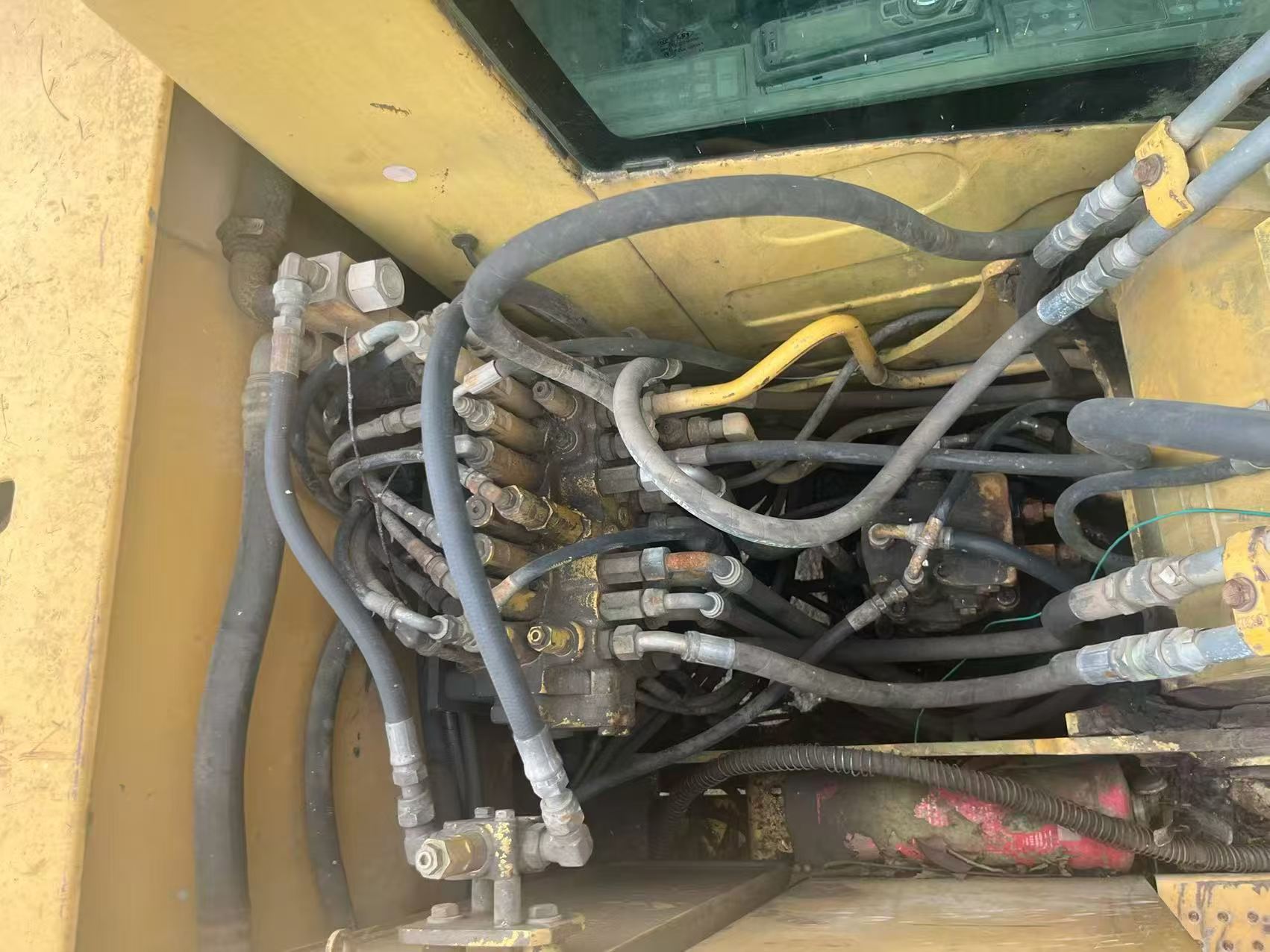

Buy Caterpillar 307C Used Excavator / 6

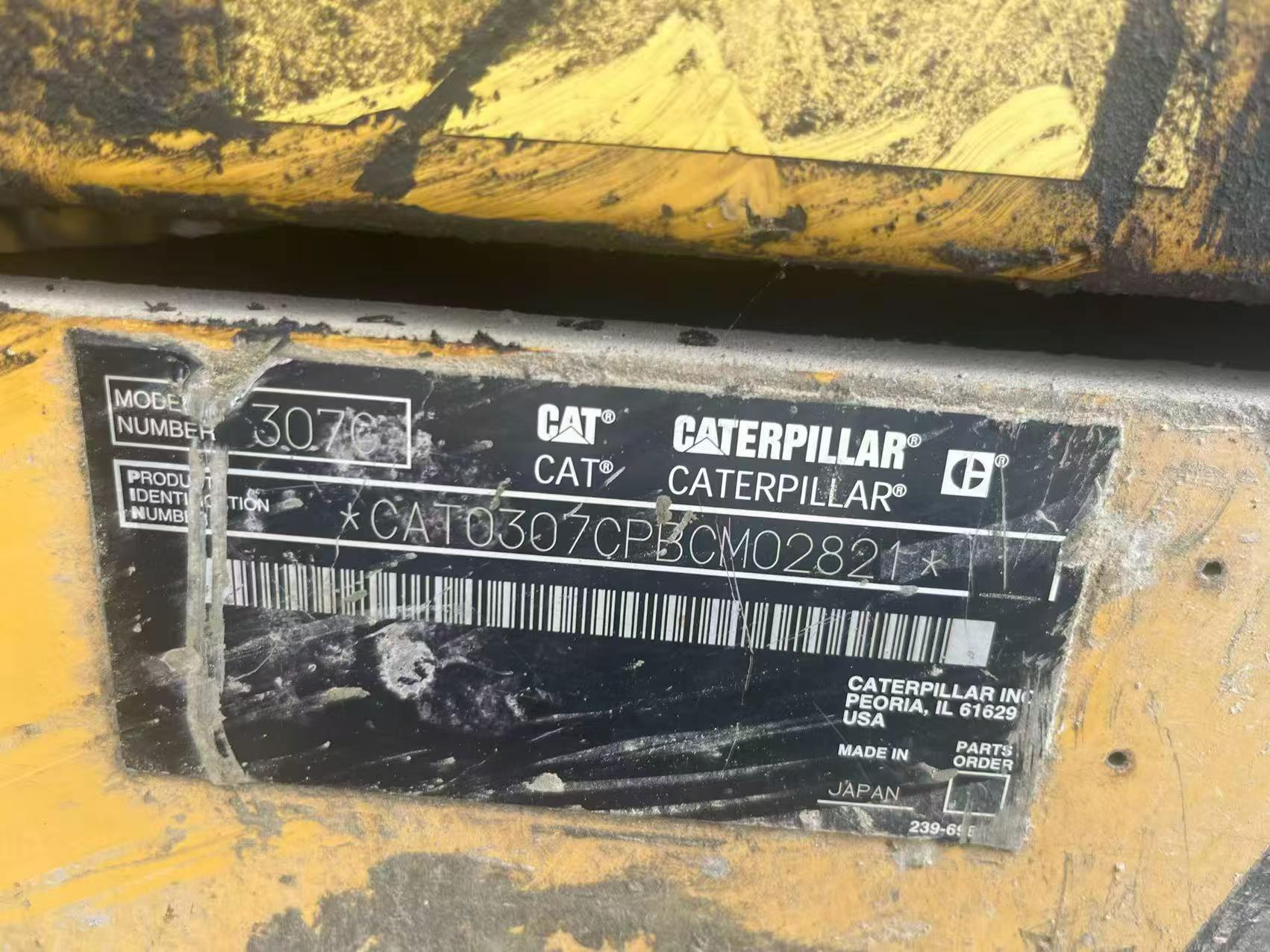

Buy Caterpillar 307C Used Excavator / 7

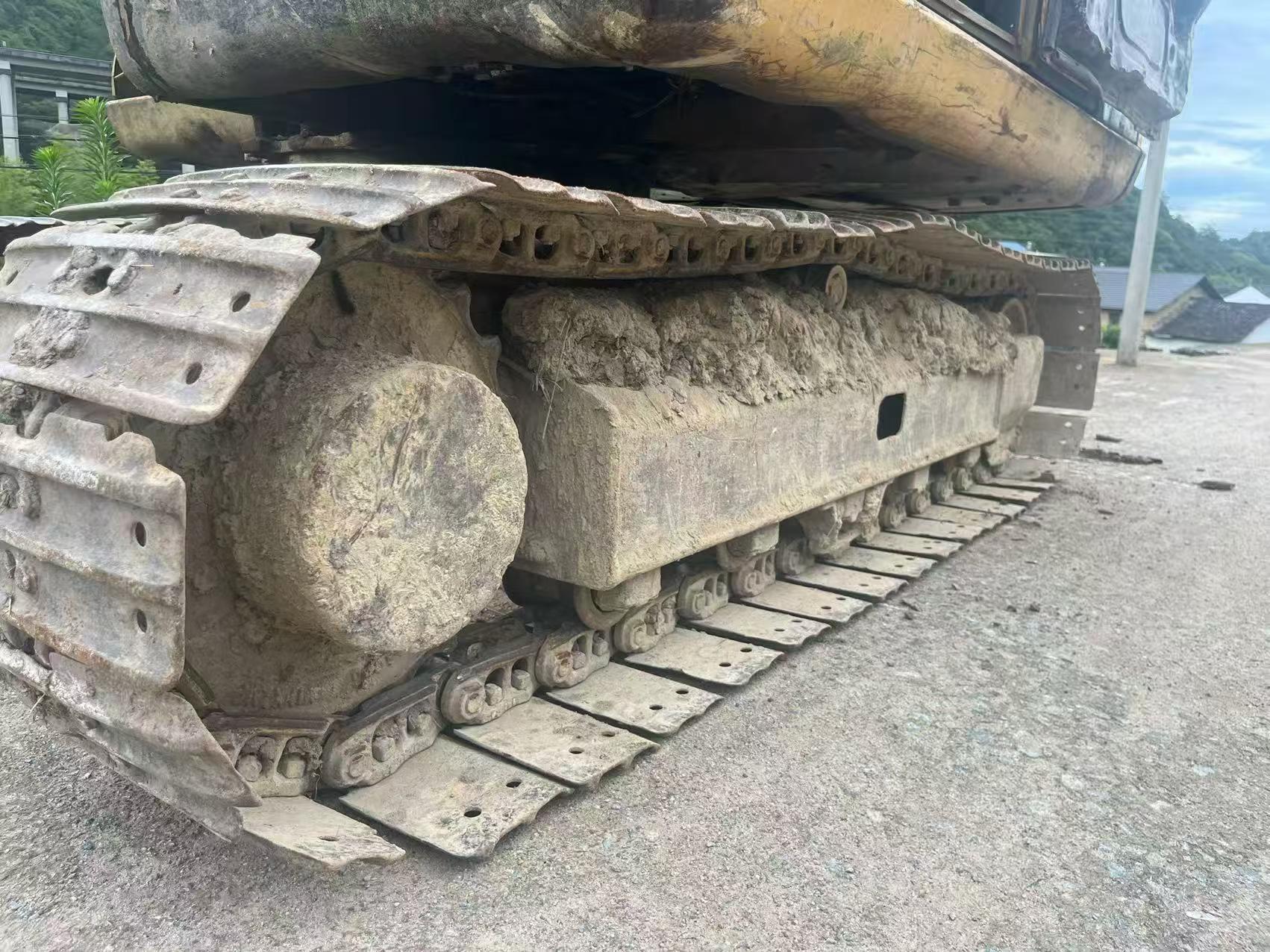

Buy Caterpillar 307C Used Excavator / 8

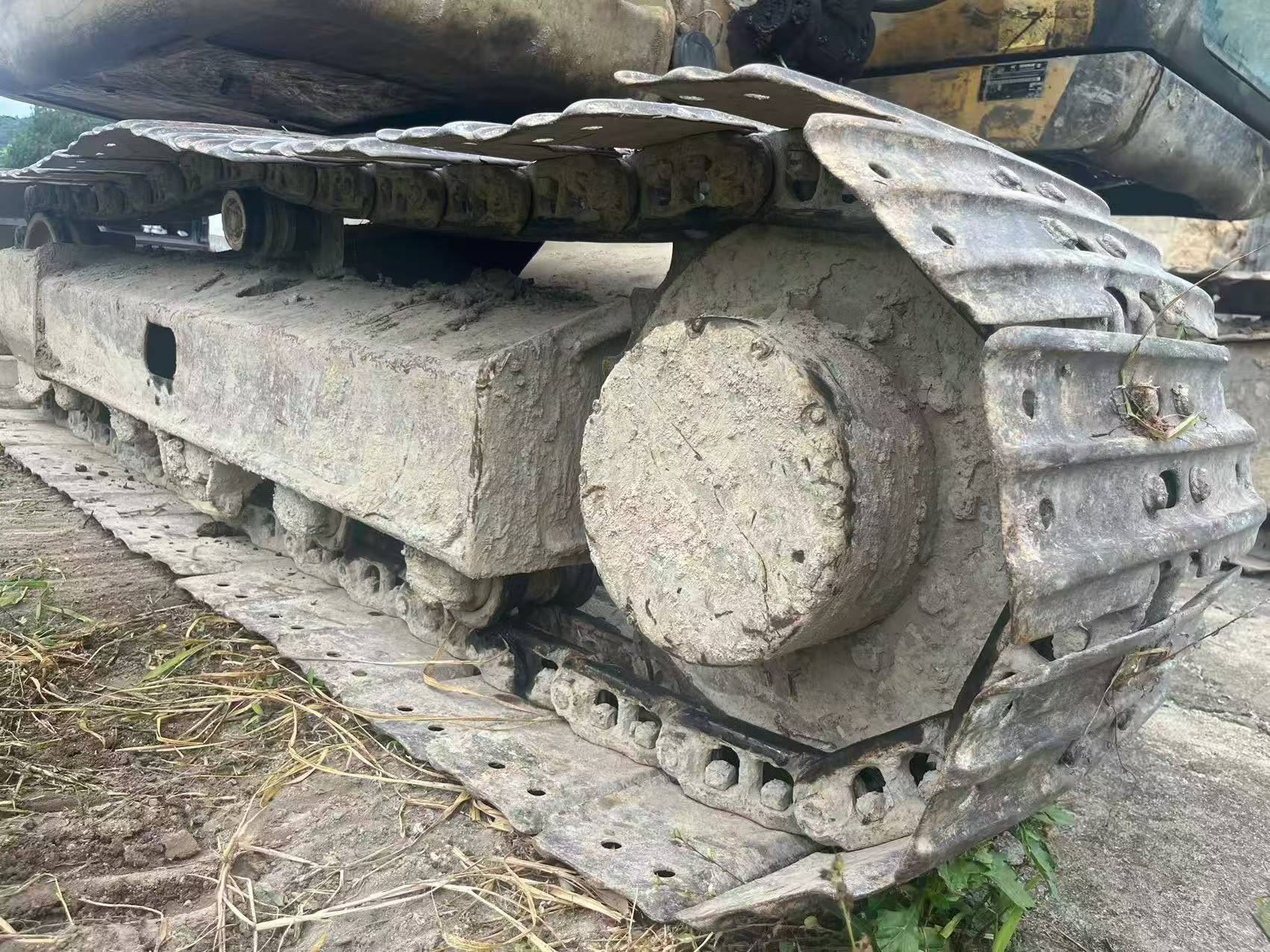

Buy Caterpillar 307C Used Excavator / 9

Product Description

This 2020 Caterpillar 307C mini hydraulic excavator is available as a single-owner machine from Zhejiang, China. The 307C is known for its compact footprint and reliable performance in construction, landscaping, and utility applications. With Caterpillar's proven hydraulic system and operator-focused cab design, this unit delivers consistent productivity in confined work areas.

Key features include:

  • Single-owner operational history
  • Located in Zhejiang Province for regional logistics efficiency
  • Compact design suitable for urban and restricted job sites
  • Caterpillar factory support and parts availability

Ideal for contractors seeking a cost-effective solution with established brand reliability. Inspection welcome. Contact us for current pricing and availability details.

SpecificationsValue
No.1082107
Tonnage (tons)7
Working weight (kg)7210
Bucket capacity (m³)0.31
Rod length (mm)1665
Country of originXuzhou
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMitsubishi 4M40E1
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)95 x 100
Number of cylinders (PCS)4
Displacement (L)2.84
Working formMeet US Tier2 and EU StageII emission requirements
Rotation speed (rpm)10
Climbing ability (%)70/35 °
Bucket digging force (kN)50.6
Rod digging force (kN)37.1
Travel speed (km/h)3.3/5.2
Maximum flow of main pump (l/min)64 x 2
Traveling Hydraulic Circuit (Mpa)31.38
Rotary Hydraulic Circuit (Mpa)19.61
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)27.46
Pilot Oil Circuit (MPa)4.12
Bucket rod cylinders - Number × diameter × stroke (mm)90 x 932
Boom cylinders - Number × diameter × stroke (mm)110 x 998
Fuel Tank (L)135
Hydraulic Tank (L)57
Engine Oil changes (L)11.2
Coolant (L)15.5
Hydraulic System (L)94(including fuel tank)
Total transport length (mm)6070
Total transport width (mm)2290
Total transport height (mm)2630
Full cab height (mm)2630
Counterweight ground clearance (mm)760
Minimum ground clearance (mm)380
Back end turning radius (mm)1750
Total track length (mm)2760
Track plate width (mm)450
Total track width (mm)2290
Maximum digging radius (mm)6340
Maximum digging depth (mm)4110
Maximum excavation height (mm)7290
Maximum unloading height (mm)5150
Maximum vertical digging depth (mm)3640
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)6200
see more

Overview

No.1082107

Brand Name:

Caterpillar

Model Number:

307C

Year:

2020

Location:

Zhejiang China

Pub Date
