2020 Caterpillar 307C











Product Description

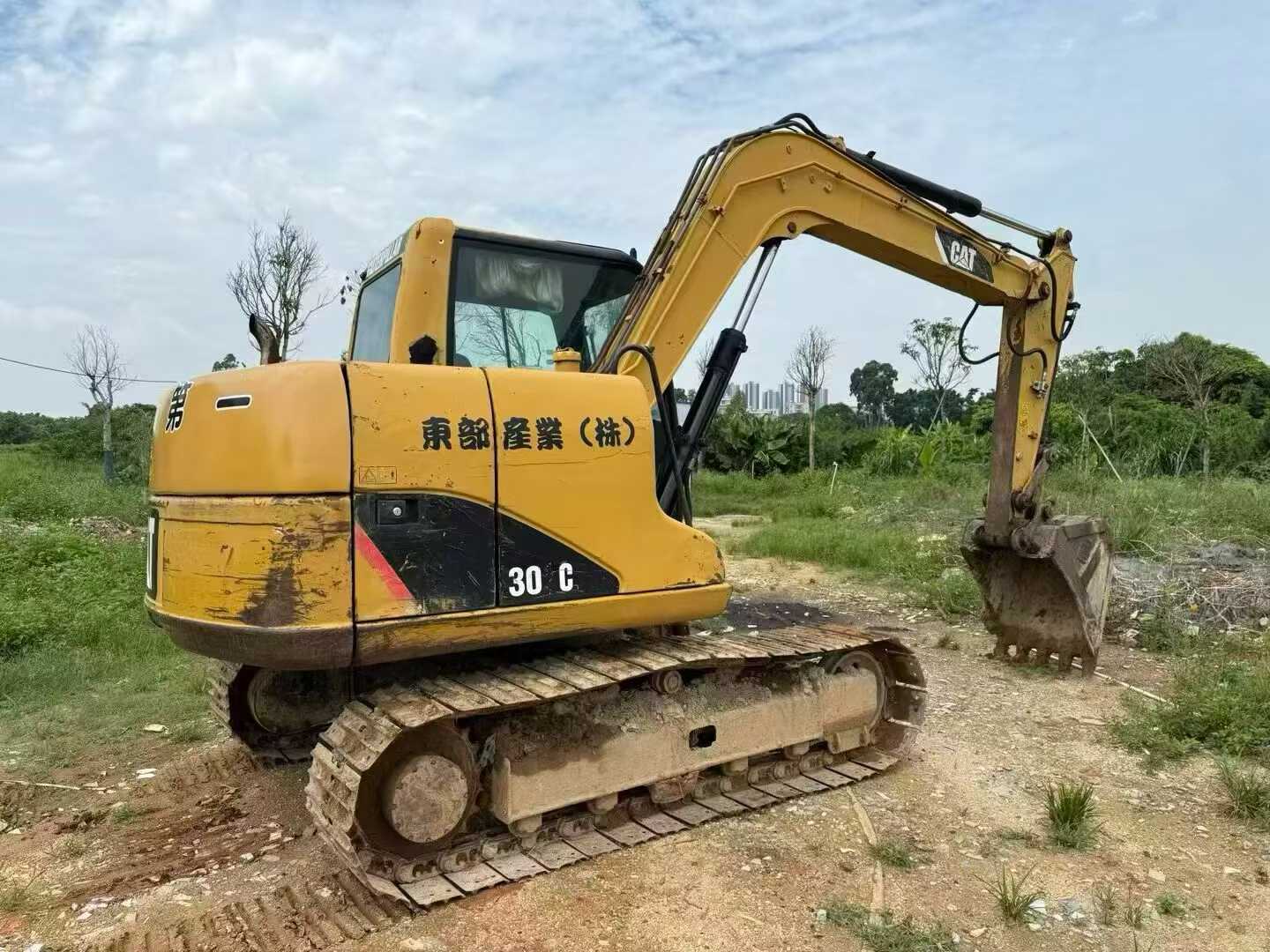

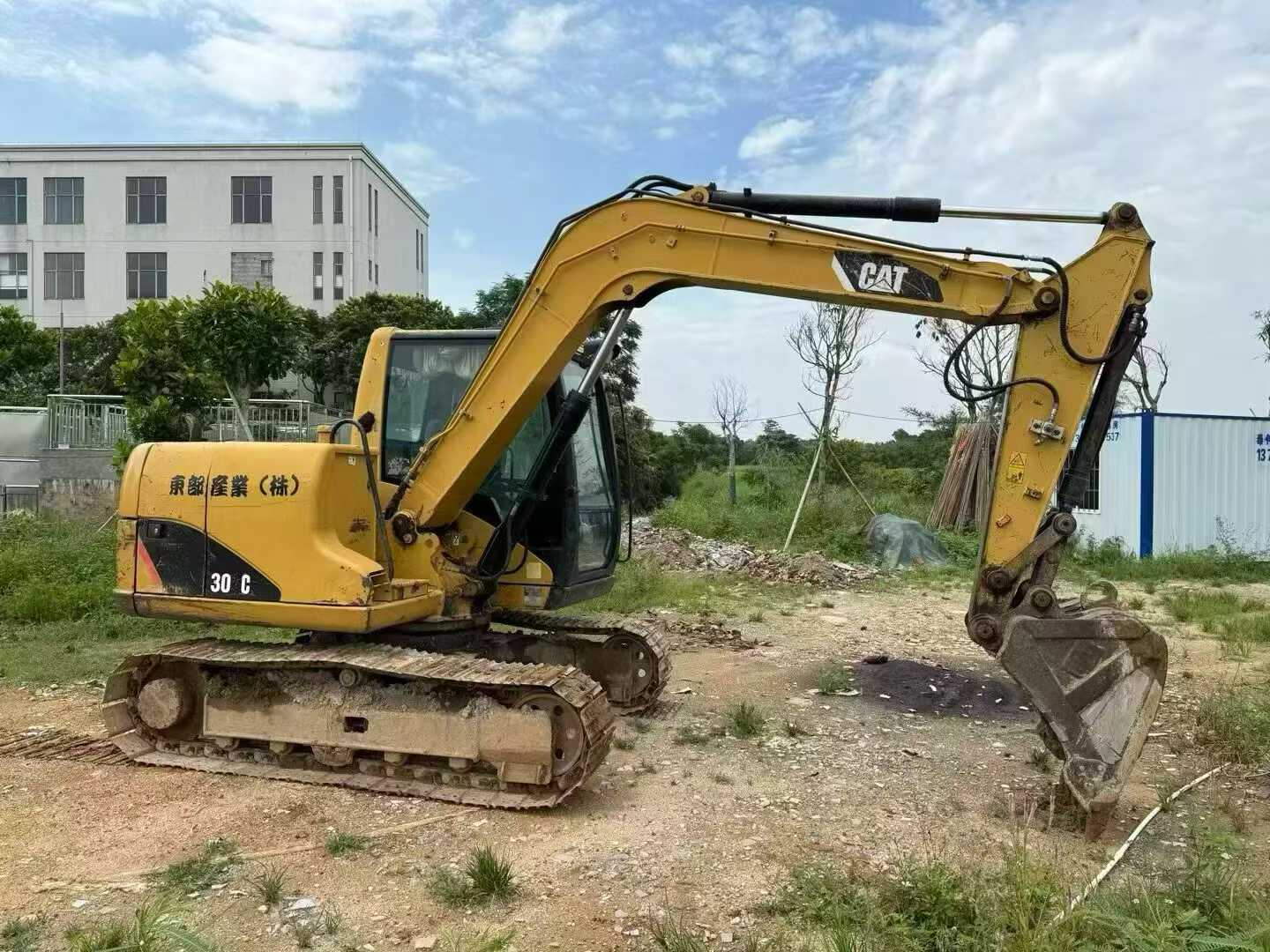

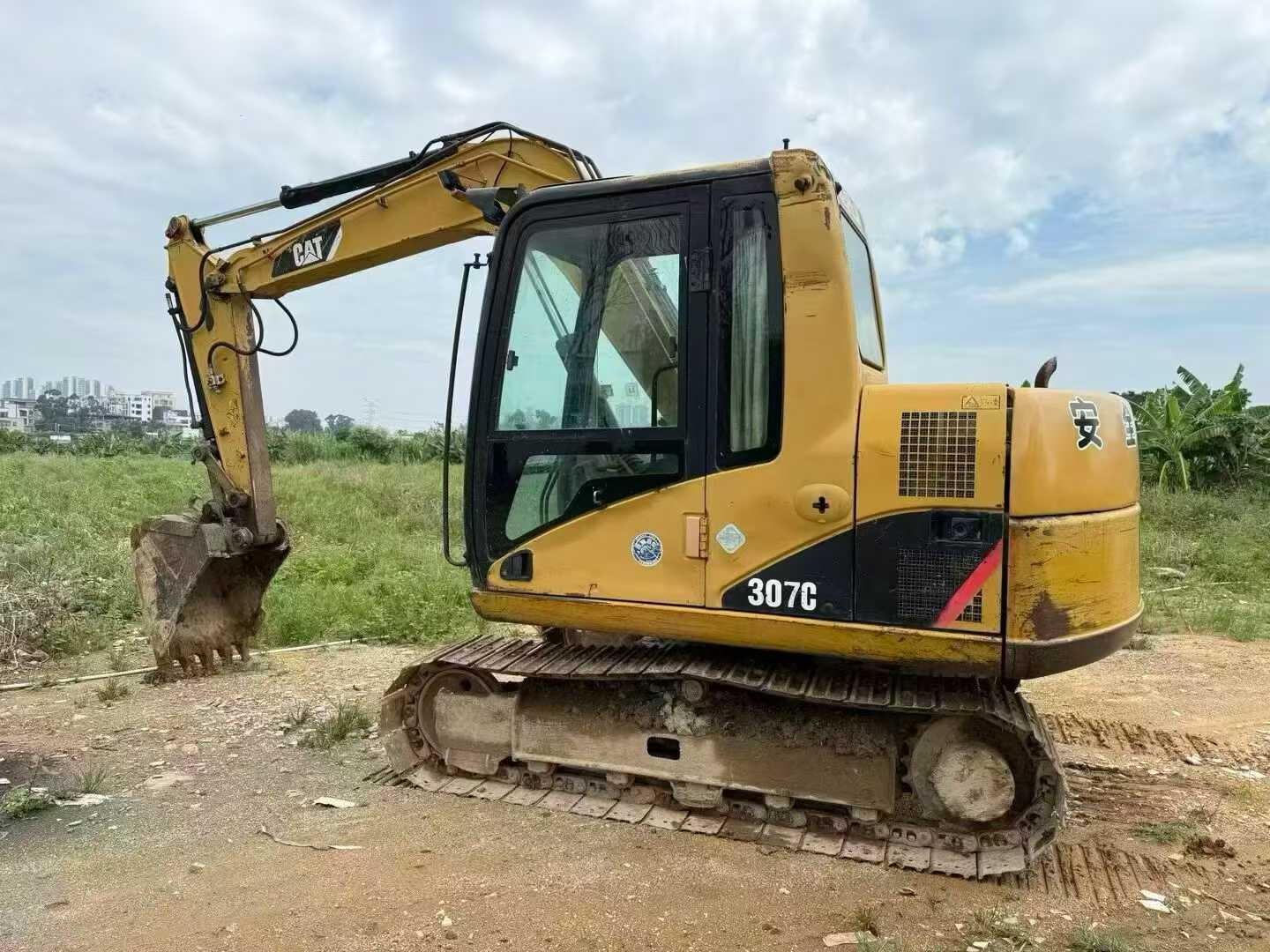

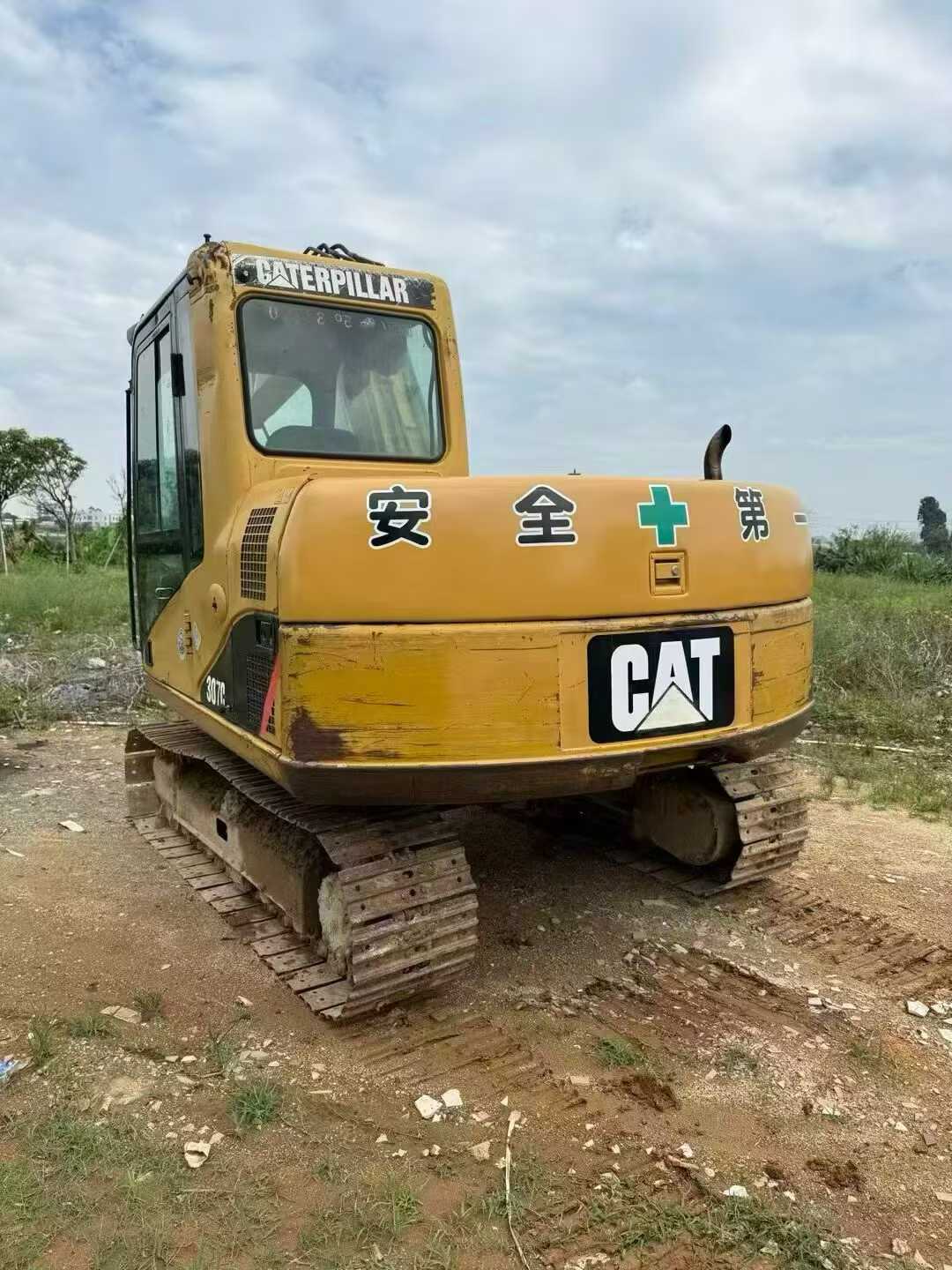

Well-maintained 2020 Caterpillar 307C mini hydraulic excavator available in Guangdong, China. This compact machine delivers reliable performance for urban construction, landscaping, and utility work where maneuverability matters. The 307C features a tight tail swing radius for confined jobsites, standard hydraulic thumb compatibility, and Caterpillar's proven powertrain for consistent fuel efficiency.
Currently priced at competitive rates for direct buyer inquiries. Machine is located in the Zhanjiang area and available for on-site inspection and operational testing.
- Year: 2020
- Model: Caterpillar 307C
- Category: Mini Excavator
- Location: Guangdong Province, China
- Condition: Used, operational
- Inspection: Available by appointment
Contact us to schedule a demonstration or discuss transport logistics to your location.
| Specifications | Value |
|---|---|
| No. | 1145304 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7210 |
| Bucket capacity (m³) | 0.31 |
| Rod length (mm) | 1665 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 4M40E1 |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95 x 100 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.84 |
| Working form | Meet US Tier2 and EU StageII emission requirements |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 50.6 |
| Rod digging force (kN) | 37.1 |
| Travel speed (km/h) | 3.3/5.2 |
| Maximum flow of main pump (l/min) | 64 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 31.38 |
| Rotary Hydraulic Circuit (Mpa) | 19.61 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 27.46 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 90 x 932 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 998 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 57 |
| Engine Oil changes (L) | 11.2 |
| Coolant (L) | 15.5 |
| Hydraulic System (L) | 94(including fuel tank) |
| Total transport length (mm) | 6070 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2760 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2290 |
| Maximum digging radius (mm) | 6340 |
| Maximum digging depth (mm) | 4110 |
| Maximum excavation height (mm) | 7290 |
| Maximum unloading height (mm) | 5150 |
| Maximum vertical digging depth (mm) | 3640 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 6200 |
