2020 Caterpillar 307C
Product Description

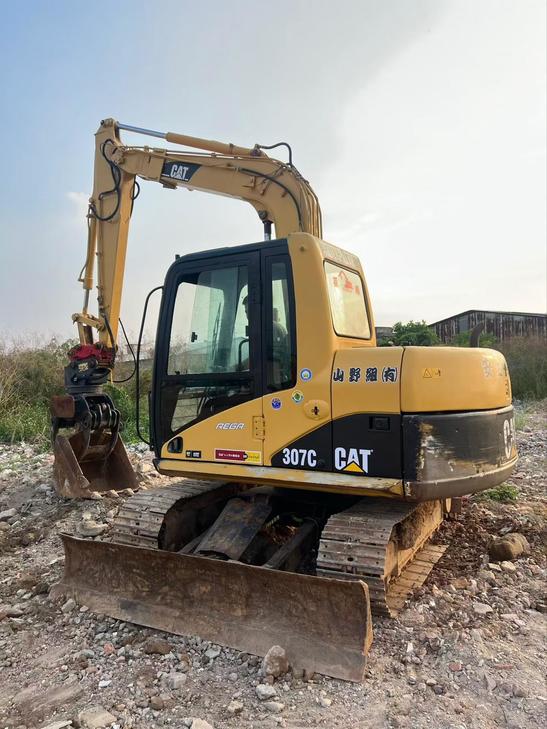

Presenting a 2020 Caterpillar 307C, available for purchase in Guangxi, China. This versatile mini excavator is equipped with new chains, an extended arm, and comes with a clamp and a winch, enhancing its utility on diverse job sites. Ideal for construction, landscaping, and utility work, this machine offers reliable performance and durability. Priced at 78,000 RMB, it includes comprehensive documentation and video materials for your review. Contact us to secure this robust and well-maintained piece of equipment for your fleet.
- Year: 2020
- Brand: Caterpillar
- Model: 307C
- Location: Guangxi, China
- Features: New chains, extended arm, clamp, and winch
- Price: 78,000 RMB
- Included: Documentation and video materials
| Specifications | Value |
|---|---|
| No. | 1166139 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7210 |
| Bucket capacity (m³) | 0.31 |
| Rod length (mm) | 1665 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 4M40E1 |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95 x 100 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.84 |
| Working form | Meet US Tier2 and EU StageII emission requirements |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 50.6 |
| Rod digging force (kN) | 37.1 |
| Travel speed (km/h) | 3.3/5.2 |
| Maximum flow of main pump (l/min) | 64 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 31.38 |
| Rotary Hydraulic Circuit (Mpa) | 19.61 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 27.46 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 90 x 932 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 998 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 57 |
| Engine Oil changes (L) | 11.2 |
| Coolant (L) | 15.5 |
| Hydraulic System (L) | 94(including fuel tank) |
| Total transport length (mm) | 6070 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2760 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2290 |
| Maximum digging radius (mm) | 6340 |
| Maximum digging depth (mm) | 4110 |
| Maximum excavation height (mm) | 7290 |
| Maximum unloading height (mm) | 5150 |
| Maximum vertical digging depth (mm) | 3640 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 6200 |
